Preview: Xona Maxima Basic Unit 150FF 35/50-840-9500LM 190lm/W

Xona Maxima Basic Unit 150FF 35/50-840-9500LM 190lm/W

Product Info (PDF)

Order number: LG31458PSHE.2

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Menü schließen

Order number: : LG31458PSHE.2
Luminous Flux: 9500 lm
Power Draw: Power Select (35, 40, 45, 50 W)
Light Color: neutralwhite (4000 K)
Input Current: AC 220-240V, 50/60Hz, DC 220-240V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 40

Beam Angle: 120°
LED-Chip: EBRIGHT SMD 2835
Housing Color: white
Dimensions: 1499x70x40 mm
Warranty: 5 years

Luminous Flux

9500
lm

Power Draw

50 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 40

Beam Angle

120°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1499x70x40

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED llinear light system The Basic Edition is the most cost effective version of... more

Close menu

Product information "Xona Maxima Basic Unit 150FF 35/50-840-9500LM 190lm/W"

LED llinear light system

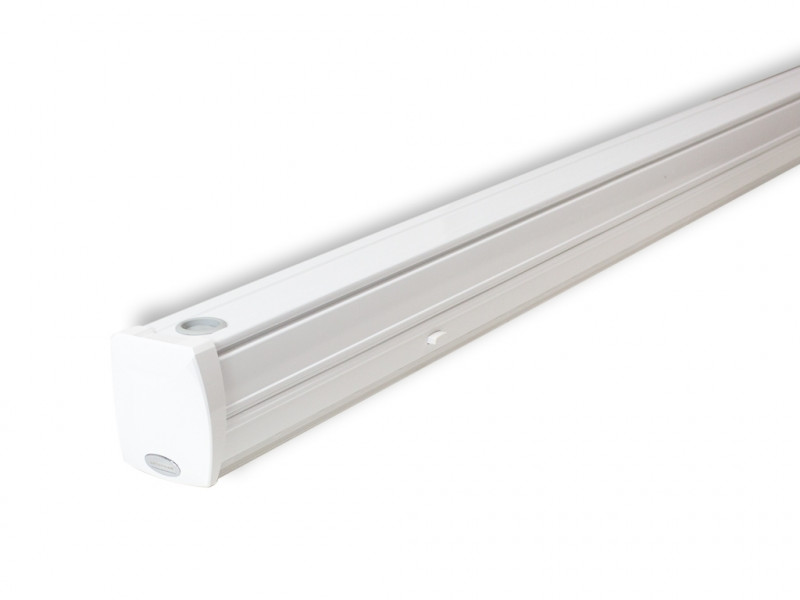

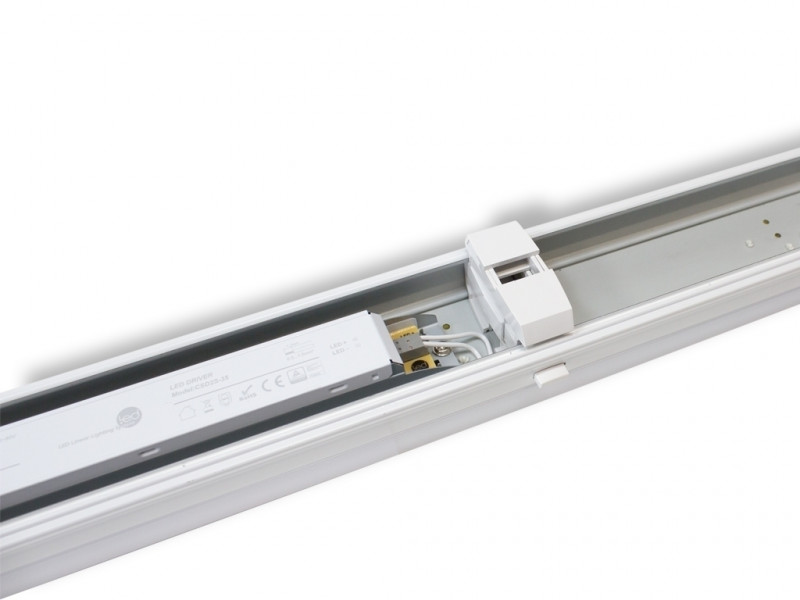

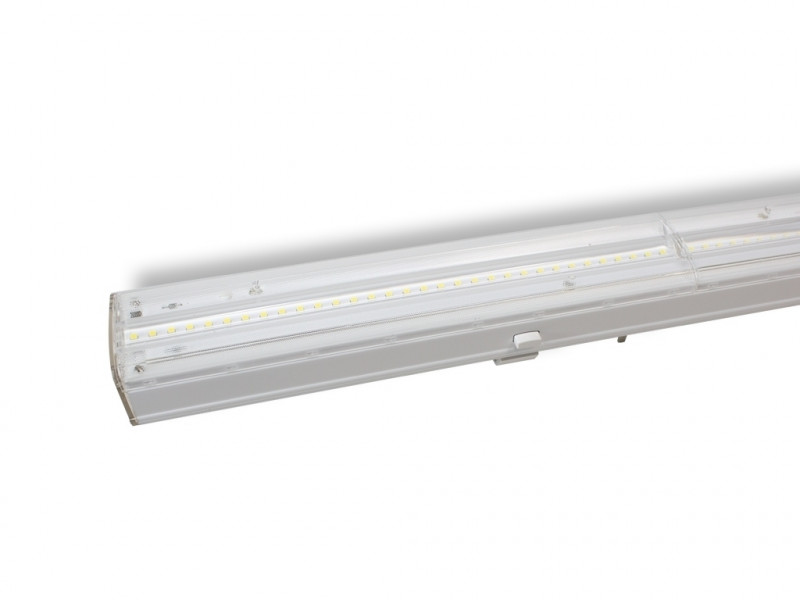

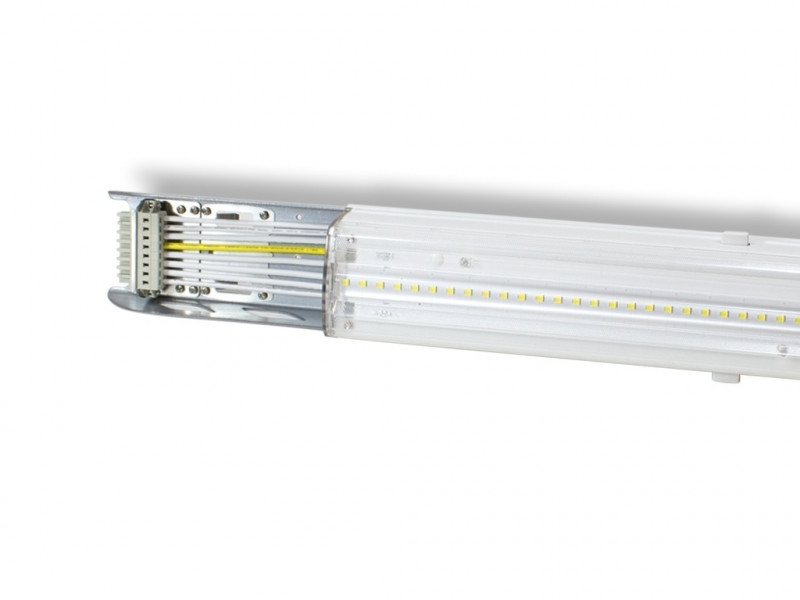

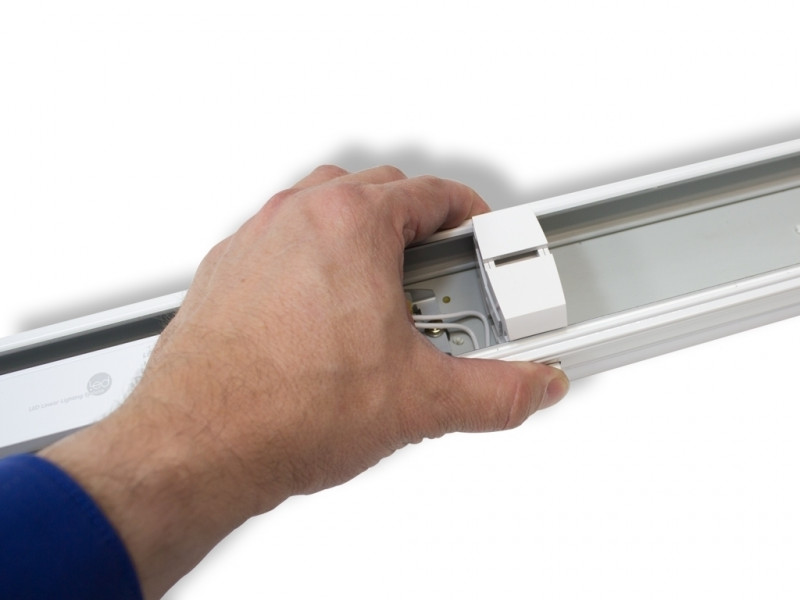

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 190 lumens / watt, this system not only convinces with its technical best values but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.

Application:

industry and warehouse
sales areas and exhibition
office and workshop

Advantages:

output select: 35, 40, 45, 50W
fast, cost-effective installation
high power savings through excellent system efficiency 190lm/W max.
long life (70,000h) and very low maintenance costs
optional Dimming via Dali, 1-10V or sensors
emergency Capable

Accesories:

Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets

Related links to "Xona Maxima Basic Unit 150FF 35/50-840-9500LM 190lm/W"

Zurück

Technical Details:

Luminous Flux:	9500 lm
Light Yield:	190 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	120 °
Unified Glare Rating (UGR):	22
Light Emission:	downward
LED-Chip Manufacturer:	EBRIGHT
LED-Chip:	SMD 2835
Number of LED:	245
Ignition Time:	<0,5 s

Input Current:	AC 220-240V, 50/60Hz, DC 220-240V
Power Consumption:	Power Select (35, 40, 45, 50 W)
Contains Driver:
Driver Manufacturer:	Litegear
Power Factor (PF):	>0.95
Input Driver:	terminal
Output of Driver:	DC 85-160V, 245-350mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	plug connector
Switching Cycles:	>100.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-25°C - 55°C
Storage Temperature:	-40°C - 85°C

Dimensions:	1499x70x40 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	40
IK Code:	03
Housing Color	white
Housing Color (RAL Code):	similar 9016
Housing Material:	steel
Coating:	coated
Cover:	clear
Net Weight:	1650 g

Dimensions of Packaging:	1570x430x210
Weight incl. Packaging:	1.85 kg
Content Master Package:	10
Dimensions of Master Package:	1570x430x210 mm
Weight Master Package:	18,5 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>60.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,TÜV,ENEC,LM80,D
Barcode:	4250557825557
Output Select: 35, 40, 45, 50W
maximal 190 Lumen/Watt
Leuchten pro Leitungsschutzschalter
B16 13x /C16 17x / A16 10x

Technical Data Sheet (PDF)

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more

Zurück

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 55°C
Lichtstrom: 9500 lm
LED-Leistung: Power Select (35, 40, 45, 50 W)
Leuchten-Lichtausbeute: 190 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 1499x70x40 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white (9016)
Gehäusematerial: Stahl
Gehäusebeschichtung: beschichtet
Abdeckung: klar
Nettogewicht: 1650 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 60000 h
