Xona Maxima Basic 3h Battery Emergency Modul 1U 8-wire
Order number: LG31767
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Maxima Basic Batterie Emergency Light modujle for Escape route lighting ... more
Product information "Xona Maxima Basic 3h Battery Emergency Modul 1U 8-wire"
Maxima Basic Batterie Emergency Light modujle for Escape route lighting

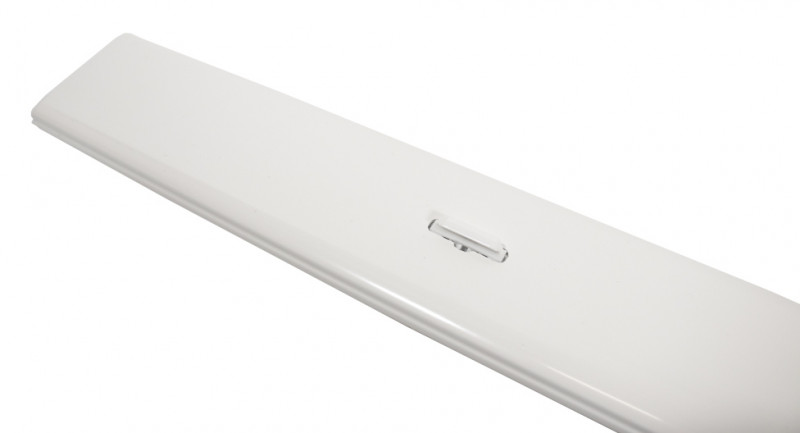

- Integrated emergency light in a 1,5m blank cover
- Luminous Flux: 270lm sysmmetric beamangle 145°x75° for corridors in supermarkets and warehouses
- Power: 3W, 4000K
- Batterie duration time: selectable 1 / 3h
- Auto matic selftest function with Status LED
- optional IR remote for external sontrol of the luminaire from the ground position

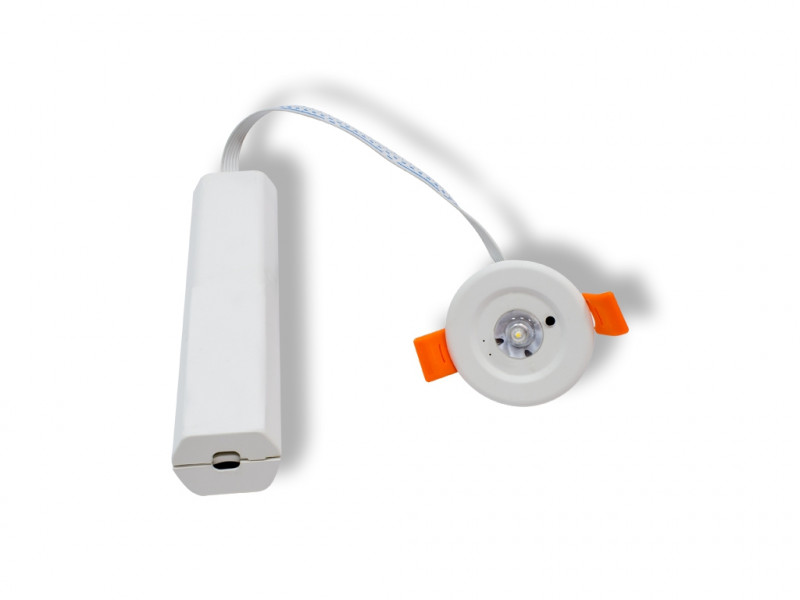

- Steel cover with recessed escape route light and battery supply, battery is exchangeable
- 8 wire: for permanent power feeding and control + optional Dali control

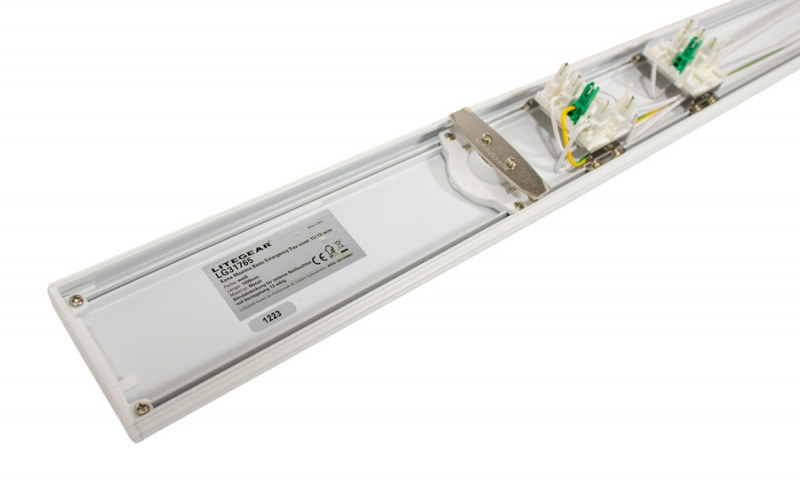

- Including 2 turn lockers, pick up connector to trunking rail
Related links to "Xona Maxima Basic 3h Battery Emergency Modul 1U 8-wire"
Technical Details:
| Luminous Flux: | 270 lm |
| Light Yield: | 90 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 145x75 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Tiandian |
| LED-Chip: | SMD 5050 |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 90mA, 50Hz |
| Power Consumption: | 3 W |
| Power Factor (PF): | >0.5 |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 1499x70x20 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 |
| IK Code: | 06 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | integr. Batterienotlicht |
| Cover: | Lens |
| Net Weight: | 353 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | Li-Ion |
| Battery Current: | 5000 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 8 W |
| Battery Cell Quantity | 2 |
| Luminous Flux in Battery Mode: | 270 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Certified By: | LIA |
| Weight incl. Packaging: | 0.425 kg |
| Content Master Package: | 12 |
| Weight Master Package: | 6 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405920090 |
| Certifications | CE |
| Barcode: | 4250557825083 |
| Blindmodul mit integr. Batt.Fluchtwegleuchte asym. | |
| Blind module with integr. escaperout battery ligh | |
| Über- und Entladeschutz, greene Status LED | |
| Selbstest: 30s/Woche, Dauertest: 1xyear | |
| selftest: 30s/week, full duartion test: 1 x year | |
