Xona Maxima Value Unit 1426 70-840-13300LM DALI IP54
Order number: LG31061IPDA
Available soon
Prices are only visible after login.
Availability: on request
- Order number: : LG31061IPDA
- Luminous Flux: 13300 lm
- Power Draw: Power Select (55, 60, 65, 70 W)
- Light Color: neutralwhite (4000 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 54
- Beam Angle: 25°
- LED-Chip: Ebright
- Housing Color: white
- Dimensions: 1426x73x38 mm
- Warranty: 5 years
Linear LED light solution Litegear Xona Maxima is a quick installtion linear... more
Product information "Xona Maxima Value Unit 1426 70-840-13300LM DALI IP54"
Linear LED light solution

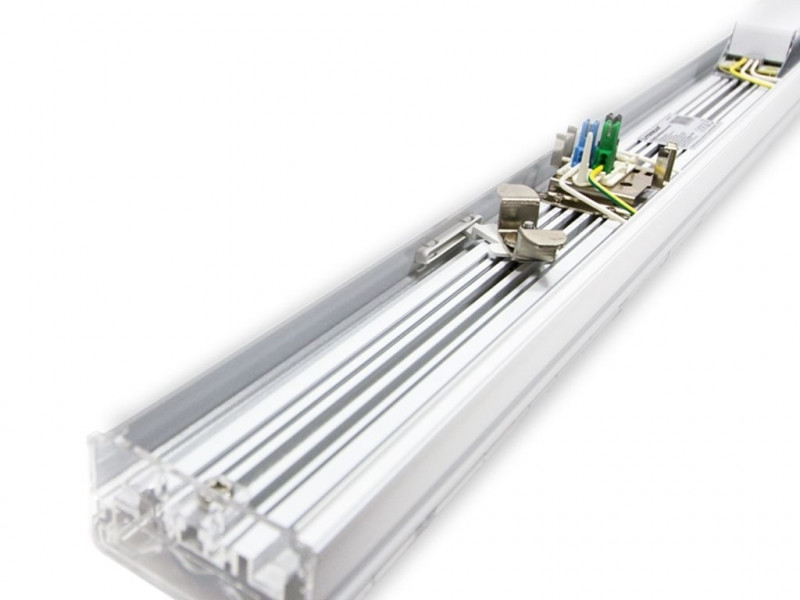

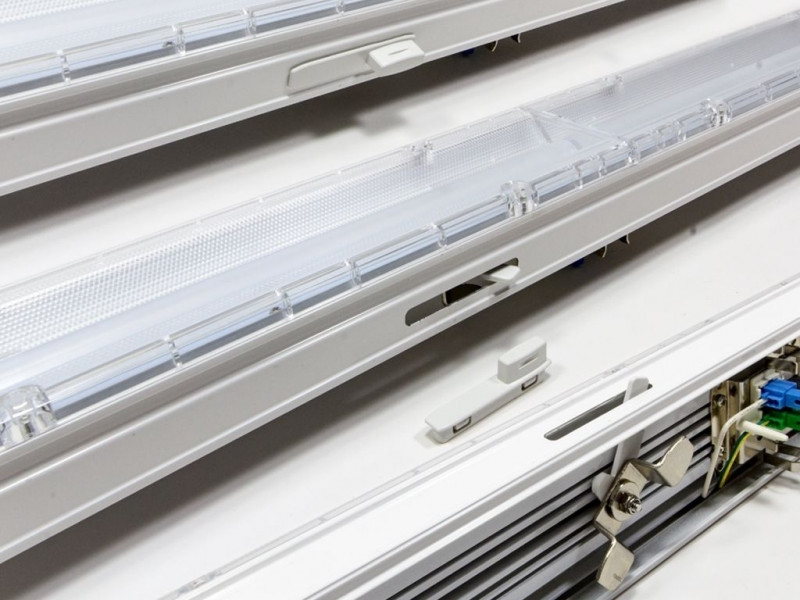

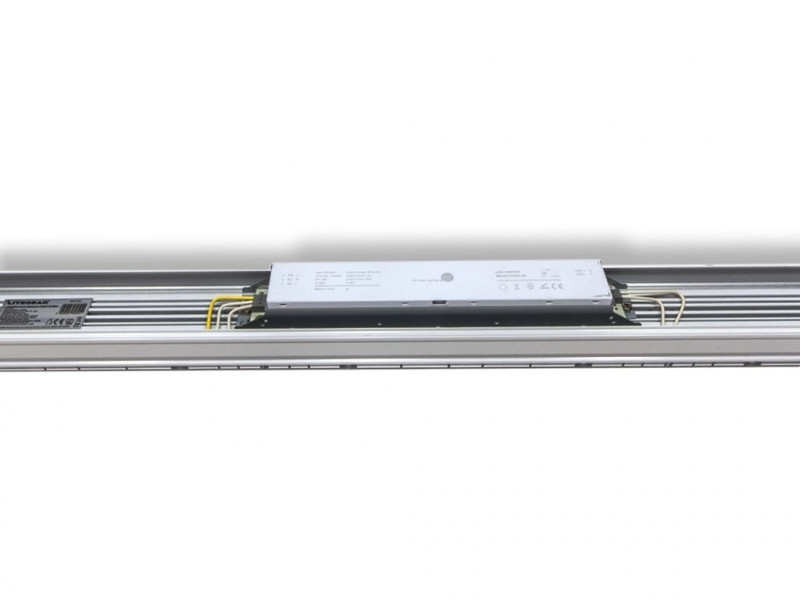

Litegear Xona Maxima is a quick installtion linear LED light solution. Xona Maxima is available in two different versions: There is a regular IP20 Versioan and a dustz proof IP54 version for harsh environments. High system efficency of up to 190 Lumen/Watt. Very long lifespan over 70.000 hours with very low light degradation. The biggest advantage of Xona Maxima is the very quick and easy installtion, therefore each luminaire is made of two parts: First the trunking rail with internal wireing and quick connectors. Second the LED unit lenspanels and electronic driver. Both parts can be connected to each other by 2 lockers. Xona Maxima is available in 2 different lengths with different beamangle optics and totally 8 different output powers by Power Select feature. The trunking can be interconneted without using any tools and is available with different wireing: 5 wire is the standard version with selectable power phase. The 7 wire version has additional Dali or 0-10V dimming option and the 11 wire version offers additional emergency light function. Via Dali function you can controll the brightness or connect the system with motion- and light harvesting sensors.
Installtion ways:
- on ceiling with clips and adapters

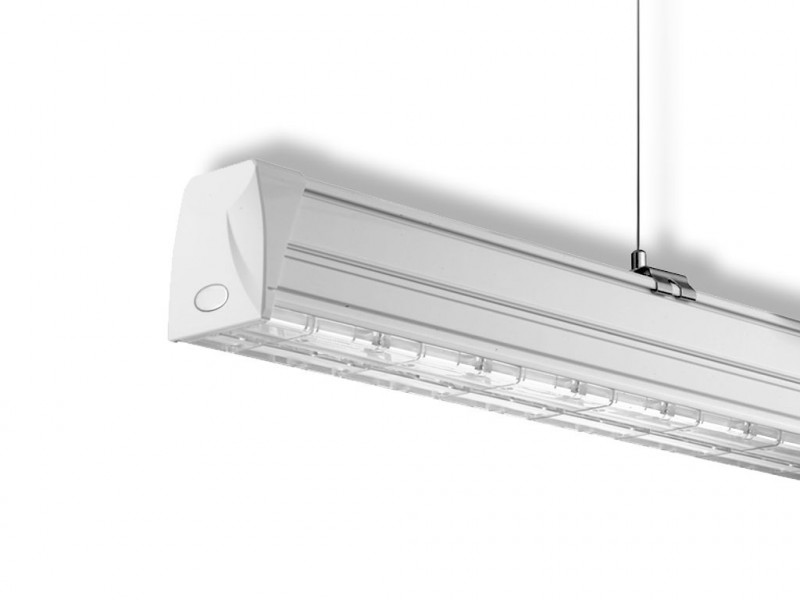

- pendant with rod, chain or steel rope adapters
Applications:
- supermarket and DIY stores
- factory and industrial applications, green house, production, farming, warehouse
- office and school
Technical Details:
- without trunking rail and optical modules: please order separately!
- Housing: Aluminum extrusion for better heat dissipation and long LED lifespan
- Dimmable: via Dali with integreted Dali-Driver
- Beam angle: depends on optic 25-90° + asymmetric
Related links to "Xona Maxima Value Unit 1426 70-840-13300LM DALI IP54"
Technical Details:
| Luminous Flux: | 13300 lm |
| LED Output: | 70 W |
| Light Yield: | 190 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 25 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | Ebright |
| Number of LED: | 345 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Power Consumption: | Power Select (55, 60, 65, 70 W) |
| Contains Driver: | |
| Driver Manufacturer: | Litegear |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with plug |
| Output of Driver: | DC 120-200V, 275-350mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -25°C - 60°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 1426x73x38 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 54 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | 7-core |
| Cover: | Lens |
| Net Weight: | 2200 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 2.4 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 1490x400x230 mm |
| Weight Master Package: | 26 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,TÜV |
| Barcode: | 4250557827193 |
| IP54 staubgeschütztess Gehäuse | |
| D Zeichen | |
| ideal für Produktion, Schreinerei, Landwirtschaft | |
