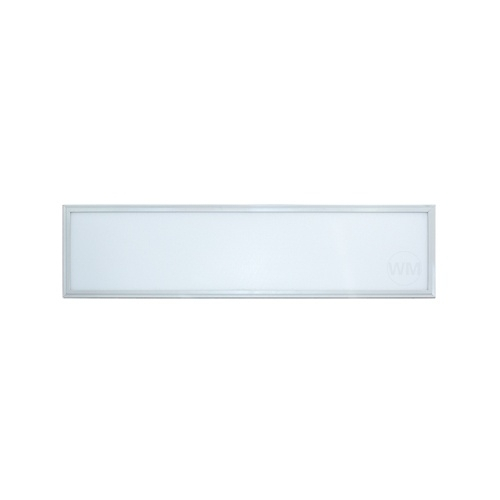

Preview: Fenestra Value Rectangle MKIII 12518 33-840-3600LM, 120lm/W, UGR19 BAP RAL9003

Fenestra Value Rectangle MKIII 12518 33-840-3600LM, 120lm/W, UGR19 BAP RAL9003

Product Info (PDF)

Order number: LG56220

Prices are only visible after login.

Last Stock

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG56220
Luminous Flux: 4287 lm
Power Draw: 35 W
Light Color: neutralwhite (4000 K)
Input Current: AC 220-240VV, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 66

Beam Angle: 110°
LED-Chip: SMD 2835
Housing Color: white
Dimensions: 1246x184x12 mm
Warranty: 5 years

Luminous Flux

4287
lm

Power Draw

35 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

Beam Angle

110°

Light Direction

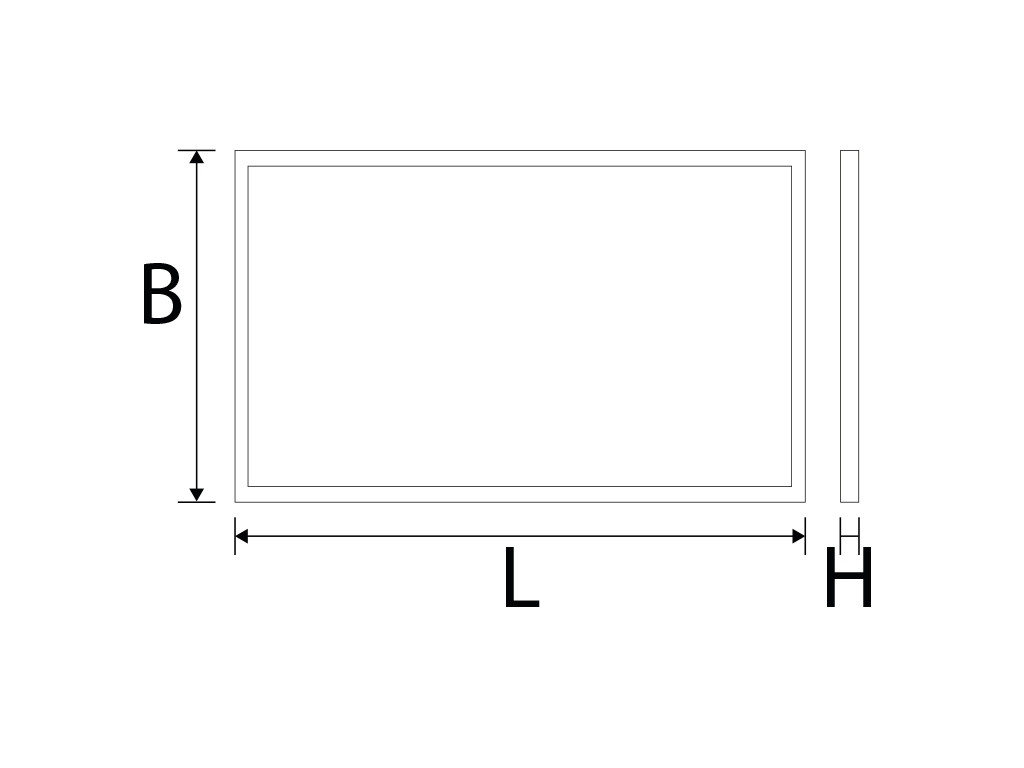

Dimensions

(LxBxH) in mm
1246x184x12

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Special LED Panel The Litegear® Fenestra Value LED panels are made to be installed... more

Close menu

Product information "Fenestra Value Rectangle MKIII 12518 33-840-3600LM, 120lm/W, UGR19 BAP RAL9003"

Special LED Panel

The Litegear® Fenestra Value LED panels are made to be installed in to ceilings or to be hung on walls or ceilings. They have a low power consumption and a long lifespan. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Our LED panels give you the imagination of a sky window with naturally light flooded rooms. Litegear® Fenestra Value LED panels are perfect for use with computer screens because the almost give no reflections. A Fenestra Value can replace a recessed ceiling light with 1-2 x T8 36W flourescent tubes and can save around 55% energy costs.

The Litegear® Fenestra Value LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer suitable LED driver . Some drivers are dimmable in brightnes via Dali, DMX or 0-10V up to the specification of the driver. Fenestra Value Panels have a very high lumen output 120lm/W.

Related links to "Fenestra Value Rectangle MKIII 12518 33-840-3600LM, 120lm/W, UGR19 BAP RAL9003"

Zurück

Technical Details:

Luminous Flux:	4287 lm
LED Output:	35 W
Light Yield:	122 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4

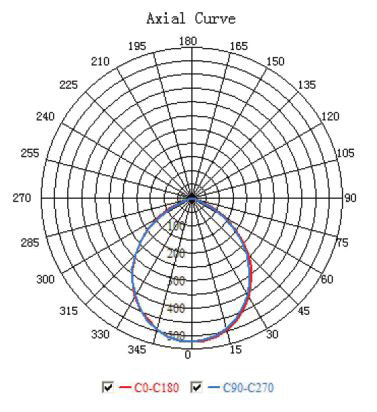

Beam Angle:	110 °
Unified Glare Rating (UGR):	21
Light Emission:	downward
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 220-240VV, 50/60Hz
Power Consumption:	35 W
Contains Driver:

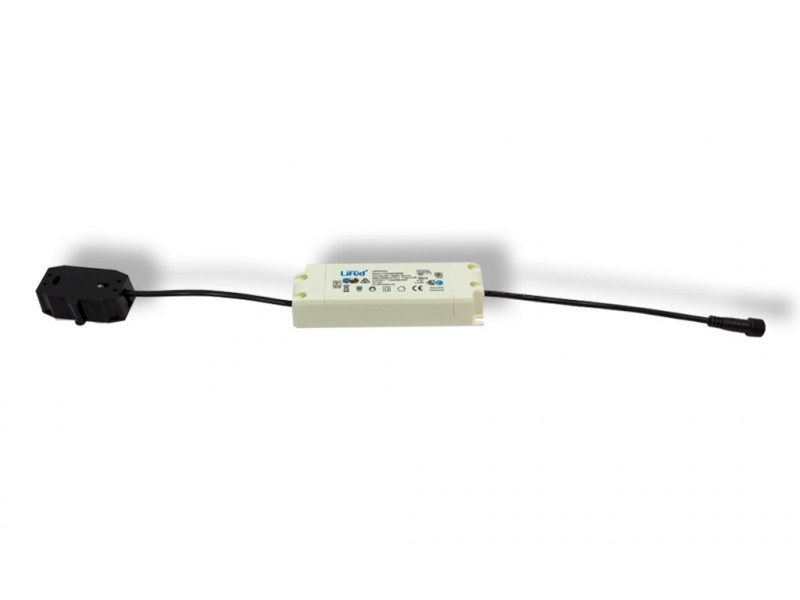

Driver Manufacturer:	Lifud
Power Factor (PF):	>0.96

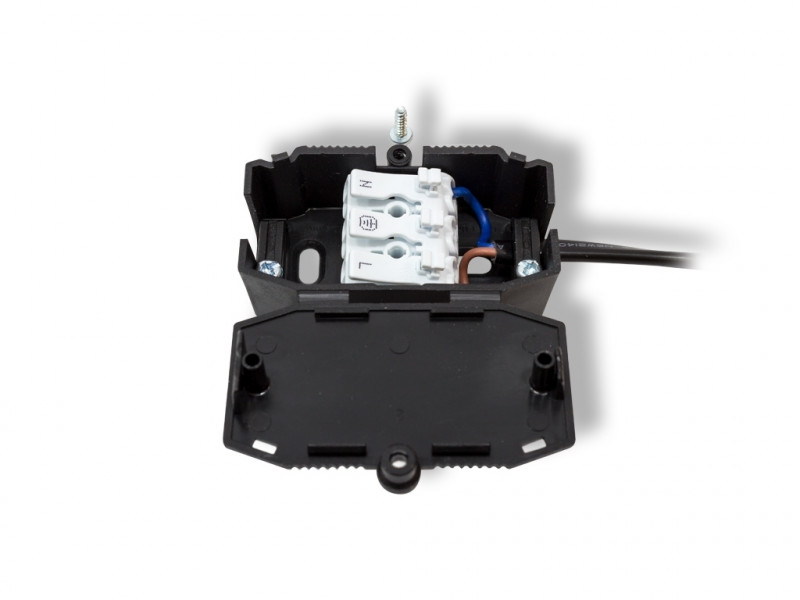

Input Driver:	terminal
Output of Driver:	DC 30 - 42V, 900mA
CC/CV:	CC

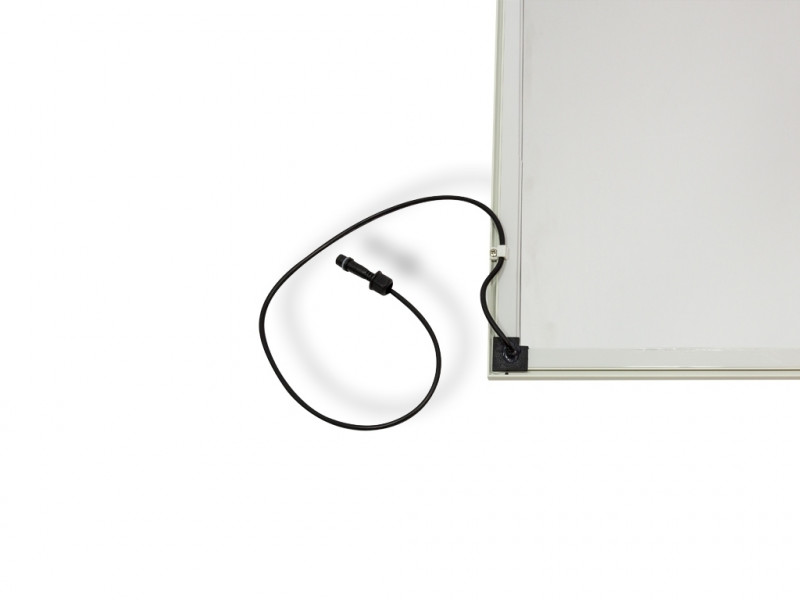

Input Lamp:	plug connector
Switching Cycles:	>50.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 50°C

Dimensions:	1246x184x12 mm
Mounting:	Decke
IP Class:	66
IK Code:	04
Housing Color	white
Housing Color (RAL Code):	similar 9003
Housing Material:	aluminum
Coating:	lacquered
Cover:	opal
Net Weight:	2159 g

Type of Packaging:	box
Weight incl. Packaging:	2.607 kg
Content Master Package:	4
Dimensions of Master Package:	180x284x1283 mm
Weight Master Package:	11,23 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,TÜV,GS,ENEC
Barcode:	4250557823461

Technical Data Sheet (PDF)

Zurück

LED-Panel als Ersatz für Rasterfeldleuchten mit hoher Schutzklasse IP66, geeignet für... more

Zurück

LED-Panel als Ersatz für Rasterfeldleuchten mit hoher Schutzklasse IP66, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4287 lm
LED-Leistung: 35 W
Leuchten-Lichtausbeute: 122 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 110°
UGR: 21
Lichtaustritt: direkt
Maße: 1246x184x12 mm
Montageart: (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 2159 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:

Download LG56220_Fenestra Value Rectangle MKIII 12518 33-840-3600LM, 120lm_W, UGR19 BAP RAL9003 (.ldt)
