Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19 DALI Dim

Product Info (PDF)

Order number: LG65046DA

Available from 08/2026

Prices are only visible after login.

Availability: on request

Dimensions

Menü schließen

Order number: : LG65046DA
Luminous Flux: 5040 lm
Power Draw: Power Select (24-30-36 W)
Light Color: CCT Select (3000,3500,4000 K)
Input Current: AC 220-240V, 220mA, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (20 room side)

Beam Angle: 90°
LED-Chip: JINRUI SMD
Housing Color: white
Dimensions: 620x620x35 mm
Cut-Out Dimensions: 610x610 mm
Warranty: 5 years

Luminous Flux

5040
lm

Power Draw

36 W

Light Color

3000,3500,4000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 20
room side

Beam Angle

90°

mounting type

Light Direction

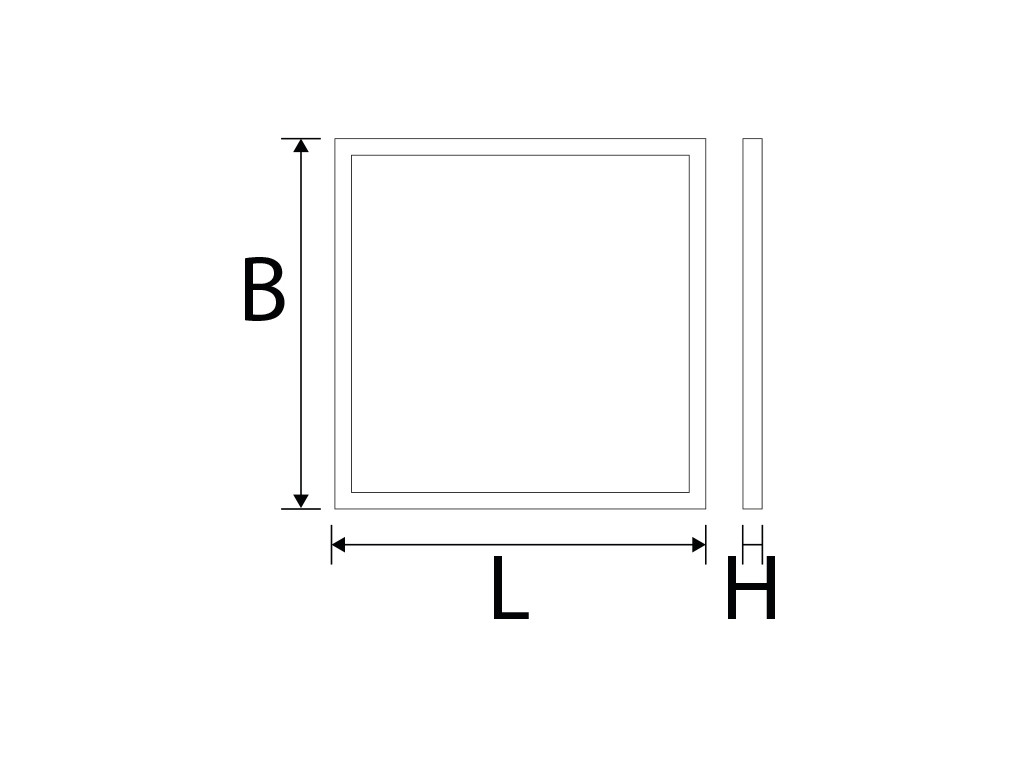

Dimensions

(LxBxH) in mm
620x620x35

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Backlight Panel Litegear® Lucello LED-Panel for German grid ceilings 62,5 x... more

Close menu

Product information "Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19 DALI Dim"

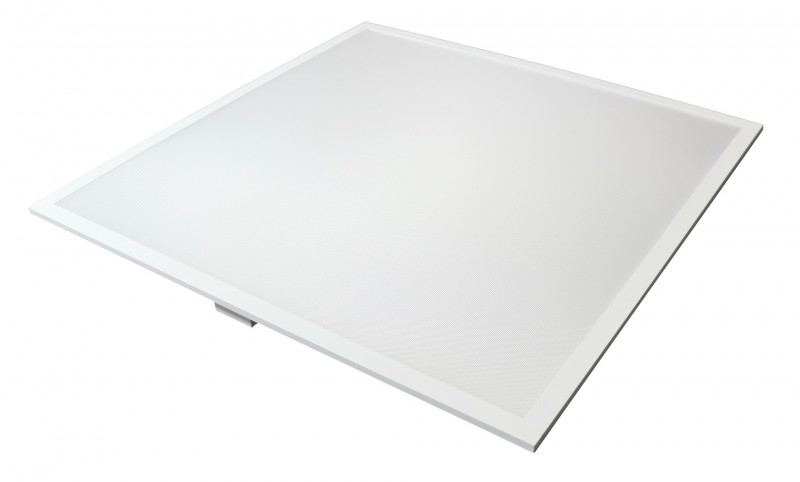

LED Backlight Panel

Litegear® Lucello LED-Panel for German grid ceilings 62,5 x 62,5cm

For computer workstations - suitable according to EN 12464-1 for screens with high luminance!

Very low power consumption and high system efficency: 140lm/W
Power Select: electronic driver with select able output power on the driver: 24, 30, 36W
CCT Select: select able light colour by switch on the panel backside: 3000, 3500, 4000 Kelvin
Replacment for traditional troffer lights: 4 x 18W T8 flourescent tubes
excellent price/performance ratio, fast ROI

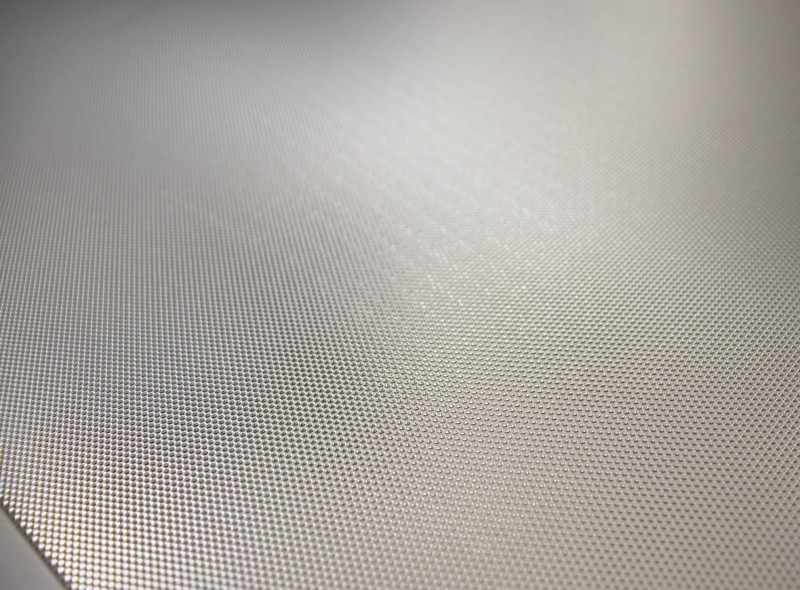

Diffusor made from UV stabilized PS
wide beam angle and very uniform light distribution

Applications:

Shops, corridors, production areas, storage rooms, warehouse, dressing rooms, health club, Fitness, meeting rooms, school

Related links to "Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19 DALI Dim"

Zurück

Technical Details:

Luminous Flux:	5040 lm
LED Output:	36 W
Light Yield:	140 lm/W
Light Temperature:	3000,3500,4000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<6
Beam Angle:	90 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
Dimmable:
Method of Dimming:	DALI,Push-Dim
LED-Chip Manufacturer:	JINRUI
LED-Chip:	SMD
Number of LED:	128
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220-240V, 220mA, 50/60Hz
Power Consumption:	Power Select (24-30-36 W)
Contains Driver:
Driver Manufacturer:	Lifud
Power Factor (PF):	>0.9
Input Driver:	terminal
Output of Driver:	DC 36V, 600-900mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>50.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-20°C - 40°C

Dimensions:	620x620x35 mm
Cut-Out Dimensions:	610x610 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (20 room side)
IK Code:	02
Housing Color	white
Housing Color (RAL Code):	similar 9003
Housing Material:	Aluminium + plastic
Coating:	powder-coated
Cover:	prismatic
Net Weight:	2000 g

Type of Packaging:	box
Dimensions of Packaging:	643x675x41
Weight incl. Packaging:	2.25 kg
Content Master Package:	5
Dimensions of Master Package:	655x225x695 mm
Weight Master Package:	13,5 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>70.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE
Barcode:	4250557827926
Bildschirmarbeitsplatz tauglich nach EN 12464-1
CCT-Select: schaltbare Lichtfarbe 3000,3500,4000K
Backlite Technology, Dali 2 & Push Dim
OneFitAll
