Preview: Quadura PRO Square 62-29-840-4000LM WH

Product Info (PDF)

Order number: LG14351

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG14351
Luminous Flux: 4000 lm
Power Draw: 29 W
Light Color: neutralwhite (4000 K)
Input Current: AC 200 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 95°
LED-Chip: Jufei SMD 2835
Housing Color: white
Dimensions: 620x620x26,5 mm
Warranty: 5 years

Luminous Flux

4000
lm

Power Draw

29 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

95°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
620x620x26,5

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Recessed luminaire for computer workstations with particularly high requirements ... more

Close menu

Product information "Quadura PRO Square 62-29-840-4000LM WH"

Recessed luminaire for computer workstations with particularly high requirements

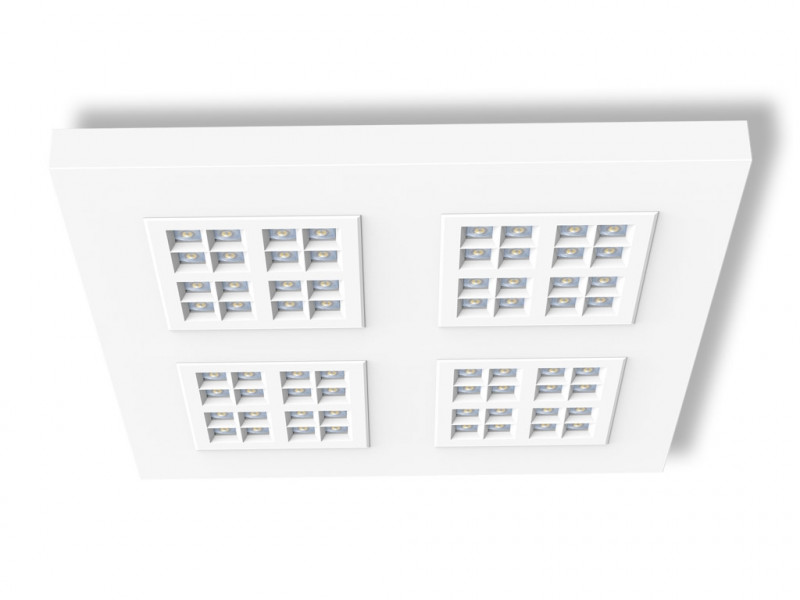

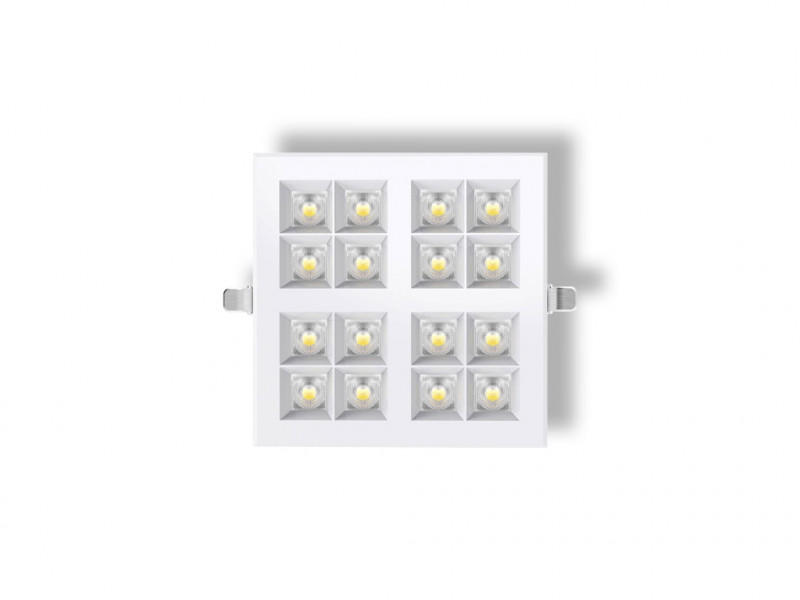

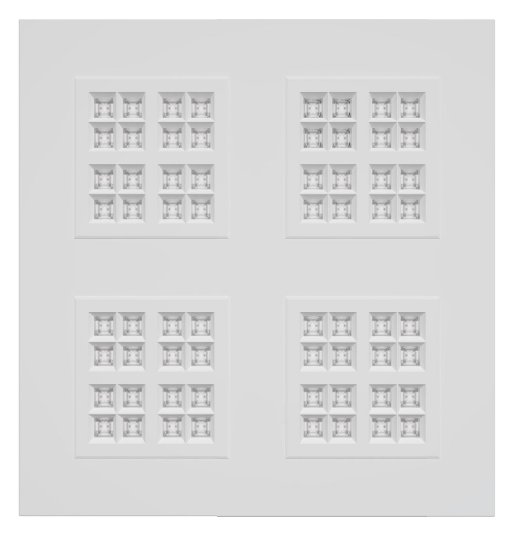

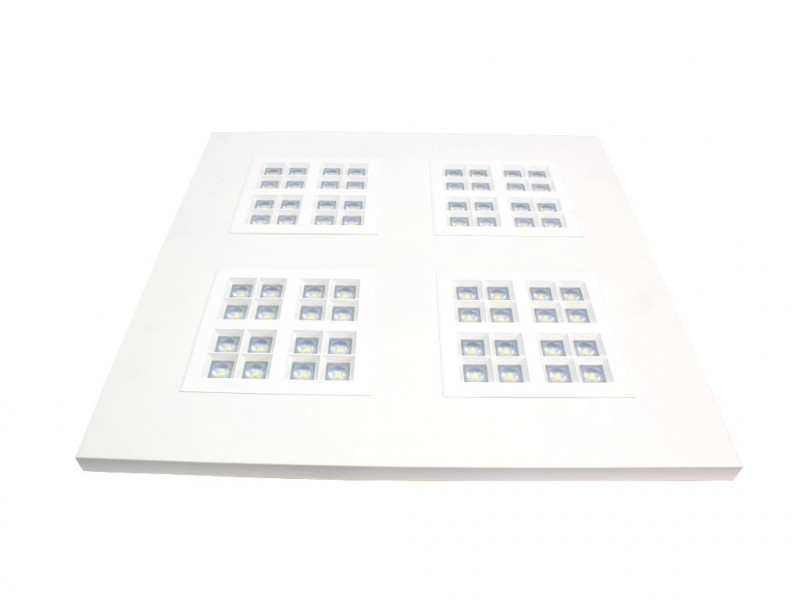

Quadura Pro is an elegant, flat LED recessed luminaire with a perfect glare reduction UGR <19 and a high system efficiency of up to 140 lumen / watt. The modern design stands out from conventional grid lights or LED panels. Quadura Pro is an outstanding alternative with a beam angle of around 95 °. The LED lamp comes with a LED driver and has a power consumption of only 29W with a high luminous flux of over 4000 lumens. The light color is natural white and perfect for offices, hospitals, laboratories, schools or retail spaces. Quadura can also be suspended from ceilings with optional steelwire set.

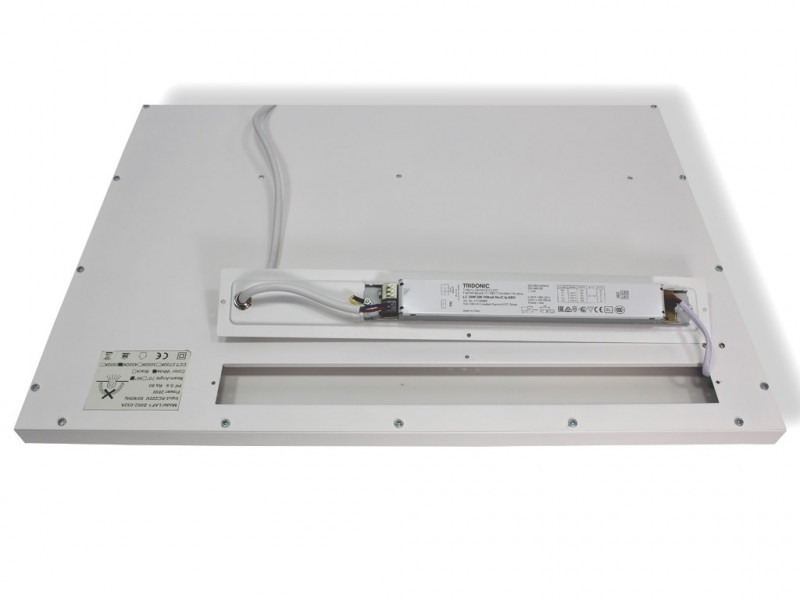

Driver: included in the delivery package, we also offer dimmable LED drivers as an option. see accessories
high system efficiency up to 140lm / W
Long life: 80,000h L70
elegant design with perfect glare control UGR: <19
fast amortization and high energy savings due to low power consumption: only 29W with 4000 Lumen same luminous flux as panel with 40W and 100lm/W

Related links to "Quadura PRO Square 62-29-840-4000LM WH"

Zurück

Technical Details:

Luminous Flux:	4000 lm
LED Output:	28 W
Light Yield:	138 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	95 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
LED-Chip Manufacturer:	Jufei
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 200 - 240V, 50/60Hz
Power Consumption:	29 W
Contains Driver:
Driver Manufacturer:	Tridonic
Power Factor (PF):	>0.98
Input Driver:	terminal
CC/CV:	CC

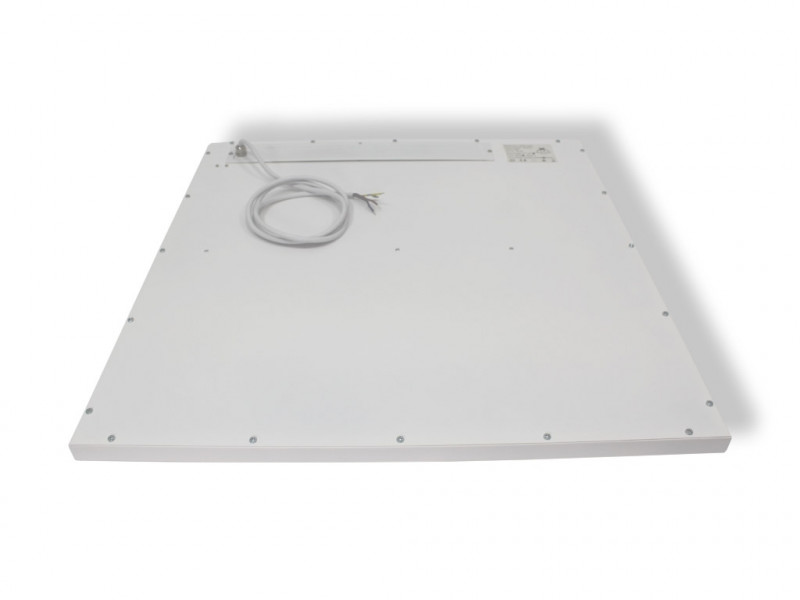

Input Lamp:	cable with flying leads
Switching Cycles:	>100.000
Electrical Protection Class:	I
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-40°C - 60°C

Dimensions:	620x620x26,5 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20
IK Code:	06
Housing Color	white
Housing Color (RAL Code):	similar 9016
Housing Material:	steel
Coating:	powder-coated
Special Feature of Housing:	Seilabhängung möglich
Cover:	Lens
Net Weight:	6040 g

Type of Packaging:	box
Dimensions of Packaging:	715x75c715
Weight incl. Packaging:	6.86 kg
Content Master Package:	1
Dimensions of Master Package:	715x75x715 mm
Weight Master Package:	6,86 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L90/B10
Disposal Obligation:
Customs Tariff Number:	9405409990
Certifications	CE,LM80,D
Barcode:	4250557817927
Elegante Rastereinlegeleuchte
optional auch dimmbare Treiber erhältlich
Mittels Seilset auch abgehängt zu montieren
Optional auch Batterie Notstrommodul lieferbar

Technical Data Sheet (PDF)

LED-Panel in formverändertem, modernem Design, geeignet für Bildschirmarbeitsplatz more

Zurück

LED-Panel in formverändertem, modernem Design, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 40°C
Lichtstrom: 4000 lm
LED-Leistung: 29 W
Leuchten-Lichtausbeute: 138 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 95°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 620x620x26,5 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white (9016)
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 6040 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L90/B10): 50000 h

Zurück

Available downloads:

Download LG14351_Quadura PRO Square 62-29-840-4000LM 95D (.ldt)
