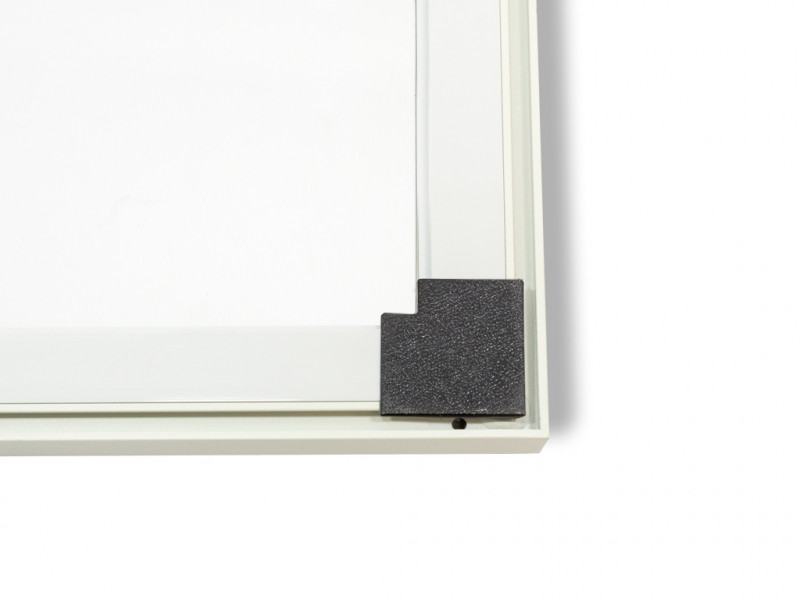

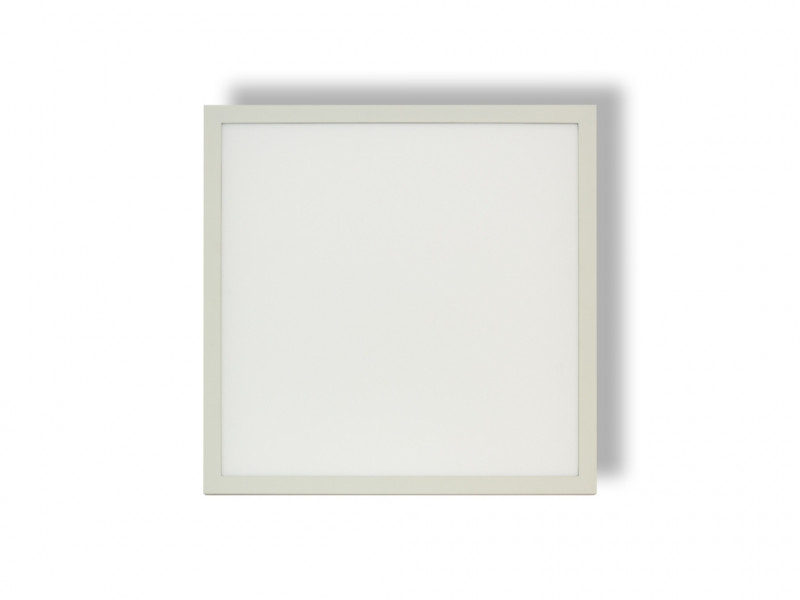

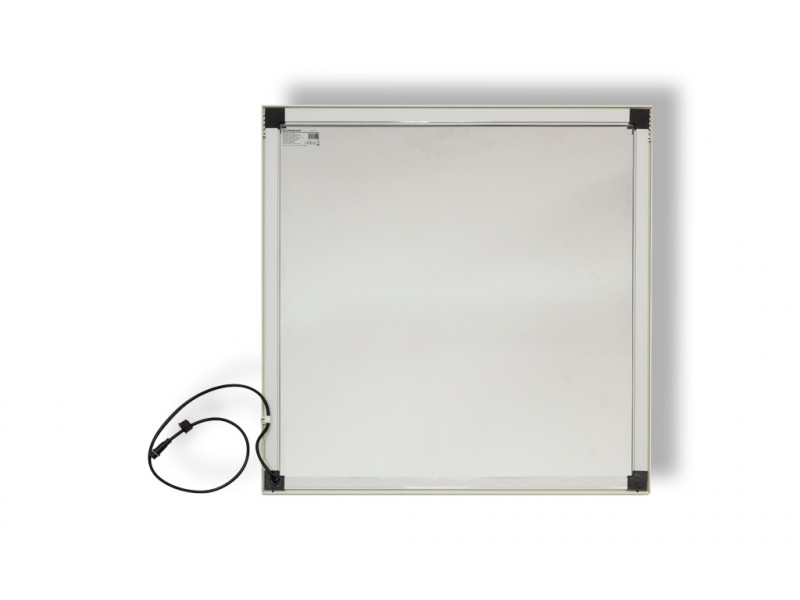

Fenestra Value Square MKIII 6262 36-940-3960lm IP66 UGR<21, 110lm/W, RAL9003

LG56221
Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Dimensions

Dimensions
  • LG56221
  • Luminous Flux: 3960 lm
  • Power Draw: 35 W
  • Light Color: neutralwhite (4000 K)
  • Color Rendering Index (CRI): ≥90 Ra
  • IP Code: 66
  • Beam Angle: 110°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Dimensions: 620x620x12 mm
  • Warranty: 5 years

Luminous Flux

3960
lm

Power Draw

35 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 66

Beam Angle

110°

Light Direction

Dimensions

(LxBxH) in mm
620x620x12

Warranty

5 years

The light source cannot be replaced

The driver may only be replaced by qualified persons

LED Panel   The Litegear® Fenestra Value LED panels are made to be... more
Product information "Fenestra Value Square MKIII 6262 36-940-3960lm IP66 UGR<21, 110lm/W, RAL9003"
LED Panel

The Litegear® Fenestra Value LED panels are made to be installed in to ceilings or to be hung on walls or ceilings. They have a low power consumption and a long lifespan. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Our LED panels give you the imagination of a sky window with naturally light flooded rooms. Litegear® Fenestra Value LED panels are perfect for use with computer screens because the almost give no reflections. A Fenestra Value can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55% energy costs.
Optimised CRI: >90 (color rendering index)
This special panel is completly protected against dust and damp: IP66 standard!
The Litegear® Fenestra Value LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer suitable LED driver . Some drivers are dimmable in brightnes via Dali, DMX or 0-10V up to the specification of the driver. Fenestra Value Panels have a very high lumen output.
Applications:
Shower, swimm hall, kitchen, laboratory, production processes, Food production, hospital
Related links to "Fenestra Value Square MKIII 6262 36-940-3960lm IP66 UGR<21, 110lm/W, RAL9003"
Technical Details:

Luminous Flux: 3960 lm
LED Output: 35 W
Light Yield: 113 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥90 Ra
Color Consistency (SDCM): <4
Beam Angle: 110 °
Unified Glare Rating (UGR): 21
Light Emission: downward
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Power Consumption: 35 W
Contains Driver: ja
Power Factor (PF): >0.96
Output of Driver: DC 32-42V, 500-1000mA
CC/CV: CC

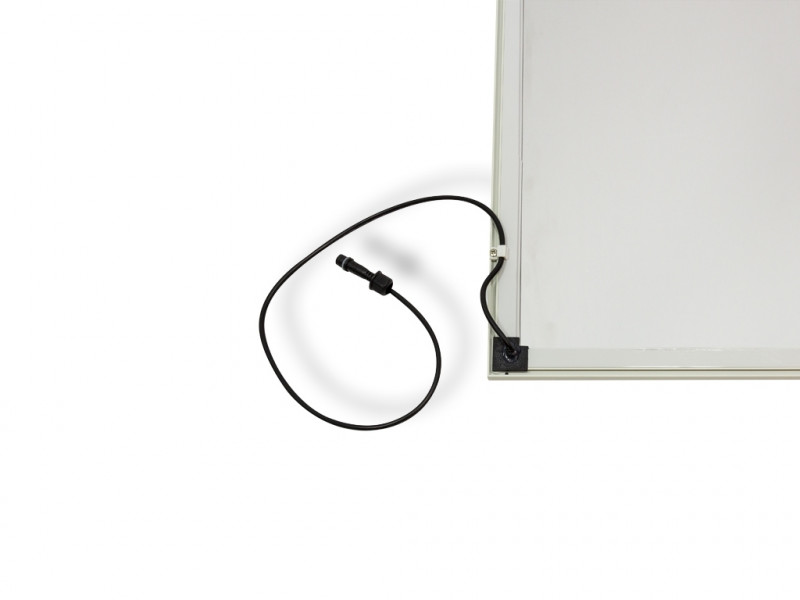

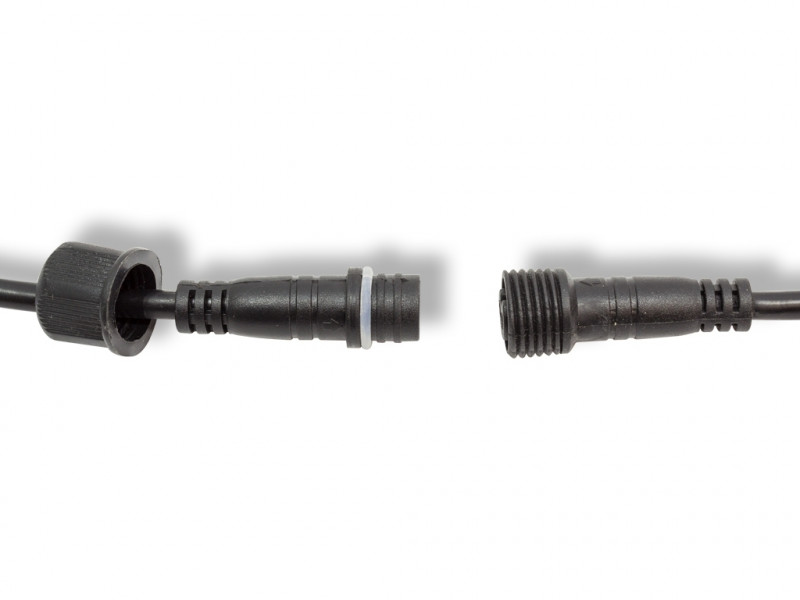

Input Lamp: plug connector
Switching Cycles: >100.000
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -40°C - 60°C
Dimensions: 620x620x12 mm
Mounting: Decke
IP Class: 66
IK Code: 06
Housing Color white
Housing Color (RAL Code): similar 9003
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: weather proof
Cover: opal
Net Weight: 3166 g
Type of Packaging: box
Dimensions of Packaging: 645x645x45
Weight incl. Packaging: 3.65 kg
Content Master Package: 4
Dimensions of Master Package: 650 x 650 x240 mm
Weight Master Package: 19,4 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,LM80,D
Barcode: 4250557823171
inkl. Klemmdose mit Terminalblock in/out
Brandschutzklasse UL94-HB
auch mit dimmbarem Treiber lieferbar
h h
LED-Panel als Ersatz für Rasterfeldleuchten mit hoher Schutzklasse IP66, geeignet für... more
LED-Panel als Ersatz für Rasterfeldleuchten mit hoher Schutzklasse IP66, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 3960 lm
LED-Leistung: 35 W
Leuchten-Lichtausbeute: 113 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 110°
UGR: 21
Lichtaustritt: direkt
Maße: 620x620x12 mm
Montageart: (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 3166 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
