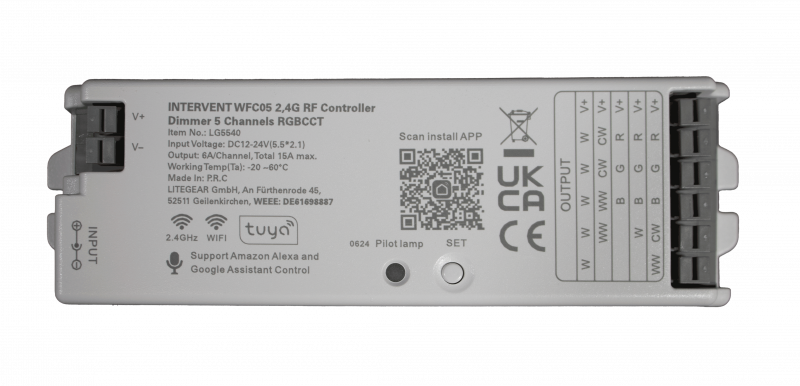

LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT

Litegear
Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT Preview: LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT

Product Info (PDF)
Order number: LG5540
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Price after login

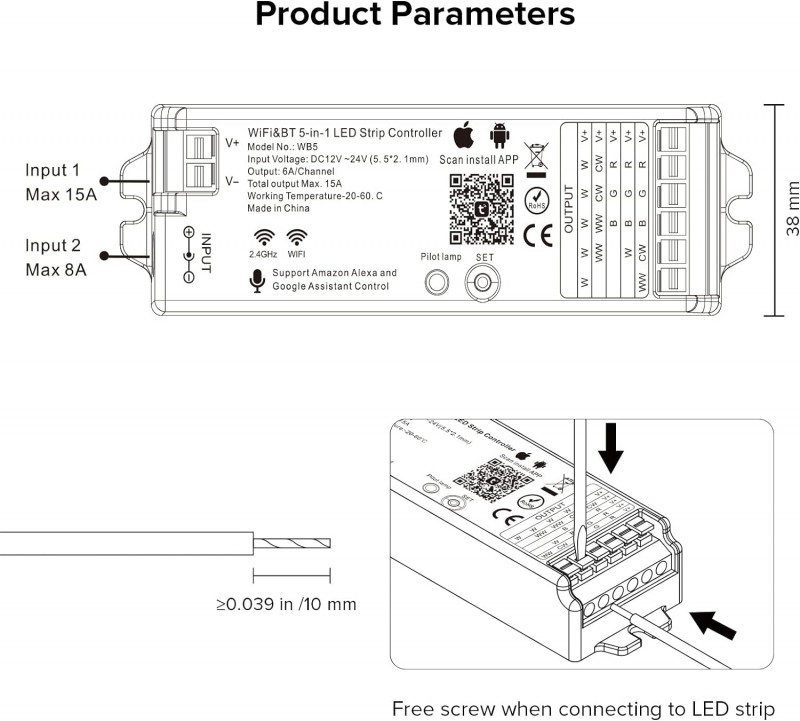

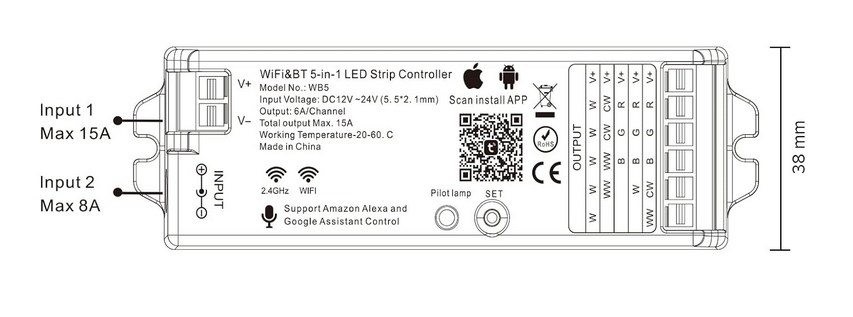

Dimensions

Dimensions
Short information
Short information
more
Menü schließen
  • Order number: : LG5540
  • Power Draw: 360 W
  • Input Current: DC 12-24V, 1500mA
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 122x38x22 mm
  • Warranty: 3 years

Power Draw

360 W

IP Code

IP 20

mounting type

Dimensions

(LxBxH) in mm
122x38x22

Warranty

3 years

Description General data Photometric Data Download Accessories 16
Description
INTERVENT-SERIES: RF Receiver controller 5 channels RGB, RGBW,RGBCCT  ... more
Close menu
Product information "LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT"

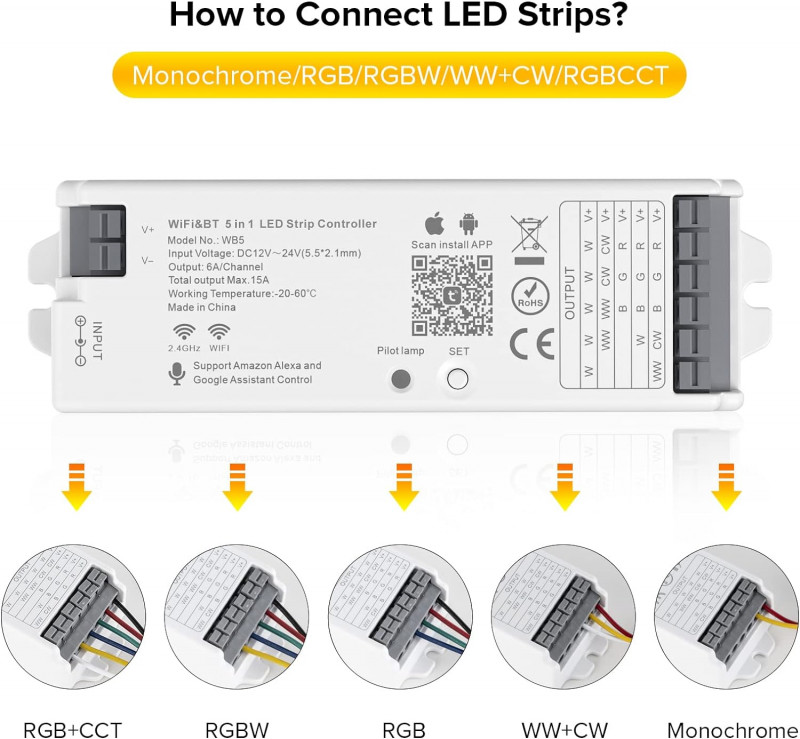

INTERVENT-SERIES: RF Receiver controller 5 channels RGB, RGBW,RGBCCT

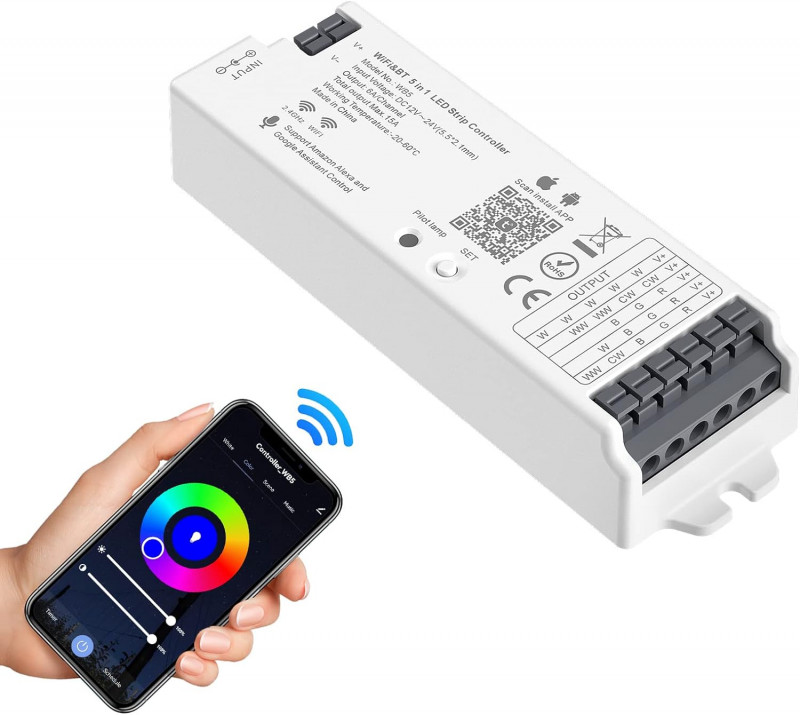

  • Wifi-, Bluetooth controller, Tuya, Smart Life App, Radio Frequency receiver 2,4GHz maximum operation distance: 30m
  • Direct voice control: Amazon Alexa®, Google home®
  • Wireless controller for 12-24V DC LED strip converter/dimmer max. 5 channels
  • Easy Set-Up and operation
  • Can be connected to several remotes and set up in Zones/groups.
  • individual smooth dimming
  • an additional power supply 12-24V DC is needed max. 1200mA
  • 5 outputs max. 6A/Ch., total 15A
  • Screw terminals

Applications:
Office, Shop and residential
  • Controller 12-24V DC LED-Strip
controlled via RF remote 2,4G or Tuya, Smart Life App

compatible RF remotes see accessories!
Related links to "LITEGEAR INTERVENT WFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT"
General data
more
Zurück
Technical Details:

Dimmable: ja
Method of Dimming: Funk,Bluetooth,WiFi
Input Current: DC 12-24V, 1500mA
Power Consumption: 360 W
Input Driver: terminal
Output of Driver: DC 5-24V, 1500mA
CC/CV: CV
Input Lamp: terminal
Switching Cycles: >100.000
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 60°C
Dimensions: 122x38x22 mm
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: V-0 Anti-fire PC
Net Weight: 60 g
Zones: 1
Channels: 5
Dimming: 1-100%
Transmission Frequency: 2,4 GHz
Weight incl. Packaging: 0.075 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >30.000 h
Disposal Obligation: ja
Customs Tariff Number: 8517699000
Certifications CE
Barcode: 4250557825007

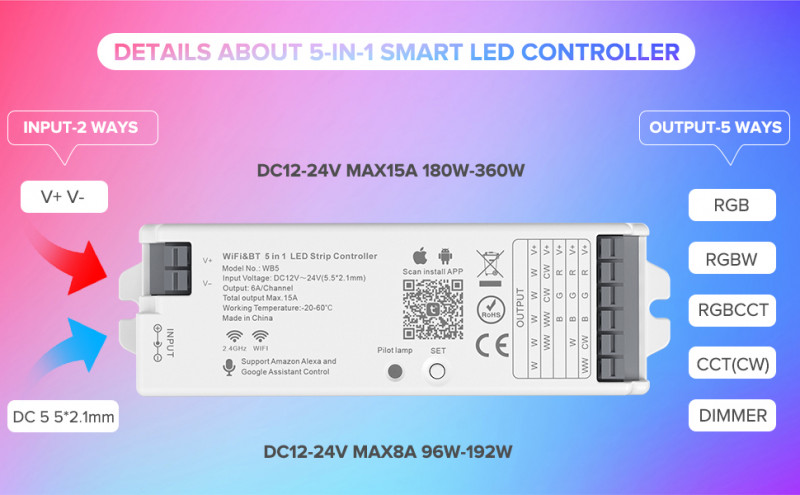

5 Channels/Kanäle Dim-Controller 2,4GHz RGBCCT
Wifi, Bluetooth, Tuya,Smart Life App,Alexa®Google®
12-24V DC Input 6A/Ch. 15A max.
max. 180W@12V,360W@24V
RF 2400-2483,5MHz max. 30m Reichweite
