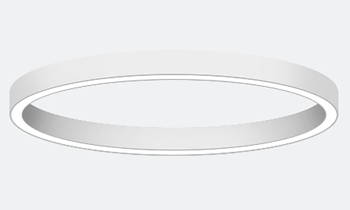

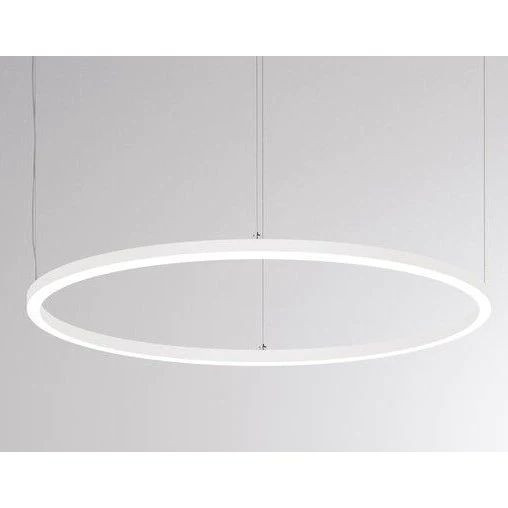

NOVALOOP Ring Light 150060-80-930/960-8000lm Up/Down Dali Dim
Order number: LG58917WHUPCCT
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG58917WHUPCCT
- Luminous Flux: 8000 lm
- Power Draw: 80 W
- Light Color: CCT Select (3000-6000 K)
- Input Current: AC 220 - 240V, 393,1mA, 50/60Hz
- Color Rendering Index (CRI): ≥92 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 110°
- LED-Chip: Everlight SMD 2835
- Housing Color: white
- Dimensions: 1500x60 mm
- Warranty: 5 years
Pendant ring luminaire with DALI-2 dimming High CRI >92 Ra; CCT adjustment (3000-6000 K)... more
Product information "NOVALOOP Ring Light 150060-80-930/960-8000lm Up/Down Dali Dim"
Pendant ring luminaire with DALI-2 dimming
High CRI >92 Ra; CCT adjustment (3000-6000 K) via DALI DT8

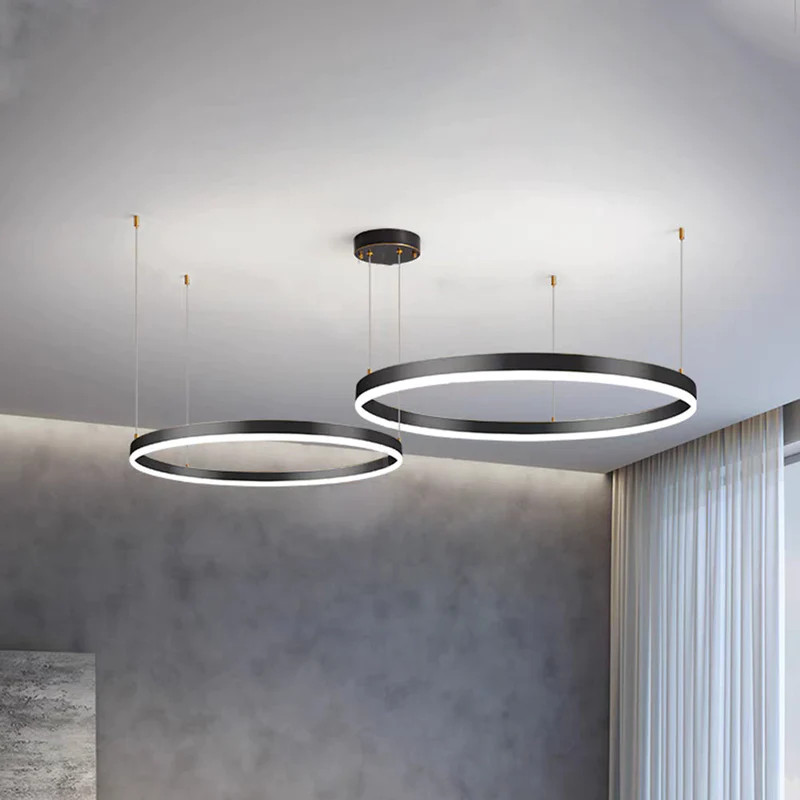

Novaloop is a timeless luminaire series featuring a beautifully crafted aluminum housing available in black or white. Includes cable suspension and a dimmable LED driver.
Provides both direct and indirect light distribution.

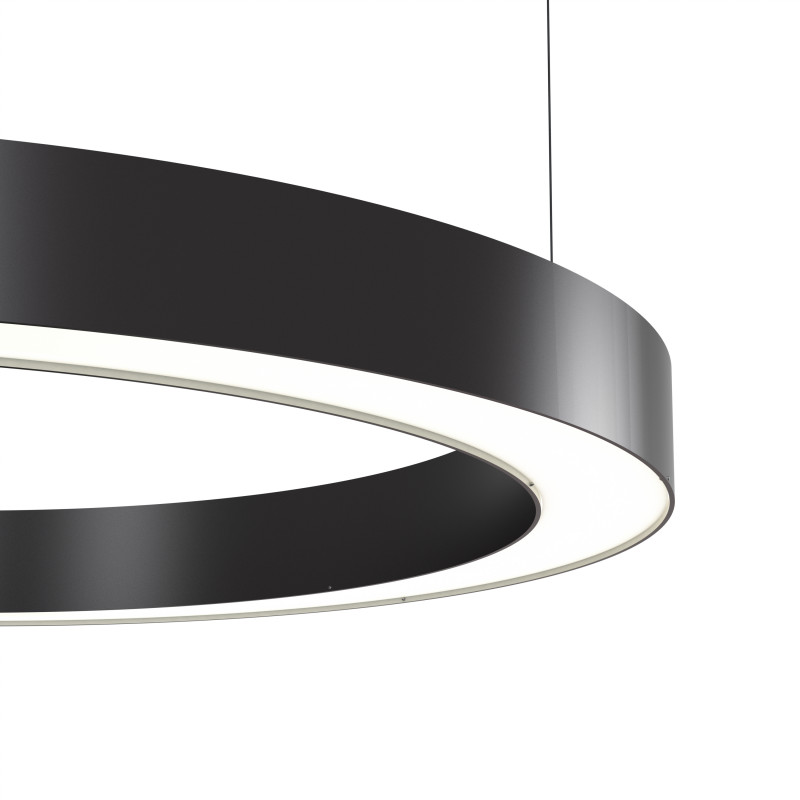

Curved, powder-coated extruded aluminum profile (60 mm high, 60 mm wide).

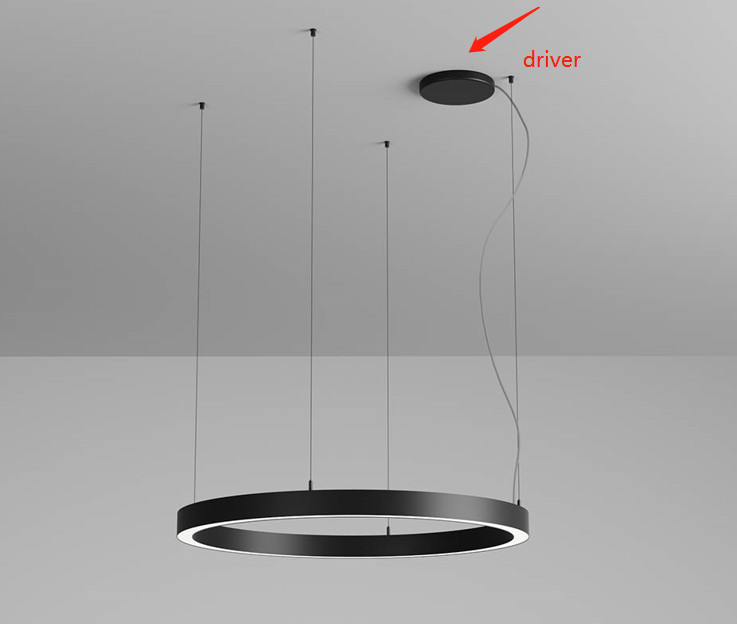

Connection via ceiling canopy with 2 m steel cable.
- Superior color rendering
- Elegant, timeless design
- Switchable indirect light
- Stepless dimming and color adjustment via DALI DT8
- Optionally controllable via app adapter (e.g., Meshle, Casambi)
- Available in black, white, or custom colors
Applications:
Residential, retail spaces, hotels, hospitality, offices, decorative lighting, supermarkets, galleries, dental practices, medical practices
Related links to "NOVALOOP Ring Light 150060-80-930/960-8000lm Up/Down Dali Dim"
Technical Details:
| Luminous Flux: | 8000 lm |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000-6000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥92 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 110 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim,DALI-2 |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 702 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 393,1mA, 50/60Hz |
| Power Consumption: | 80 W |
| Contains Driver: | |
| Driver Manufacturer: | Sunricher |
| Power Factor (PF): | >0.96 |
| Input Driver: | lighting track |
| Output of Driver: | DC 6-42V, 2000mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 45°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 1500x60 mm |
| Mounting: | Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | opal |
| Net Weight: | 10900 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1550x1550x110 |
| Weight incl. Packaging: | 17.9 kg |
| Content Master Package: | 1 |
| Weight Master Package: | 17,9 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >79.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,SELV |
| Barcode: | 4250557827766 |
| 200cm Seilabhängung + Deckenanschlußdose | |
| DALI DT8 Dimmung dual white | |
| schaltbares indirektes Licht | |
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 8000 lm
LED-Leistung: 80 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000-6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >92
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 1500x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 10900 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 8000 lm
LED-Leistung: 80 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000-6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >92
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 1500x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 10900 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
