Cavita Double 20-830-1600LM

LG10671
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG10671
  • Luminous Flux: 1600 lm
  • Power Draw: 20 W
  • Light Color: warmwhite (3000 K)
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 36°
  • LED-Chip: Citizen COB
  • Housing Color: white
  • Dimensions: 214x111x90 mm
  • Cut-Out Dimensions: 192x97 mm
  • Warranty: 2 years

Luminous Flux

1600
lm

Power Draw

20 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

36°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
214x111x90

Warranty

2 years

LED Downlight   Cavita is a stylish LED Downlight from Litegear®. The... more
Product information "Cavita Double 20-830-1600LM"
LED Downlight

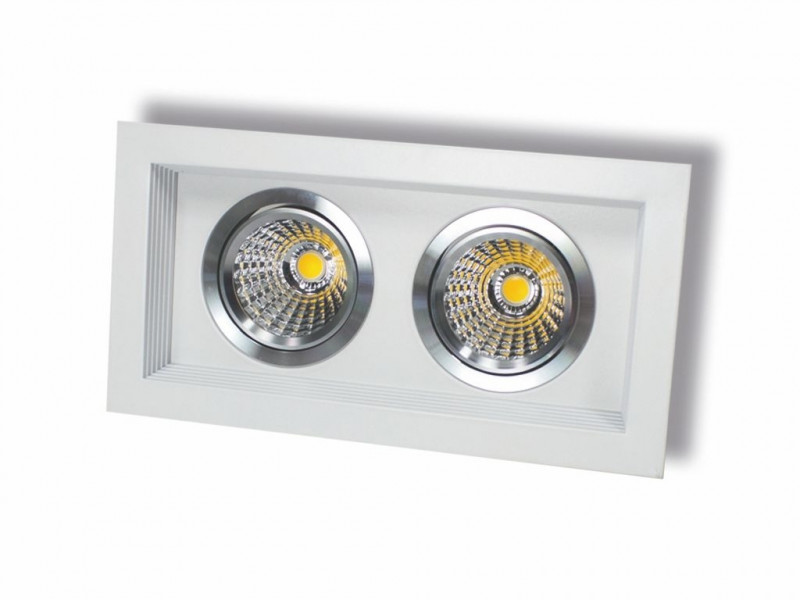

Cavita is a stylish LED Downlight from Litegear®. The modern housing is made of aluminum and holds up to 3 adjustable LED spots with reflector concentrated LED COB Chip. The Spots can be adjusted with +/-20° in each direction.

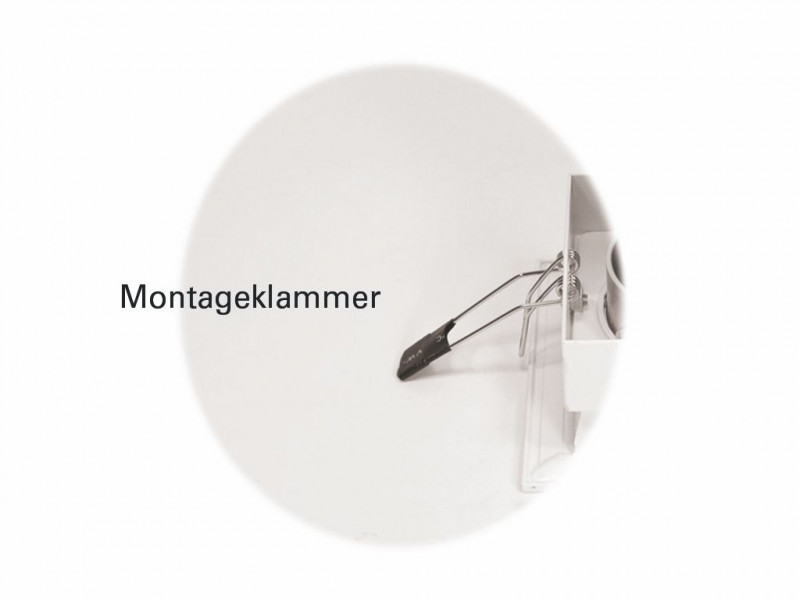

Due to hugh power saving you have low maintenance costs and a long lifespan. The housing frame is holden by spring latches in the cut outs.
Related links to "Cavita Double 20-830-1600LM"
Technical Details:

Luminous Flux: 1600 lm
LED Output: 18 W
Light Yield: 80 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 36 °
Light Emission: downward
LED-Chip Manufacturer: Citizen
LED-Chip: COB
Number of LED: 2
Ignition Time: <0,5 s
Power Consumption: 20 W
Output of Driver: DC 27-42V, 260mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >50.000
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 214x111x90 mm
Installation Depth: 90 mm
Cut-Out Dimensions: 192x97 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 360 °
Pivot Range tilt: 20 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Special Feature of Housing: schwenkbar +/-20°
Cover: clear
Net Weight: 474 g
Type of Packaging: box
Dimensions of Packaging: 265x110x145
Weight incl. Packaging: 0.623 kg
Content Master Package: 18
Dimensions of Master Package: 810x320x350 mm
Weight Master Package: 13,74 kg
Product Line: ECO Line
Warranty 2 years
Operating Hours: >30.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,D
Barcode: 4250557807348
optional auch dimmbare Treiber lieferbar
