CIELLA LED-Unit 27-830/840-WH 1860-3250lm
Order number: LG12000
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG12000
- Luminous Flux: 3250 lm
- Power Draw: Power Select (15-27 W)
- Light Color: dualwhite (3000/3500/4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (44 room side)
- Beam Angle: 100°
- LED-Chip: SMD
- Housing Color: black/white
- Dimensions: 148x99 mm
- Warranty: 5 years
LED downlight module Litegear® Ciella LED module for combination with... more
Product information "CIELLA LED-Unit 27-830/840-WH 1860-3250lm"

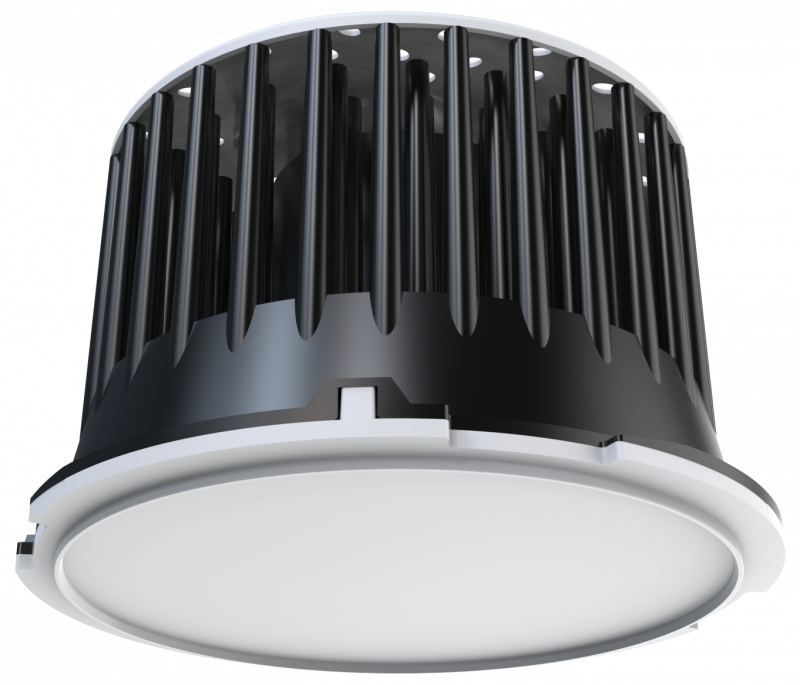

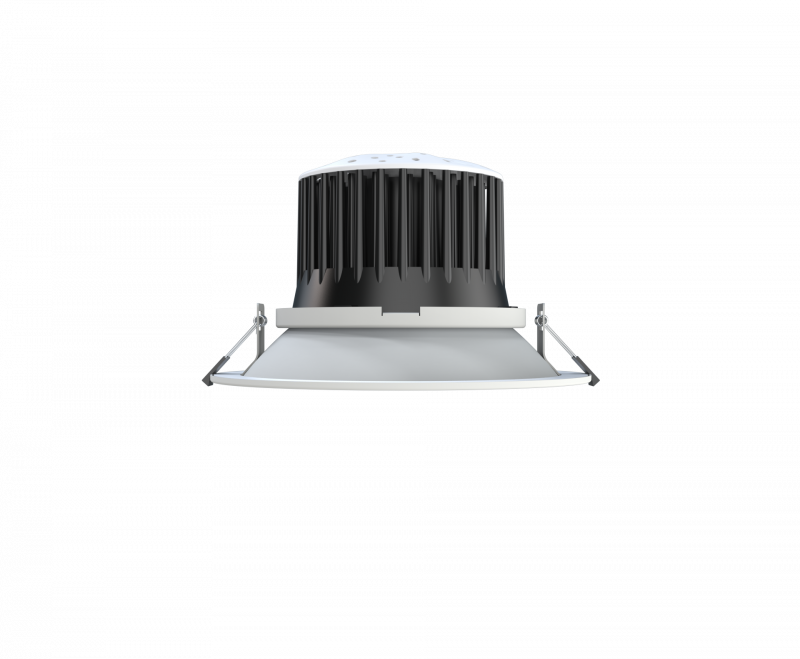

LED downlight module

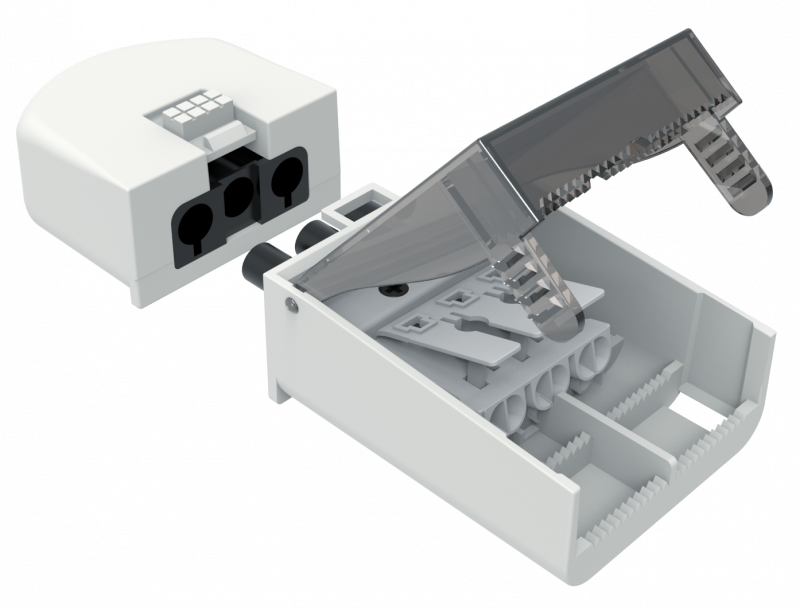

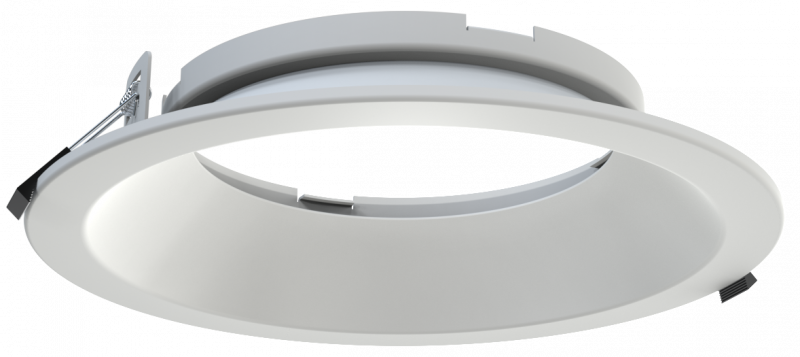

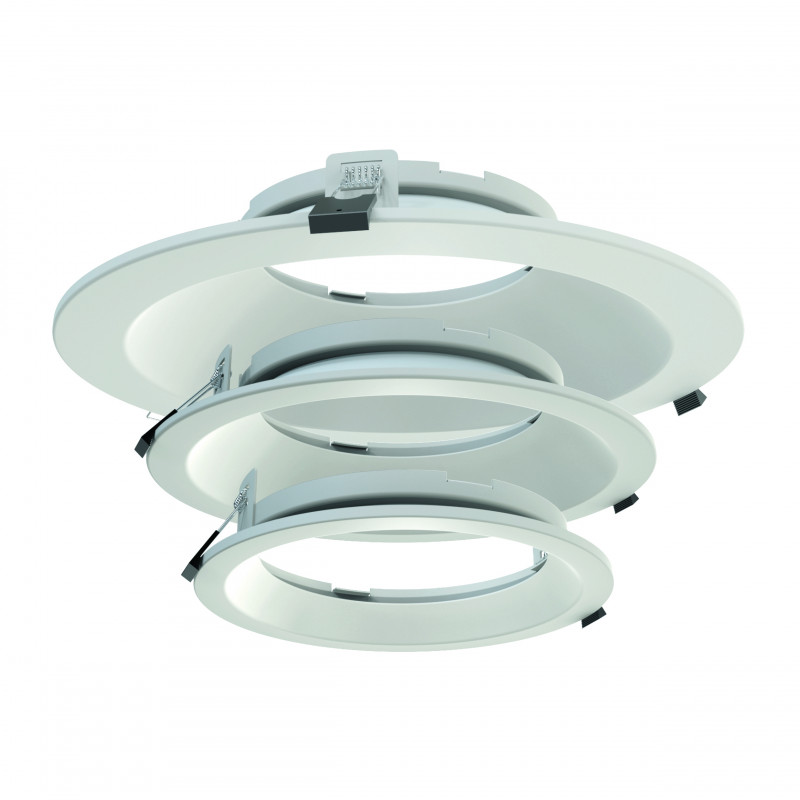

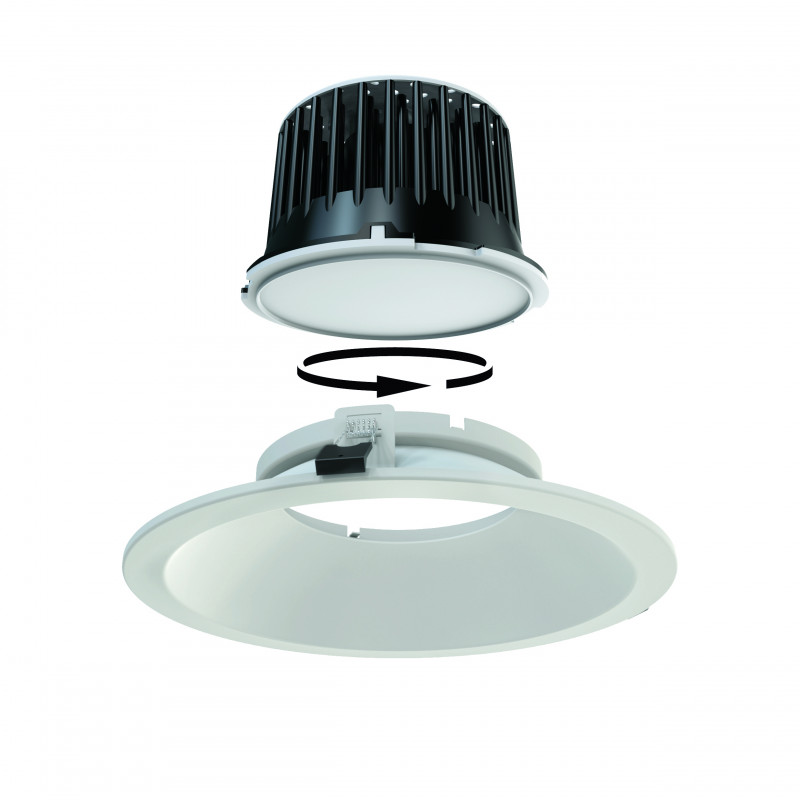

Litegear® Ciella LED module for combination with different ceiling mounting rings from 190 to 305mm in diameter. LED unit with switchable light colour: 3000, 3500, 4000 Kelvin using a switch. High system efficiency >120lm/W, thus Bafa eligible for refurbishment of existing buildings. Pluggable LED power supply with removable terminal box for through-wiring. The Ciella system is a lighting system for the renovation of ceiling openings of different sizes. You will receive 4 different ceiling rings for 160-180mm, 200-220mm, 250-270mm, 280-290mm ceiling cut-outs. The LED module is screwed onto the ceiling rings without tools. Power selectable LEd driver from 350-700mA 15-30W in steps.

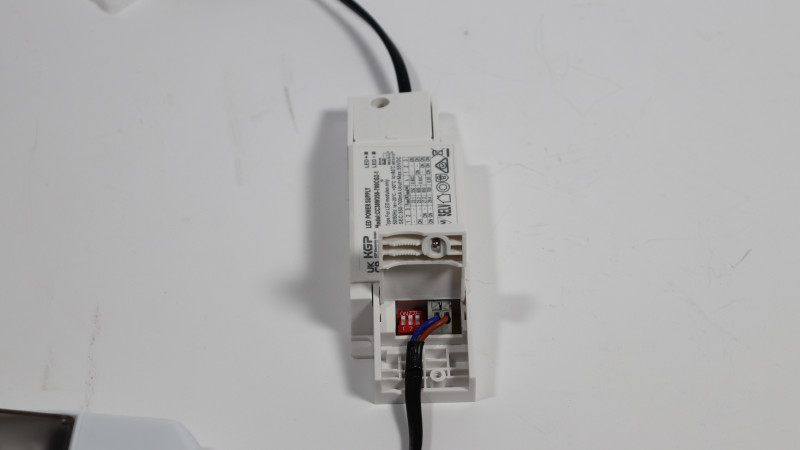

LED-driver with Power Select: 13, 15, 17, 19, 21, 22, 24, 26 Watt by DIP switches
Areas of application: Refurbishment of built-in lights with energy-saving lamps. once or twice 18-36W CFL G23/G24.
Corridors, offices, sales areas, walkways, hotels, sanitary areas, changing rooms, warehouses, ancillary rooms, restaurants, canteens
You can find the relevant data for luminaire simulation (Relux and Co.) in the download area for the individual ceiling rings.
Related links to "CIELLA LED-Unit 27-830/840-WH 1860-3250lm"
Technical Details:
| Luminous Flux: | 3250 lm |
| Light Yield: | 123 lm/W |
| Light Temperature: | 3000/3500/4000 K |
| Light Color: | dualwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 100 ° |
| Light Emission: | downward |
| LED-Chip: | SMD |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | Power Select (15-27 W) |
| Contains Driver: |  |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.95 |
| Input Driver: | Kabel mit Terminal |
| Output of Driver: | DC 30 - 42V, 350-700mA |
| CC/CV: | CC |
| Input Lamp: | cable with plug |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 148x99 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (44 room side) |
| IK Code: | 08 |
| Housing Color | black/white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | frosted |
| Net Weight: | 789 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 176x152x142 |
| Weight incl. Packaging: | 0.886 kg |
| Content Master Package: | 20 |
| Dimensions of Master Package: | 780x200x590 mm |
| Weight Master Package: | 18 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557824093 |
| CCT Select: 3000, 3500, 4000K | |
| Power Select: 15-30W, max. 3650lm >120lm/W | |
| elektr. Anschußdose für Durchgangsverdrahtung | |
| modulare Bauweise, kombinierbar mit Deckenringen | |
Housing Color
white
white
Dimensions
190x46 mm
190x46 mm
Housing Color
white
white
Dimensions
230x50 mm
230x50 mm
Housing Color
white
white
Dimensions
285x64 mm
285x64 mm
Housing Color
white
white
Dimensions
305x64 mm
305x64 mm
