Preview: CIELLA LED-Unit 27-830/840-WH 3730lm

Product Info (PDF)

Order number: LG12000

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

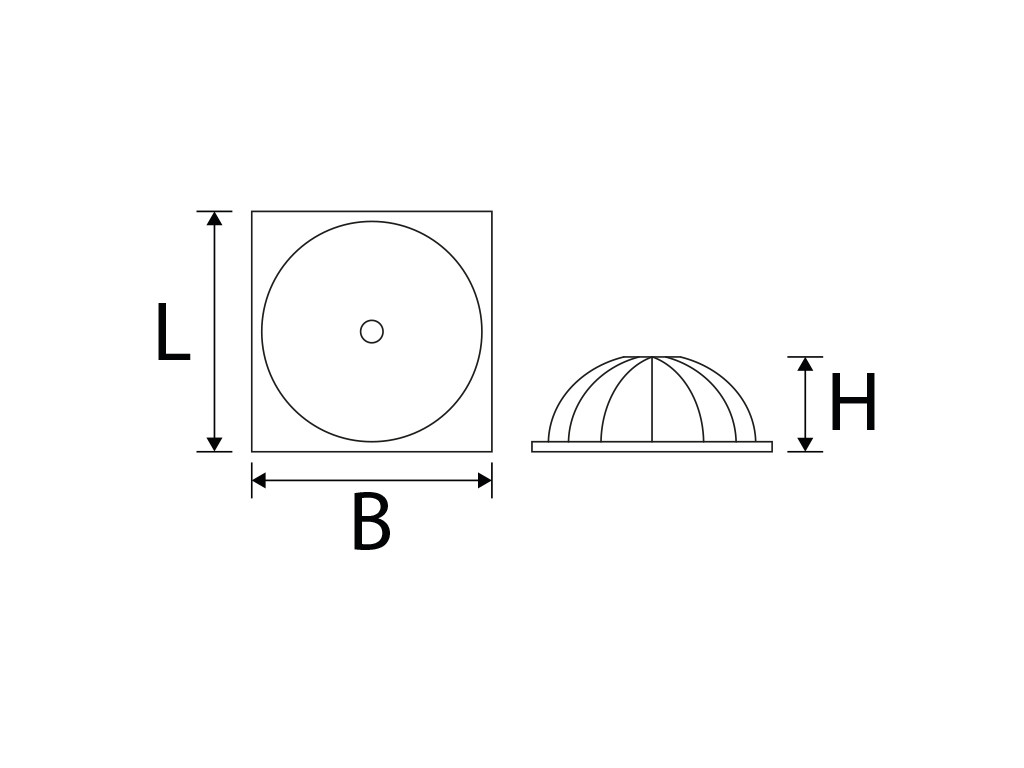

Dimensions

Menü schließen

Order number: : LG12000
Luminous Flux: 3730 lm
Power Draw: 30 W
Light Color: dualwhite
Input Current: AC 220-240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (44 room side)

Beam Angle: 120°
LED-Chip: SMD
Housing Color: black/white
Dimensions: 148x99 mm
Warranty: 5 years

Luminous Flux

3730
lm

Power Draw

30 W

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 44
room side

Beam Angle

120°

mounting type

Light Direction

Dimensions

(ØxH) in mm
148x99

Warranty

5 years

The light source may only be replaced by qualified persons

LED downlight module Litegear® Ciella LED module for combination with... more

Close menu

Product information "CIELLA LED-Unit 27-830/840-WH 3730lm"

LED downlight module

Litegear® Ciella LED module for combination with different ceiling mounting rings from 190 to 305mm in diameter. LED unit with switchable light colour: 3000, 3500, 4000 Kelvin using a switch. High system efficiency >120lm/W, thus Bafa eligible for refurbishment of existing buildings. Pluggable LED power supply with removable terminal box for through-wiring. The Ciella system is a lighting system for the renovation of ceiling openings of different sizes. You will receive 4 different ceiling rings for 160-180mm, 200-220mm, 250-270mm, 280-290mm ceiling cut-outs. The LED module is screwed onto the ceiling rings without tools. Power selectable LEd driver from 350-700mA 15-30W in steps.

Areas of application: Refurbishment of built-in lights with energy-saving lamps. once or twice 18-36W CFL G23/G24.

Corridors, offices, sales areas, walkways, hotels, sanitary areas, changing rooms, warehouses, ancillary rooms, restaurants, canteens

Related links to "CIELLA LED-Unit 27-830/840-WH 3730lm"

Zurück

Technical Details:

Luminous Flux:	3730 lm
Light Yield:	124 lm/W
Light Color:	dualwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	120 °
Light Emission:	downward
LED-Chip:	SMD
Ignition Time:	<0,5 s

Input Current:	AC 220-240V, 50/60Hz
Power Consumption:	30 W
Contains Driver:
Driver Manufacturer:	KGP
Power Factor (PF):	>0.95
Input Driver:	Kabel mit Terminal
Output of Driver:	DC 30 - 42V, 350-700mA
CC/CV:	CC
Input Lamp:	cable with plug
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-40°C - 60°C

Dimensions:	148x99 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (44 room side)
IK Code:	08
Housing Color	black/white
Housing Material:	aluminum
Coating:	lacquered
Net Weight:	789 g

Type of Packaging:	box
Dimensions of Packaging:	177x152x142
Weight incl. Packaging:	0.886 kg
Content Master Package:	20
Dimensions of Master Package:	780x200x590 mm
Weight Master Package:	18 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>70.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,D
Barcode:	4250557824093
CCT Select: 3000, 3500, 4000K
Power Select: 15-30W, max. 3650lm >120lm/W
elektr. Anschußdose für Durchgangsverdrahtung
modulare Bauweise, kombinierbar mit Deckenringen
