Plaja Frame Single Slot round

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG21012
  • Housing Color: black
  • Dimensions: 87x43 mm
  • Cut-Out Dimensions: 77 mm
  • Warranty: 2 years

mounting type

Light Direction


(ØxH) in mm


2 years

Plaja   With the Plaja downlight series Litegear® has created a... more
Product information "Plaja Frame Single Slot round"
With the Plaja downlight series Litegear® has created a flexible, modular and usefull LED based downlight for lighting designers. Different LED modules can be mixed and combined with a wide variety of downlight frames.

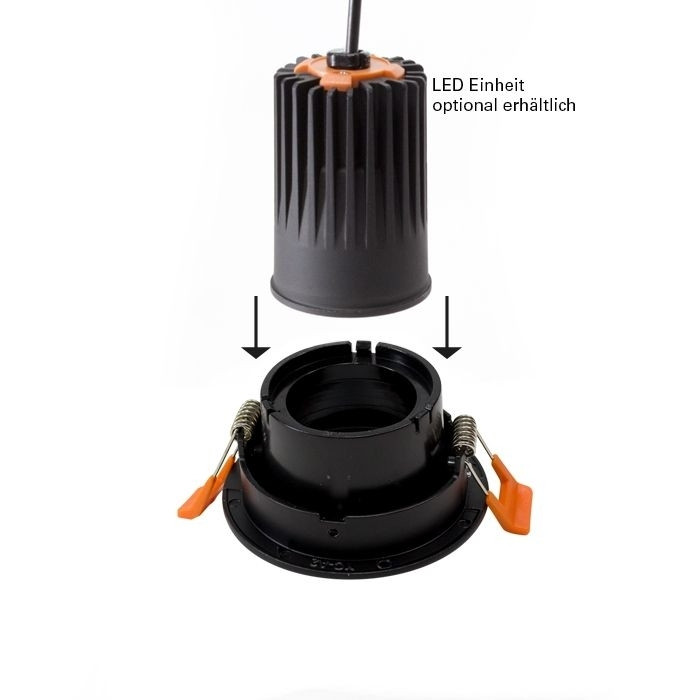

The LED modules are available in different light colours and optics. The frames are available in white and black housing color. Within seconds the modul can be attached on the suitable frame.
This wide variety makes Plaja usefull for different applications like: restaurant, hotel, shop or residential lighting. A strong, unique tool for creative lighting designers.
suitable light sources: Plaja LED module or GU10 PAR16
Related links to "Plaja Frame Single Slot round"
Technical Details:
Light Emission: downward
Ambient Temperature (TA): -10°C - 40°C
Dimensions: 87x43 mm
Installation Depth: 41 mm
Cut-Out Dimensions: 77 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 30 °
Housing Color black
Housing Material: aluminum
Coating: powder-coated
Net Weight: 83 g
Type of Packaging: bag
Dimensions of Packaging: 190x220x1
Weight incl. Packaging: 0.086 kg
Content Master Package: 60
Dimensions of Master Package: 450x320x240 mm
Weight Master Package: 6,54 kg
Warranty 2 years
Customs Tariff Number: 9405409990
Certifications CE
Barcode: 4250557809793
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen... more
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen Kombinationsmöglichkeiten und wählbaren Einbaurahmen
Vorschaltgerät: nicht enthalten
Deckenausschnitt: 77 mm
Einbautiefe: 41 mm
Temperaturbereich: -10°C - 40°C
Lichtaustritt: direkt
Maße: 87x43 mm
Montageart: Einbau (Decke)
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 83 g
Garantie: 2 Jahre
