Product information "Varia RC Downlight Gehäuse 40W-WH incl. Driver"

Modular LED track spotlight

The Varia-Style tracklight from the German manufacturer Litegear® is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows you to exchange the lens, the LED module and the LED driver within seconds without tools. So you can change the LED chip color with a different light color afterwards or exchange the lens against one with a more optimum beam angle. After a long period of use, the internal ballasts often fail, even the user himself can replace the ballast by simply plugging them on to the tracklight housing. The power adjustment of the power supplies by means of small DIP switches is also brilliant. The power of the LED track lights can be adjusted in 4 stages: 32W, 35W, 37W, 40W! Hereby one achieves either maximum performance or achieves maximum power savings. Customers have the choice between 2 housing colors, 2 diffrent external drivers with ranges from 27W to 32W or 32W to 40W by power-select switches. Even the driver can be exchanges tool free within seconds.

Varia is extremly variable!

Varia is assembled according to her personal configuration in Germany.

Changeable and adjustable LED Driver: 28-42W
Exchangeable LED COB module with the best quality of light and high efficiency: CRI> 80 or CRI> 90 with improved color rendering
Selectable light colors: 2700K, 3000K, 3500K, 4000K, 5700K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion
long life: up to 50,000 hours L70
reflector exchangeable without tools: 15 °, 25 °, 36 °
3-phase power adapter, compatible with all standard track rails
3 Housing color available: white, gray, black or numerous combinations thereof
passive cooling, aluminum heat sink
modular design

Related links to "Varia RC Downlight Gehäuse 40W-WH incl. Driver"

Zurück

Technical Details:

Swappable Reflector:

Input Current:	AC 200-240V, 50/60Hz
Power Consumption:	40 W
Contains Driver:

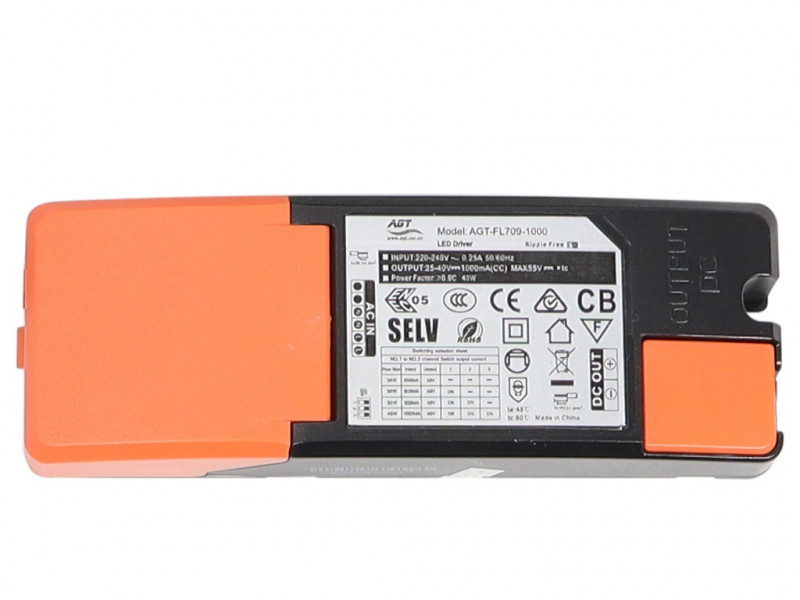

Driver Manufacturer:	AGT
Power Factor (PF):	>0.95
Input Driver:	terminal
Output of Driver:	DC 32-42V, 700-1000mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-10°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	197x160 mm
Cut-Out Dimensions:	165-185 mm
Mounting:	Decke
Montageart:	recessed
Pivot Range pan:	355 °
Pivot Range tilt:	30 °
IP Class:	20
Housing Color	white
Housing Color (RAL Code):	similar 9003
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	modular
Net Weight:	1586 g

Type of Packaging:	box
Weight incl. Packaging:	1.859 kg
Content Master Package:	4

Product Line:	Premio Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,D
Barcode:	4250557822938
Gehäuse zur Aufnahme von LED-Modul, Linse, Blende
housing to carry LED module, lens and bezel

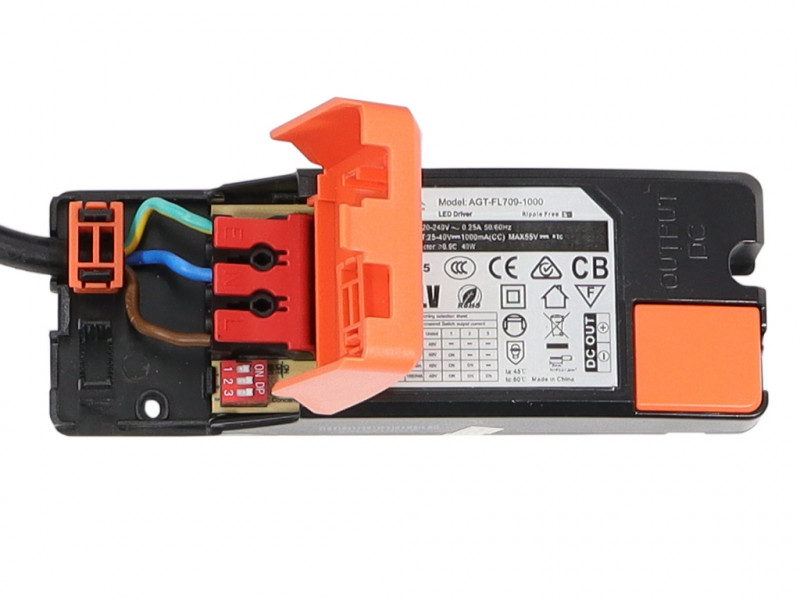

Power Select: 28, 32, 36, 40 Watt
wechselbarer Frontring
schwenkbar 30°

Technical Data Sheet (PDF)

Runder modularer LED-Einbauspot für komplett werkzeuglosen Austausch aller Komponenten für... more

Zurück

Runder modularer LED-Einbauspot für komplett werkzeuglosen Austausch aller Komponenten für 165-185mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 165-185 mm
Temperaturbereich: -10°C - 45°C
LED-Leistung: 40 W
Maße: 197x160 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1586 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
