Product Info (PDF)

Order number: LG5866

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG5866
Luminous Flux: 1980 lm
Power Draw: 22 W
Light Color: neutralwhite (4000 K)
Input Current: AC 200 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 44

Beam Angle: 120°
LED-Chip: SMD
Housing Color: white
Dimensions: 410x103 mm
Warranty: 3 years

Luminous Flux

1980
lm

Power Draw

22 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 44

Beam Angle

120°

ceiling, wall

Light Direction

Dimensions

(ØxH) in mm
410x103

Warranty

3 years

The driver may only be replaced by qualified persons

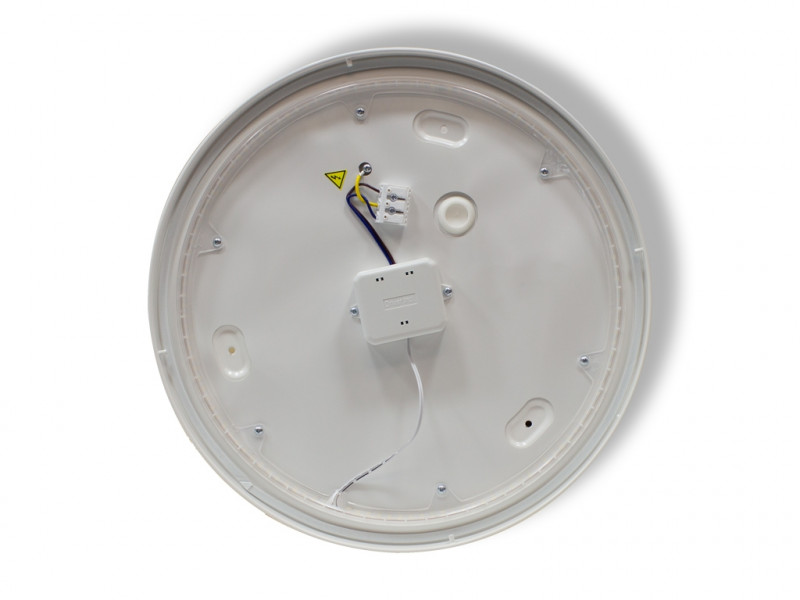

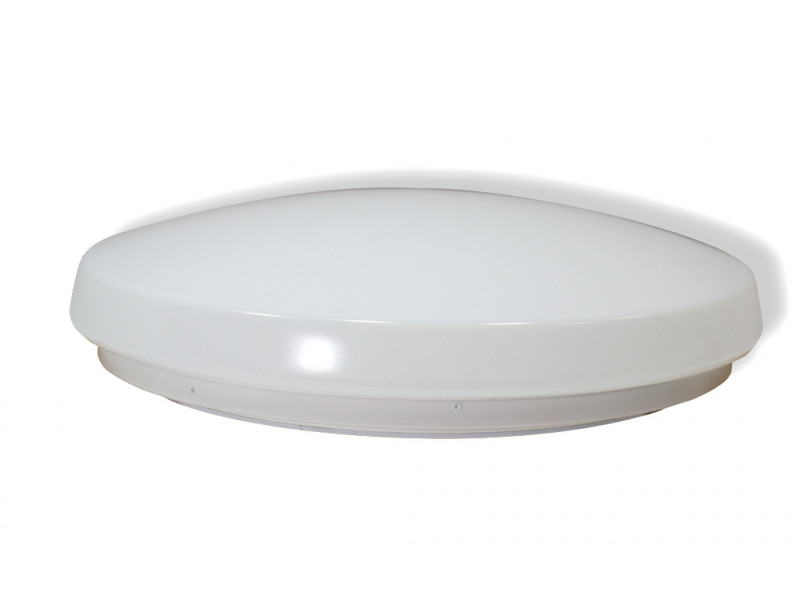

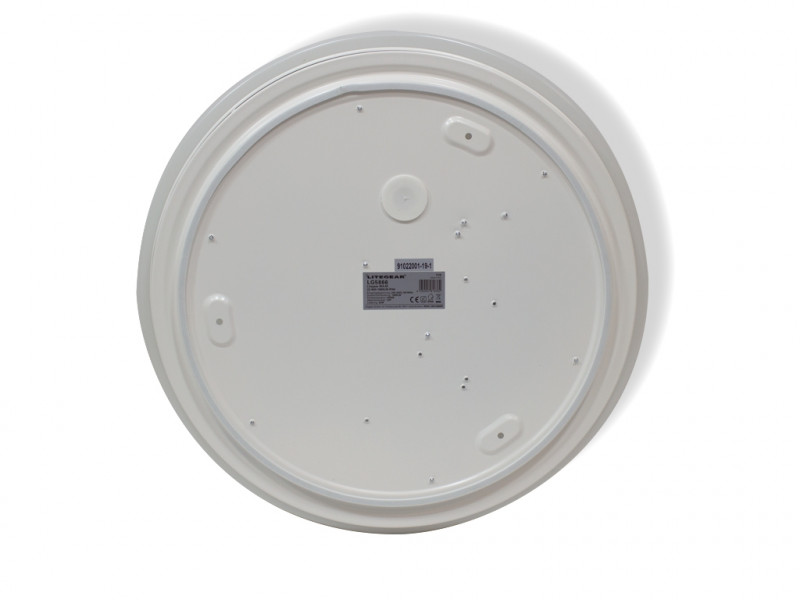

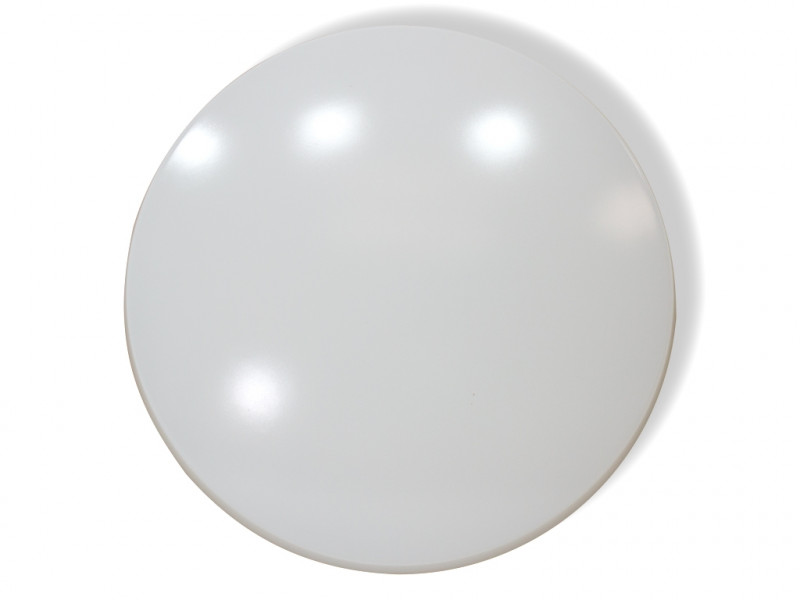

LED wall - / Ceiling light LED longlife technology with high energy... more

Close menu

Product information "IRA-L 22-840-1980LM-IP44"

LED wall - / Ceiling light

LED longlife technology with high energy saving
replacement for 2 x 26W G24 energy saver lamps
timeless, crown design
priliminaire weather and dust proof
compact housing
applications: stoarage rooms, corridors, residential, bath room, outside under cannopies,
easy installation

Related links to "IRA-L 22-840-1980LM-IP44"

Zurück

Technical Details:

Luminous Flux:	1980 lm
LED Output:	21 W
Light Yield:	90 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	120 °
Light Emission:	downward
LED-Chip:	SMD
Ignition Time:	<1 s

Input Current:	AC 200 - 240V, 50/60Hz
Power Consumption:	22 W
Contains Driver:
Power Factor (PF):	>0.9
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal
Switching Cycles:	>50.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-20°C - 50°C

Dimensions:	410x103 mm
Mounting:	ceiling,wall
IP Class:	44
Housing Color	white
Housing Material:	steel
Coating:	powder-coated
Cover:	opal
Net Weight:	807 g

Type of Packaging:	box
Dimensions of Packaging:	450x450x115
Weight incl. Packaging:	1.234 kg
Content Master Package:	5
Dimensions of Master Package:	600x470x475 mm
Weight Master Package:	7,29 kg

Product Line:	ECO Line
Warranty	3 years
Operating Hours:	>50.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE,D
Barcode:	4250557818382
IP44 raumseits/room side
weiche, gleichmäßige Ausleuchtung

Technical Data Sheet (PDF)

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit Schutzart IP44 more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit Schutzart IP44
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 40°C
Lichtstrom: 1980 lm
LED-Leistung: 22 W
Leuchten-Lichtausbeute: 90 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 410x103 mm
Montageart: (Decke,Wand)
Schutzart (DIN EN 60529): IP44
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 807 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
