Preview: LYONA 335-20/827-840-2500LM CCT-/Power Select Autotest Battery Emergency 270lm

LYONA 335-20/827-840-2500LM CCT-/Power Select Autotest Battery Emergency 270lm

Product Info (PDF)

Order number: LG31245EM3

Available from 08/2026

Prices are only visible after login.

Availability: on request

Dimensions

Menü schließen

Order number: : LG31245EM3
Luminous Flux: 2500 lm
Power Draw: Power Select (10,5, 13, 16,7, 22,5 W)
Light Color: CCT Select (2700, 3000, 4000 K)
Input Current: AC 220 - 240V, 95mA, 50/60Hz, DC 176-280V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 120°
LED-Chip: Smalite SMD 2835
Housing Color: white
Dimensions: 335x69 mm
Cut-Out Dimensions: 310 mm
Warranty: 5 years

Luminous Flux

2500
lm

Power Draw

23 W

Light Color

2700, 3000, 4000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

120°

ceiling, wall

Light Direction

Dimensions

(ØxH) in mm
335x69

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Universal surface-mounted luminaire with universal installation base Lamp... more

Close menu

Product information "LYONA 335-20/827-840-2500LM CCT-/Power Select Autotest Battery Emergency 270lm"

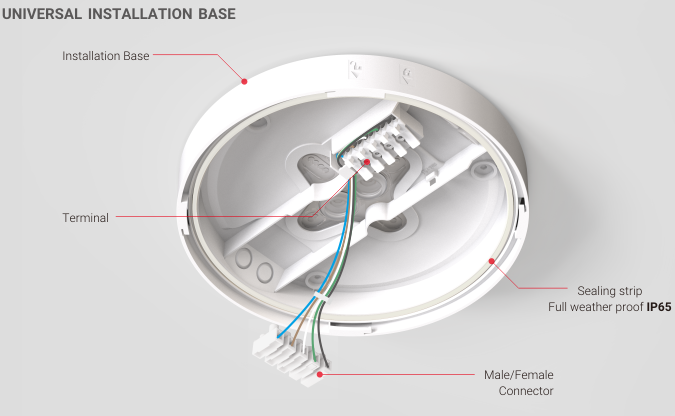

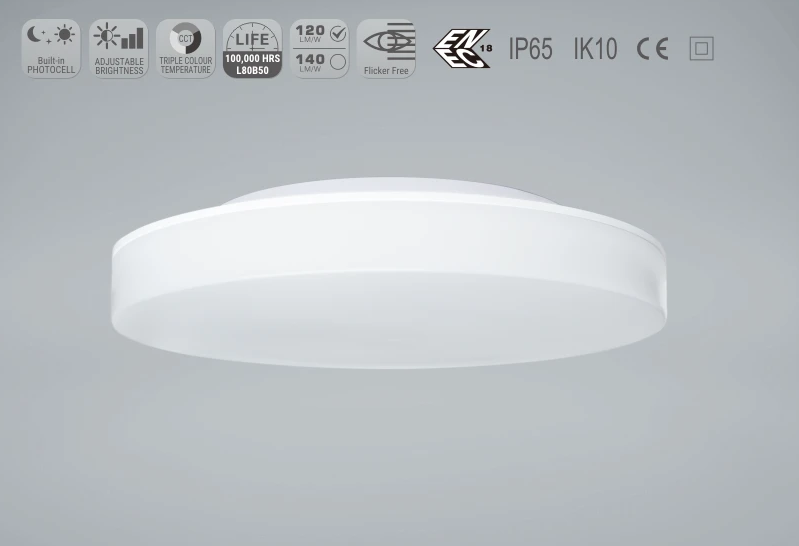

Universal surface-mounted luminaire with universal installation base

Lamp with integrated emergency light module. Provides 3 hours of batterie backup power and a luminous flux of 270 lumens.

Automatic self-test: weekly short test and annual 3-hour long-term test. Status LED green/red.

Lyona is a universal wall/ceiling surface-mounted luminaire with color temperature selection: CCT Select 2700/3000/4000K and Power Select: 10,5, 13, 16,7, 22,5W, corresponding to a luminous flux of 900, 1200, 1700, and 2500 lumens.

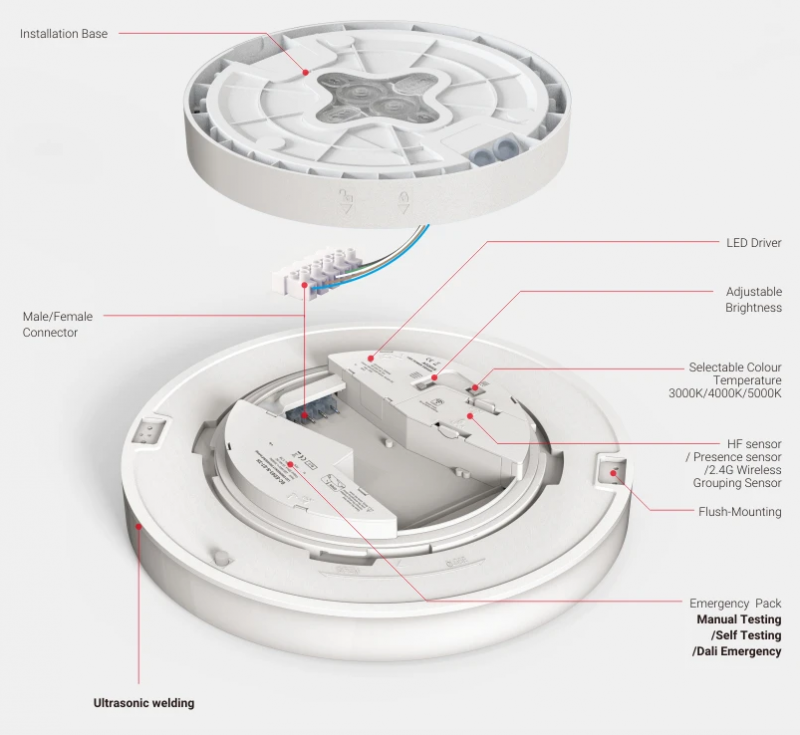

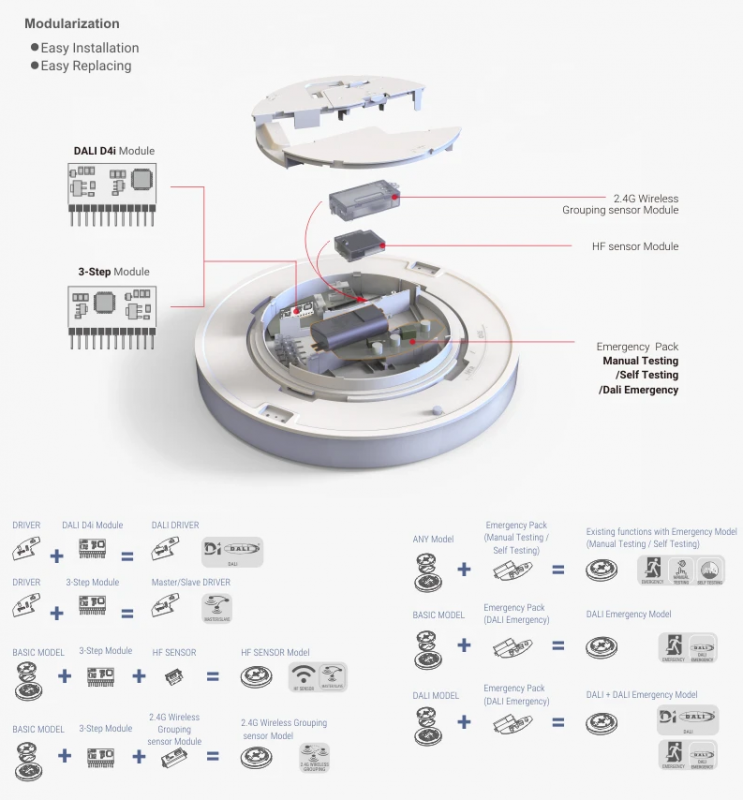

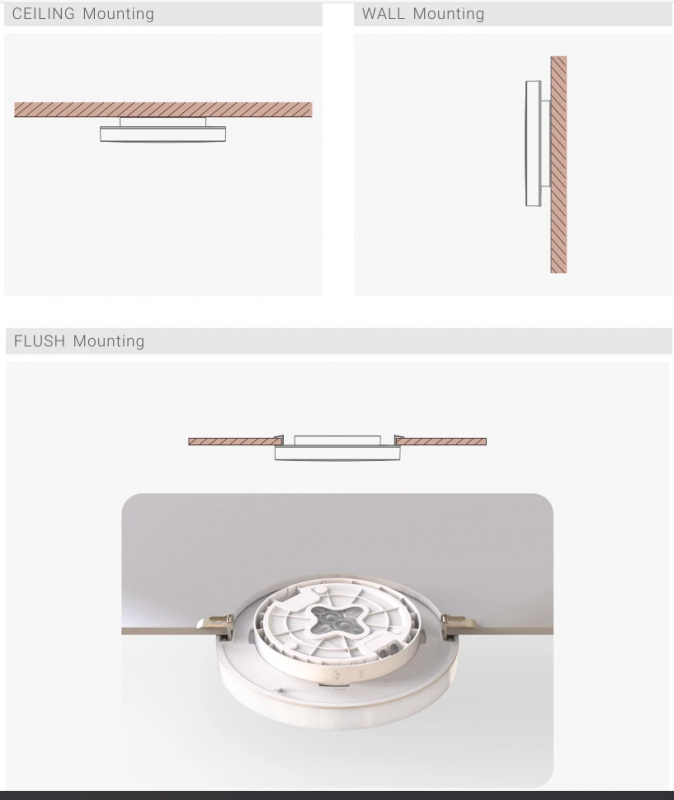

Lyona has an impressiv service-friendly, modular design; all luminaires are based on a modular installation base. The luminaire can be mounted on walls and ceilings or, using optional spring clamps, partially recessed into the ceiling.

• Optional version with smart wireless motion sensor available. Swarm function possible with switchable orientation lighting.

• Ideal for stairwells or hallways. The sensor operates in up to two axes vertically in stairwells and additionally in a horizontal axis, for example, in hallways.

Several Lyona luminaires will network together over 2,4GHz signal.

• Optional version with battery-powered emergency lighting available: automatic self-test

• Also available as a DALI version

• Housing made of impact-resistant polycarbonate IK10

• Weatherproof design: IP65 for outdoor installation under canopies or in bathrooms

Number of lights on a 16B circuit breaker: 42

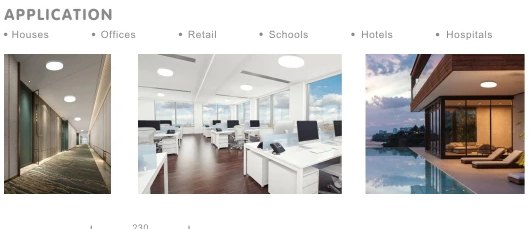

Areas of application:

Stairwells, hotels/offices, sanitary facilities, hallways/rooms, basements/storage rooms, outdoors under canopies

Related links to "LYONA 335-20/827-840-2500LM CCT-/Power Select Autotest Battery Emergency 270lm"

Zurück

Technical Details:

Luminous Flux:	2500 lm
LED Output:	22.5 W
Light Yield:	120 lm/W
Light Temperature:	2700, 3000, 4000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	120 °
Unified Glare Rating (UGR):	22
Light Emission:	downward
Dimmable:
Method of Dimming:	"Power Select"
LED-Chip Manufacturer:	Smalite
LED-Chip:	SMD 2835
Number of LED:	80
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 95mA, 50/60Hz, DC 176-280V
Power Consumption:	Power Select (10,5, 13, 16,7, 22,5 W)
Contains Driver:
Driver Manufacturer:	LMX
Power Factor (PF):	>0.9
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	II
Compatible with Emergency Current:
Ambient Temperature (TA):	-10°C - 50°C
Storage Temperature:	-10°C - 50°C

Dimensions:	335x69 mm
Cut-Out Dimensions:	310 mm
Mounting:	ceiling,wall
Montageart:	Aufbau + Einbau
IP Class:	65
IK Code:	10
Housing Color	white
Housing Material:	Polycarbonat
Special Feature of Housing:	modularer Aufbau
Cover:	opal
Net Weight:	1300 g
Luminaire Type:	Fluchtwegleuchtung
Testing Facility:	automatischer Selbsttest
Battery Warranty:	3
Discharge Duration:	≥3 h
Battery Type:	LiFePo4
Battery Current:	1500 mA
Battery Charge Duration:	24 h
Initial Charge Duration:	24 h
Charging Power Consumption:	1.5 W
Battery Cell Quantity	1
Luminous Flux in Battery Mode:	270 lm

Type of Packaging:	box
Dimensions of Packaging:	345x345x77
Weight incl. Packaging:	1.62 kg
Content Master Package:	10
Dimensions of Master Package:	715x410x365 mm
Weight Master Package:	17,25 kg

Product Line:	Premio Line
Warranty	5 years
Operating Hours:	>100.000 h L80/B50
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE,SELV
Barcode:	4250557828084
Ideal für Flure und Treppenhäuser
Perfect for corridors and staircase hous
Kann im Freien unter Vordächer verwendet werden!
Can be used temporarily outside under canopies
Battery emergency module: auto selftest, 3h, 270lm

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 310 mm
Temperaturbereich: -10°C - 50°C
Lichtstrom: 2500 lm
LED-Leistung: Power Select (10,5, 13, 16,7, 22,5 W)
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 2700, 3000, 4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 335x69 mm
Montageart: Aufbau + Einbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: opal
Nettogewicht: 1300 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
