RENOVIA VARIO 157/36-40-827-860-4800LM BAP, RF-Remote CCT-Adjust + Dim

LG59086
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG59086
  • Luminous Flux: 4800 lm
  • Power Draw: 40 W

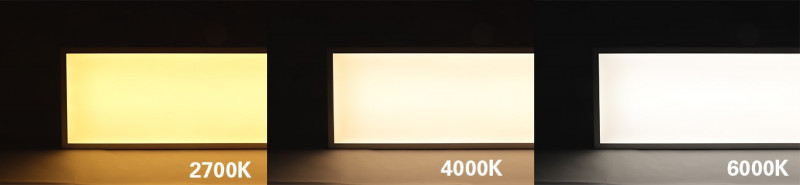

  • Light Color: Vario CCT (2700-6000 K)
  • Input Current: AC 200-240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 40
  • Beam Angle: 90°
  • LED-Chip: SMD 4014
  • Housing Color: white
  • Dimensions: 1570x360x55 mm
  • Warranty: 5 years

Luminous Flux

4800
lm

Power Draw

40 W

Light Color

2700-6000 K
Vario CCT

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 40

Beam Angle

90°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1570x360x55

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Surface mounting renovation luminaire   Renovia serves as a replacement for... more
Product information "RENOVIA VARIO 157/36-40-827-860-4800LM BAP, RF-Remote CCT-Adjust + Dim"

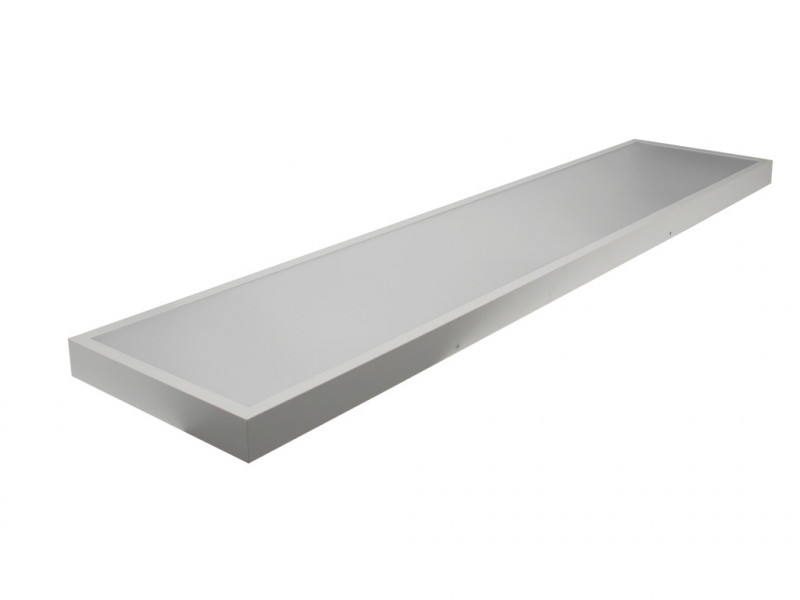

Surface mounting renovation luminaire

Renovia serves as a replacement for traditional surface mounted louver luminaires with fluorescent tubes. The larger housing can easily cover dirty edges outside the old luminaire housing, so no need for a complete ceiling painting.

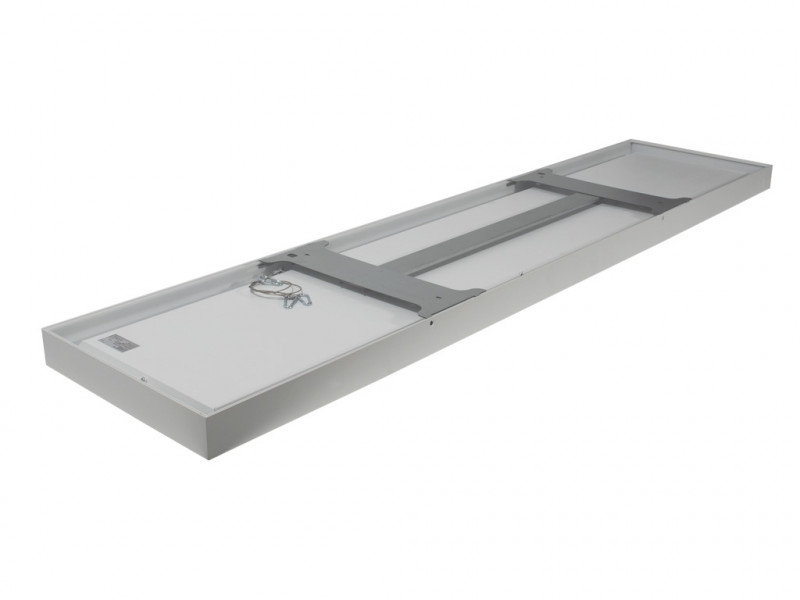

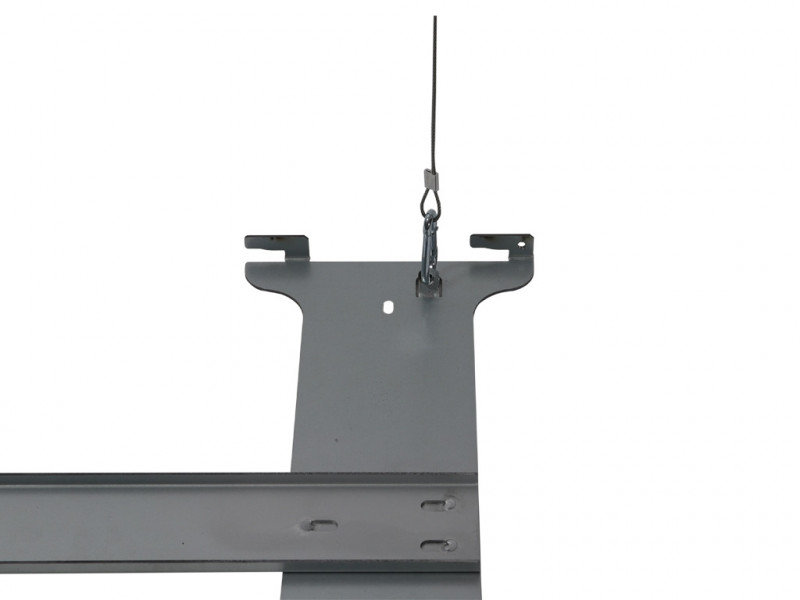

Easy installation due to separate ceiling mount plate with electronic ballast with terminal. The LED light is simply hung in the holder, easy for service! Uniform, wide light distribution with low glare due to microprismatics optical material. Optical part made of UV and temperature-resistant polymethyl methacrylate (PMMA). Eye-friendly, flicker-free LED light. Long life wireless controlled electronic driver for CCT change and dimming via remote controller

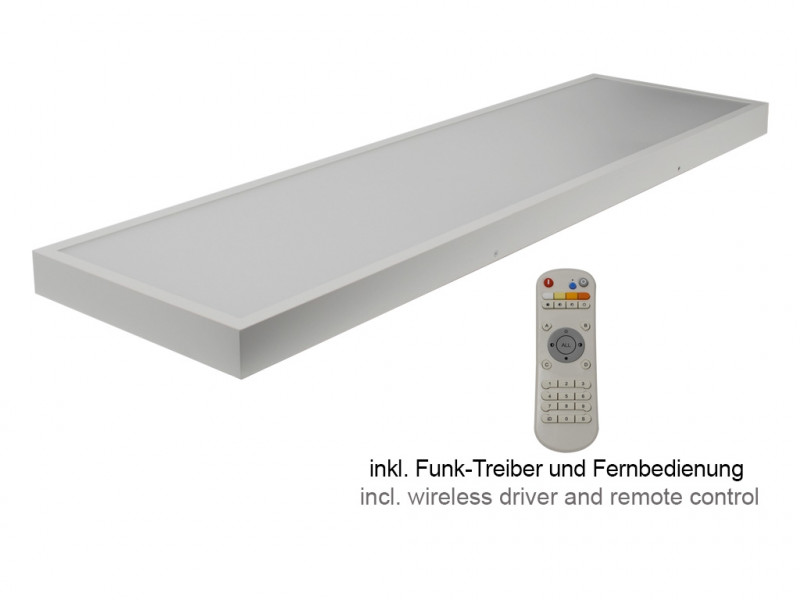

  • Dimming and CCT adjust by included remote controller
  • Available in 2 different sizes and power ranges.

Applications:
  • Office, conference room, computer workstation BAP UGR <19 EN12464-1
  • laboratory, hospital, fitness center
  • hall and reception
  • Sanitary facilities and corridoors
Related links to "RENOVIA VARIO 157/36-40-827-860-4800LM BAP, RF-Remote CCT-Adjust + Dim"
Technical Details:

Luminous Flux: 4800 lm
LED Output: 46 W
Light Yield: 120 lm/W
Light Temperature: 2700-6000 K
Light Color: Vario CCT
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 90 °
Unified Glare Rating (UGR): 19
Light Emission: downward
Dimmable: ja
Method of Dimming: Funk
LED-Chip: SMD 4014
Ignition Time: <0,5 s
Input Current: AC 200-240V, 50/60Hz
Power Consumption: 40 W
Contains Driver: ja
Driver Manufacturer: TIGGI
Power Factor (PF): >0.9
Input Driver: terminal
Output of Driver: DC 25-40V, 1000mA
CC/CV: CC
Output Current Adjustable: ja
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 1570x360x55 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 40
IK Code: 03
Housing Color white
Housing Color (RAL Code): similar 9016
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: zweiget. Anbaugehäuse
Cover: Mikroprismatisch PMMA
Net Weight: 5670 g
Type of Packaging: box
Weight incl. Packaging: 6.61 kg
Content Master Package: 4
Dimensions of Master Package: 1630x372x415 mm
Weight Master Package: 28,65 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,D
Barcode: 4250557823331
Funkfernbedienbarer LED Treiber 40W Dim
stufenlose Farbwahl: 2700-6000 Kelvin
PMMA Lightguideplate, anti yellow
Bildschirmarbeitsplatztauglich DIN EN12464-1
Renovierungsleuchte Ersatz f.Rasterleuchten 2x58W
