Alvera Line MKII 1200 40-840-5600LM DALI DIM IFS

LG30455DA
Prices are only visible after login.

Availability: low stock

Dimensions

Dimensions
  • LG30455DA
  • Luminous Flux: 5600 lm
  • Power Draw: 40 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 180-264 maxV, 0,3 maxmA, 50Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 120°
  • LED-Chip: Epistar SMD 2835
  • Housing Color: white
  • Dimensions: 1225x85x78 mm
  • Warranty: 5 years

Luminous Flux

5600
lm

Power Draw

40 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1225x85x78

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Tri-proof light The Litegear® Alvera is a stylish, waterproof LED fixture with... more
Product information "Alvera Line MKII 1200 40-840-5600LM DALI DIM IFS"
LED Tri-proof light
The Litegear® Alvera is a stylish, waterproof LED fixture with IP65 standard and high mechanical protection. Alvera Line LED is equipped with LED boards with very high system efficency up to 130 Lumen/Watt and available in different lengths and in different power classes.

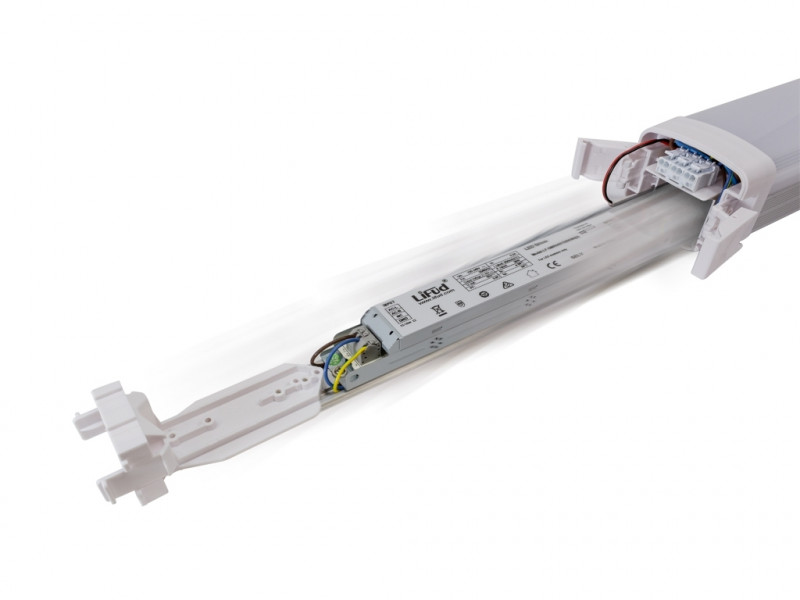

Based on a strong aluminum profile with excellent heat dissipation for long lifespan of up to 50.000 hours and a opal PC diffuser Litegear® created a unique LED weatherproof luminaire with easy and fast installation and daisy chain function trough easy access endcaps and junction terminal. Alvera has a fast cash back due to its excellent performance and high efficency up to 7500 Lumen. Alvera is the perfect luminaire for industrial applications in factories, warehouse, coolhouse storage, parking lots, sellers or just outside. Up to 5 years full warranty (or max. 25000 hours of use)! Alvera comes with a high quality LED driver!

Related links to "Alvera Line MKII 1200 40-840-5600LM DALI DIM IFS"
Technical Details:

Luminous Flux: 5600 lm
LED Output: 39 W
Light Yield: 140 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <5
Beam Angle: 120 °
Light Emission: downward
Dimmable: ja
Method of Dimming: DALI
LED-Chip Manufacturer: Epistar
LED-Chip: SMD 2835
Number of LED: 234
Ignition Time: <0,5 s
Input Current: AC 180-264 maxV, 0,3 maxmA, 50Hz
Power Consumption: 40 W
Contains Driver: ja
Driver Manufacturer: Boke
Power Factor (PF): >0.97
Input Driver: terminal
Output of Driver: DC 27-40V, 950mA
CC/CV: CC
Input Lamp: Terminal
Switching Cycles: >50.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 60°C
Storage Temperature: -40°C - 55°C
Dimensions: 1225x85x78 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 10
Housing Color white
Housing Material: aluminum
Special Feature of Housing: opt. Polycarbonat Cover
Cover: opal
Net Weight: 2000 g
Type of Packaging: box
Dimensions of Packaging: 1295x92x82
Weight incl. Packaging: 2.41 kg
Content Master Package: 4
Dimensions of Master Package: 1320x190x220 mm
Weight Master Package: 11 kg
Product Line: Premio Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,LM80,EMC,LVD,D
Barcode: 4250557821306

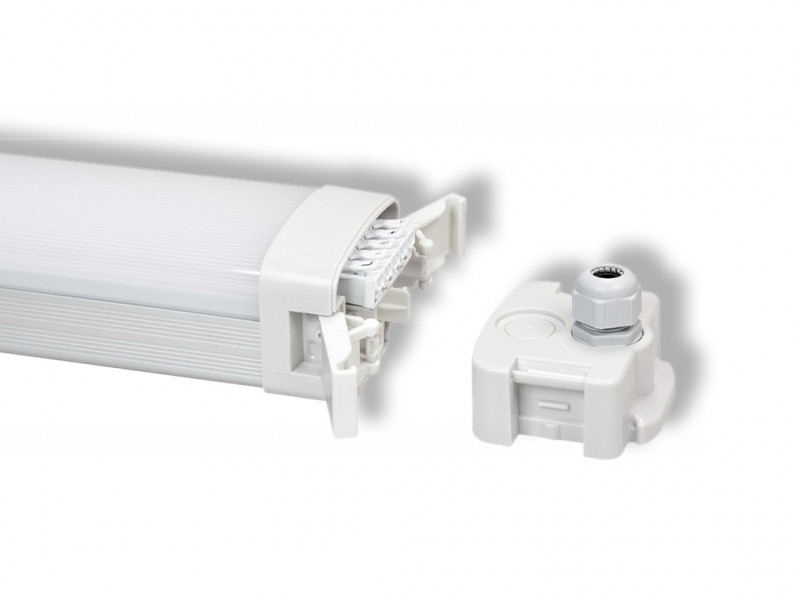

Einfache, und schnelle Montage In/out Terminal
Schnellverschluß Endkappen
CE, RoHs, ErP, LM80, TM21
5-adrig, Dali dimmbar
5 wire terminal both sides for link
