Ekova SELECT Plug and Play Sensor 12V DC 30mA IP20
Order number: LG30808
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG30808
- Input Current: DC 7,5-12V, 30mA
- IP Code: 20
- Housing Color: white
- Dimensions: 52x16x16 mm
- Warranty: 3 years
Motion detector for Ekova Select series Microwave motion radar detector... more
Product information "Ekova SELECT Plug and Play Sensor 12V DC 30mA IP20"

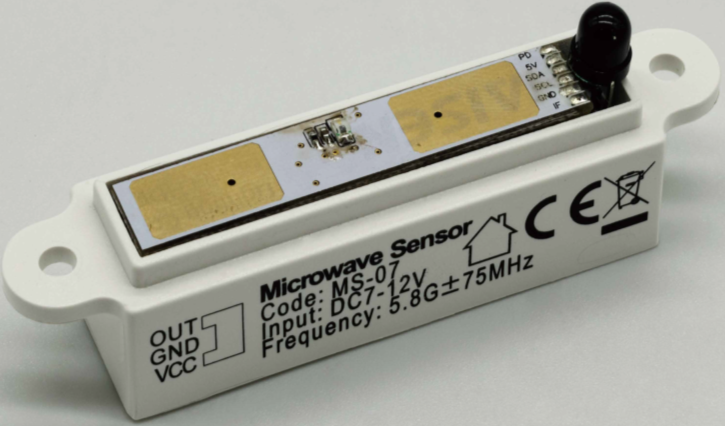

Motion detector for Ekova Select series
- Microwave motion radar detector
- Plug and Play accessory kit

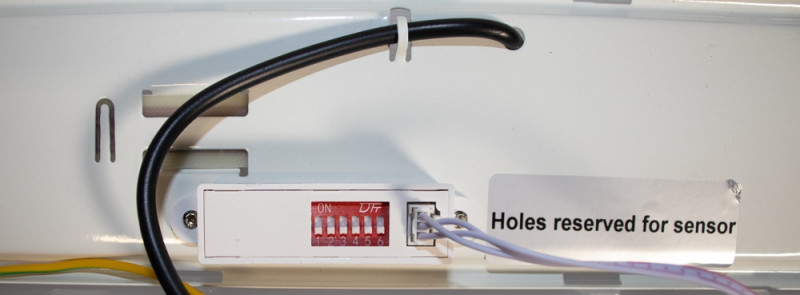

- Can be installed easily even afterwards by a technician
- Power supply low voltage by connection to LED driver

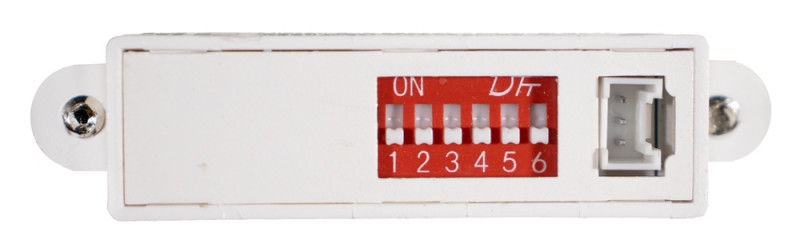

- Set up via optional remote or DIP switch
Technical datas:
- Detection area: max. 9m @2m height, max. height 4m, 50%/100% switch, ceiling 360°, wall 150°
- Frequency: 5,8GHz +/-75Hz
Operational voltage: 7,5-12V DC 30mA
operational power consumption: 0,3W
Dimming methode: PWM: Dimmlevel: 0%/20% im Standby for 15min/∞
Stand by Time 100% brightness: 5s, 1Min. 3 Min. 10 Min.
Daylight thershold: 30 Lux or disable
Applications:
hallway, sanitary areas, warehouse, loading area, cold storage

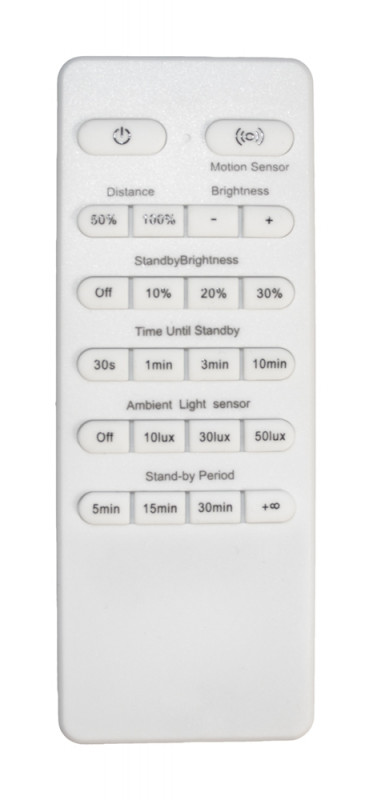

optional remote controller for easy set up available
Related links to "Ekova SELECT Plug and Play Sensor 12V DC 30mA IP20"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | PWM |
| Glow Wire Test 650°C/30s | |
| Input Current: | DC 7,5-12V, 30mA |
| CC/CV: | CV |
| Ambient Temperature (TA): | -20°C - 60°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 52x16x16 mm |
| Mounting: | ceiling,wall |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Plug and Play Sensor |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.01 kg |
| Content Master Package: | 300 |
| Dimensions of Master Package: | 340x275x310 mm |
| Weight Master Package: | 4,8 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557826660 |
| Motion sensor for Ekova Select | |
| Detection Area: 50/100%, max: 9m@2m | |
| Hold Time: 5s, 1min, 3 min, 10min | |
| Daylight Threshold: 30 Lux, disable | |
| Step Dim: 0/20%: 15min, ∞ | |
