Instatube Advance Sensor

LG56389
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG56389
  • Power Draw: 1 W
  • Input Current: AC 220-240V, 50/60Hz
  • IP Code: 65
  • Housing Color: silver
  • Dimensions: 170x34x45 mm
  • Warranty: 3 years

Power Draw

1 W

IP Code

IP 65

mounting type

Dimensions

(LxBxH) in mm
170x34x45

Warranty

3 years

Motion sensor for Instatube Advance   Plug and Play microwave motion sensor with... more
Product information "Instatube Advance Sensor"

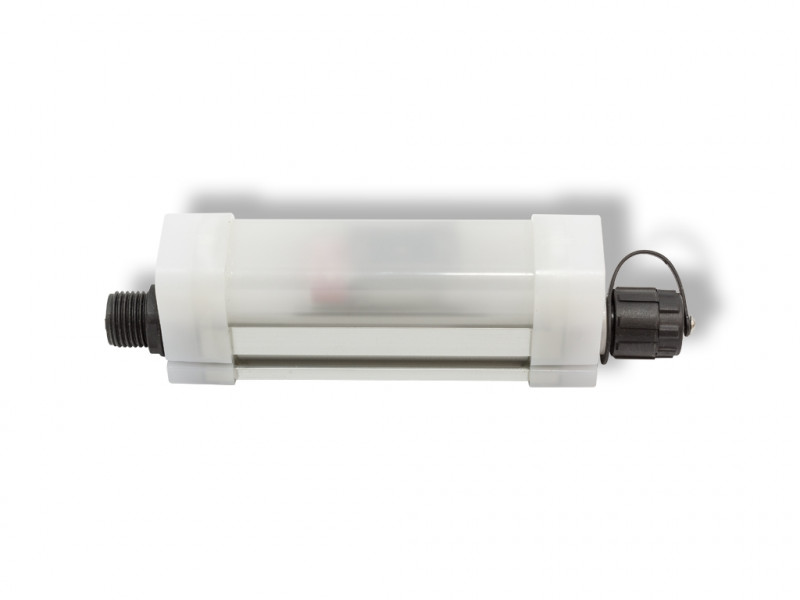

Motion sensor for Instatube Advance

Plug and Play microwave motion sensor with 3-pin. connector, power in/out. For indoor and outdoor use IP65 weatherproof. Detetion range up to 16m. Daylight treshhold 10 Lux.
Perfect detection of vehicles and persons.

  • Stand by power: 0,5W
  • voltage: AC 220-240V
  • maximum load: 400W
  • Adjustable daylight treshold and sensitivity: no
Related links to "Instatube Advance Sensor"
Technical Details:

Ignition Time: <1 s
Input Current: AC 220-240V, 50/60Hz
Power Consumption: 1 W
Switching Cycles: >30.000
Ambient Temperature (TA): -10°C - 40°C
Dimensions: 170x34x45 mm
Montageart: surface mounted
IP Class: 65
Housing Color silver
Housing Material: aluminum
Special Feature of Housing: 3-pol Power in/out
Net Weight: 158 g
Type of Packaging: box
Dimensions of Packaging: 180x55x60
Weight incl. Packaging: 0.19 kg
Product Line: Advance Line
Warranty 3 years
Disposal Obligation: ja
Certifications CE,EMC
Barcode: 4250557816999
Microwellen Bewegungssensor für Instatube Advance
Microwave motion sensor for Instatube Advance
