Retrova 1220 36-860-5150LM
Order number: LG30735
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30735
- Luminous Flux: 5150 lm
- Power Draw: 38 W
- Light Color: cold white (5800 K)
- Input Current: AC 198 - 264V, 50/60Hz, DC 176 - 276V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: grey
- Dimensions: 1228x100x82 mm
- Warranty: 3 years
IP65 LED triproof light Retrova by Litegear® is the perfect alternative to... more
Product information "Retrova 1220 36-860-5150LM"
IP65 LED triproof light
Retrova by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 57% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP65 ingress protection and IK10 impact class protection.
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop
Advantages:
Long life time due to Osram Optifit Driver with select able output current and SMD LEDs.
flexible installation brackets and stainless steel clip lockers.

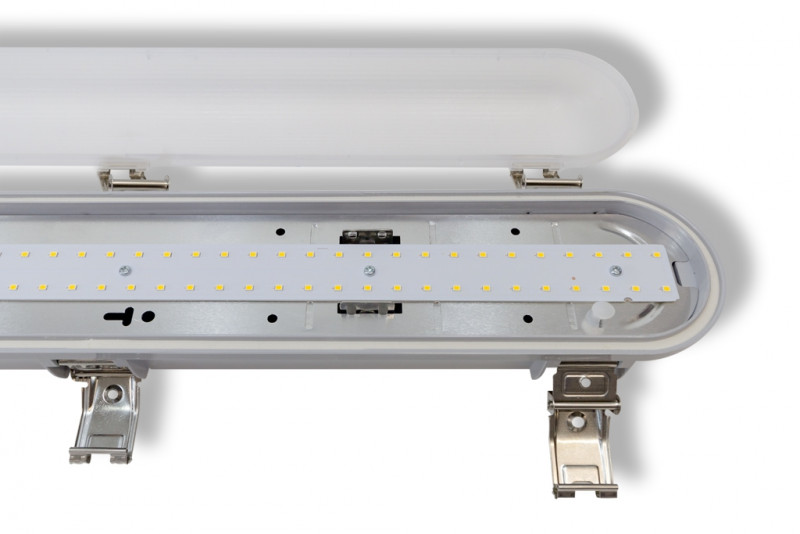

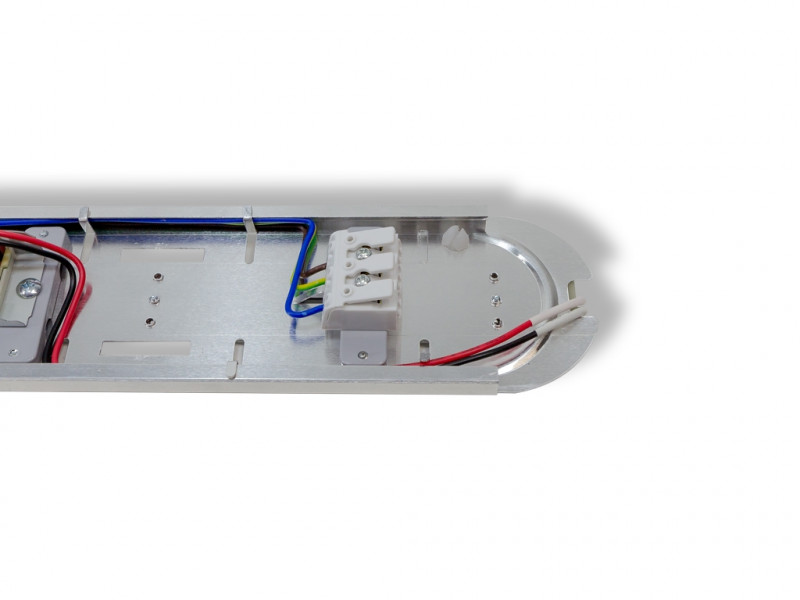

easy to change light carrier board with electrical terminal with in/out/trough link function
Many precut cable gand positions from both sides and backside.
Low surface temperature below 80°C Mark: D
Related links to "Retrova 1220 36-860-5150LM"
Technical Details:
| Luminous Flux: | 5150 lm |
| LED Output: | 38 W |
| Light Yield: | 137 lm/W |
| Light Temperature: | 5800 K |
| Light Color: | cold white |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Number of LED: | 176 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 198 - 264V, 50/60Hz, DC 176 - 276V |
| Power Consumption: | 38 W |
| Contains Driver: |  |
| Driver Manufacturer: | Osram |
| Power Factor (PF): | >0.97 |
| Input Driver: | terminal |
| Output of Driver: | DC 27 - 54V, 500, 600, 650, 700mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |

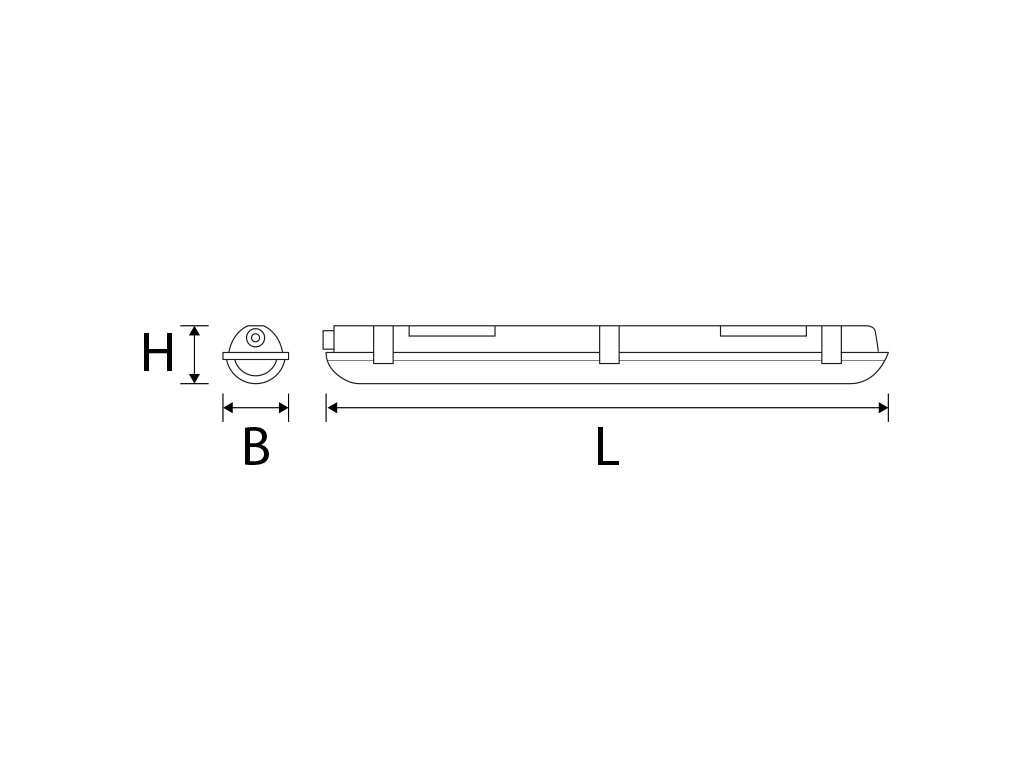

| Dimensions: | 1228x100x82 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 10 |
| Housing Color | grey |
| Housing Material: | PC |
| Special Feature of Housing: | shockproof |
| Cover: | prismatic |
| Net Weight: | 1590 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1230x110x90 |
| Weight incl. Packaging: | 1.9 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1255x190x225 mm |
| Weight Master Package: | 8,1 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B30 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| Barcode: | 4250557810430 |

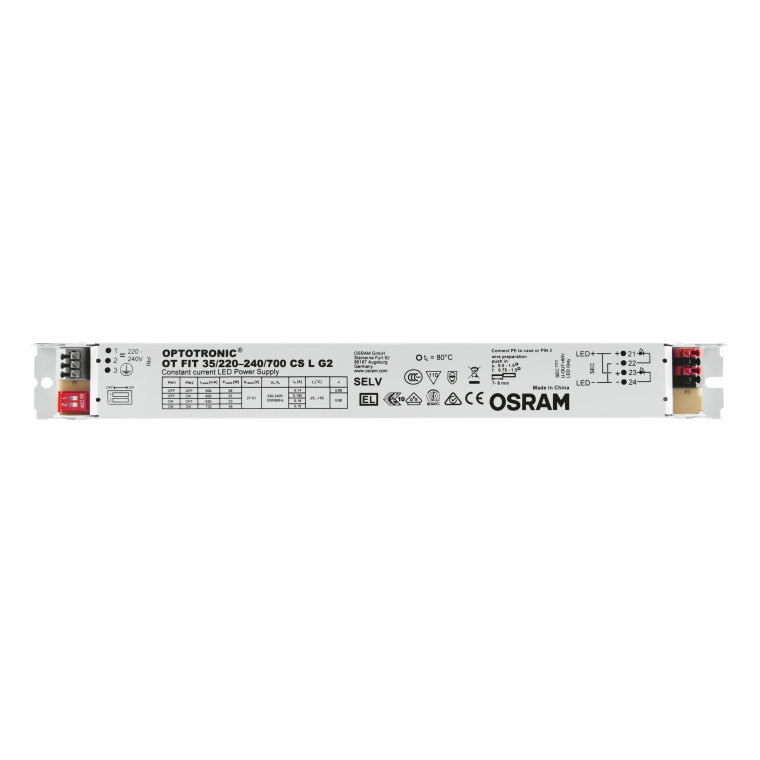

| Osram LED Treiber mit einstellbarem Ausgangsstrom: | |
| OT-Fit36: Leistung einstellbar: 25, 30,33,35W | |
| EVG: ENEC-10/VDE EMC/EL/CE; geeignet für Notstrom | |
| Anzahl pro Automat: 10A: 20, 16A: 32 Stück | |
