Preview: RETROVA SELECT 120 25/40-CCT-Select-3550-5300LM

RETROVA SELECT 120 25/40-CCT-Select-3550-5300LM

Product Info (PDF)

Order number: LG30747

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG30747
Luminous Flux: 5300 lm
Power Draw: Power Select (25, 30, 35, 40 W)
Light Color: CCT Select (4000,5000,6000 K)
Input Current: AC 198 - 264V, 50/60Hz, DC 176 - 276V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 66

Beam Angle: 100°
LED-Chip: Osram Opto Semiconductors SMD 2835
Housing Color: lichtgrey
Dimensions: 1190x96x74 mm
Warranty: 5 years

Luminous Flux

5300
lm

Power Draw

40 W

Light Color

4000,5000,6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

Beam Angle

100°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1190x96x74

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED triproof light Retrova Select by Litegear® is the perfect alternative... more

Close menu

Product information "RETROVA SELECT 120 25/40-CCT-Select-3550-5300LM"

LED triproof light

Retrova Select by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 57% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP66 ingress protection and IK08 impact class protection.

The Select Version has additional CCT Select function: 4000, 5000 or 6000 Kelvin plus selectable output power: 25, 30, 35 up to 40 Watt.

Applications:

warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop

Advantages:

Long life time due to Osram Optifit Driver with select able output current and SMD LEDs.

flexible installation brackets and stainless steel clip lockers.

easy to change light carrier board with electrical terminal with in/out/trough link function

Many precut cable gand positions from both sides and backside.

Low surface temperature <80°C Mark: D

Related links to "RETROVA SELECT 120 25/40-CCT-Select-3550-5300LM"

Zurück

Technical Details:

Luminous Flux:	5300 lm
LED Output:	38 W
Light Yield:	133 lm/W
Light Temperature:	4000,5000,6000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	100 °
Unified Glare Rating (UGR):	25
Light Emission:	downward
LED-Chip Manufacturer:	Osram Opto Semiconductors
LED-Chip:	SMD 2835
Number of LED:	456
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 198 - 264V, 50/60Hz, DC 176 - 276V
Power Consumption:	Power Select (25, 30, 35, 40 W)
Contains Driver:
Driver Manufacturer:	Osram
Power Factor (PF):	>0.95
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	1190x96x74 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	66
IK Code:	08
Housing Color	lichtgrey
Housing Material:	ABS
Special Feature of Housing:	schlagzäh
Cover:	prismatic
Net Weight:	1557 g

Dimensions of Packaging:	1220x100x82
Weight incl. Packaging:	1.736 kg
Content Master Package:	10
Dimensions of Master Package:	1240x430x220 mm
Weight Master Package:	19,01 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE,D
Barcode:	4250557818955

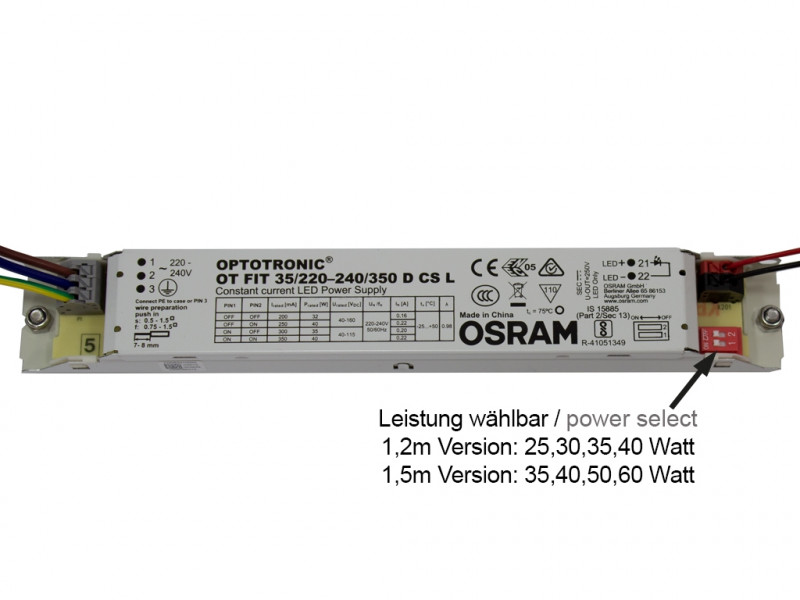

Osram LED Treiber mit einstellbarem Ausgangsstrom:
Leistung einstellbar: 25,30,35,40W max. 142lm/W
EVG: ENEC-10/VDE/EMC/EL/CE; geeignet für Notstrom
Anzahl pro Automat: 10A: 20, 16A: 32 Stück
CCT Select: 4000K, 5000K, 6000K by switch

Technical Data Sheet (PDF)

LED-Feuchtraumwannenleuchte mit Edelstahlklammern als optischer Ersatz zu konventionellen... more

Zurück

LED-Feuchtraumwannenleuchte mit Edelstahlklammern als optischer Ersatz zu konventionellen Wannenleuchten mit Leuchtstoffröhre
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 5300 lm
LED-Leistung: Power Select (25, 30, 35, 40 W)
Leuchten-Lichtausbeute: 133 lm/W
Farbtemperatur: 4000,5000,6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 100°
UGR: 25
Lichtaustritt: direkt
Maße: 1190x96x74 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: lichtgrey
Gehäusematerial: ABS
Abdeckung: prismatisch
Nettogewicht: 1557 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:
