Retrova 1550 54-840-7020LM

LG30743
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG30743
  • Luminous Flux: 7020 lm
  • Power Draw: 54 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 198 - 264V, 370mA, 50/60Hz
  • Color Rendering Index (CRI): ≥82 Ra
  • IP Code: 66
  • Beam Angle: 120°
  • LED-Chip: Everlight SMD 2835
  • Housing Color: grey
  • Dimensions: 1568x100x82 mm
  • Warranty: 3 years

Luminous Flux

7020
lm

Power Draw

54 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>82 Ra

IP Code

IP 66

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1568x100x82

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

IP66 LED triproof light   Retrova by Litegear® is the perfect alternative to... more
Product information "Retrova 1550 54-840-7020LM"

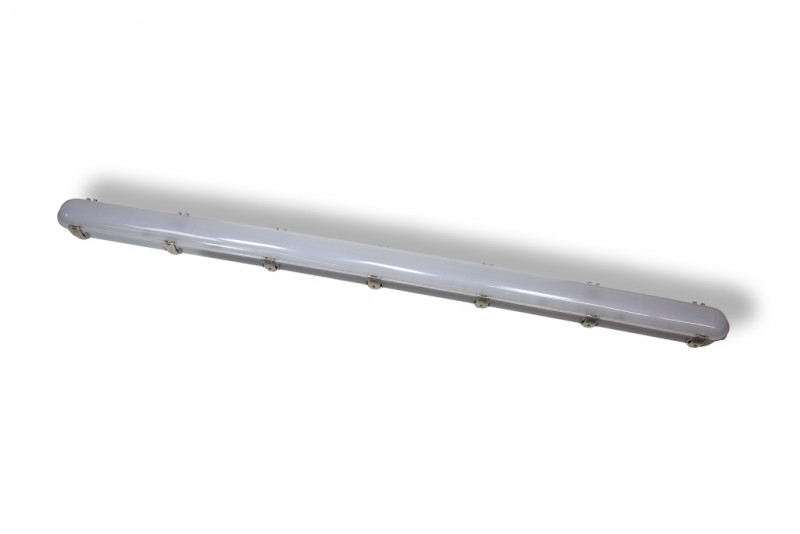

IP66 LED triproof light

Retrova by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 57% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP65 ingress protection and IK10 impact class protection.

Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop

Advantages:

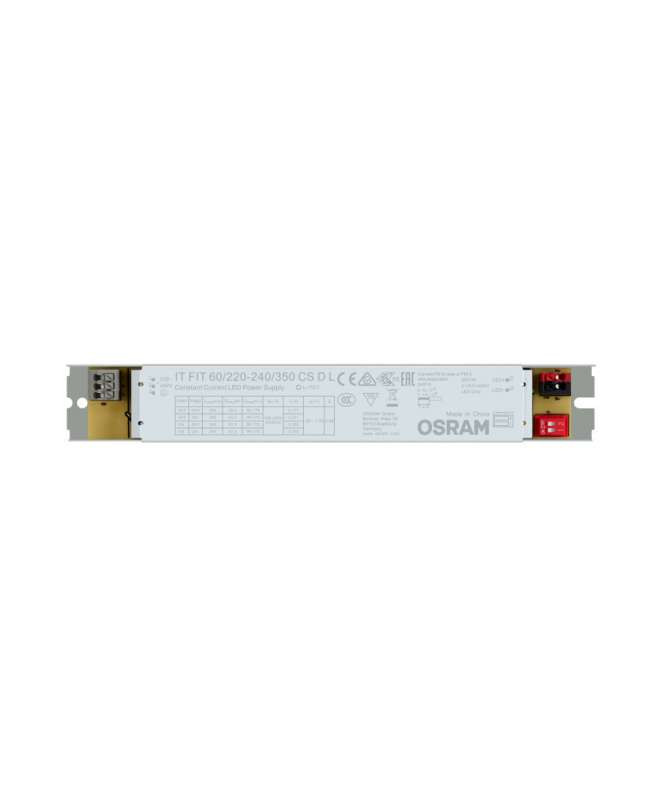

Long life time due to Osram Optifit Driver with select able output current and SMD LEDs.
flexible installation brackets and stainless steel clip lockers.

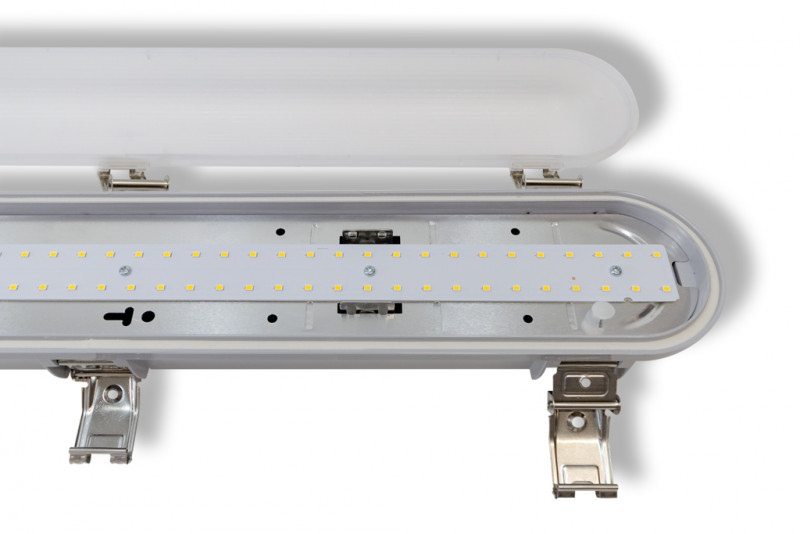

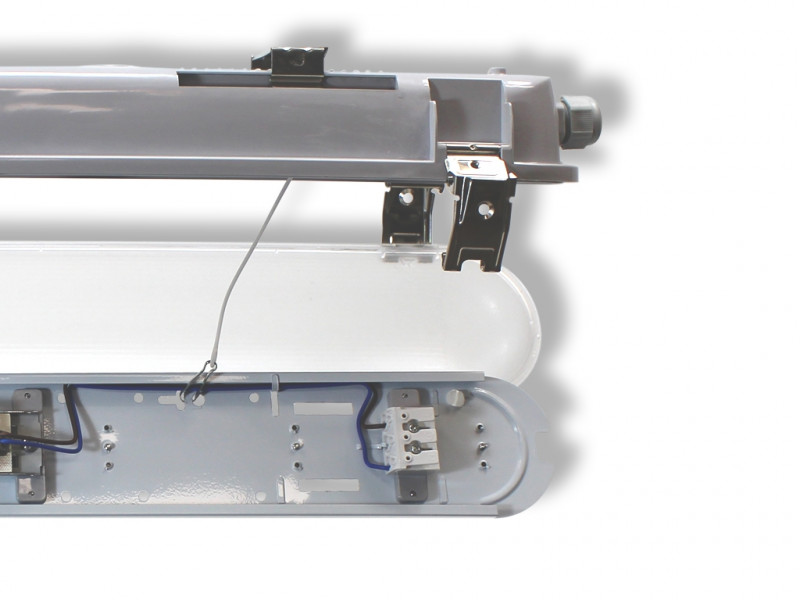

easy to change light carrier board with electrical terminal with in/out/trough link function
Many precut cable gand positions from  both sides and backside.
Low surface temperature below 80°C Mark: D
Related links to "Retrova 1550 54-840-7020LM"
Technical Details:

Luminous Flux: 7020 lm
LED Output: 49 W
Light Yield: 130 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥82 Ra
Color Consistency (SDCM): <4
Beam Angle: 120 °
Unified Glare Rating (UGR): 28
Light Emission: downward
LED-Chip Manufacturer: Everlight
LED-Chip: SMD 2835
Number of LED: 272
Ignition Time: <0,5 s
Input Current: AC 198 - 264V, 370mA, 50/60Hz
Power Consumption: 54 W
Contains Driver: ja
Driver Manufacturer: KGP
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 20-50V, 900-1800mA
CC/CV: CC
Output Current Adjustable: ja
Input Lamp: terminal
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 40°C
Storage Temperature: -40°C - 60°C
Dimensions: 1568x100x82 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 66
IK Code: 08
Housing Color grey
Housing Material: Polycarbonat
Special Feature of Housing: 304 Edelstahl Clips
Cover: prismatic
Net Weight: 1950 g
Type of Packaging: box
Dimensions of Packaging: 1580x110x85
Weight incl. Packaging: 2.3 kg
Content Master Package: 6
Dimensions of Master Package: 1595x280x225 mm
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,SELV,D
Barcode: 4250557810447
KGP Treiber
Anzahl Leuchten:10B: 13,16B: 20, 10C: 19, 16C: 30
