RETROVA EXTREME EM 1570 55-840-865-9750LM 185lm/W max.
Order number: LG30802
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30802
- Luminous Flux: 9750 lm
- Power Draw: Power Select (31-55W W)
- Light Color: CCT Select (4000, 5000, 6500 K)
- Input Current: AC 220-240V, 320mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Jufei SMD 2835 0,5W
- Housing Color: hellgrey

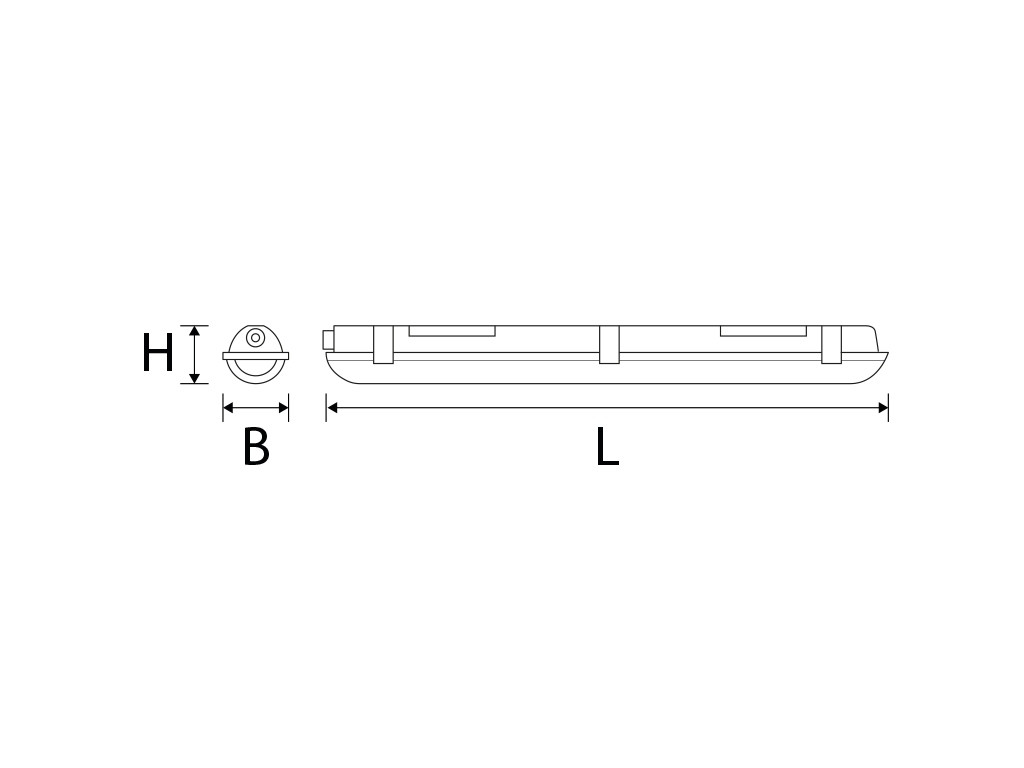

- Dimensions: 1570x85x80 mm
- Warranty: 5 years
IP66 LED triproof light with high efficiency up to 185lm/W and plug´n´play cable... more
Product information "RETROVA EXTREME EM 1570 55-840-865-9750LM 185lm/W max."

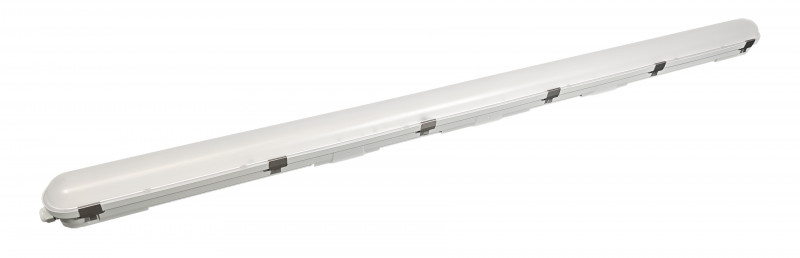

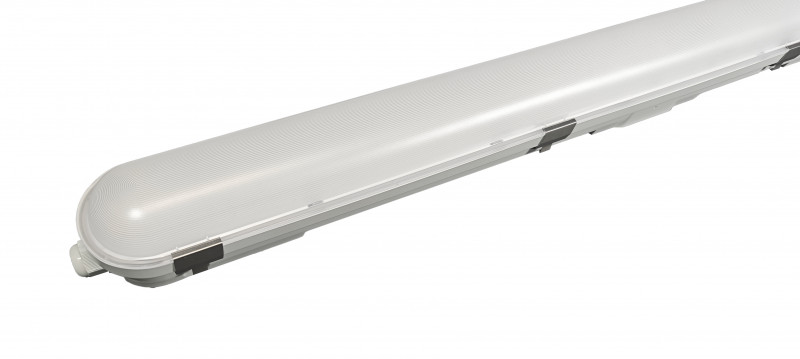

IP66 LED triproof light with high efficiency up to 185lm/W and plug´n´play cable set for installing optional battery emergency kit.
Retrova Extreme by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP66 ingress protection and IK08 impact class protection.
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop, food processing
Advantages:

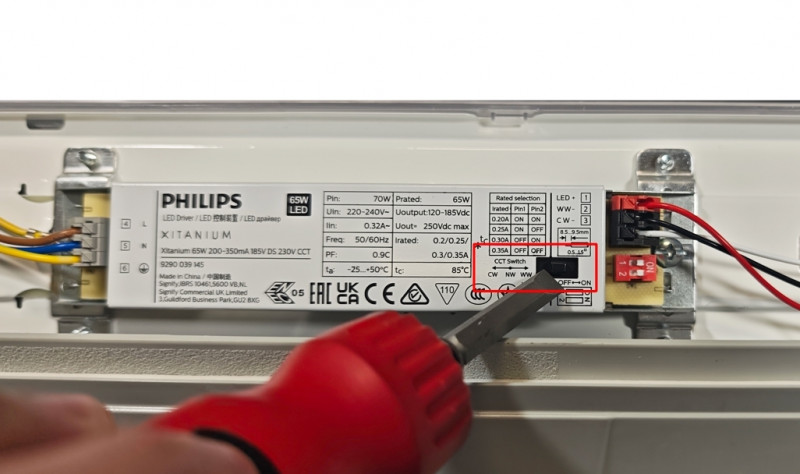

- Long life time due to Philips Xitanium Driver with select able output current, CCT select: 4000, 5000, 6500 Kelvin.
- maximum 185lm/W @ 5000K other CCT: 170-175lm/W
- Ingress protection: IK08 and HACCP certification. It can be used in food processing processes.
- ENEC certification for the whole fixture.

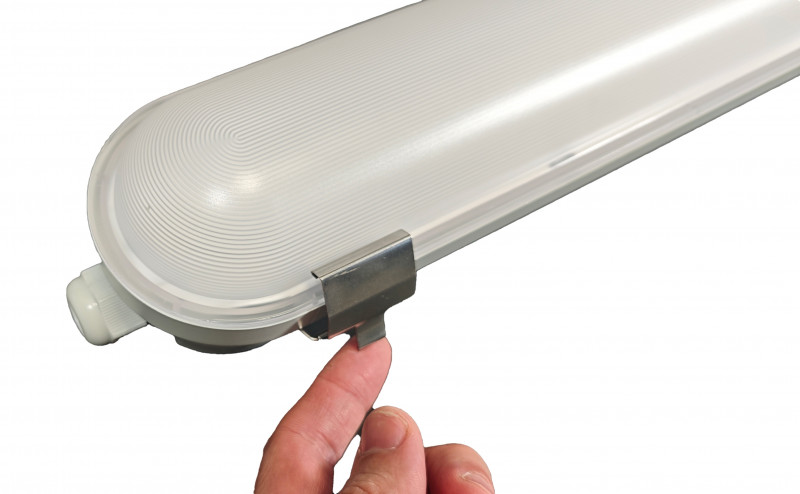

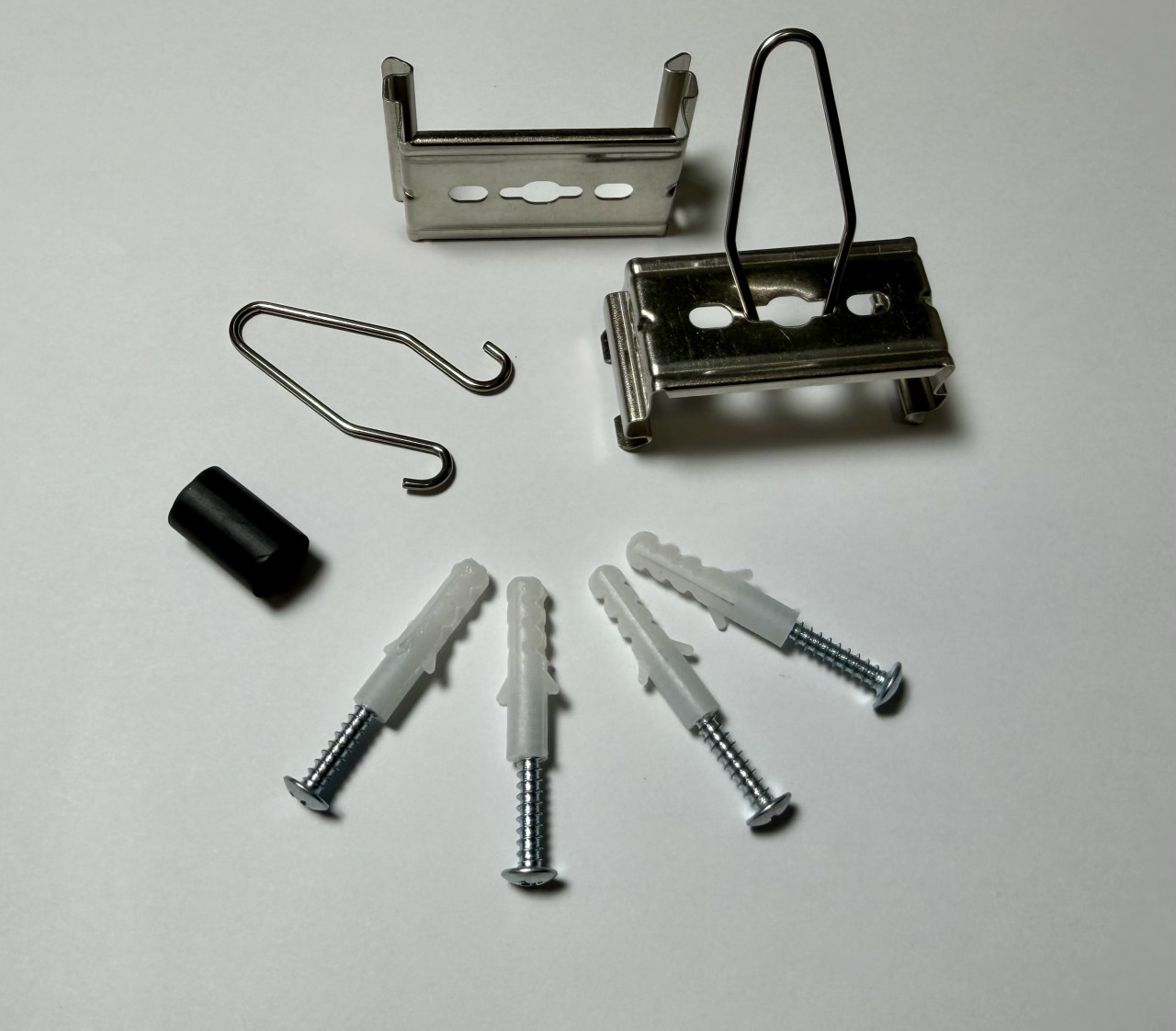

- flexible installation brackets and stainless steel clip lockers.

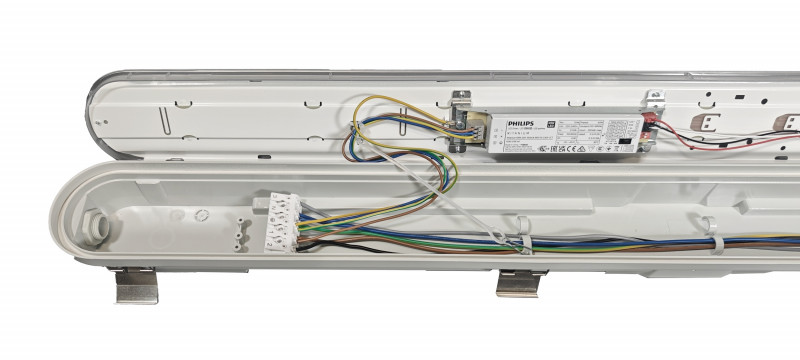

- Exchangeable LED tray environmental friendly, Driver can be exchanged by qualified installer.
- Many precut cable gand positions from both sides and backside.
- Low surface temperature below 80°C
- Power link: trough wireing by 5 x 1,5mm² wire with termin al blocks on both ends

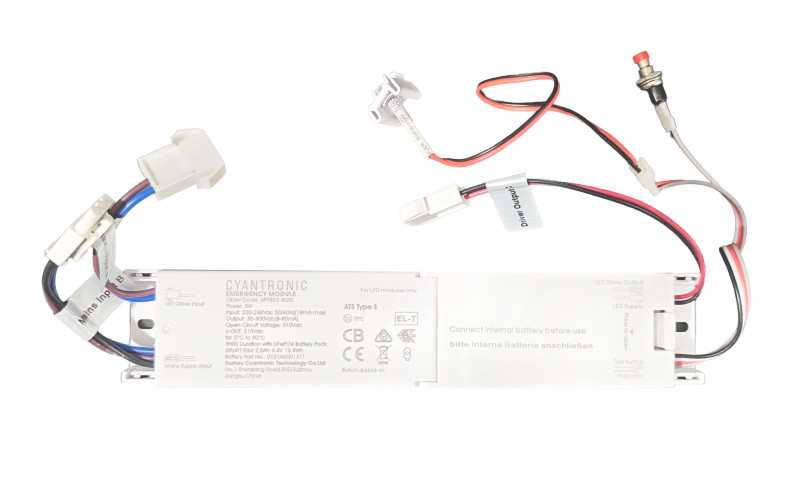

- Optional battery emergency kit can be added tool free any time. Just plug and play.
Related links to "RETROVA EXTREME EM 1570 55-840-865-9750LM 185lm/W max."
Technical Details:
| Luminous Flux: | 9750 lm |
| Light Yield: | 185 lm/W |
| Light Temperature: | 4000, 5000, 6500 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 30 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Jufei |
| LED-Chip: | SMD 2835 0,5W |
| Number of LED: | 313 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 320mA, 50/60Hz |
| Power Consumption: | Power Select (31-55W W) |
| Contains Driver: | |
| Driver Manufacturer: | Philips Xitanium |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 120-185V, 200-350mA |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -25°C - 50°C |
| Dimensions: | 1570x85x80 mm |
| Mounting: | Decke,Wand,Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | hellgrey |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Edelstahl Clips UV-stabil |
| Cover: | prismatic |
| Net Weight: | 1623 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 2.13 kg |
| Content Master Package: | 8 |
| Dimensions of Master Package: | 1625x360x195 mm |
| Weight Master Package: | 17,5 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,ENEC,SELV,HACCP |
| Barcode: | 4250557827384 |
| UV stable housing, Efficiency: 94% | |
| Anzahl Leuchten:10B: 13,16B: 20, 10C: 19, 16C: 30 | |
| Max. 185lm/W @ 5000K sonst 170-175lm/W | |
