Xona Area 1500-50-840-6800LM
Order number: LG30535
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG30535
- Luminous Flux: 6800 lm
- Power Draw: 53 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz, DC 180-240V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 44
- Beam Angle: 130°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1500x141x60 mm
- Warranty: 5 years
LED batten light Xona Area is a universal LED luminairel for wall and ceiling... more
Product information "Xona Area 1500-50-840-6800LM"

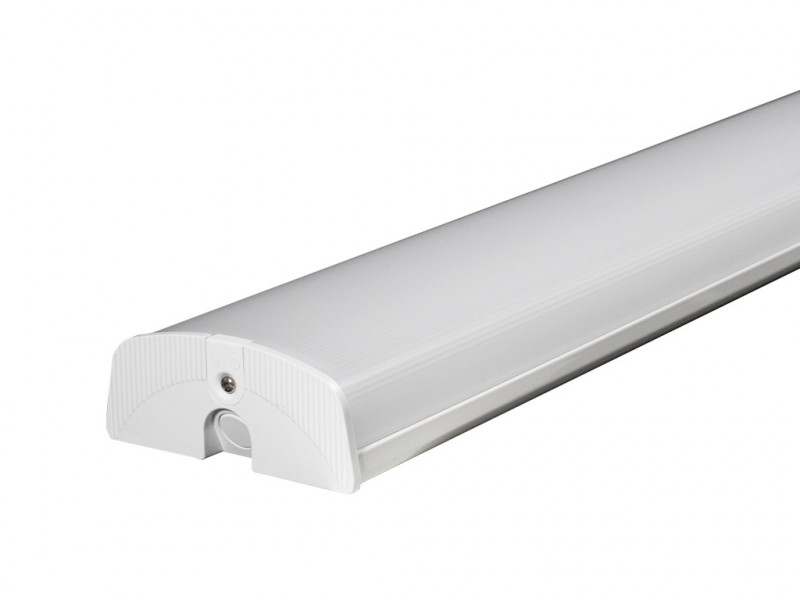

LED batten light

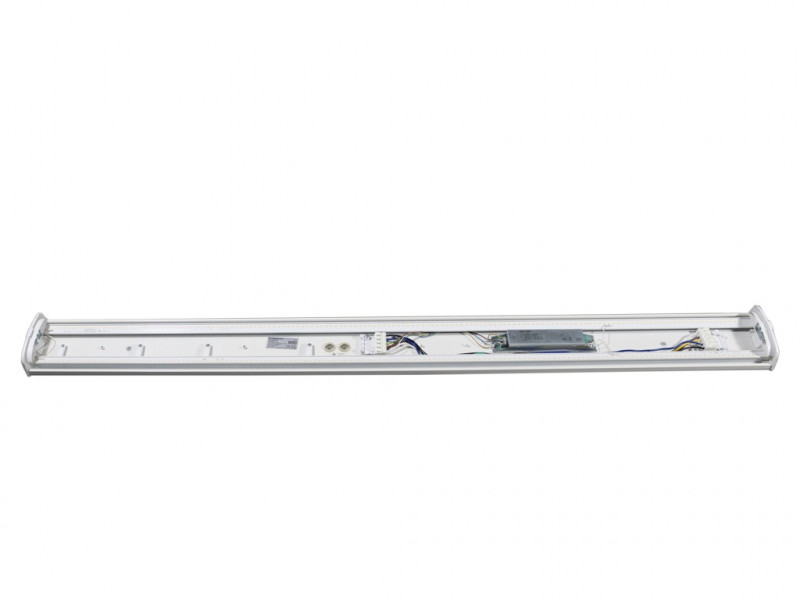

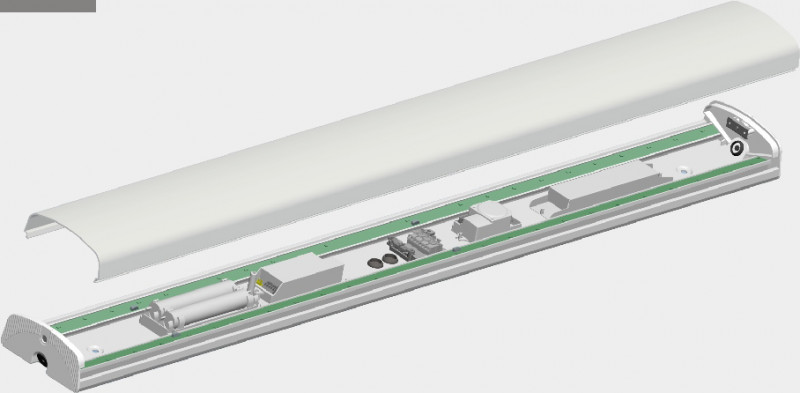

Xona Area is a universal LED luminairel for wall and ceiling installation. Xona Area is available in 2 lengths and power classes: 120 / 150cm - 35 / 50W. The lights can be optionally equipped with integrated microwave motion sensors and with battery emergency power modules. Luminaires with and without sensor can be combined in master / slave mode. The sensor which detects a motion first bewcomes the master sensor and all other lights in the line will follow this control signal. The Litegear Xona Area luminaires can also be used conditionally in damp rooms and comply with the IP44 classification. Optionally, emergency power switches for central battery supply of other manufacturers can be installed. Thanks to a wide light emission angle> 120 °, these luminaires can also be used in rooms with a low ceiling height. The luminaires are prepared for through-wiring. Fast installation thanks to easy access and tool-free plug-in terminals. The cable entry is possible in 3 positions. Due to the high system efficiency of 120 lumens / watt at 4000K, existing luminaires with significantly higher consumption load can be efficiently replaced. Power savings of up to 60% compared to luminaires with T5 / 8 fluorescent tubes is possible. Low maintenance costs and long life thanks to SMD LED boards> 50,000 hours lifespan and reliable LED drivers.
Applications:
- Schools, office
- Hospital and nursing home
- Corridors and retail space
- Parking garages and storage rooms
optional microwave sensor:
- adjustable overrun time and detection range, brightness threshold value
- Standby function with 20% remaining or off
Emergency power:
- optional integrated battery supply: 3 hours
- Switchover switch and emergency power driver with 300 lumen light output in emergency lighting mode
Related links to "Xona Area 1500-50-840-6800LM"
Technical Details:
| Luminous Flux: | 6800 lm |
| LED Output: | 49 W |
| Light Yield: | 128 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 130 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 50/60Hz, DC 180-240V |
| Power Consumption: | 53 W |
| Contains Driver: | |
| Power Factor (PF): | >0.97 |
| Input Driver: | terminal |
| Output of Driver: | DC 113-126V, 420mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Dimensions: | 1500x141x60 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 44 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | prismatischen Abdeckung |
| Cover: | opal |
| Net Weight: | 750 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1530x155x80 |
| Weight incl. Packaging: | 0.9 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1570x405x195 mm |
| Weight Master Package: | 3,6 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 94051990 |
| Certifications | CE,D |
| Barcode: | 4250557822679 |
| optional Bewegungssensor und Batterienotstrommodul | |
| motion sensor and emergency battery power optional | |
| THD: 5% | |
| DC Notstromfähig, Master-Slave Funktion optional | |
| Ersatztreiber: SBL-D60 | |
