Preview: Xona Line 1280 32-840-4000LM Sensor

Product Info (PDF)

Order number: LG30651S

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

X Product information sheet (PDF)

Product information sheet

Menü schließen

Order number: : LG30651S
Luminous Flux: 4000 lm
Power Draw: 32 W
Light Color: neutralwhite (4000 K)
Input Current: AC 220-240V, 50/60Hz, DC 180-240V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 66

Beam Angle: 120°
LED-Chip: SMD 2835
Housing Color: hellgrey
Dimensions: 1313x55x75 mm
Warranty: 5 years

Luminous Flux

4000
lm

Power Draw

32 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1313x55x75

Warranty

5 years

The light source cannot be replaced

The driver cannot be replaced

Triproof LED luminaire with microwave motion sensor The Litegear®... more

Close menu

Product information "Xona Line 1280 32-840-4000LM Sensor"

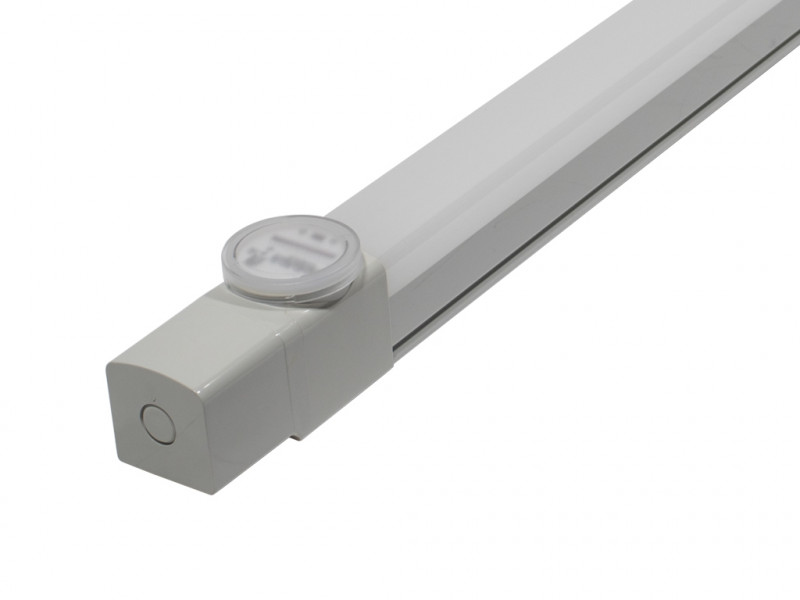

Triproof LED luminaire with microwave motion sensor

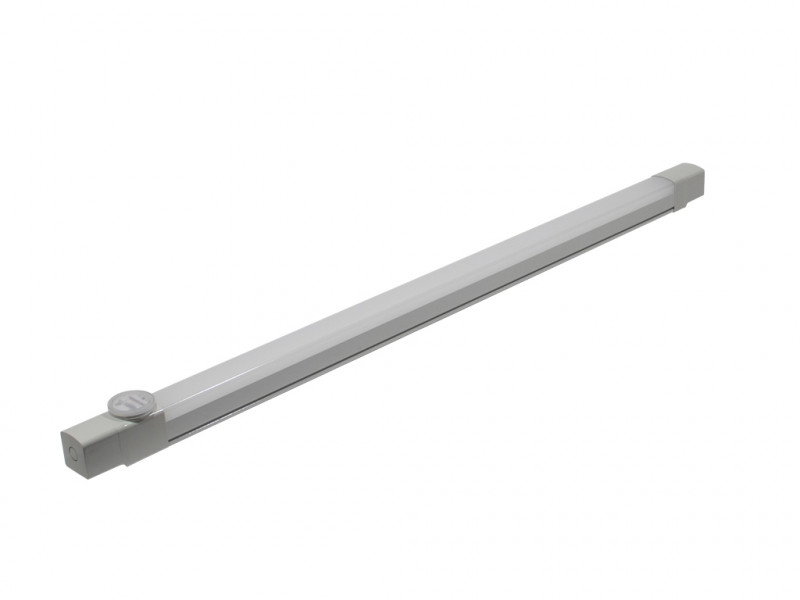

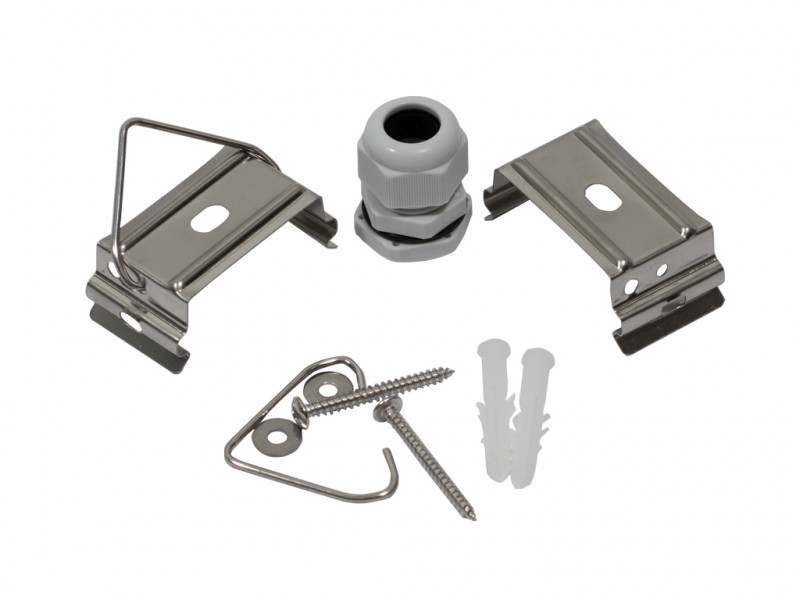

The Litegear® Xona-Line is a weatherproof LED luminaire with a high protection class IP66. Xona-Line can be installed on ceilings or on walls with metal clips. With an optionall rope set, the triproof luminaire can also be suspended. The housing is made of impact-resistant polycarbonate IK09 with an opal optical diffusor. The luminaire series is predestined for use in parking garages, warehouses, coldstorage,corridors or outdoors under canopies. The Xona-Line series includes numerous variants from 128 to 165cm in length and different powerclasses from 31 to 56W, which are optionally equipped with motion detectors or/and emergency battery packs for emergency lighting. The version with integrated sensor makes a simple master / slave operation possible. Thus, luminaires of this series can be combined with and without sensor in a group. A three to four-core cable is sufficient for communication. Also, 2 sensor lights can function simultaneously in one group and the whole group turns on when motion is detected. When absent, the group turns off or lights up at a reduced power of around 12% light level. With sufficient basic brightness due to incident daylight, the luminaires remain permanently off. Optional battery packs and emergency driver ensure safe escape lighting in the event of a power failure.High system efficency of 130 Lumen/Watt guarantees a fast amortization time and huge energy saving. Easy installation due to internalelectrical terminals and a easy modular design makes it a versatile lighting system. As a result of the long service life of 50,000 hours L80, there are virtually no costs for maintenance and servicing, which guarantees reliable operational safety.

Suitable for use in HACCP, IFS, and/or BRC Global Standard Food certified companies.

Version with internal 4 wire loop!

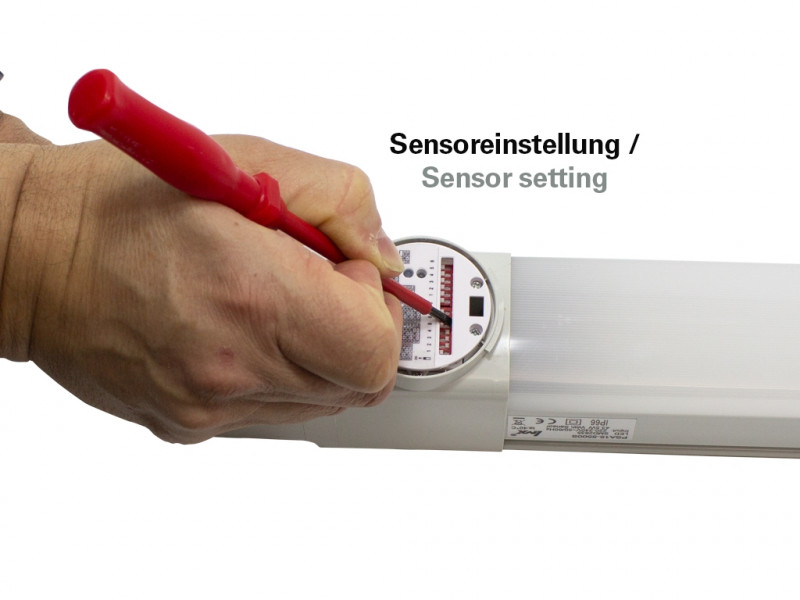

Integrated motion sensor for Master/Slave operation. In a group of several luminairies from the Xona-Line series you can use up to 2 units with motion sensor and several passive versions. When a motion is detected by one of the sensors the whole group will light up to 100% brightness. In stand-by mode the lights can be off or light up with a permanent light level of 12% from it´s maximum light output. Due to this function users can benefit from hugh energy savings and a save operation.

Related links to "Xona Line 1280 32-840-4000LM Sensor"

Zurück

Technical Details:

Luminous Flux:	4000 lm
LED Output:	30 W
Light Yield:	125 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	120 °
Light Emission:	downward
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

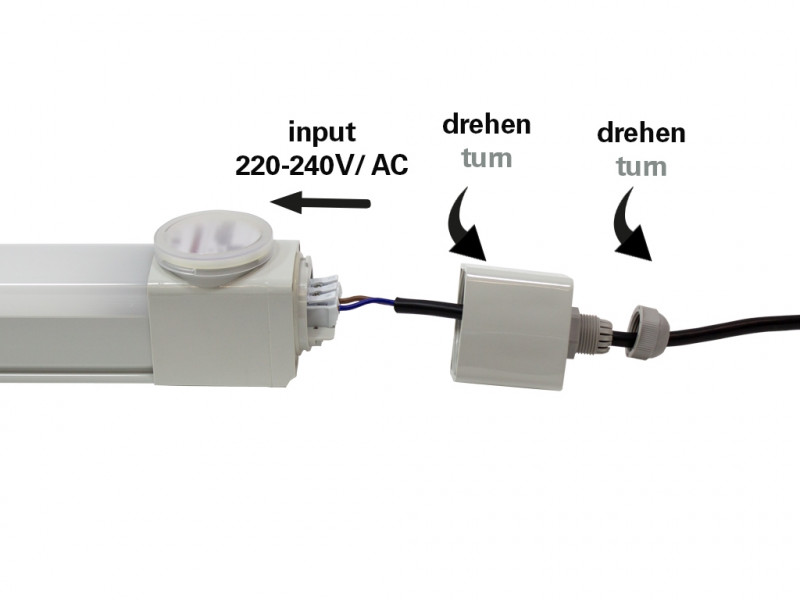

Input Current:	AC 220-240V, 50/60Hz, DC 180-240V
Power Consumption:	32 W
Contains Driver:
Power Factor (PF):	>0.95
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	II
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	1313x55x75 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	66
IK Code:	09
Housing Color	hellgrey
Housing Material:	Polycarbonat
Special Feature of Housing:	drehbare Endkappe
Cover:	opal
Net Weight:	1177 g

Type of Packaging:	box
Dimensions of Packaging:	1390x90x90
Weight incl. Packaging:	1.572 kg
Content Master Package:	10
Dimensions of Master Package:	1410x470x200 mm
Weight Master Package:	16,1 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE,LM80,D
Barcode:	4250557818863
mit Bewegungsmelder
with integrated motion sensor
Vergleichbare Helligkeit: wie 2 x 36W T8 Röhre
similar brightness as 2 x 36W T8 flourescent tube
Master/Slave option,"D" für Oberflächentemp. <90°C

Technical Data Sheet (PDF)

LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen... more

Zurück

LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen Bewegungsmeldern oder Akkupack
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 32 W
Leuchten-Lichtausbeute: 125 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1313x55x75 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK09
Außenfarbe: hellgrey
Gehäusematerial: Polycarbonat
Abdeckung: opal
Nettogewicht: 1177 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
