Xona Line 1580 42-840-5500LM

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Product information sheet
  • LG30654
  • Luminous Flux: 5500 lm
  • Power Draw: 42 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 220-240V, 50/60Hz, DC 180-240V
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 66
  • Beam Angle: 120°
  • LED-Chip: SMD 2835
  • Housing Color: hellgrey
  • Dimensions: 1580x57x67 mm
  • Warranty: 5 years

Luminous Flux


Power Draw

42 W

Light Color

4000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 66

Beam Angle


ceiling, wall

mounting type

Light Direction


(LxBxH) in mm


5 years

The light source cannot be replaced

The driver cannot be replaced

Weatherproof LED luminaire   The Litegear® Xona-Line is a weatherproof... more
Product information "Xona Line 1580 42-840-5500LM"
Weatherproof LED luminaire
The Litegear® Xona-Line is a weatherproof LED luminaire with a high protection class IP66. Xona-Line can be installed on ceilings or on walls with metal clips. With an optionall rope set, the triproof luminaire can also be suspended. The housing is made of impact-resistant polycarbonate IK09 with an opal optical diffusor. The luminaire series is predestined for use in parking garages, warehouses, coldstorage,corridors or outdoors under canopies. The Xona-Line series includes numerous variants from 128 to 165cm in length and different powerclasses from 31 to 56W, which are optionally equipped with motion detectors or/and emergency battery packs for emergency lighting. The version with integrated sensor makes a simple master / slave operation possible. Thus, luminaires of this series can be combined with and without sensor in a group. A three to four-core cable is sufficient for communication. Also, 2 sensor lights can function simultaneously in one group and the whole group turns on when motion is detected. When absent, the group turns off or lights up at a reduced power of around 12% light level. With sufficient basic brightness due to incident daylight, the luminaires remain permanently off. Optional battery packs and emergency driver ensure safe escape lighting in the event of a power failure.High system efficency of 130 Lumen/Watt guarantees a fast amortization time and huge energy saving. Easy installation due to internalelectrical terminals and a easy modular design makes it a versatile lighting system. As a result of the long service life of 50,000 hours L80, there are virtually no costs for maintenance and servicing, which guarantees reliable operational safety.
Version with internal 4 wire loop!
Related links to "Xona Line 1580 42-840-5500LM"
Technical Details:
Luminous Flux: 5500 lm
LED Output: 41 W
Light Yield: 131 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 120 °
Light Emission: downward
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Glow Wire Test 650°C/30s ja
Input Current: AC 220-240V, 50/60Hz, DC 180-240V
Power Consumption: 42 W
Contains Driver: ja
Power Factor (PF): >0.9

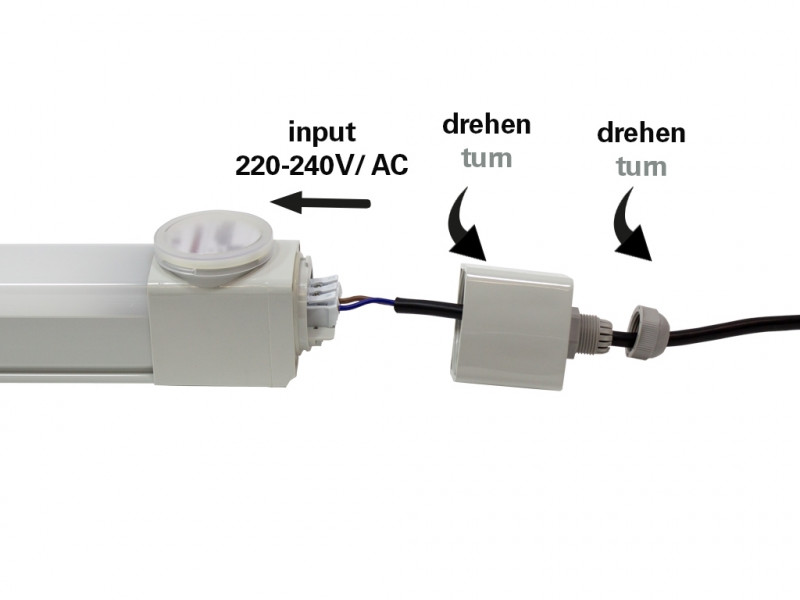

Input Driver: terminal
Input Lamp: Terminal
Switching Cycles: >100.000
Electrical Protection Class: II
Compatible with Emergency Current: ja
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 1580x57x67 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 66
IK Code: 09
Housing Color hellgrey
Housing Material: Polycarbonat
Special Feature of Housing: drehbare Endkappe
Cover: opal
Net Weight: 1361 g
Type of Packaging: box
Dimensions of Packaging: 1660x90x90
Weight incl. Packaging: 1.76 kg
Content Master Package: 10
Dimensions of Master Package: 1680x470x200 mm
Weight Master Package: 18,10 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405114090
Certifications CE,LM80,D
Barcode: 4250557818849
optional mit Bewegungsmelder und Notstrombetrieb
on option with Emergency light function and sensor
Vergleichbare Helligkeit: wie 2 x 58W T8 Röhre
similar brightness as 2 x 58W T8 flourescent tube
Master/Slave option
h h
LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen... more
LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen Bewegungsmeldern oder Akkupack
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 5500 lm
LED-Leistung: 42 W
Leuchten-Lichtausbeute: 131 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1580x57x67 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK09
Außenfarbe: hellgrey
Gehäusematerial: Polycarbonat
Abdeckung: opal
Nettogewicht: 1361 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
