- Order number: : LG30654S
- Luminous Flux: 5500 lm
- Power Draw: 43 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz, DC 180-240V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: hellgrey
- Dimensions: 1620x61x78 mm
- Warranty: 5 years
(LxBxH) in mm
Triproof LED luminaire with microwave motion sensor The Litegear®... more
Product information "Xona Line 1580 43-840-5500LM Sensor"

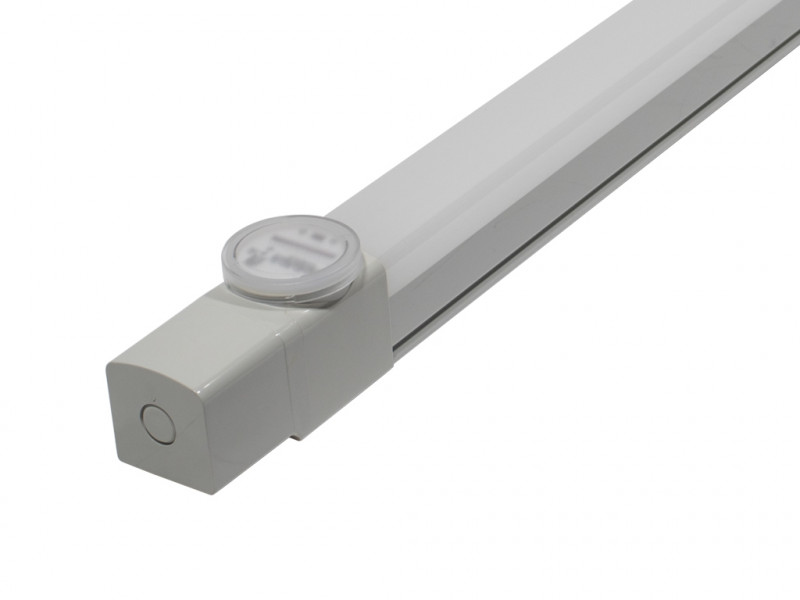

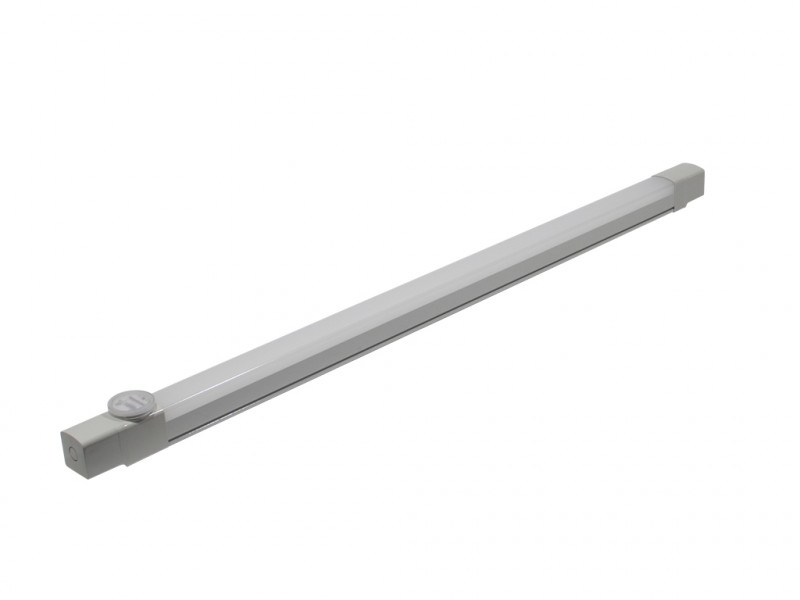

Triproof LED luminaire with microwave motion sensor

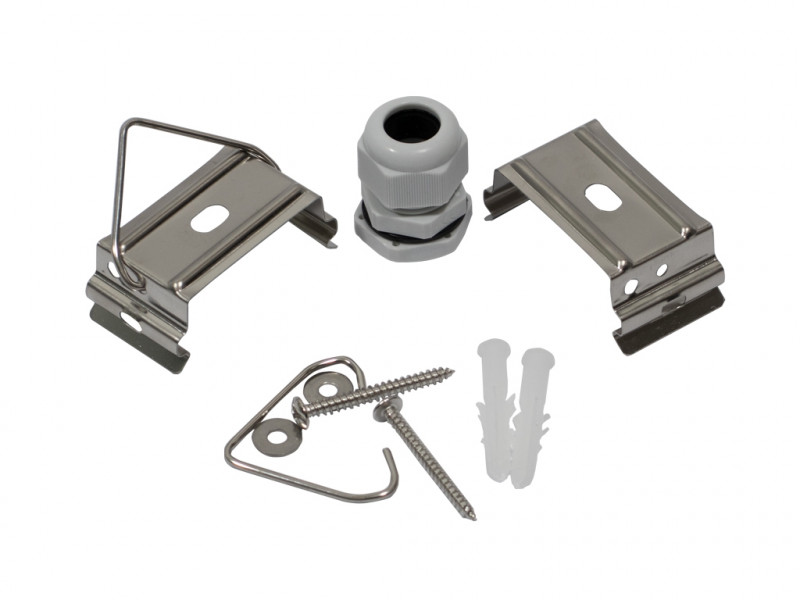

The Litegear® Xona-Line is a weatherproof LED luminaire with a high protection class IP66. Xona-Line can be installed on ceilings or on walls with metal clips. With an optionall rope set, the triproof luminaire can also be suspended. The housing is made of impact-resistant polycarbonate IK09 with an opal optical diffusor. The luminaire series is predestined for use in parking garages, warehouses, coldstorage,corridors or outdoors under canopies. The Xona-Line series includes numerous variants from 128 to 165cm in length and different powerclasses from 31 to 56W, which are optionally equipped with motion detectors or/and emergency battery packs for emergency lighting. The version with integrated sensor makes a simple master / slave operation possible. Thus, luminaires of this series can be combined with and without sensor in a group. A three to four-core cable is sufficient for communication. Also, 2 sensor lights can function simultaneously in one group and the whole group turns on when motion is detected. When absent, the group turns off or lights up at a reduced power of around 12% light level. With sufficient basic brightness due to incident daylight, the luminaires remain permanently off. Optional battery packs and emergency driver ensure safe escape lighting in the event of a power failure.High system efficency of 130 Lumen/Watt guarantees a fast amortization time and huge energy saving. Easy installation due to internalelectrical terminals and a easy modular design makes it a versatile lighting system. As a result of the long service life of 50,000 hours L80, there are virtually no costs for maintenance and servicing, which guarantees reliable operational safety.
Version with internal 4 wire loop!

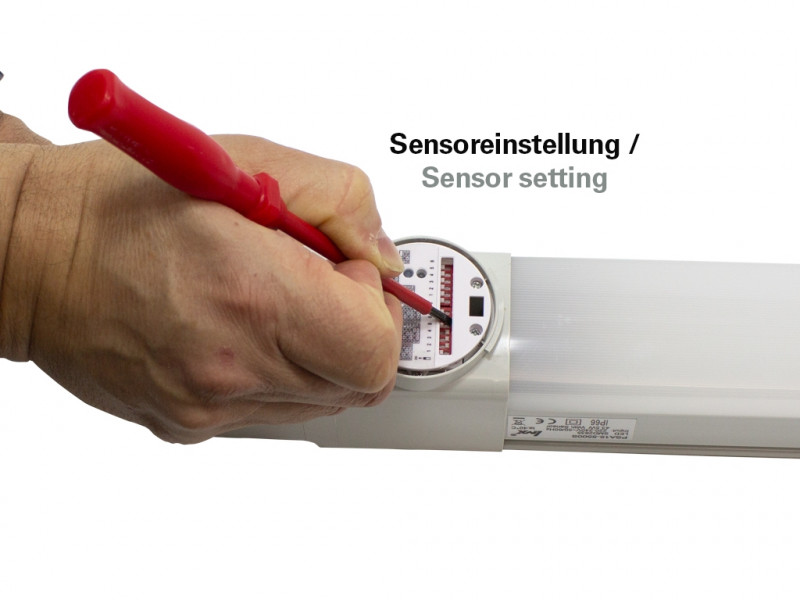

Integrated motion sensor for Master/Slave operation. In a group of several luminairies from the Xona-Line series you can use up to 2 units with motion sensor and several passive versions. When a motion is detected by one of the sensors the whole group will light up to 100% brightness. In stand-by mode the lights can be off or light up with a permanent light level of 12% from it´s maximum light output. Due to this function users can benefit from hugh energy savings and a save operation.
Related links to "Xona Line 1580 43-840-5500LM Sensor"
|Luminous Flux:||5500 lm|
|LED Output:||41 W|
|Light Yield:||128 lm/W|
|Light Temperature:||4000 K|
|Color Rendering Index:||≥80 Ra|
|Color Consistency (SDCM):||<3|
|Beam Angle:||120 °|
|Ignition Time:||<0,5 s|
|Glow Wire Test 650°C/30s|

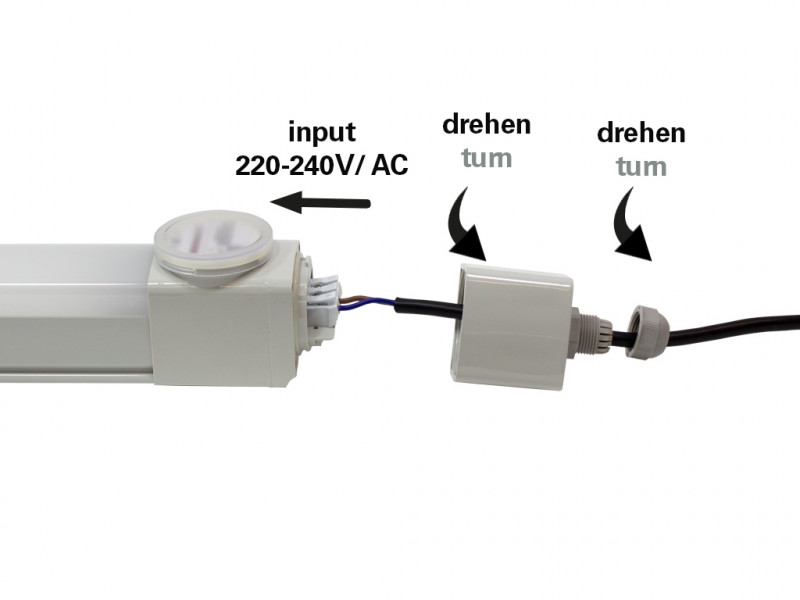

|Input Current:||AC 220-240V, 50/60Hz, DC 180-240V|
|Power Consumption:||43 W|
|Power Factor (PF):||>0.9|
|Electrical Protection Class:||II|
|Compatible with Emergency Current:|
|Ambient Temperature (TA):||-20°C - 45°C|
|Storage Temperature:||-20°C - 55°C|

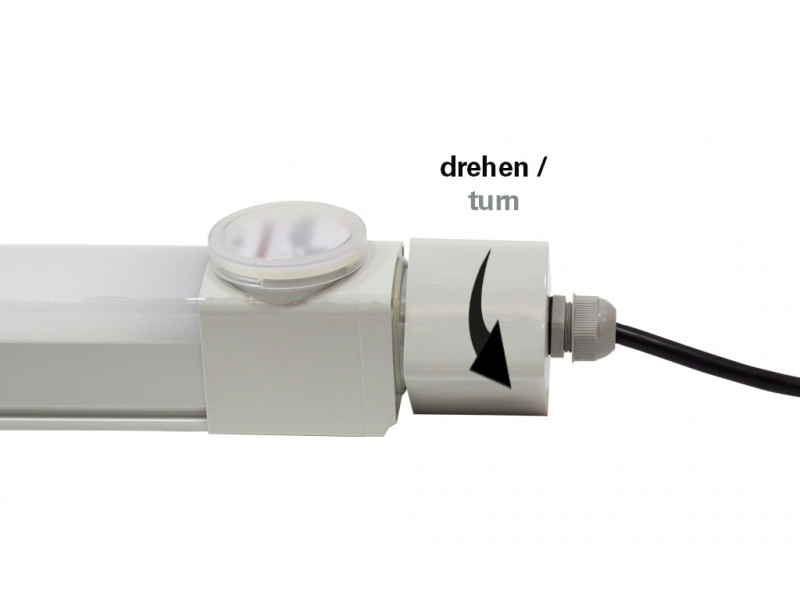

|Special Feature of Housing:||drehbare Endkappe|
|Net Weight:||1432 g|
|Type of Packaging:||box|
|Dimensions of Packaging:||1680x90x90|
|Weight incl. Packaging:||1.83 kg|
|Content Master Package:||10|
|Dimensions of Master Package:||1710x470x200 mm|
|Weight Master Package:||18,60 kg|
|Product Line:||Advance Line|
|Operating Hours:||>50.000 h L80/B10|
|Customs Tariff Number:||9405409990|
|with integrated motion sensor|
|ähnliche Helligkeit: wie 2 x 58W T8 Röhre|
|similar brightness as 2 x 58W T8 flourescent tube|
