Xona Line 1280 32-840-4000LM EM3-ST
Order number: LG30651EM3ST
Prices are only visible after login.
Availability: on request
Product information sheet
- Order number: : LG30651EM3ST
- Luminous Flux: 4000 lm
- Power Draw: 32 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz, DC 180-240V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: hellgrey
- Dimensions: 1313x78x125 mm
- Warranty: 5 years
Weatherproof LED luminaire The Litegear® Xona-Line is a weatherproof... more
Product information "Xona Line 1280 32-840-4000LM EM3-ST"

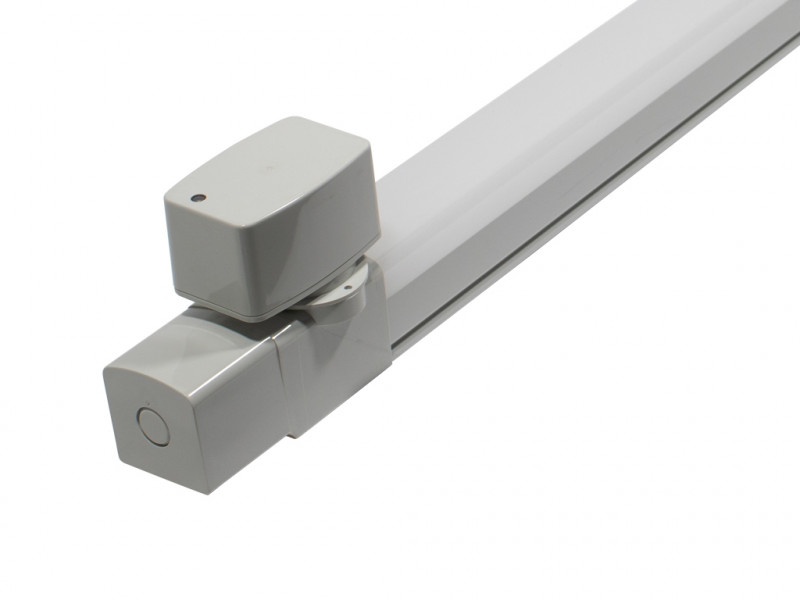

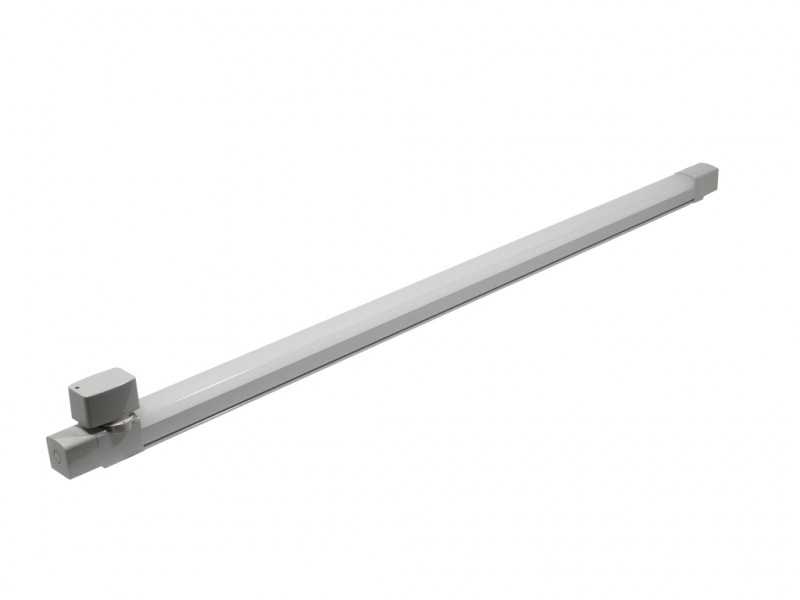

Weatherproof LED luminaire

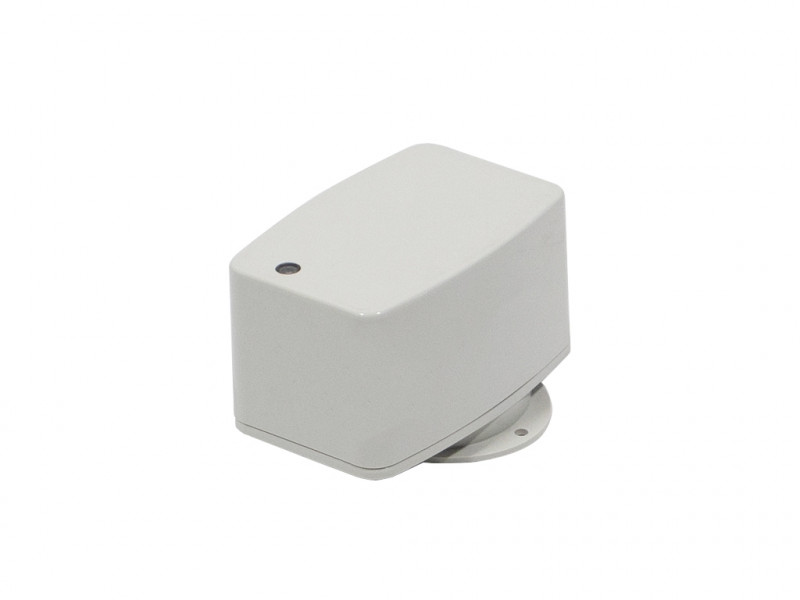

The Litegear® Xona-Line is a weatherproof LED luminaire with a high protection class IP66. Xona-Line can be installed on ceilings or on walls with metal clips. With an optionall rope set, the triproof luminaire can also be suspended. The housing is made of impact-resistant polycarbonate IK09 with an opal optical diffusor. The luminaire series is predestined for use in parking garages, warehouses, coldstorage,corridors or outdoors under canopies. The Xona-Line series includes numerous variants from 128 to 165cm in length and different powerclasses from 31 to 56W, which are optionally equipped with motion detectors or/and emergency battery packs for emergency lighting. The version with integrated sensor makes a simple master / slave operation possible. Thus, luminaires of this series can be combined with and without sensor in a group. A three to four-core cable is sufficient for communication. Also, 2 sensor lights can function simultaneously in one group and the whole group turns on when motion is detected. When absent, the group turns off or lights up at a reduced power of around 12% light level. With sufficient basic brightness due to incident daylight, the luminaires remain permanently off. Optional battery packs and emergency driver ensure safe escape lighting in the event of a power failure.High system efficency of 130 Lumen/Watt guarantees a fast amortization time and huge energy saving. Easy installation due to internalelectrical terminals and a easy modular design makes it a versatile lighting system. As a result of the long service life of 50,000 hours L80, there are virtually no costs for maintenance and servicing, which guarantees reliable operational safety.
Suitable for use in HACCP, IFS, and/or BRC Global Standard Food certified companies.
Version with internal 4 wire loop!
Related links to "Xona Line 1280 32-840-4000LM EM3-ST"
Technical Details:
| Luminous Flux: | 4000 lm |
| LED Output: | 30 W |
| Light Yield: | 125 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 50/60Hz, DC 180-240V |
| Power Consumption: | 32 W |
| Contains Driver: | |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1313x78x125 mm |

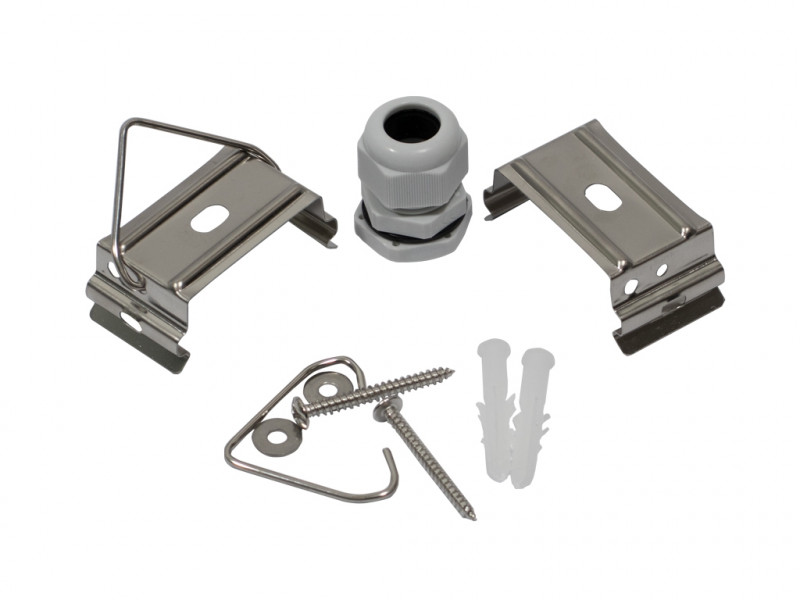

| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 09 |
| Housing Color | hellgrey |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | drehbare Endkappe |
| Cover: | opal |
| Luminaire Type: | Fluchtwegleuchtung |
| Battery Warranty: | 2 |
| Discharge Duration: | ≥3 h |

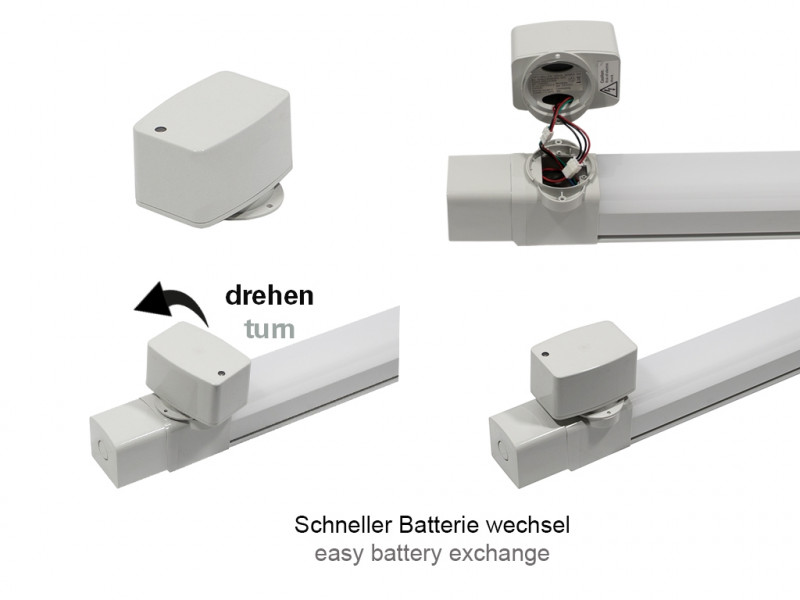

| Battery Type: | LiFePo4 |
| Battery Current: | 1500 mA |
| Battery Charge Duration: | 10-12 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 35 W |
| Luminous Flux in Battery Mode: | 350 lm |
| Standards for emergency luminaires: | DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557818870 |
| Notstrombetrieb 3h mit Selbsttest | |
| Emergency light function 3h with self test | |
| Vergleichbare Helligkeit: wie 2 x 36W T8 Röhre | |
| similar brightness as 2 x 36W T8 flourescent tube | |
| Master/Slave option,"D" für Oberflächentemp. <90°C | |
LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen... more
LED-Feuchtraumleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK09 und optionalen Bewegungsmeldern oder Akkupack
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 32 W
Leuchten-Lichtausbeute: 125 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1313x78x125 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK09
Außenfarbe: hellgrey
Gehäusematerial: Polycarbonat
Abdeckung: opal
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 32 W
Leuchten-Lichtausbeute: 125 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1313x78x125 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK09
Außenfarbe: hellgrey
Gehäusematerial: Polycarbonat
Abdeckung: opal
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
