Modulux Linear LED- Modul 150-35/50-830-7100lm-WH
Order number: LG32251
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG32251
- Luminous Flux: 7100 lm
- Power Draw: 50 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1490x60x11 mm
- Warranty: 5 years
Linear LED tracklight for 3-phase trackrails Elegant, flat LED luminaire with... more
Product information "Modulux Linear LED- Modul 150-35/50-830-7100lm-WH"

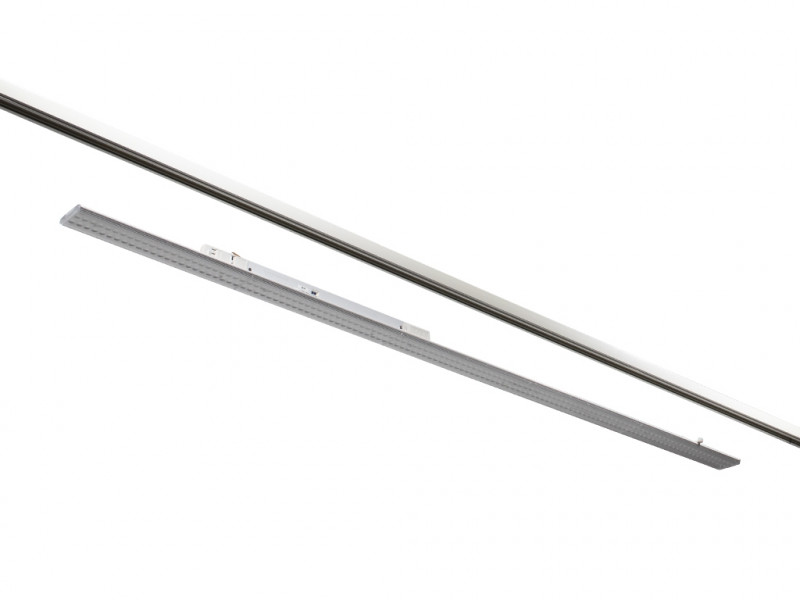

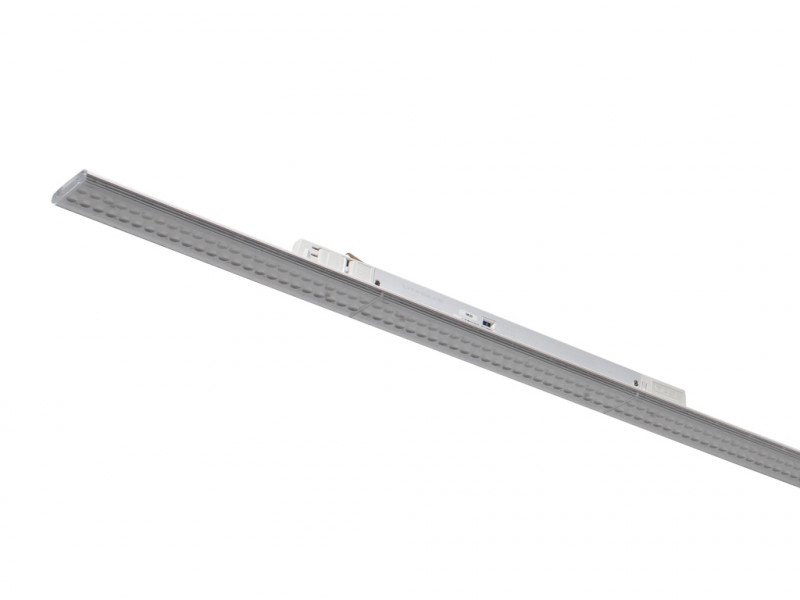

Linear LED tracklight for 3-phase trackrails
Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Available with symmetrical 60/90/120° or asymmetrical light dispersion 2 x 40° with multi-lens panel. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 8000 lumens with only 50W consumption corresponding to up to 160 lumens / watt.

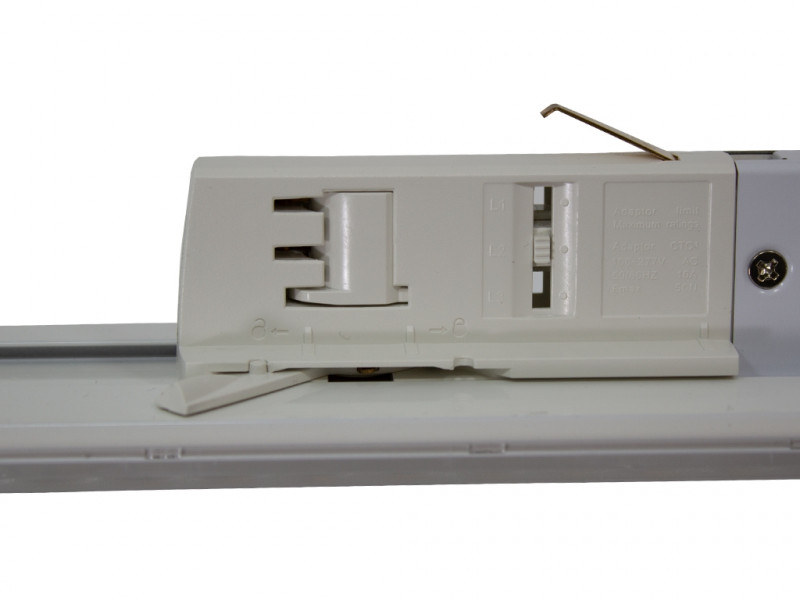

- Easy and fast installation using 3-phase trackrail adapters.
- 3 selectable power phases, compatible with all common track systems

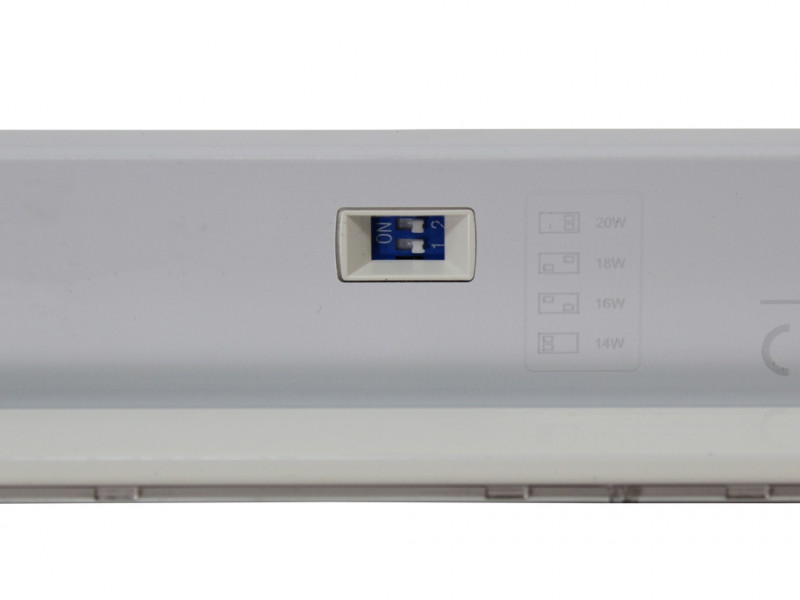

- Adjustment output power: Adjustable LED driver 35, 40, 45, 50Watt

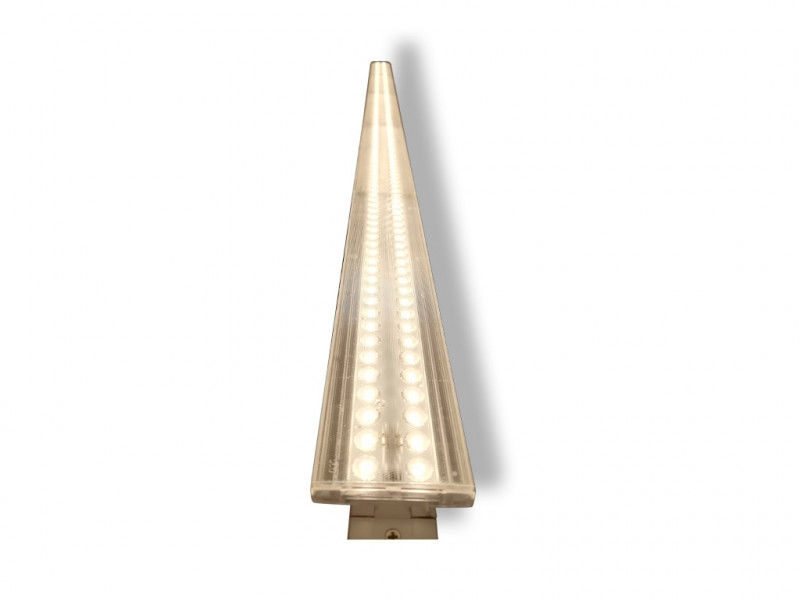

- Modular structure of the lens panel
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Also available with dimmable Dali driver on request.
- Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
- Long-life LED technology: up to 50,000 hours L80 B10
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "Modulux Linear LED- Modul 150-35/50-830-7100lm-WH"
Technical Details:
| Luminous Flux: | 7100 lm |
| LED Output: | 48 W |
| Light Yield: | 142 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 50 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| Output of Driver: | DC 55-80V, 710mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1490x60x11 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | 3-Phase adapter |
| Cover: | Lens |
| Net Weight: | 1150 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 1.15 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 1570x350x240 mm |
| Weight Master Package: | 14,55 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,D |
| Barcode: | 4250557820002 |

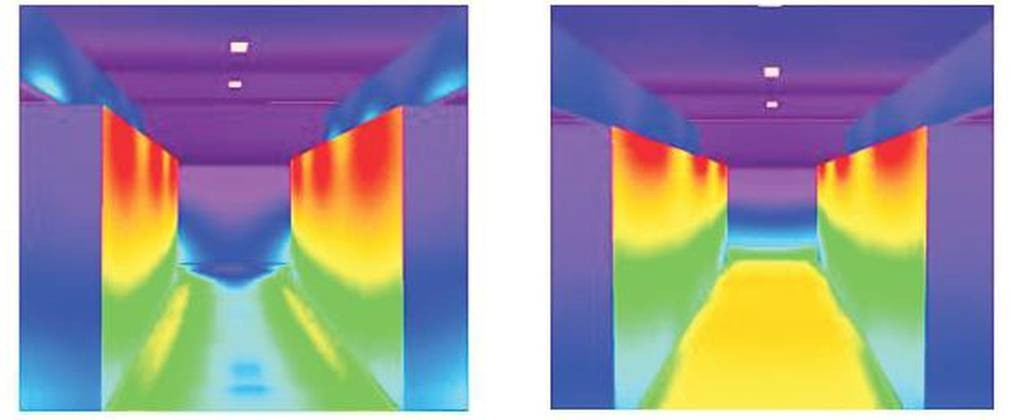

| Spezial Optik für Supermarktregale | |
| special optics for shelf lighting in supermarket | |
| 2 x 30° doubleasymmetric | |
| Power adjust: 35/40/45/50W 5200-7100LM max. | |
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 7100 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Lichtaustritt: direkt
Maße: 1490x60x11 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1150 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 7100 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Lichtaustritt: direkt
Maße: 1490x60x11 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1150 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Available downloads:
- Download LG32251_Modulux Linear LED-Tracklight Modul 150-3550-830-7100lm-WH 35W DAS (.ldt)
- Download LG32251_Modulux Linear LED-Tracklight Modul 150-3550-830-7100lm-WH 40W DAS (.ldt)
- Download LG32251_Modulux Linear LED-Tracklight Modul 150-3550-830-7100lm-WH 45W DAS (.ldt)
- Download LG32251_Modulux Linear LED-Tracklight Modul 150-3550-830-7100lm-WH 50W DAS (.ldt)
- Download Manual Modulux (.pdf)
