Modulux Linear LED- Modul 150-50-830-7500lm-DALI Dim WH

LG32245DA
Prices are only visible after login.

Availability: on request

  • LG32245DA
  • Luminous Flux: 7500 lm
  • Power Draw: 50 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 90°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Dimensions: 1490x60x11 mm
  • Warranty: 5 years

Luminous Flux

7500
lm

Power Draw

50 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

90°

Light Direction

Dimensions

(LxBxH) in mm
1490x60x11

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Linear LED tracklight for 3-phase trackrails   Elegant, flat LED luminaire with... more
Product information "Modulux Linear LED- Modul 150-50-830-7500lm-DALI Dim WH"

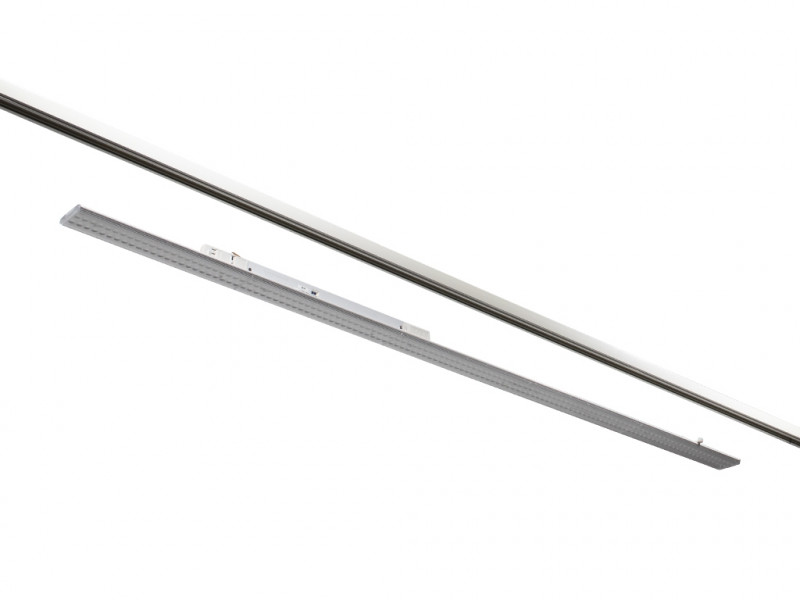

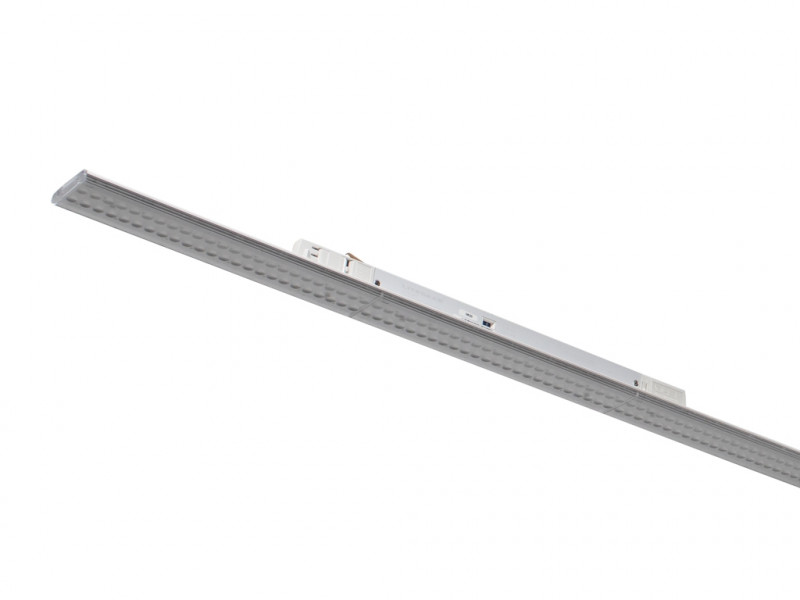

Linear LED tracklight for 3-phase trackrails

Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Available with symmetrical 60/90/120° or asymmetrical light dispersion 2 x 45° with multi-lens panel. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 8000 lumens with only 50W consumption corresponding to up to 160 lumens / watt.

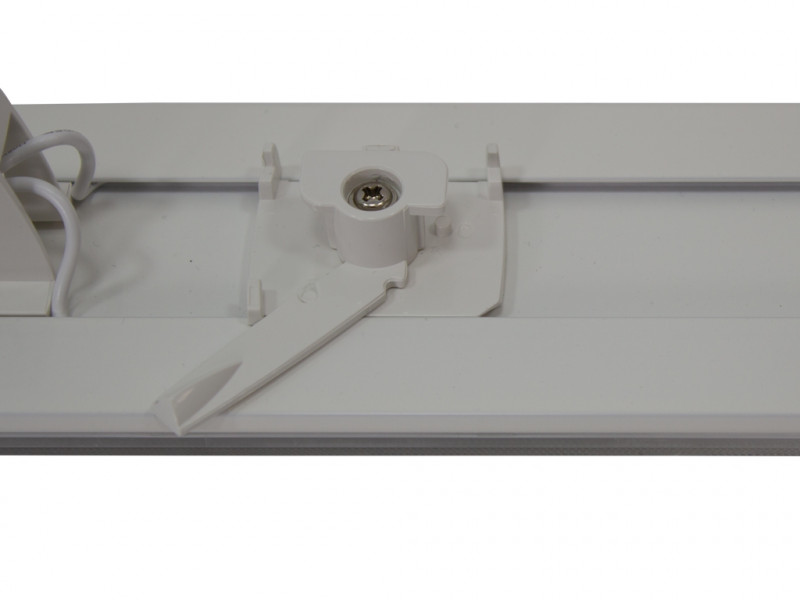

  • Easy and fast installation using 3-phase trackrail adapters.

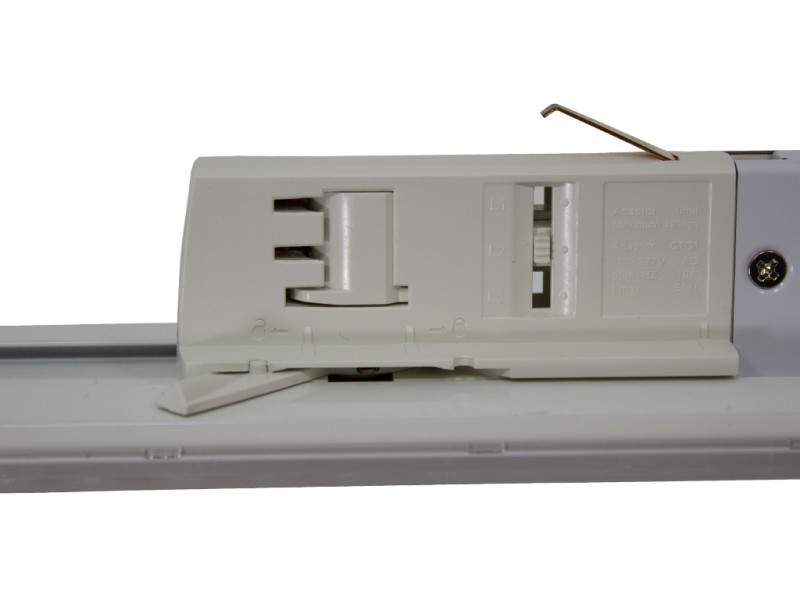

  • 3 selectable power phases, compatible with all common track systems
  • Adjustment output power: Adjustable LED driver 35, 40, 45, 50Watt

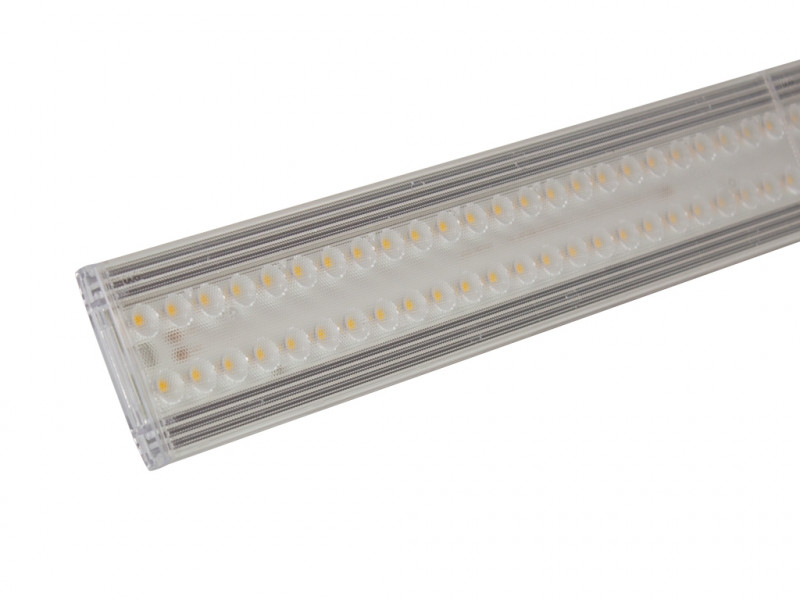

  • Modular structure of the lens panel
  • The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
  • Good heat dissipation and optimal light distribution
  • Also available with dimmable Dali driver on request.
  • Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
  • Long-life LED technology: up to 50,000 hours L80 B10
  • Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
  • available in two lengths: 60cm and 150cm
Related links to "Modulux Linear LED- Modul 150-50-830-7500lm-DALI Dim WH"
Technical Details:

Luminous Flux: 7500 lm
LED Output: 48 W
Light Yield: 150 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 90 °
Light Emission: downward
Dimmable: ja
Method of Dimming: DALI,Push-Dim
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 50 W
Contains Driver: ja
Power Factor (PF): >0.95
Input Driver: lighting track
Output of Driver: DC 55-80V, 710mA
CC/CV: CC
Output Current Adjustable: ja
Input Lamp: Power rail
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 1490x60x11 mm
Mounting: Decke
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: 3-Phase adapter
Cover: Lens
Net Weight: 1150 g
Type of Packaging: none
Weight incl. Packaging: 1.15 kg
Content Master Package: 10
Dimensions of Master Package: 1570x350x240 mm
Weight Master Package: 14,55 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,TÜV,D
Barcode: 4250557820040

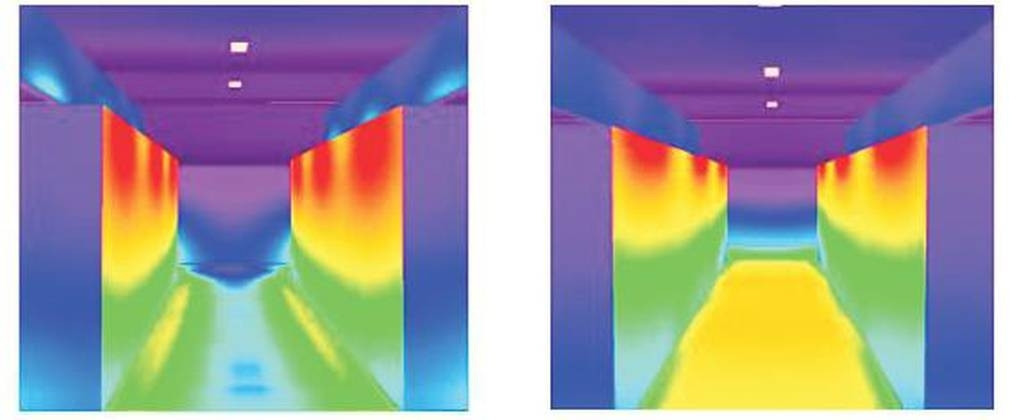

Spezial Optik für Supermarktregale optional
optional optics for shelf lighting in supermarket
90° symmetric
Power adjust: 35/40/45/50W 5300-8000LM max.
h h
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 7500 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
Lichtaustritt: direkt
Maße: 1490x60x11 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1150 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
