VERSALINK 1500 25-80W-840-4000-12500LM Flood 1-10V DIM

Product Info (PDF)

Order number: LG32305

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Menü schließen

Order number: : LG32305
Luminous Flux: 12500 lm
Power Draw: 80 W
Light Color: neutralwhite (4000 K)
Input Current: AC 200-240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 90°
LED-Chip: SMD 2835
Housing Color: white
Dimensions: 1531x69x36,5 mm
Warranty: 5 years

Luminous Flux

12500
lm

Power Draw

80 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

90°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1531x69x36,5

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED retro light module for linear light systems from different manufacturers ... more

Close menu

Product information "VERSALINK 1500 25-80W-840-4000-12500LM Flood 1-10V DIM"

LED retro light module for linear light systems from different manufacturers

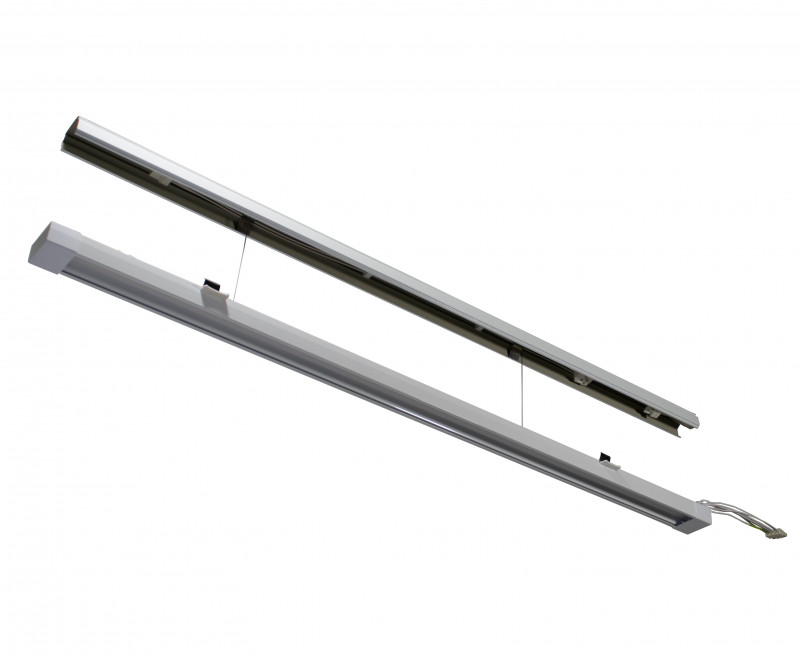

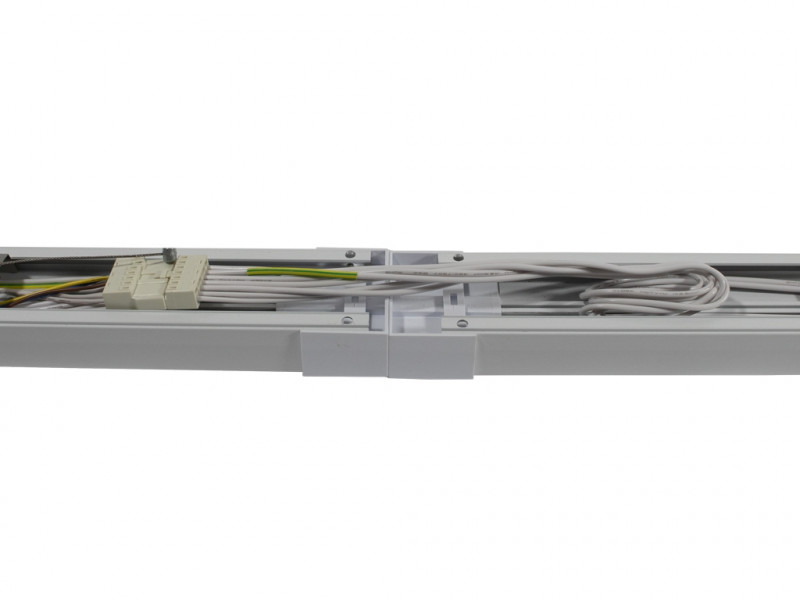

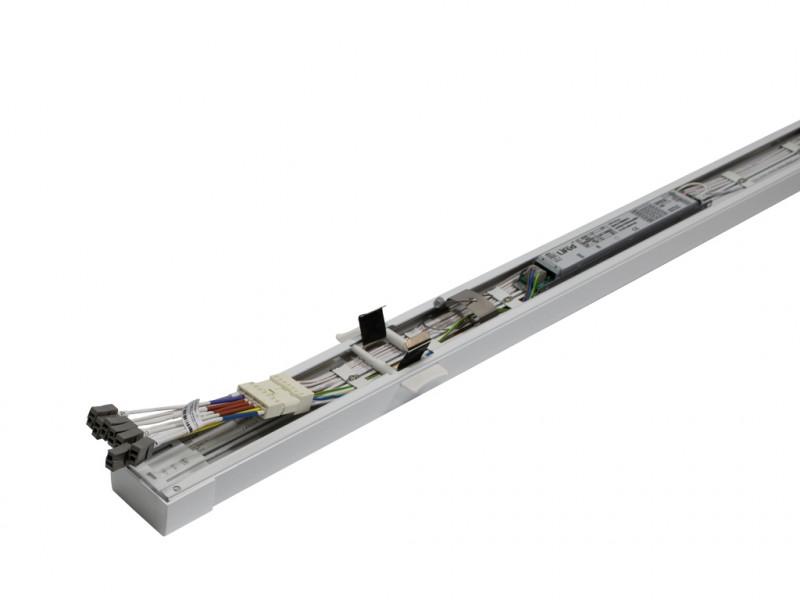

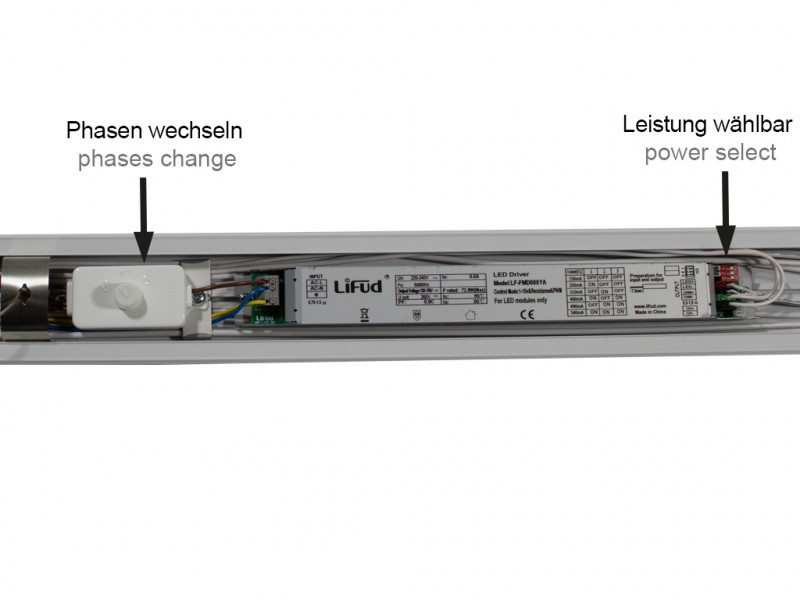

VERSALINK is a universal LED retrofit module which can be used in a variety of traditional lighting systems from different manufacturers. VERSALINK is compatible with up to 22 different light-line systems, (see compatibility list). The compatibility has to be tested and approved in advance by the user! Exchanging existing luminaire modules against a LED module can be done in a few minutes and is extremely easy and safe, as each LED unit has its own 7-core cable harness: (5 x 2.5mm² + 2 x 1.5mm²). The 5 basic wires serve as power supply with phase selection, the two additional wires can be used for dimming or as emergency power supply. By DIP switches user can select 6 different output power 25, 40, 50, 60, 70, 75W on the driver. The LED module is equipped with chips of 4000 Kelvin neutral white light color, on request we can also offer other light colors such as 3000K, 5000K or 6500K for different applications. The luminaire has a system efficiency of up to 150 lumens / watt and a long life span of> 50,000 hours L80B10. Additional 2 steel safety ropes with clips surve as adrop down protection when cliped into the trunking profile. Versalink is generally available in 2 different optical beam angles: 90 ° and 140 °, optionally also available in 60 °. For electrical bridging blank cover modules we offer additional harnesses with a length of 156cm.

Features:

High system efficency of 150 Lumen/Watt guarantee high energy savings campared to flourescent tubes up to 70% with fast return on investment
easy and cost efficent exchange of existing luminairies with T8 flourescent tubes by VERSALINK LED modules

Power Select: 25, 40, 50, 60, 70, 80W

high luminousflux: 10600lm max.
1-10V dimming
VERSALINK can replace singel or double tube fixtures by LED module with power select: 25, 40, 50W
- flicker free and instant start
- widely compatible with many existing trunking systems on the market (refer to list)
- Battery Emergency light function on demand

Applications:

industry and warehouse
supermarket, shops and exhibition halls
car and truck service areas
production and assembly lines

Related links to "VERSALINK 1500 25-80W-840-4000-12500LM Flood 1-10V DIM"

Zurück

Technical Details:

Luminous Flux:	12500 lm
Light Yield:	156 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	90 °
Light Emission:	downward
Dimmable:
Method of Dimming:	1-10V
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 200-240V, 50/60Hz
Power Consumption:	80 W
Contains Driver:
Driver Manufacturer:	Lifud
Power Factor (PF):	>0.95
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	plug connector
Switching Cycles:	>1.000.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	1531x69x36,5 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	20
IK Code:	08
Housing Color	white
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	PC Linse
Cover:	klar mit Linsen
Net Weight:	1950 g

Type of Packaging:	box
Weight incl. Packaging:	1.95 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE,LM80
Barcode:	4250557819655
Einfache Montage in 22 verschiedene Tragprofile
optionale Batterienotlichtmodule lieferbar
wählb. Ausgangsleistung: 25, 40, 50, 60, 70, 80W
7-adrige Verdrahtung/7 wire cable tree
max. 30 Leuchten an einem 16A C Sicherungsutomaten

Technical Data Sheet (PDF)

Zurück

Universelles LED-Retroleuchtenmodul passend für eine Vielzahl von traditioneller Lichtbandsysteme more

Zurück

Universelles LED-Retroleuchtenmodul passend für eine Vielzahl von traditioneller Lichtbandsysteme
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 12500 lm
LED-Leistung: 80 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
Lichtaustritt: direkt
Maße: 1531x69x36,5 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar mit Linsen
Nettogewicht: 1950 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
