Xona Maxima Basic Unit 240NB 70/150-840-28500LM 190lm/W Dali Dim
Order number: LG31472DAHE
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG31472DAHE
- Luminous Flux: 28500 lm
- Power Draw: Power Select (70, 90, 110, 130, 150W W)
- Light Color: neutralwhite (4000 K)
- Input Current: AC 180-264V, 50/60Hz, DC 180-264V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 40
- Beam Angle: 60°
- LED-Chip: Ebright SMD 2835
- Housing Color: white
- Dimensions: 2402x78x67 mm
- Warranty: 5 years
LED llinear light system 240cm luminaire unit with Dali The Basic Edition is the... more
Product information "Xona Maxima Basic Unit 240NB 70/150-840-28500LM 190lm/W Dali Dim"

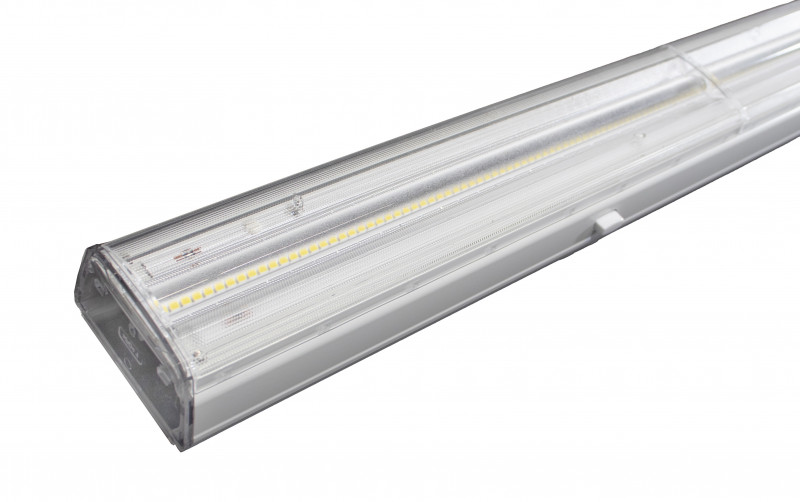

LED llinear light system 240cm luminaire unit with Dali

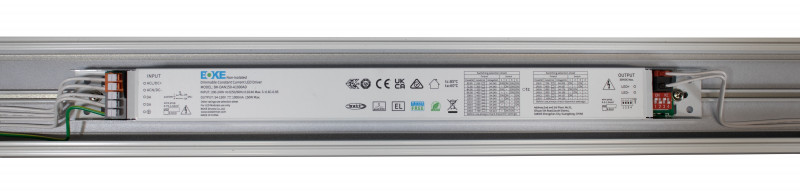

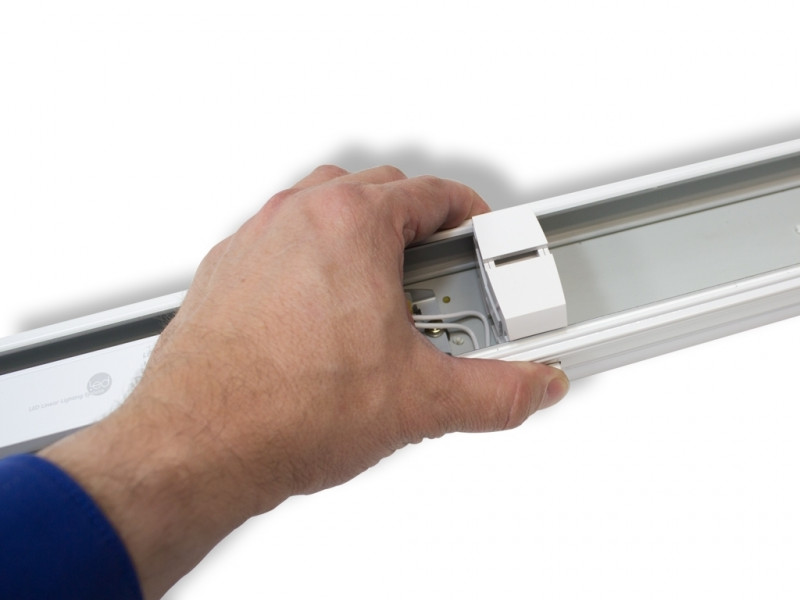

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 190 lumens / watt, this system not only convinces with its technical best values but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.
Application:
- industry and warehouse
- sales areas and exhibition
- office and workshop
Advantages:

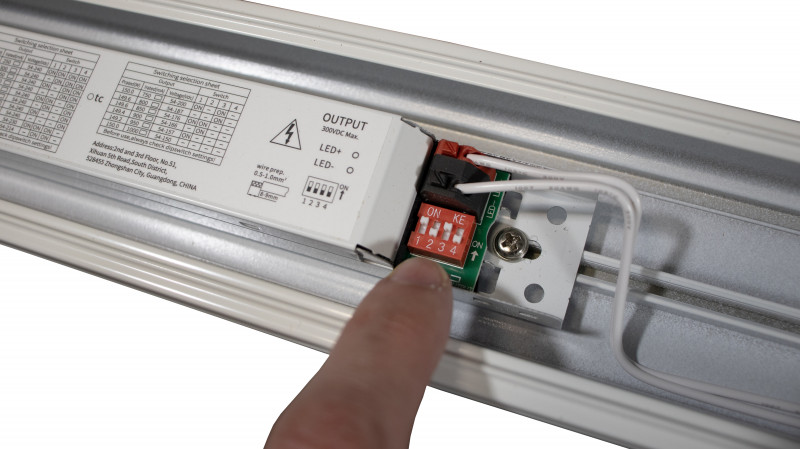

- out put select: 70-150W in steps of 10W power select
- fast, cost-effective installation

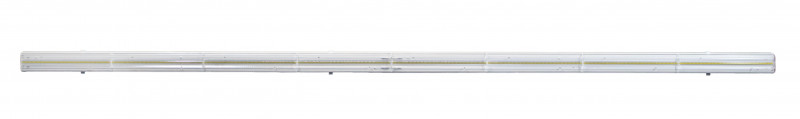

- 240cm LED unit, for 300cm trunking you need a 60cm blank cover additionally
- high power savings through excellent system efficiency 190lm/W max.
- long life (>50,000h) and very low maintenance costs
- Dimming via Dali 2.0 or push dim
- emergency power from battery system capable
Accesories:
Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets
Related links to "Xona Maxima Basic Unit 240NB 70/150-840-28500LM 190lm/W Dali Dim"
Technical Details:
| Luminous Flux: | 28500 lm |
| Light Yield: | 190 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 60 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | Ebright |
| LED-Chip: | SMD 2835 |
| Number of LED: | 560 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 180-264V, 50/60Hz, DC 180-264V |
| Power Consumption: | Power Select (70, 90, 110, 130, 150W W) |
| Contains Driver: | |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 54-150V |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -25°C - 40°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 2402x78x67 mm |
| Mounting: | Decke,Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 40 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | coated |
| Cover: | clear |
| Net Weight: | 2600 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 2.9 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 2470x430x210 mm |
| Weight Master Package: | 29 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >60.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,TÜV,ENEC,LM80 |
| Barcode: | 4250557825861 |
| Output Select: 70, 90, 110, 130, 150W | |
| max. 190 Lumen/Watt | |
| 240cm Länge, Alugehäuse | |
| Dali 2.0 Push Dim | |
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 40°C
Lichtstrom: 28500 lm
LED-Leistung: Power Select (70, 90, 110, 130, 150W W)
Leuchten-Lichtausbeute: 190 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 60°
UGR: 22
Lichtaustritt: direkt
Maße: 2402x78x67 mm
Montageart: Aufbau (Decke,Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: beschichtet
Abdeckung: klar
Nettogewicht: 2600 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 60000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 40°C
Lichtstrom: 28500 lm
LED-Leistung: Power Select (70, 90, 110, 130, 150W W)
Leuchten-Lichtausbeute: 190 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 60°
UGR: 22
Lichtaustritt: direkt
Maße: 2402x78x67 mm
Montageart: Aufbau (Decke,Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: beschichtet
Abdeckung: klar
Nettogewicht: 2600 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 60000 h
