Preview: Xona Maxima Basic Unit 240SP 70/150-840-28500LM 190lm/W Dali Dim

Xona Maxima Basic Unit 240SP 70/150-840-28500LM 190lm/W Dali Dim

Product Info (PDF)

Order number: LG31471DAHE

Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Menü schließen

Order number: : LG31471DAHE
Luminous Flux: 28500 lm
Power Draw: Power Select (70, 90, 110, 130, 150W W)
Light Color: neutralwhite (4000 K)
Input Current: AC 170 - 264V, 50/60Hz, DC 170-230V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 40

Beam Angle: 30°
LED-Chip: Epistar SMD 2835
Housing Color: white
Dimensions: 2399x70x39,4 mm
Warranty: 5 years

Luminous Flux

28500
lm

Power Draw

150 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 40

Beam Angle

30°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
2399x70x39,4

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED llinear light system 240cm luminaire unit with Dali The Basic Edition is the... more

Close menu

Product information "Xona Maxima Basic Unit 240SP 70/150-840-28500LM 190lm/W Dali Dim"

LED llinear light system 240cm luminaire unit with Dali

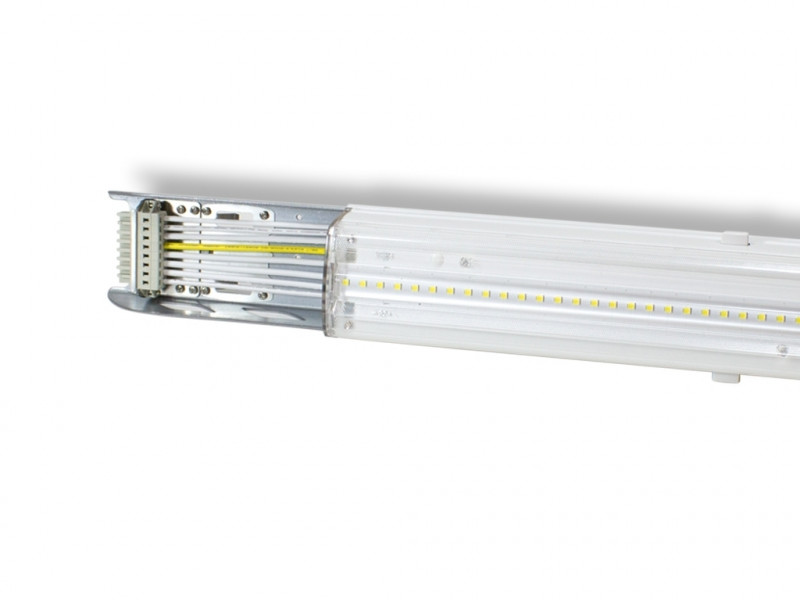

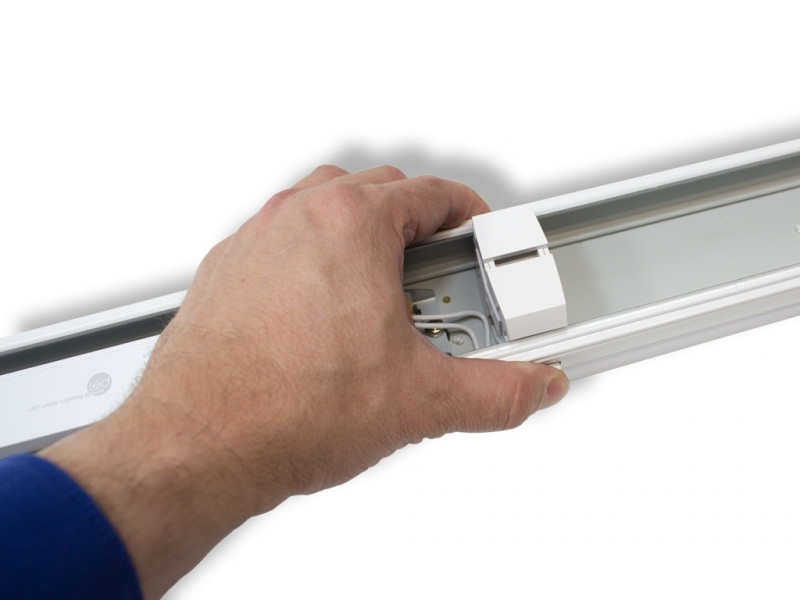

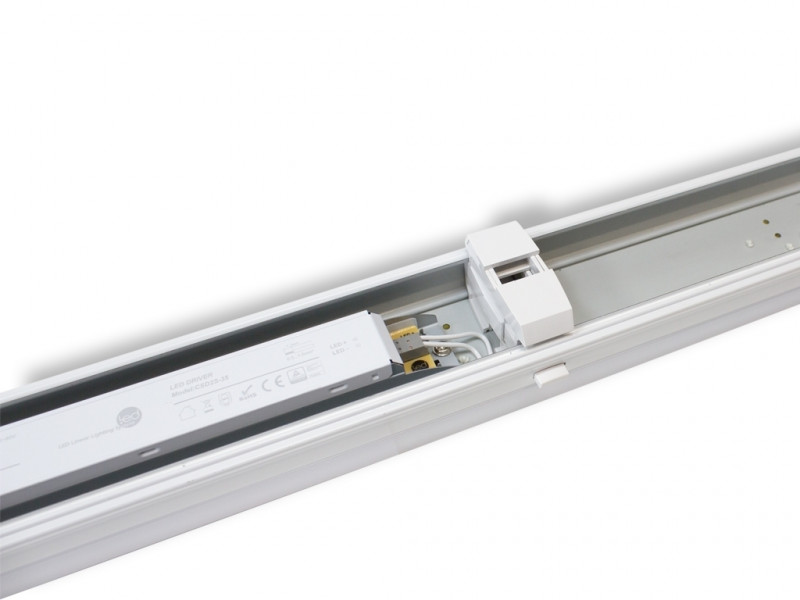

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 190 lumens / watt, this system not only convinces with its technical best values but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.

Application:

industry and warehouse
sales areas and exhibition
office and workshop

Advantages:

out put select: 70-150W in steps of 10W power select
fast, cost-effective installation
240cm LED unit, for 300cm trunking you need a 60cm blank cover additionally
high power savings through excellent system efficiency 190lm/W max.
long life (>50,000h) and very low maintenance costs
Dimming via Dali 2.0 or push dim
emergency power from battery system capable

Accesories:

Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets

Related links to "Xona Maxima Basic Unit 240SP 70/150-840-28500LM 190lm/W Dali Dim"

Zurück

Technical Details:

Luminous Flux:	28500 lm
Light Yield:	190 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4

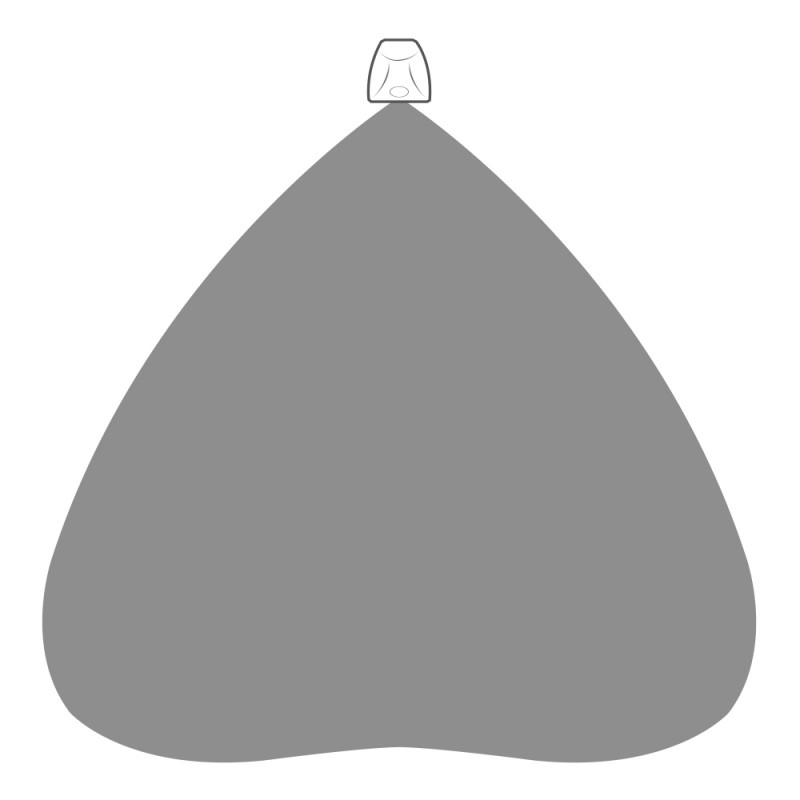

Beam Angle:	30 °
Unified Glare Rating (UGR):	17
Light Emission:	downward
Dimmable:
Method of Dimming:	DALI,Push-Dim
LED-Chip Manufacturer:	Epistar
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 170 - 264V, 50/60Hz, DC 170-230V
Power Consumption:	Power Select (70, 90, 110, 130, 150W W)
Contains Driver:
Driver Manufacturer:	Boke
Power Factor (PF):	>0.95
Input Driver:	terminal
Output of Driver:	DC 55-80V
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	plug connector
Switching Cycles:	>100.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-20°C - 55°C

Dimensions:	2399x70x39,4 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	40
IK Code:	02
Housing Color	white
Housing Material:	steel
Coating:	coated
Cover:	clear
Net Weight:	1780 g

Type of Packaging:	none
Content Master Package:	10
Dimensions of Master Package:	2450x390x210 mm
Weight Master Package:	38 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,TÜV,ENEC,LM80
Output Select: 70, 90, 110, 130, 150W
max. 190 Lumen/Watt
240cm Länge, Alugehäuse
Dali 2.0 Push Dim

Technical Data Sheet (PDF)

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more

Zurück

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 40°C
Lichtstrom: 28500 lm
LED-Leistung: Power Select (70, 90, 110, 130, 150W W)
Leuchten-Lichtausbeute: 190 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 30°
UGR: 17
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 2399x70x39,4 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: beschichtet
Abdeckung: klar
Nettogewicht: 1780 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
