Xona Maxima Basic TRUNKING RAIL 2U-300
Order number: LG31316
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Mounting rail for Maxima Basic LED module or luminaire support module The... more
Product information "Xona Maxima Basic TRUNKING RAIL 2U-300"
Mounting rail for Maxima Basic LED module or luminaire support module

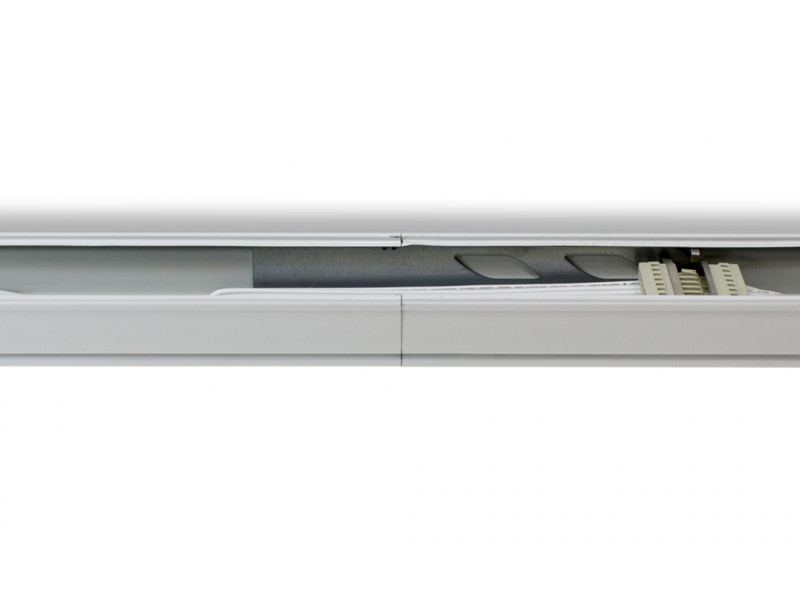

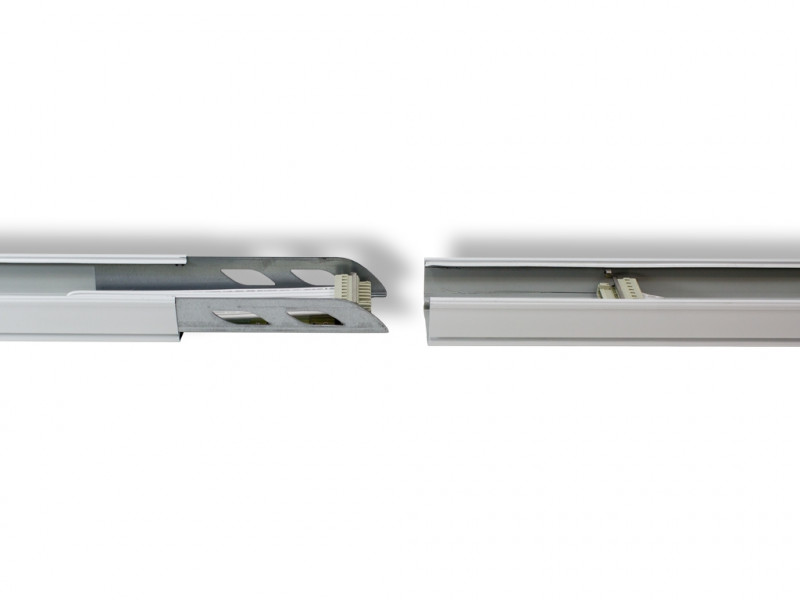

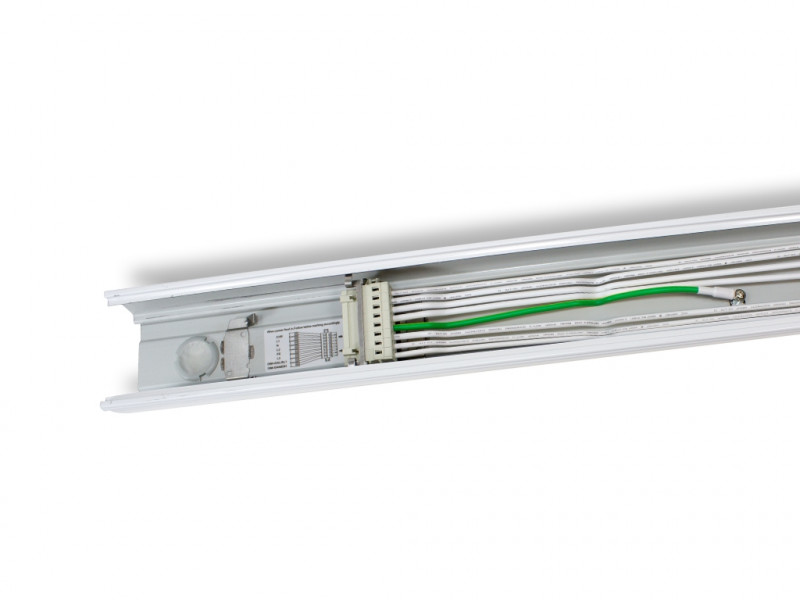

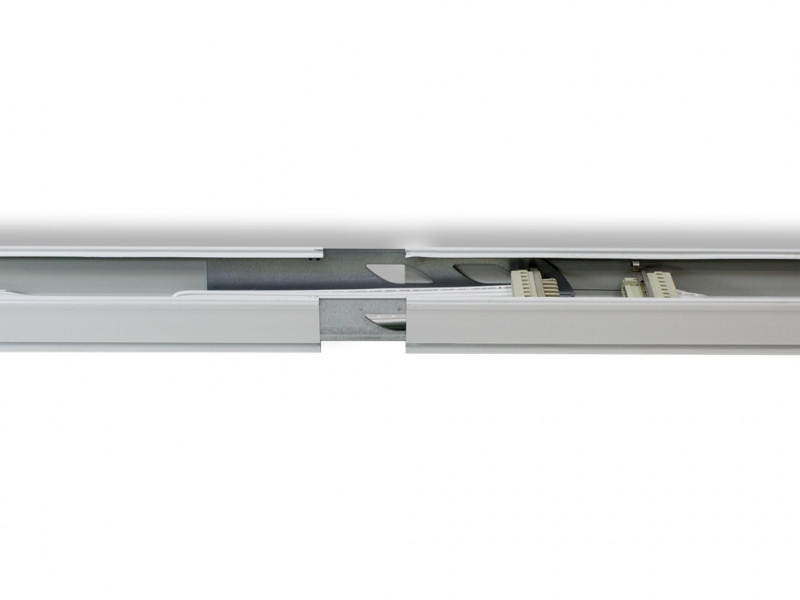

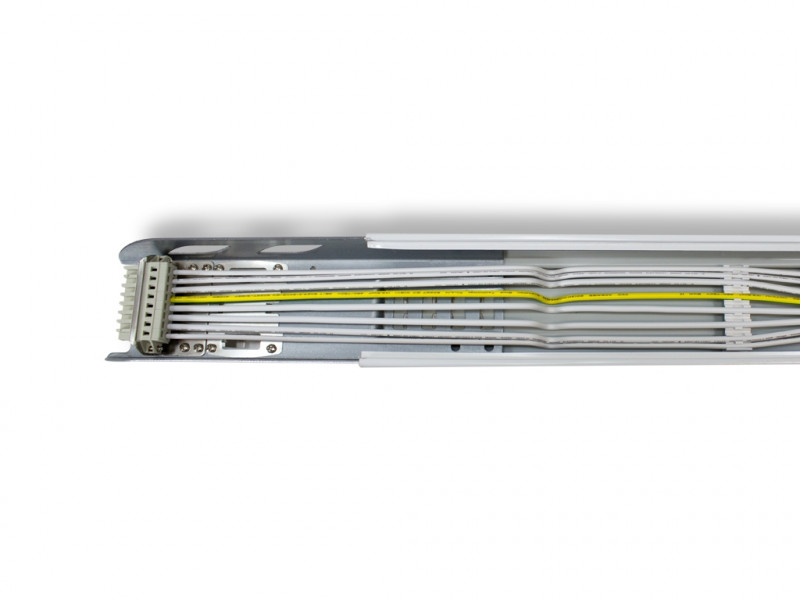

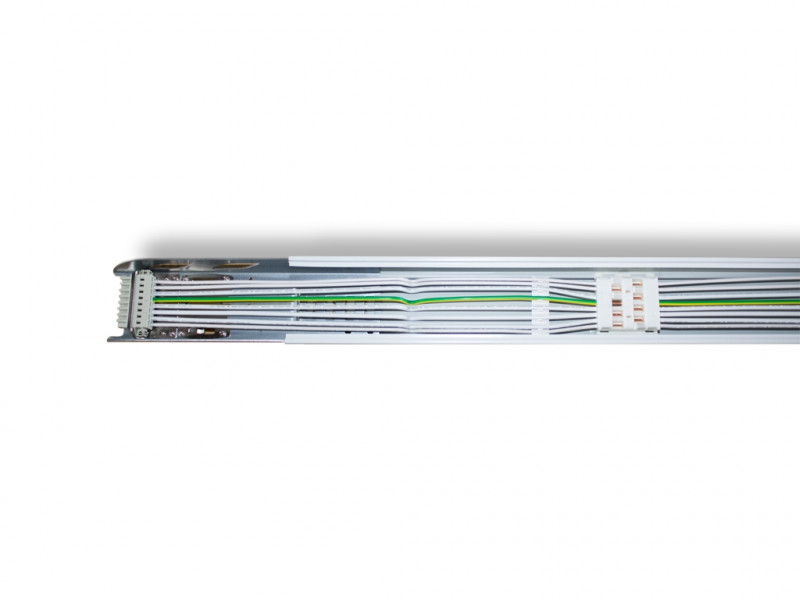

The trunking rail is a support profile with a 5-, 8- or 12-wire internal wiring. By means of integrated connectors and mechanical fork connection, several profiles can be connected without tools in a very short time.

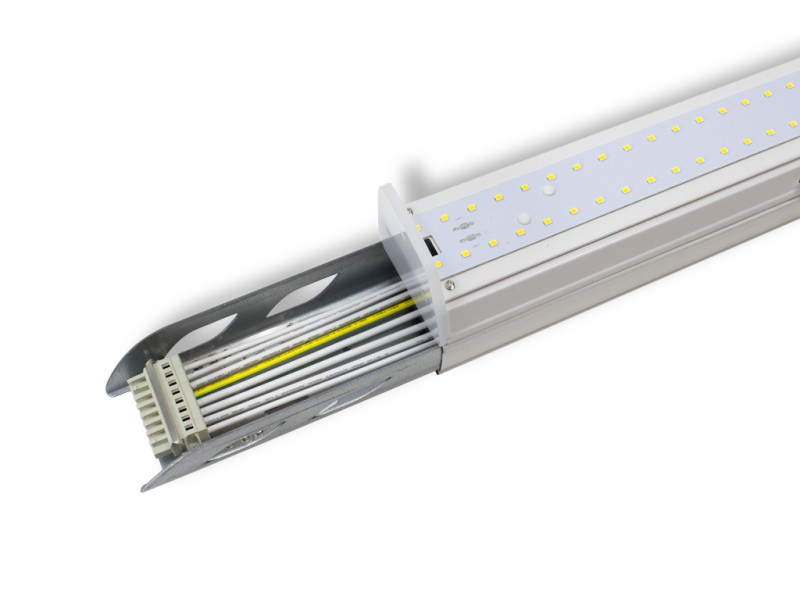

Via vertical connectors, the luminaire modules are supplied with control signals and 230V power. Each luminaire module can be individually powered by one of the three internal 230V phases via a phase selector so that different lighting zones can be created or in daytime operation the luminous intensity can be adapted to the daylight conditions and avoid unnecessary electricity costs. The assignment of the individual wires can be found in our Maxima Basic brochure.
Related links to "Xona Maxima Basic TRUNKING RAIL 2U-300"
Technical Details:
| Dimensions: | 2999x69x41 mm |
| Mounting: | Decke,Deckenabhängung |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | steel |
| Coating: | lacquered |
| Special Feature of Housing: | 5-core |
| Net Weight: | 2970 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 2.97 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 3230x440x150 mm |
| Weight Master Package: | 33 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Customs Tariff Number: | 8536900100 |
| Certifications | CE,TÜV |
| Barcode: | 4250557810041 |
Stromschiene für LED-Leuchteneinsätze. Länge 3m. 5-Adrig mit Gabelende. more
Stromschiene für LED-Leuchteneinsätze. Länge 3m. 5-Adrig mit Gabelende.
Stromschiene für LED-Leuchteneinsätze. Länge 3m. 5-Adrig mit Gabelende.
Vorschaltgerät: nicht enthalten
Maße: 2999x69x41 mm
Montageart: (Decke,Deckenabhängung)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: lackiert
Nettogewicht: 2970 g
Garantie: 5 Jahre
Stromschiene für LED-Leuchteneinsätze. Länge 3m. 5-Adrig mit Gabelende.
Vorschaltgerät: nicht enthalten
Maße: 2999x69x41 mm
Montageart: (Decke,Deckenabhängung)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: lackiert
Nettogewicht: 2970 g
Garantie: 5 Jahre
