Xona Maxima Value Unit 1416 65-840-11700LM
Order number: LG31056SPECIAL
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG31056SPECIAL
- Luminous Flux: 11700 lm
- Power Draw: 65 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 95 - 265V, 50Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- LED-Chip: Samsung SMD 2835
- Housing Color: white
- Dimensions: 1416x73x38 mm
- Warranty: 5 years
Linear LED light solution Litegear® Xona Maxima is a quick installation... more
Product information "Xona Maxima Value Unit 1416 65-840-11700LM"
Linear LED light solution

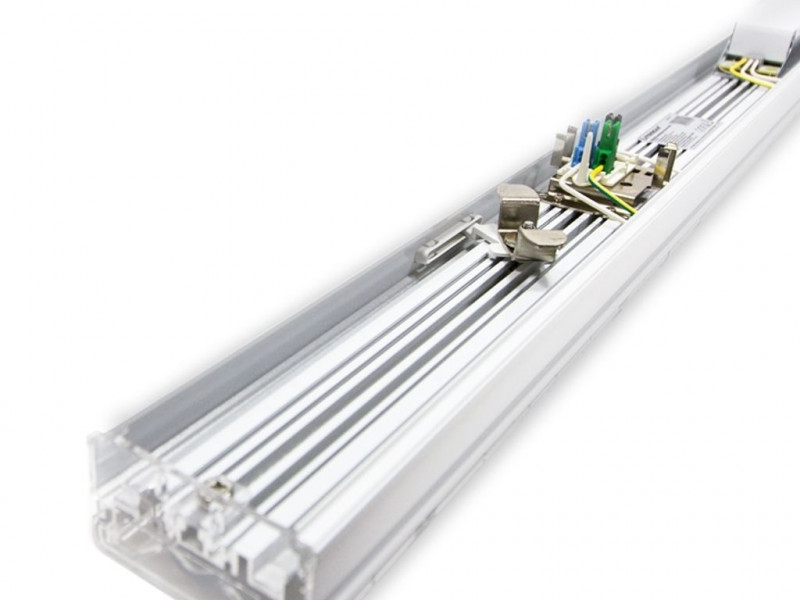

Litegear® Xona Maxima is a quick installation linear LED light solution. Xona Maxima is available in two different versions: The Value edition has an extremly interesting value for price ratio for quick return on investment and offers a high system efficency of up to 125 Lumen/Watt. The Premio edition is using optimized LED and driver technology for extremly high efficency of up to 152 Lumen/Watt and very long lifespan with very low light degradation. The biggest advantage of Maxima is the very quick and easy installation, therefore each luminaire is made of two parts: First the trunking rail with internal wiring and quick connectors. Second the LED unit with interchangeable lens panels and electronic driver. Both parts can be connected to each other by 2 lockers. Xona Maxima is available in different lengths with different beam angle optics and different output powers. Due to it´s quick installation owners can save time and over 65% of energy compared to traditional lighting systems. The trunking can be interconnected without using any tools and is available with different wiring: 5 wire is the standard version with selectable power phase. The 7 wire version has additional Dali or 0-10V dimming option and the 11 wire version offers additional emergency light function. Via Dali function you can control the brightness or combine the system with motion and light detecting sensors.
Installation ways:
- on ceiling with clips and adapters
- pendant with rod, chain or steel rope adapters
Applications:
- supermarket and DIY stores
- factory and industrial applications
- office and school
Related links to "Xona Maxima Value Unit 1416 65-840-11700LM"
Technical Details:
| Luminous Flux: | 11700 lm |
| LED Output: | 65 W |
| Light Yield: | 180 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Samsung |
| LED-Chip: | SMD 2835 |
| Number of LED: | 300 |
| Ignition Time: | <1 s |
| Input Current: | AC 95 - 265V, 50Hz |
| Power Consumption: | 65 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -30°C - 50°C |
| Dimensions: | 1416x73x38 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 1940 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 1.94 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 1490x400x230 mm |
| Weight Master Package: | 21,6 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557821146 |
Housing Color
white
white
Dimensions
1416x69x41 mm
1416x69x41 mm
