Order number: LG31108
Prices are only visible after login.
Availability: on request
Trunkingprofile for Xona Maxima LED Unit Litegear® trunkingprofile to... more
Product information "Xona Maxima Value TRUNKING RAIL 1U"
Trunkingprofile for Xona Maxima LED Unit

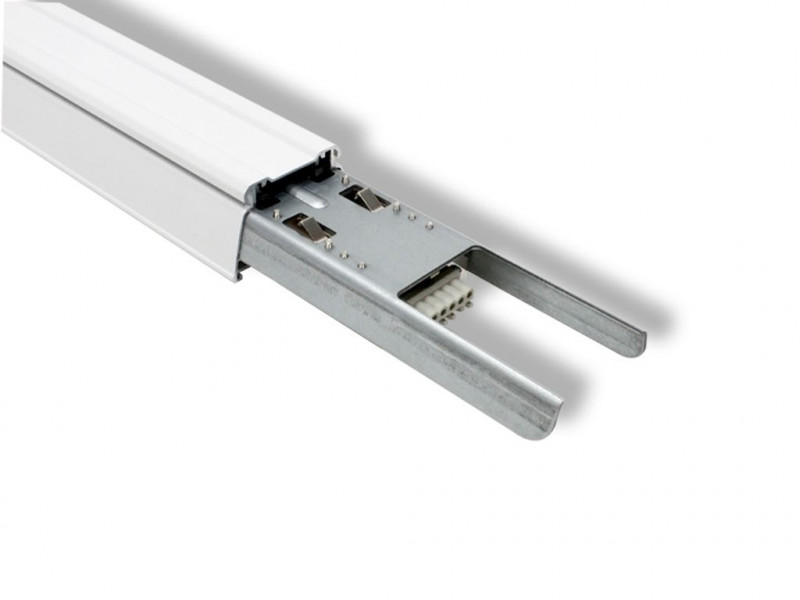

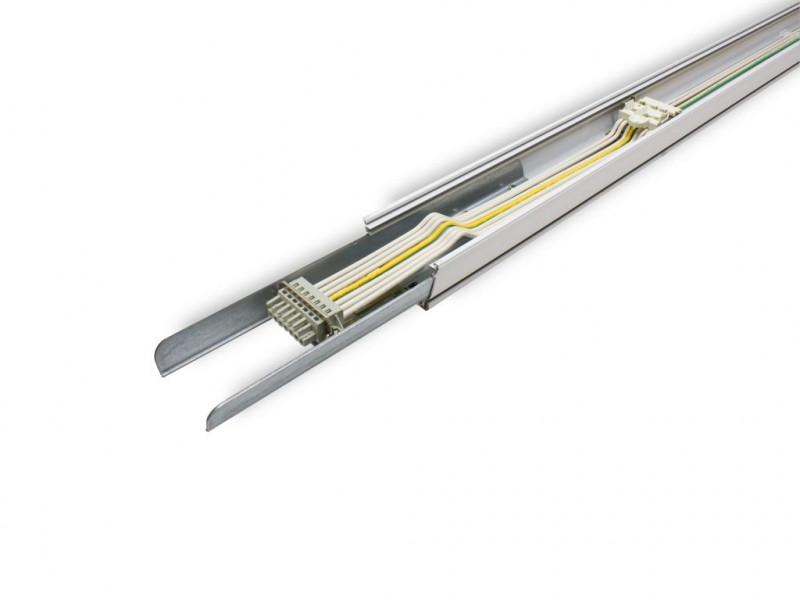

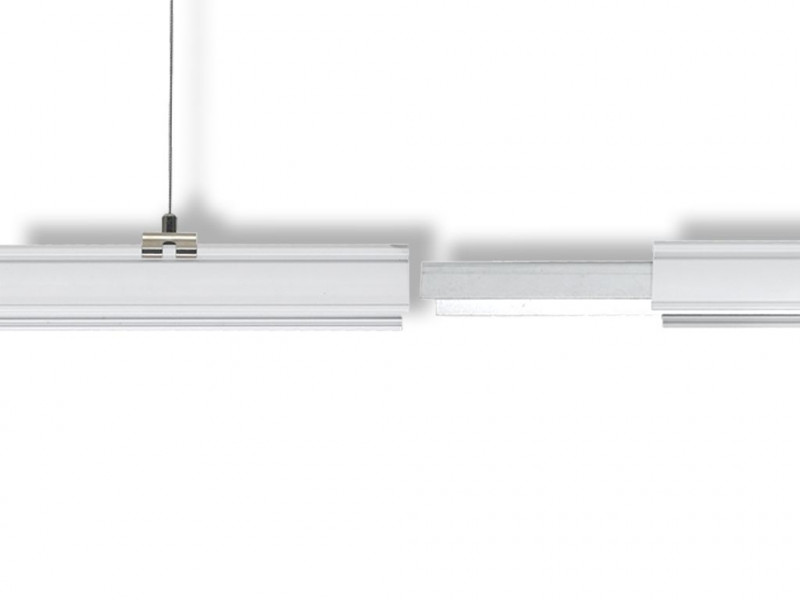

Litegear® trunkingprofile to hold the Xona Maxima LED modules. Elegant aluminum profil with internal wiring, electrical multipin connectors and mechanical steel fork connectors. The trunking rail is available in 4 different length and with different wiring: 5 wire, 7 wire and 11 wire version for Dali dimming and emergency light function. The rail can be mounted on ceilings with clips, steel rod hanger, steel rope- or chain clip hangers. Internal female plug for internal connection to feed the LED unit. Power in and -out with multipin connectors. Quick and easy tool free interconnection of the trunkings. We offer a wide range of acessories: endcap, L-shape, T-shape and X shape node adapters or power feed in boxes, Dali driver, emergency driver and battery packs and blank covers.
570mm, 1416mm, 2832mm, 4248mm
Related links to "Xona Maxima Value TRUNKING RAIL 1U"
|Special Feature of Housing:||7-core|
|Net Weight:||1800 g|
|Type of Packaging:||none|
|Weight incl. Packaging:||1.8 kg|
|Content Master Package:||10|
|Dimensions of Master Package:||1630x440x160 mm|
|Weight Master Package:||20 kg|
|Product Line:||Premio Line|
|Customs Tariff Number:||9405409990|
