Xona Maxima Value TRUNKING RAIL 3U

Prices are only visible after login.

Availability: on request

  • LG31110
  • Housing Color: white
  • Dimensions: 4248x69x41 mm
  • Warranty: 5 years


(LxBxH) in mm


5 years

Trunkingprofile for Xona Maxima LED Unit   Litegear® trunkingprofile to... more
Product information "Xona Maxima Value TRUNKING RAIL 3U"
Trunkingprofile for Xona Maxima LED Unit

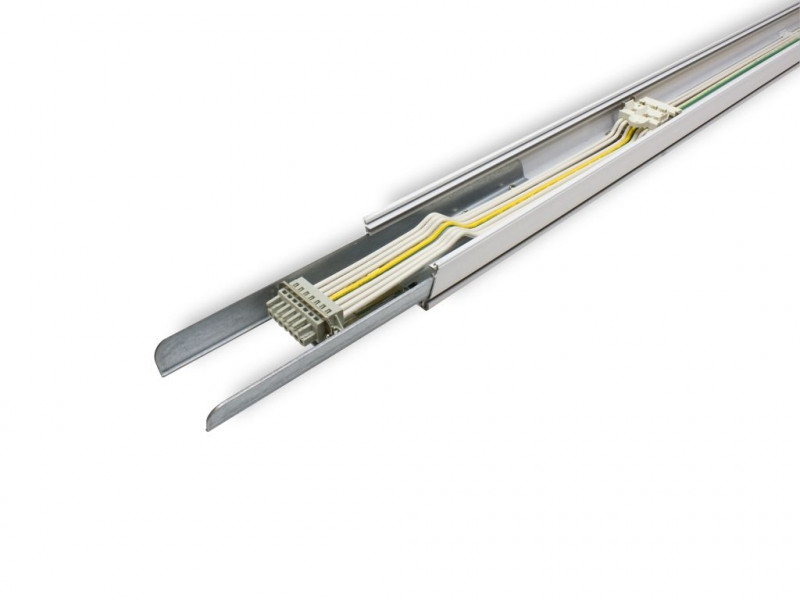

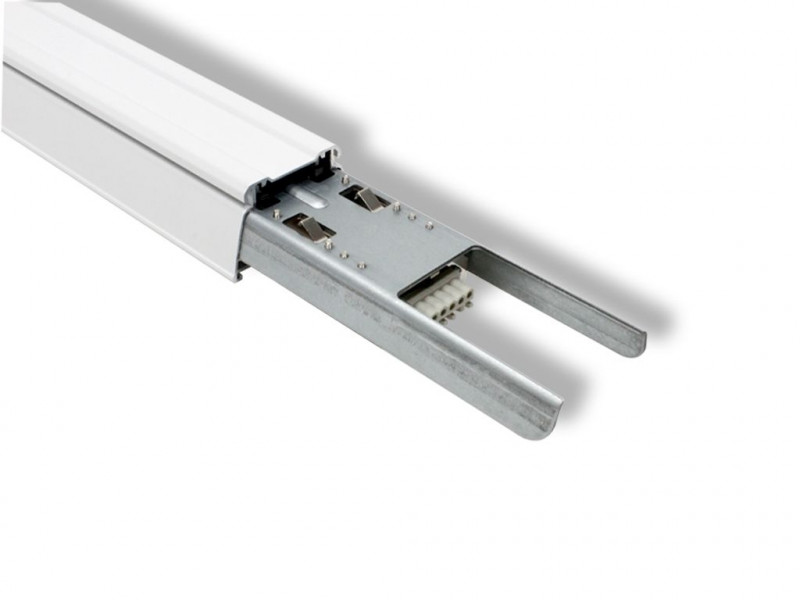

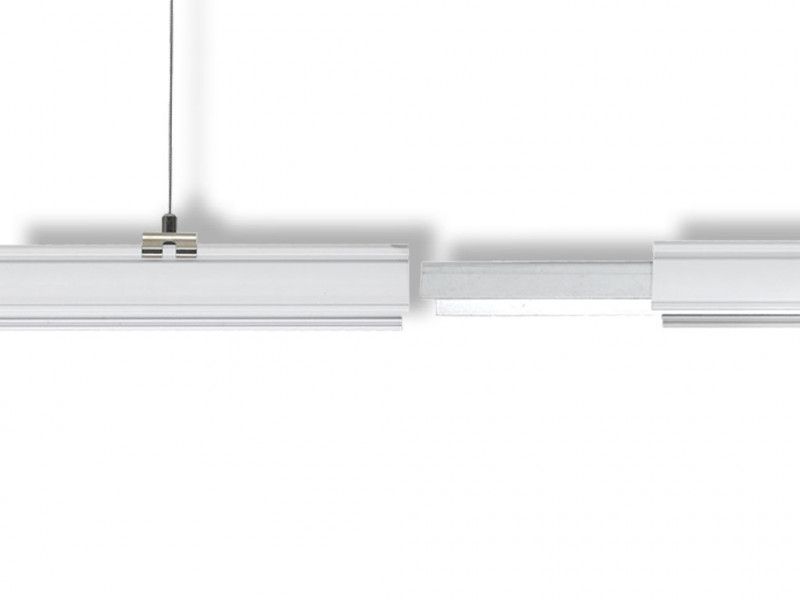

Litegear® trunkingprofile to hold the Xona Maxima LED modules. Elegant aluminum profil with internal wiring, electrical multipin connectors and mechanical steel fork connectors. The trunking rail is available in 4 different length and with different wiring: 5 wire, 7 wire and 11 wire version for Dali dimming and emergency light function. The rail can be mounted on ceilings with clips, steel rod hanger, steel rope- or chain clip hangers. Internal female plug for internal connection to feed the LED unit. Power in and -out with multipin connectors. Quick and easy tool free interconnection of the trunkings. We offer a wide range of acessories: endcap, L-shape, T-shape and X shape node adapters or power feed in boxes, Dali driver, emergency driver and battery packs and blank covers.
profile length:
570mm, 1416mm, 2832mm, 4248mm
Related links to "Xona Maxima Value TRUNKING RAIL 3U"
Technical Details:
Dimensions: 4248x69x41 mm
Housing Color white
Housing Material: aluminum
Special Feature of Housing: 7-core
Net Weight: 4950 g
Weight incl. Packaging: 4.7 kg
Content Master Package: 10
Dimensions of Master Package: 4480x450x160 mm
Weight Master Package: 50 kg
Product Line: Premio Line
Warranty 5 years
Customs Tariff Number: 9405409990
Certifications CE
Barcode: 4250557809212
