Xona Maxima Value TRUNKING RAIL 2U

LG31113
Prices are only visible after login.

Availability: on request

  • LG31113
  • Housing Color: white
  • Dimensions: 2832x69x41 mm
  • Warranty: 5 years

Dimensions

(LxBxH) in mm
2832x69x41

Warranty

5 years

Trunkingprofile for Xona Maxima LED Unit   Litegear® trunkingprofile to... more
Product information "Xona Maxima Value TRUNKING RAIL 2U"
Trunkingprofile for Xona Maxima LED Unit

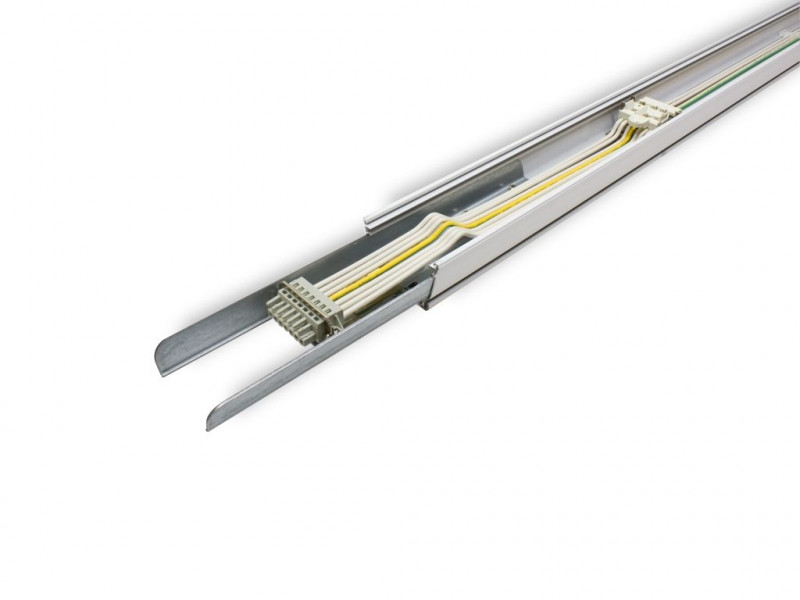

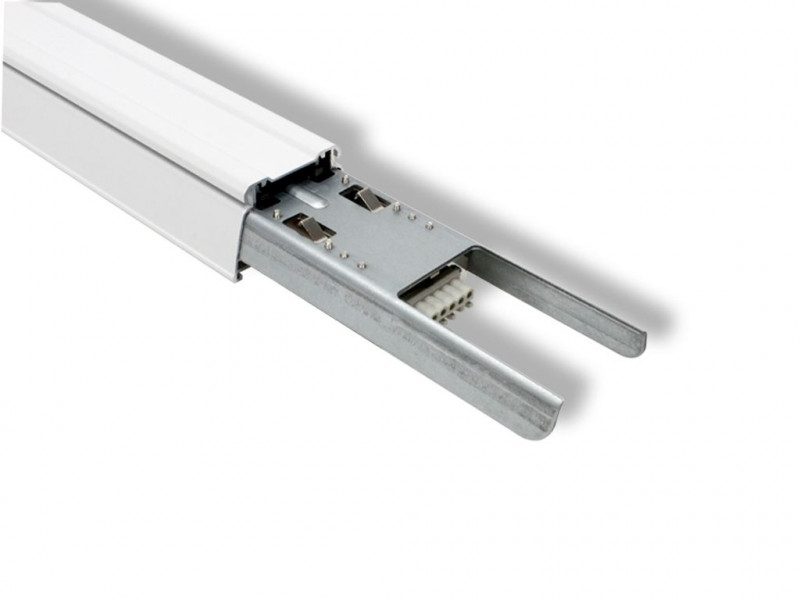

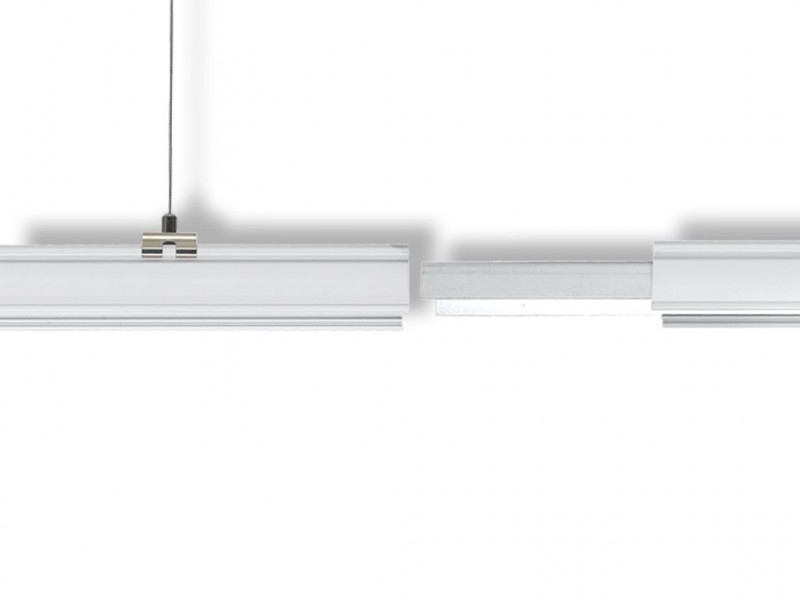

Litegear® trunkingprofile to hold the Xona Maxima LED modules. Elegant aluminum profil with internal wiring, electrical multipin connectors and mechanical steel fork connectors. The trunking rail is available in 4 different length and with different wiring: 5 wire, 7 wire and 11 wire version for Dali dimming and emergency light function. The rail can be mounted on ceilings with clips, steel rod hanger, steel rope- or chain clip hangers. Internal female plug for internal connection to feed the LED unit. Power in and -out with multipin connectors. Quick and easy tool free interconnection of the trunkings. We offer a wide range of acessories: endcap, L-shape, T-shape and X shape node adapters or power feed in boxes, Dali driver, emergency driver and battery packs and blank covers.

profile length:
570mm, 1416mm, 2832mm, 4248mm
Related links to "Xona Maxima Value TRUNKING RAIL 2U"
Technical Details:

Dimensions: 2832x69x41 mm
Housing Color white
Housing Material: aluminum
Special Feature of Housing: 11-core
Net Weight: 3500 g
Weight incl. Packaging: 3.9 kg
Product Line: Premio Line
Warranty 5 years
Customs Tariff Number: 9405499090
Certifications CE
