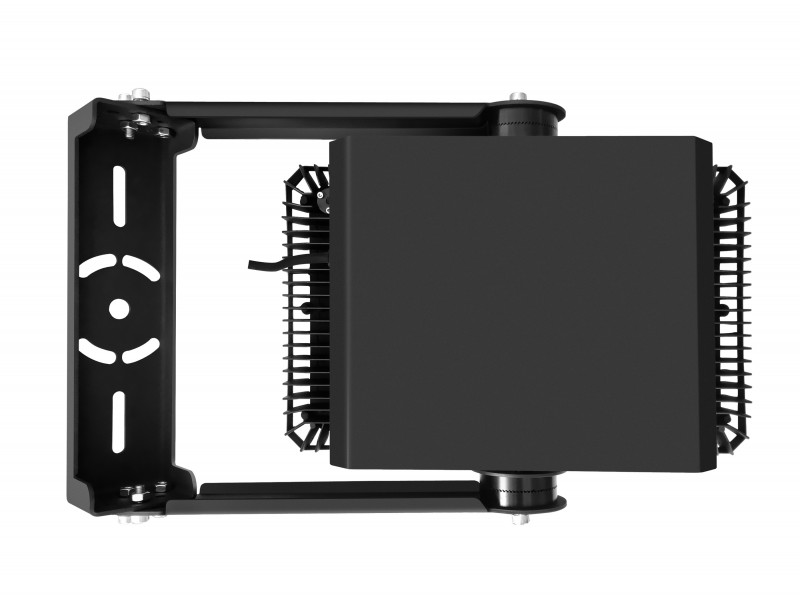

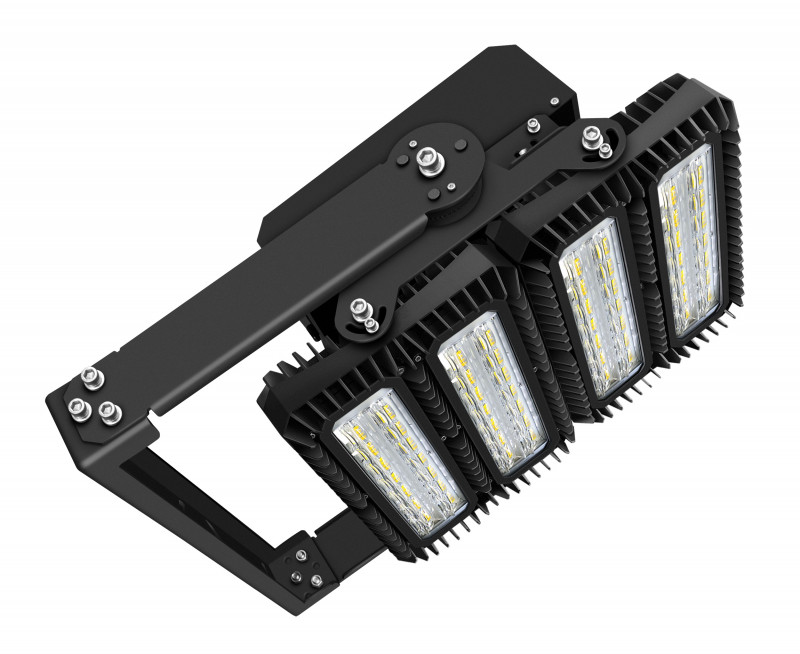

Campa Flex SF Floodlight WFL450-757-70200LM
Order number: LG12280
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG12280
- Luminous Flux: 70200 lm
- Power Draw: 450 W
- Light Color: daylight (5700 K)
- Input Current: AC 100 - 265V, 50/60Hz
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 110°
- LED-Chip: Lumileds SMD 3030
- Housing Color: black
- Dimensions: 706x336x390 mm
- Warranty: 5 years
LED Flood Light Litegear® Campa Flex SF a stylish and modular LED outdoor... more
Product information "Campa Flex SF Floodlight WFL450-757-70200LM"
LED Flood Light

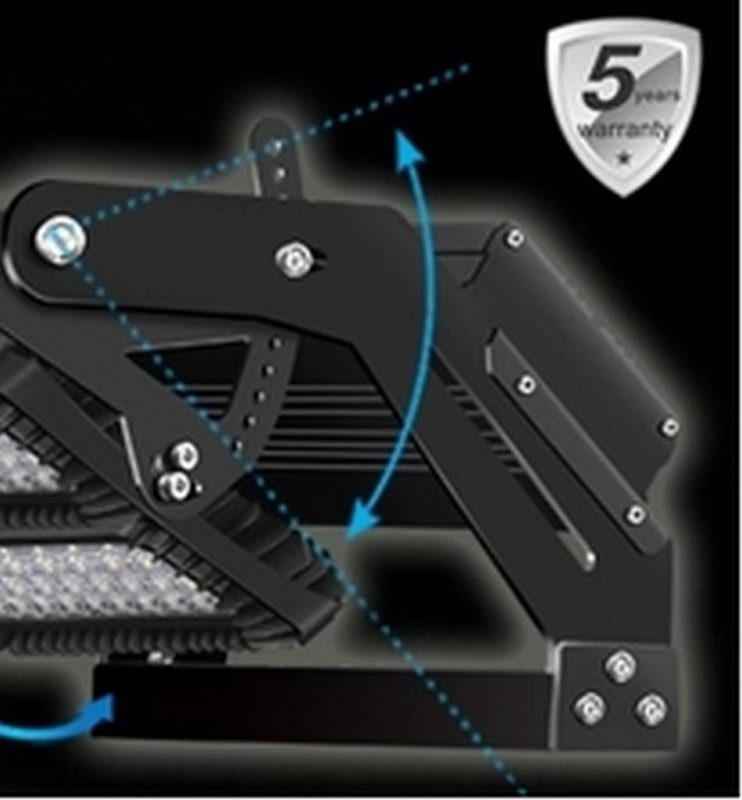

Litegear® Campa Flex SF a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of alluminum dicast housing, inox screws and strong bracket it has a excellent corrosion resistance. Campa Flex is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. The LED modules can be tilt adjusted . The LEDs are LM80 tested! Dimming function on option (1-10V, PWM, Dali).
Applications:
- sport field: Soccer, Tennis, Basketball, Golf
- harbour, airport, warehouse
- industrial and architectural applications
Technical Details:
- Safety Tests: EN 60598-1:2015, EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
- EMC Test: EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "Campa Flex SF Floodlight WFL450-757-70200LM"
Technical Details:
| Luminous Flux: | 70200 lm |
| LED Output: | 430 W |
| Light Yield: | 156 lm/W |
| Light Temperature: | 5700 K |
| Light Color: | daylight |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 110 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Lumileds |
| LED-Chip: | SMD 3030 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 100 - 265V, 50/60Hz |
| Power Consumption: | 450 W |
| Contains Driver: |  |

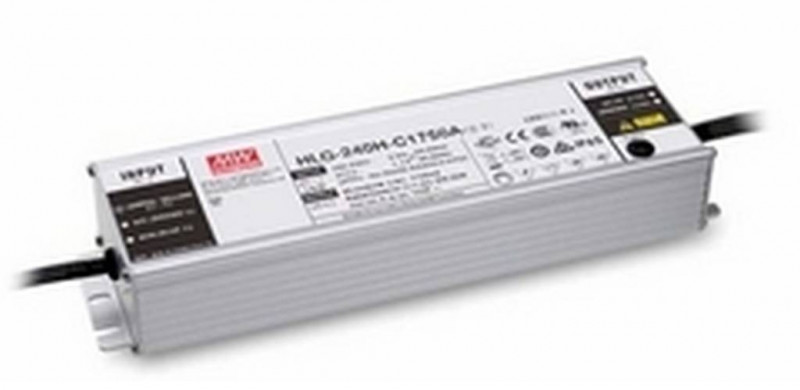

| Driver Manufacturer: | Meanwell |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 55°C |
| Dimensions: | 706x336x390 mm |
| Mounting: | Wand,Boden |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 10 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | modular, swivelling |
| Cover: | Lens |
| Net Weight: | 17700 g |
| Type of Packaging: | box |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L80/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,ENEC,LM80 |
| Barcode: | 4250557813431 |
| optional 1-10V dimmbar | |
| Akzo Nobel Beschichtung | |
| 10KV surge predection | |
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen more
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 70200 lm
LED-Leistung: 450 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
Lichtaustritt: direkt
Maße: 706x336x390 mm
Montageart: Aufbau (Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 17700 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 70200 lm
LED-Leistung: 450 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
Lichtaustritt: direkt
Maße: 706x336x390 mm
Montageart: Aufbau (Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 17700 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
