Order number: LG12300
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Short information
- Order number: : LG12300
- Luminous Flux: 98600 lm
- Power Draw: 670 W
- Light Color: daylight (5700 K)
- Input Current: AC 100 - 265V, 50/60Hz
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 110°
- LED-Chip: Lumileds SMD 3030
- Housing Color: black
- Dimensions: 1100x336x463 mm
- Warranty: 5 years
Luminous Flux
98600
lm
Power Draw
670 W
Light Color
5700 K
daylight
Color Rendering Index (CRI)
CRI
>70 Ra
IP Code
IP 66
Beam Angle
110°
wall, ground
mounting type
Light Direction
Dimensions
(LxBxH) in mm
1100x336x463
Warranty
5 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED Flood Light Litegear® Campa Flex SF a stylish and modular LED outdoor... more

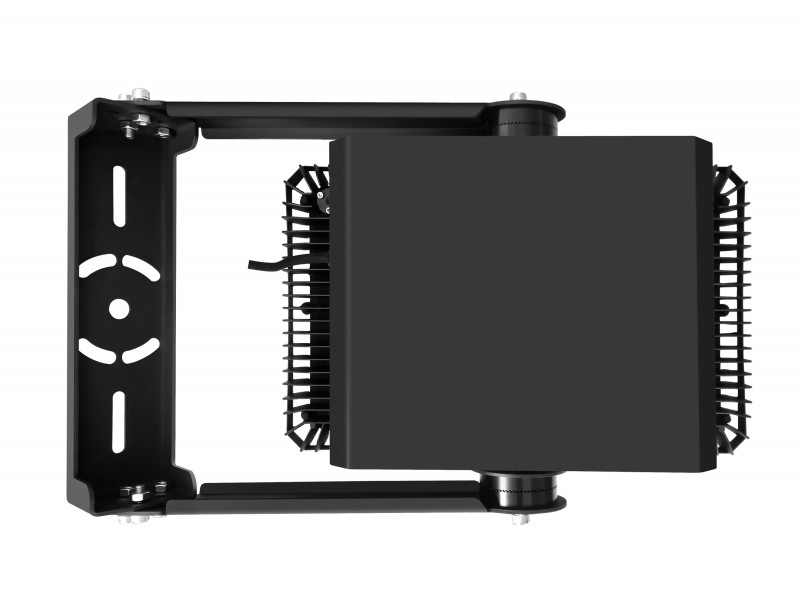

Product information "Campa Flex SF Floodlight WFL650-757-98600LM"
LED Flood Light
Litegear® Campa Flex SF a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of alluminum dicast housing, inox screws and strong bracket it has a excellent corrosion resistance. Campa Flex is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. The LED modules can be tilt adjusted . The LEDs are LM80 tested! Dimming function on option (1-10V, PWM, Dali).
Applications:
- sport field: Soccer, Tennis, Basketball, Golf
- harbour, airport, warehouse
- industrial and architectural applications
Technical Details:
- Safety Tests: EN 60598-1:2015, EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
- EMC Test: EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "Campa Flex SF Floodlight WFL650-757-98600LM"
Technical Details:
Luminous Flux: | 98600 lm |
LED Output: | 640 W |
Light Yield: | 147 lm/W |
Light Temperature: | 5700 K |
Light Color: | daylight |
Color Rendering Index: | ≥70 Ra |
Color Consistency (SDCM): | <3 |
Beam Angle: | 110 ° |
Light Emission: | downward |
LED-Chip Manufacturer: | Lumileds |
LED-Chip: | SMD 3030 |
Ignition Time: | <0,5 s |
Input Current: | AC 100 - 265V, 50/60Hz |
Power Consumption: | 670 W |
Contains Driver: | |
Driver Manufacturer: | Meanwell |
Power Factor (PF): | >0.95 |
Input Driver: | cable with flying leads |
CC/CV: | CC |
Input Lamp: | terminal |
Switching Cycles: | >100.000 |
Electrical Protection Class: | I |
Compatible with Emergency Current: | |
Ambient Temperature (TA): | -20°C - 45°C |
Storage Temperature: | -40°C - 55°C |
Dimensions: | 1100x336x463 mm |
Mounting: | Wand,Boden |
Montageart: | surface mounted |
IP Class: | 66 |
IK Code: | 10 |
Housing Color | black |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | modular, swivelling |
Cover: | Lens |
Net Weight: | 22500 g |
Type of Packaging: | box |
Content Master Package: | 1 |
Product Line: | Advance Line |
Warranty | 5 years |
Operating Hours: | >100.000 h L80/B50 |
Disposal Obligation: | |
Customs Tariff Number: | 9405409990 |
Certifications | CE,ENEC,LM80 |
Barcode: | 4250557813516 |
optional 1-10V dimmbar | |
Akzo Nobel Beschichtung | |
Meanwell ELG-C |
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen more
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 98600 lm
LED-Leistung: 670 W
Leuchten-Lichtausbeute: 147 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
Lichtaustritt: direkt
Maße: 1100x336x463 mm
Montageart: Aufbau (Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 22500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 98600 lm
LED-Leistung: 670 W
Leuchten-Lichtausbeute: 147 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
Lichtaustritt: direkt
Maße: 1100x336x463 mm
Montageart: Aufbau (Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 22500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
