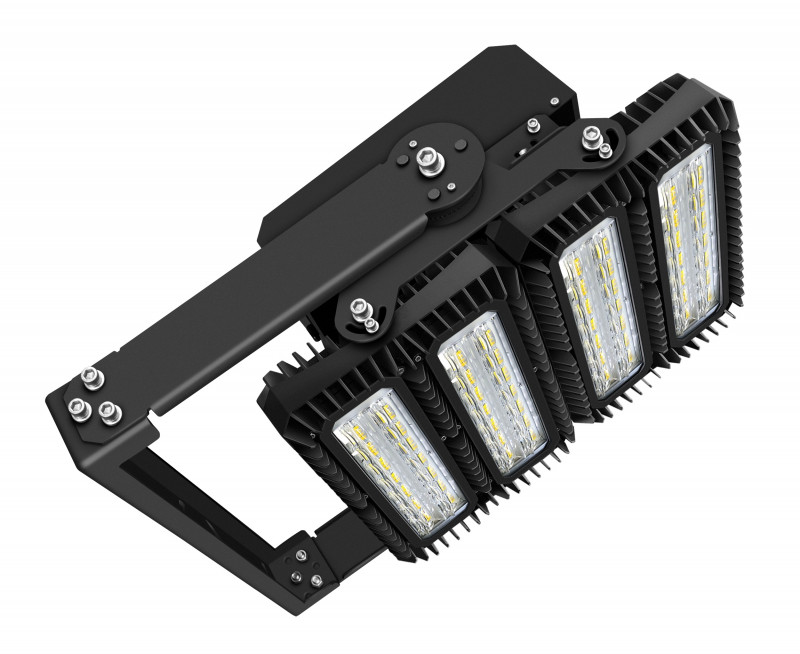

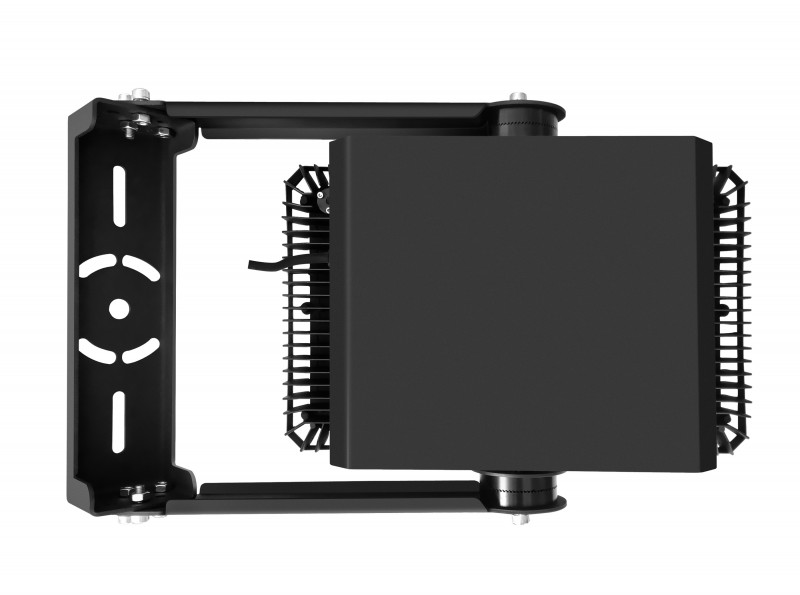

Campa Flex SF Floodlight ASY80x30-230-757-34000LM

Available soon
Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

  • LG12279
  • Luminous Flux: 34000 lm
  • Power Draw: 230 W
  • Light Color: daylight (5700 K)
  • Input Current: AC 100 - 265V, 50/60Hz
  • Color Rendering Index (CRI): ≥70 Ra
  • IP Code: 66

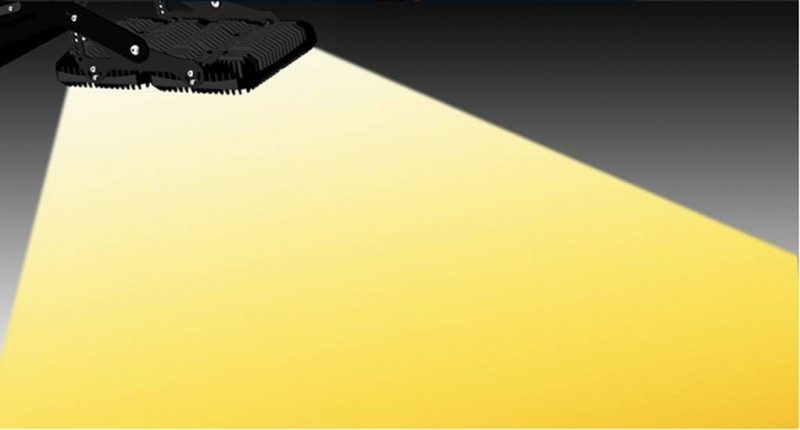

  • Beam Angle: 80x30°
  • LED-Chip: Seoul Semiconductor SMD 3535
  • Housing Color: black
  • Dimensions: 685x390x240 mm
  • Warranty: 5 years

Luminous Flux


Power Draw

230 W

Light Color

5700 K

Color Rendering Index (CRI)

>70 Ra

IP Code

IP 66

Beam Angle


ceiling, wall

mounting type

Light Direction


(LxBxH) in mm


5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Flood Light   Litegear® Campa Flex SF a stylish and modular LED outdoor... more
Product information "Campa Flex SF Floodlight ASY80x30-230-757-34000LM"
LED Flood Light

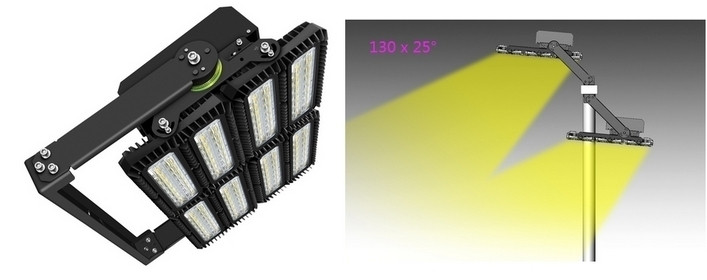

Litegear® Campa Flex SF a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of alluminum dicast housing, inox screws and strong bracket it has a excellent corrosion resistance. Campa Flex is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. The LED modules can be tilt adjusted . The LEDs are LM80 tested! Dimming function on option (1-10V, PWM, Dali).

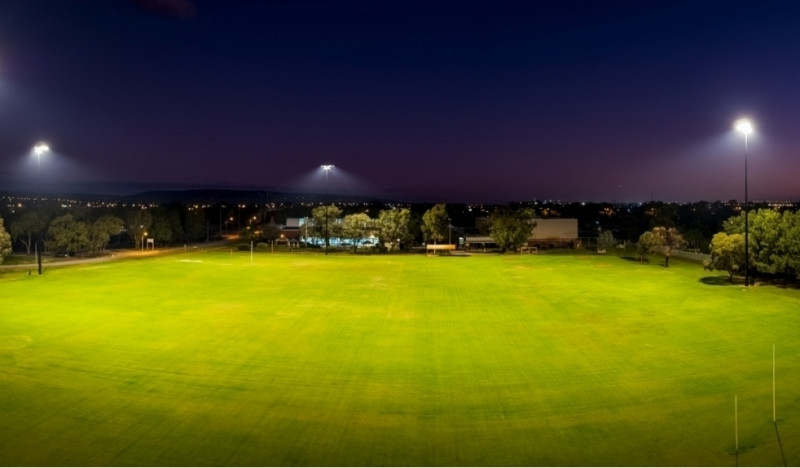

  • sport field: Soccer, Tennis, Basketball, Golf
  • harbour, airport, warehouse
  • industrial and architectural applications
Technical Details:
  • Safety Tests:  EN 60598-1:2015,  EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
  • EMC Test:  EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "Campa Flex SF Floodlight ASY80x30-230-757-34000LM"
Technical Details:
Luminous Flux: 34000 lm
LED Output: 220 W
Light Yield: 148 lm/W
Light Temperature: 5700 K
Light Color: daylight
Color Rendering Index: ≥70 Ra
Color Consistency (SDCM): <3
Beam Angle: 80x30 °
Light Emission: downward
LED-Chip Manufacturer: Seoul Semiconductor
LED-Chip: SMD 3535
Ignition Time: <0,5 s
Input Current: AC 100 - 265V, 50/60Hz
Power Consumption: 230 W
Contains Driver: ja
Driver Manufacturer: Meanwell
Power Factor (PF): >0.95
Input Driver: cable with flying leads
Input Lamp: terminal
Switching Cycles: >100.000
Electrical Protection Class: I
Compatible with Emergency Current: ja
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -40°C - 55°C
Dimensions: 685x390x240 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 66
IK Code: 10
Housing Color black
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: modular, swivelling
Cover: Lens
Net Weight: 17700 g
Type of Packaging: box
Weight incl. Packaging: 19 kg
Content Master Package: 1
Dimensions of Master Package: 710x395x334 mm
Weight Master Package: 19 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >97.000 h L80/B50
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,ENEC,LM80,D
Barcode: 4250557821122
optional Dali od. 0-10V dimmbar
Akzo Nobel Beschichtung
10KV surge predection
Meanwell® ELG-C
h h
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen more
modularer LED-Outdoor Fluter mit schwenkbaren LED-Modulen
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 34000 lm
LED-Leistung: 230 W
Leuchten-Lichtausbeute: 148 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 80x30°
Lichtaustritt: direkt
Maße: 685x390x240 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 17700 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 97000 h
