Order number: LG12306
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG12306
- Luminous Flux: 131100 lm
- Power Draw: 900 W
- Light Color: daylight (5700 K)
- IP Code: 66
- Beam Angle: 25°
- LED-Chip: Lumileds SMD 5050
- Housing Color: black
- Dimensions: 722x656x390 mm
- Warranty: 5 years
(LxBxH) in mm
LED Flood Light Litegear® Campa Flex SF a stylish and modular LED outdoor... more
Product information "Campa Flex SF Floodlight SP900-757-131100LM"
LED Flood Light

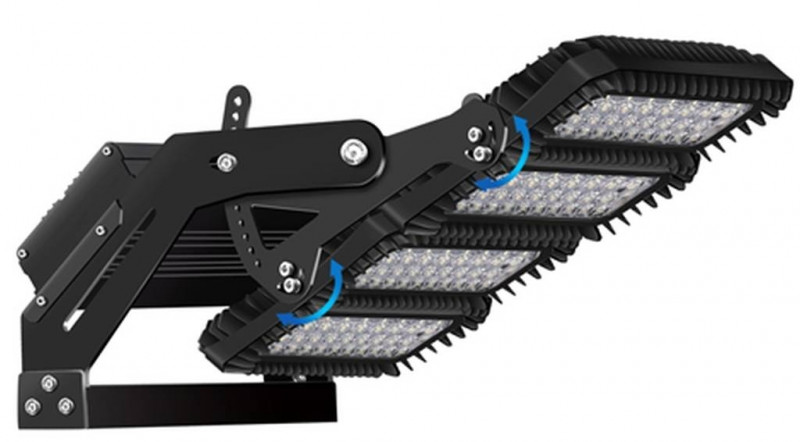

Litegear® Campa Flex SF a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of alluminum dicast housing, inox screws and strong bracket it has a excellent corrosion resistance. Campa Flex is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. The LED modules can be tilt adjusted . The LEDs are LM80 tested! Dimming function on option (1-10V, PWM, Dali).
- sport field: Soccer, Tennis, Basketball, Golf
- harbour, airport, warehouse
- industrial and architectural applications
- Safety Tests: EN 60598-1:2015, EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
- EMC Test: EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "Campa Flex SF Floodlight SP900-757-131100LM"
|Luminous Flux:||131100 lm|
|LED Output:||860 W|
|Light Yield:||146 lm/W|
|Light Temperature:||5700 K|
|Color Consistency (SDCM):||<3|
|Beam Angle:||25 °|
|Ignition Time:||<0,5 s|
|Power Consumption:||900 W|
|Power Factor (PF):||>0.95|

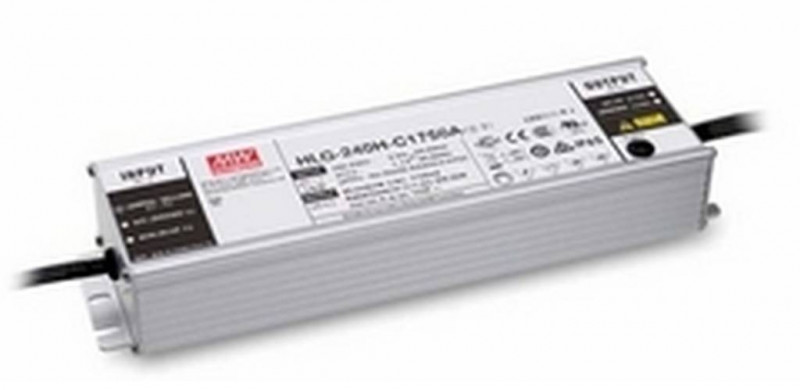

|Input Driver:||cable with flying leads|
|Compatible with Emergency Current:|
|Ambient Temperature (TA):||-20°C - 45°C|
|Storage Temperature:||-40°C - 55°C|

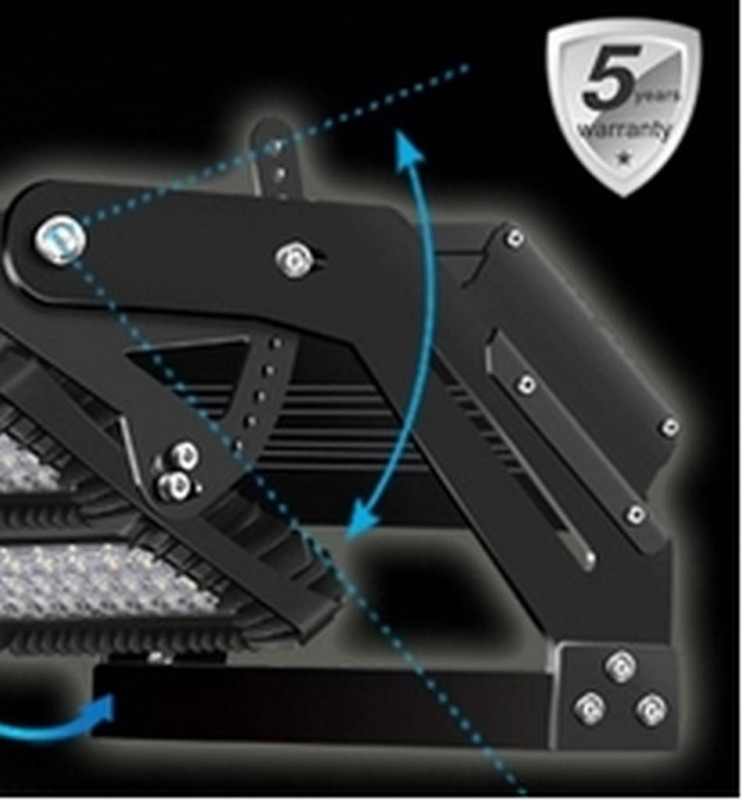

|Special Feature of Housing:||modular, swivelling|
|Net Weight:||28700 g|
|Type of Packaging:||box|
|Content Master Package:||1|
|Product Line:||Advance Line|
|Warranty||5 years, 35.000 h|
|Operating Hours:||>100.000 h L80/B50|
|Customs Tariff Number:||9405409990|
|optional 1-10V dimmbar|
|Akzo Nobel Beschichtung|
