Campa Flex Floodlight SP230-840-29000LM

LG12246
Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Dimensions

Dimensions
  • LG12246
  • Luminous Flux: 29000 lm
  • Power Draw: 220 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 100 - 265V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 66
  • Beam Angle: 25°
  • LED-Chip: Lumileds SMD 5050
  • Housing Color: black
  • Dimensions: 275x320x324 mm
  • Warranty: 5 years

Luminous Flux

29000
lm

Power Draw

220 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

Beam Angle

25°

ceiling, wall, ground

mounting type

Light Direction

Dimensions

(LxBxH) in mm
275x320x324

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Flood Light   Litegear® Campa Flex a stylish and modular LED outdoor... more
Product information "Campa Flex Floodlight SP230-840-29000LM"
LED Flood Light

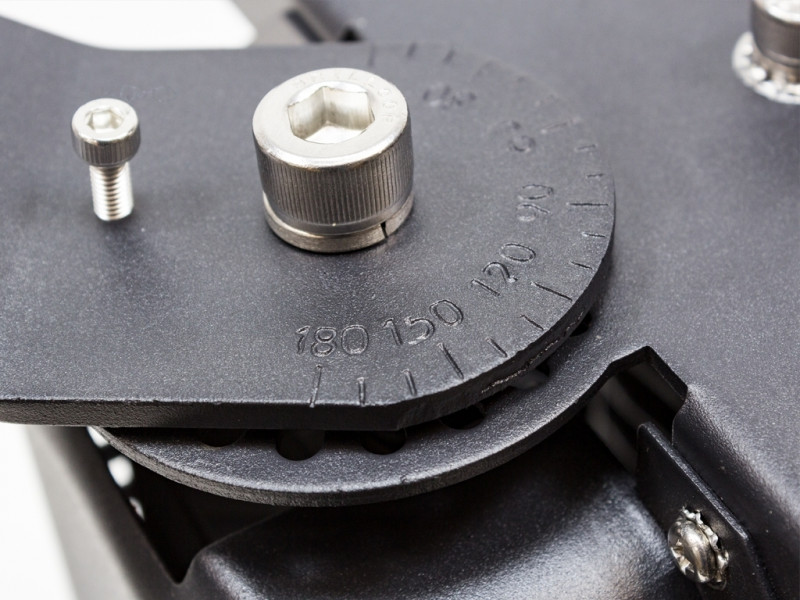

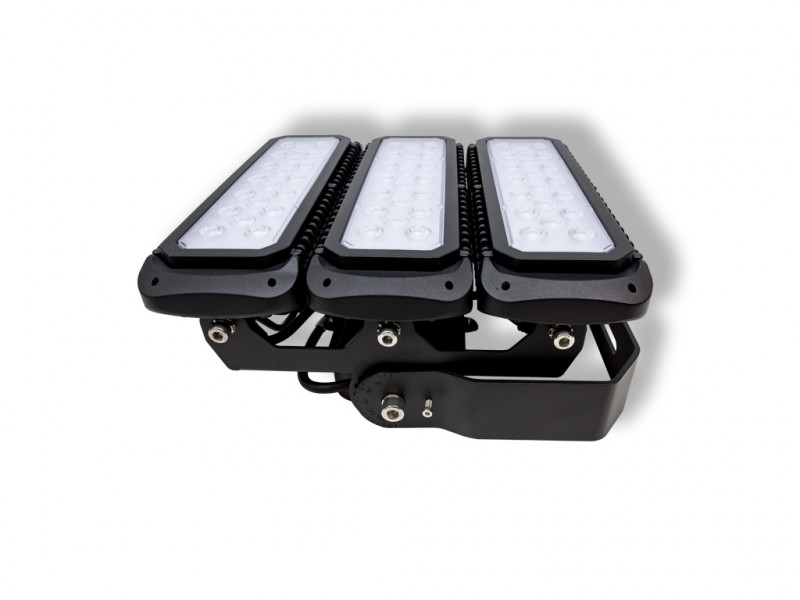

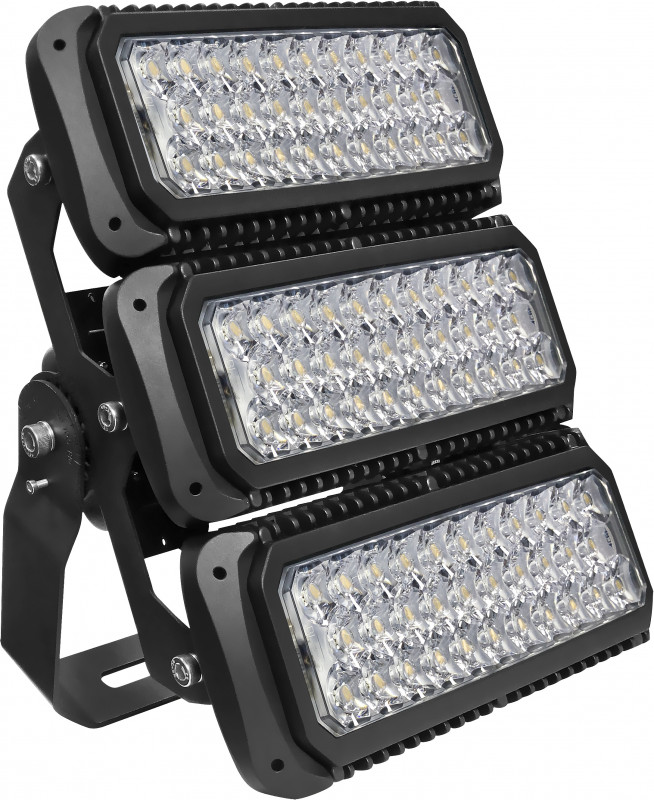

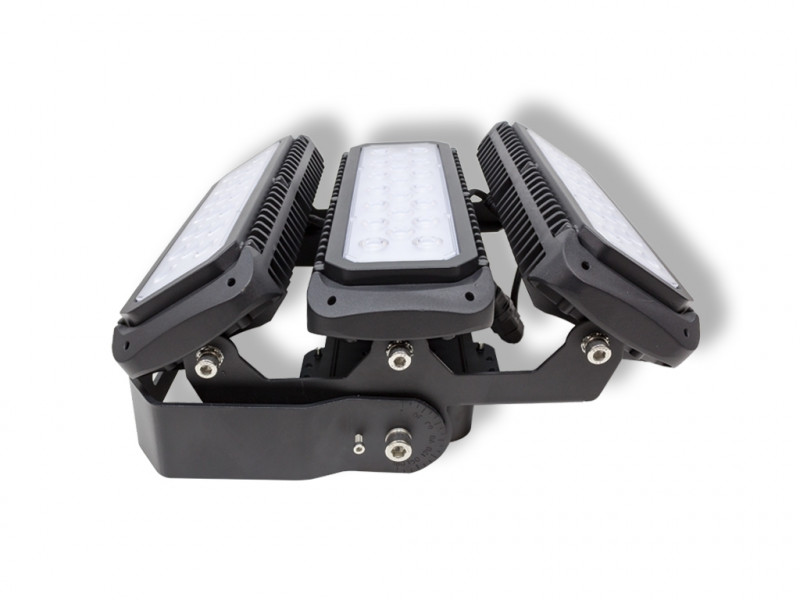

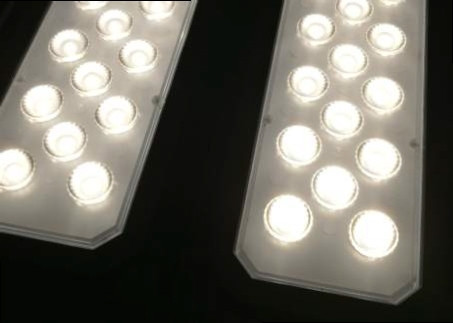

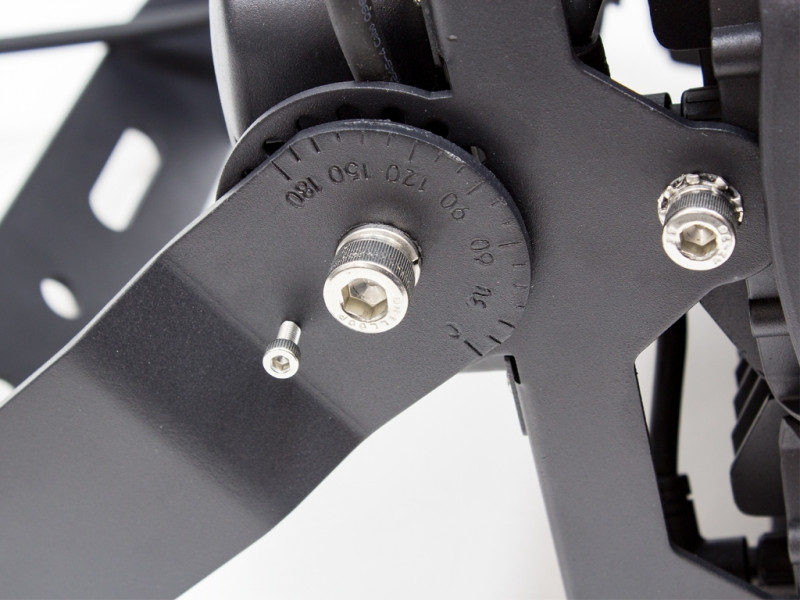

Litegear® Campa Flex a stylish and modular LED outdoor floodlight. Available with different beam angels and power classes. Due to the use of alluminum dicast housing, inox screws and strong bracket it has a excellent corrosion resistance. Campa Flex is the perfect solution for use in factories, sport fileds, harbours, airports or for architectural applications. Because of it´s weather sealed standard you can use it permanently outside in rough environment conditions. We use very efficient LED chips. SMD chips have a optimized heat dissipation to guarantee a long lifespan. The LED modules can be tilt adjusted . The LEDs are LM80 tested! Dimming function on option (1-10V, PWM, Dali).

Applications:
  • sport field: Soccer, Tennis, Basketball, Golf
  • harbour, airport, warehouse
  • industrial and architectural applications

Technical Details:
  • Safety Tests:  EN 60598-1:2015,  EN 60598-2-5:1998, ZEK01.4-08, EN 62493:2010, IEC 60598-2-5: 1998, IEC 60598-1:2008, AS/NZS 60598:2.5:2002, AS/NZS 60598.1:2013
  • EMC Test:  EN 55015:2013, EN 61547:2009, EN 61000-3-2:2006+A1: 2009+A2:2009, EN61000-3-3:2013
Photobiological Safety: EN62471: 2008
Related links to "Campa Flex Floodlight SP230-840-29000LM"
Technical Details:

Luminous Flux: 29000 lm
LED Output: 216 W
Light Yield: 132 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 25 °
Light Emission: downward
LED-Chip Manufacturer: Lumileds
LED-Chip: SMD 5050
Ignition Time: <0,5 s
Input Current: AC 100 - 265V, 50/60Hz
Power Consumption: 220 W
Contains Driver: ja
Driver Manufacturer: Meanwell
Power Factor (PF): >0.95
Input Driver: cable with flying leads
Output of Driver: DC 57-115V, 2100mA
CC/CV: CC
Input Lamp: cable with flying leads
Switching Cycles: >100.000
Electrical Protection Class: I
Compatible with Emergency Current: ja
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -40°C - 55°C
Dimensions: 275x320x324 mm
Mounting: ceiling,wall,ground
Montageart: surface mounted
IP Class: 66
IK Code: 10
Housing Color black
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: modular, swivelling
Cover: Lens
Net Weight: 6060 g
Type of Packaging: box
Dimensions of Packaging: 385x365x205
Weight incl. Packaging: 6.76 kg
Content Master Package: 2
Dimensions of Master Package: 765x40x235 mm
Weight Master Package: 15,4 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >100.000 h L80/B50
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,ENEC,LM80
Barcode: 4250557813400
Meanwell® ELG-C Driver
Akzo Nobel Beschichtung
