Order number: LG10953
Short information
- Order number: : LG10953
- Luminous Flux: 2760 lm
- Power Draw: 24 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 85 - 265V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Edison SMD 2835
- Housing Color: black
- Dimensions: 220x170x45 mm
- Warranty: 3 years
Luminous Flux
2760
lm
Power Draw
24 W
Light Color
3000 K
warmwhite
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 66
Beam Angle
120°
ceiling, wall, ground
mounting type
Dimensions
(LxBxH) in mm
220x170x45
Warranty
3 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED Flood Light Litegear® Luna Plane is a flat and stylish LED outdoor... more

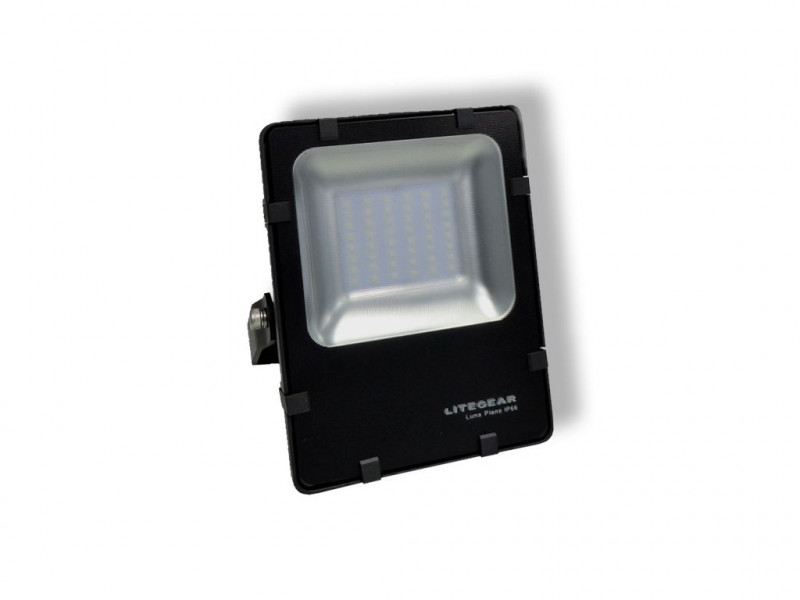

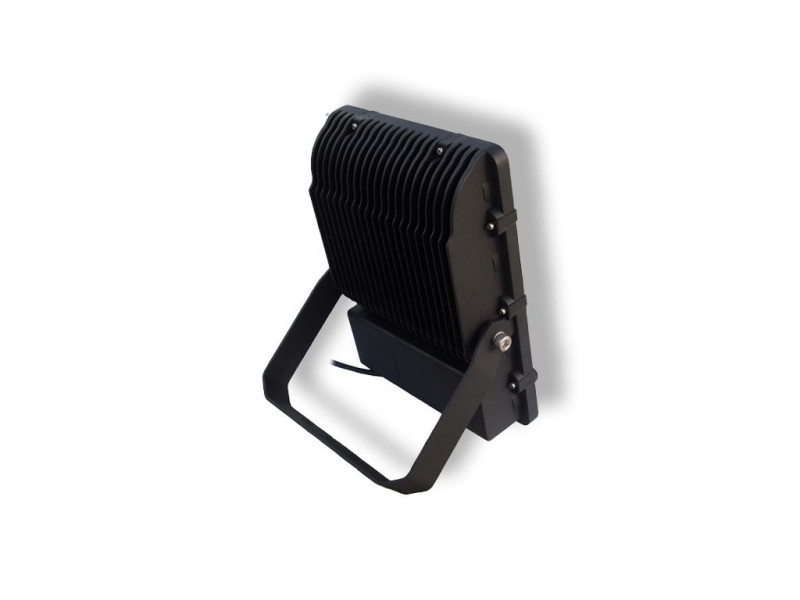

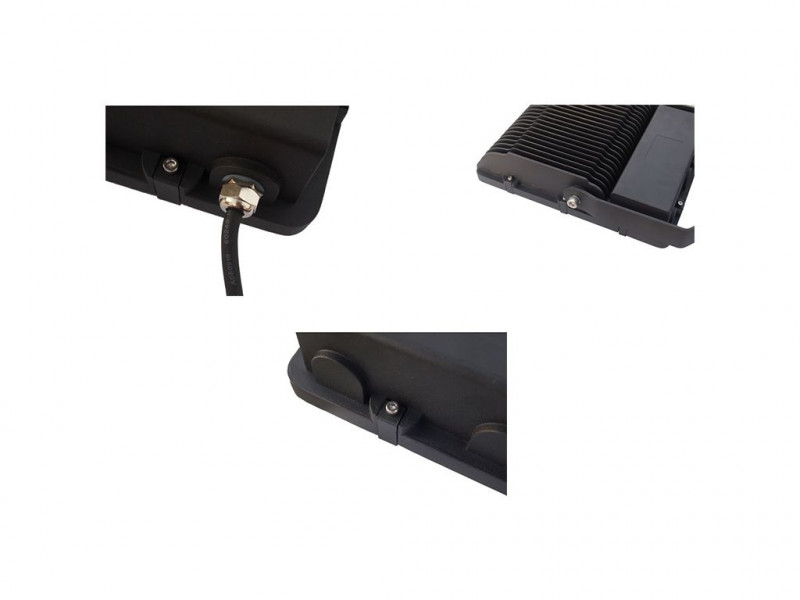

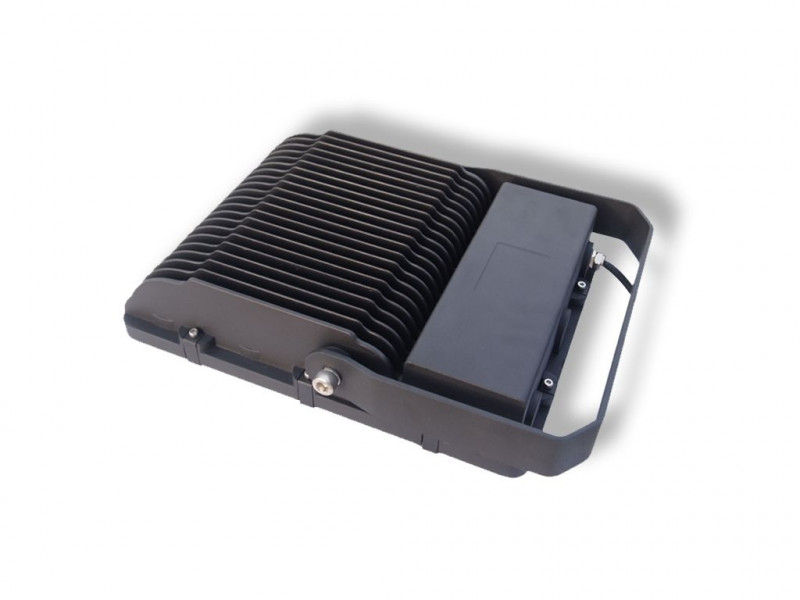

Product information "Luna Plane IP66 Floodlight 24-830-2760LM"
LED Flood Light
Litegear® Luna Plane is a flat and stylish LED outdoor floodlight. Due to the use of alluminum dicast housing, inox screws and alu bracket it has a excellent corrosion resistance. Much better than standard flood lights with steel brackets. Luna Plane is the perfect solution for use in factories, mobile for construction work, garden, parking area or for architectural applications. You can use it permanently outside in rough environment conditions. We use very efficient LED chips with a high lightoutput. The LED chips have a optimized heat dissipation to guarantee a long lifespan. Compared to other outdoor devices we have a much better Color rendering Index which let colors shine more naturally. After switching on the luminaire you have a instant full light without infrared waves which allows you to use it more closely to heat sensitive materials and makes working in front of the flood light more confenient and less sweatty. The internal power supply is power factor corrected for less waste of electricity.
Related links to "Luna Plane IP66 Floodlight 24-830-2760LM"
Technical Details:
Luminous Flux: | 2760 lm |
LED Output: | 24 W |
Light Yield: | 115 lm/W |
Light Temperature: | 3000 K |
Light Color: | warmwhite |
Color Rendering Index: | ≥80 Ra |
Color Consistency (SDCM): | <4 |
Beam Angle: | 120 ° |
LED-Chip Manufacturer: | Edison |
LED-Chip: | SMD 2835 |
Ignition Time: | <0,5 s |
Input Current: | AC 85 - 265V, 50/60Hz |
Power Consumption: | 24 W |
Contains Driver: | |
Power Factor (PF): | >0.95 |
Input Driver: | cable with flying leads |
Output of Driver: | DC 24 - 28V, 900mA |
CC/CV: | CC |
Input Lamp: | cable with plug |
Switching Cycles: | >35.000 |
Ambient Temperature (TA): | -20°C - 50°C |
Dimensions: | 220x170x45 mm |
Mounting: | ceiling,wall,ground |
Montageart: | surface mounted |
IP Class: | 66 |
IK Code: | 08 |
Housing Color | black |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | prismatic ESG glass |
Net Weight: | 1630 g |
Type of Packaging: | box |
Dimensions of Packaging: | 285x245x100 |
Weight incl. Packaging: | 1.856 kg |
Content Master Package: | 10 |
Dimensions of Master Package: | 465x300x500 mm |
Weight Master Package: | 19,1 kg |
Product Line: | Advance Line |
Warranty | 3 years |
Operating Hours: | >50.000 h L70/B50 |
Disposal Obligation: | |
Customs Tariff Number: | 94054210 |
Certifications | CE,GS |
Barcode: | 4250557805030 |
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66 more
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 2760 lm
LED-Leistung: 24 W
Leuchten-Lichtausbeute: 115 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Maße: 220x170x45 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1630 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 2760 lm
LED-Leistung: 24 W
Leuchten-Lichtausbeute: 115 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Maße: 220x170x45 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1630 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
