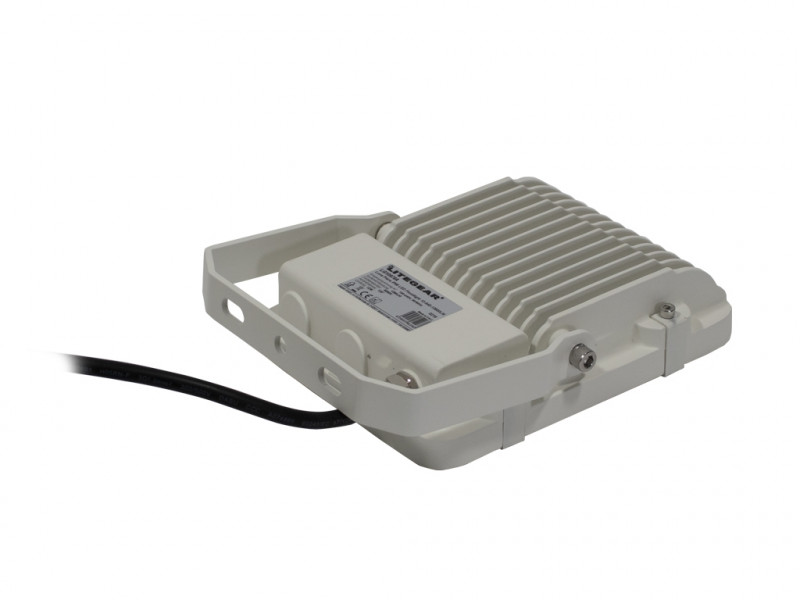

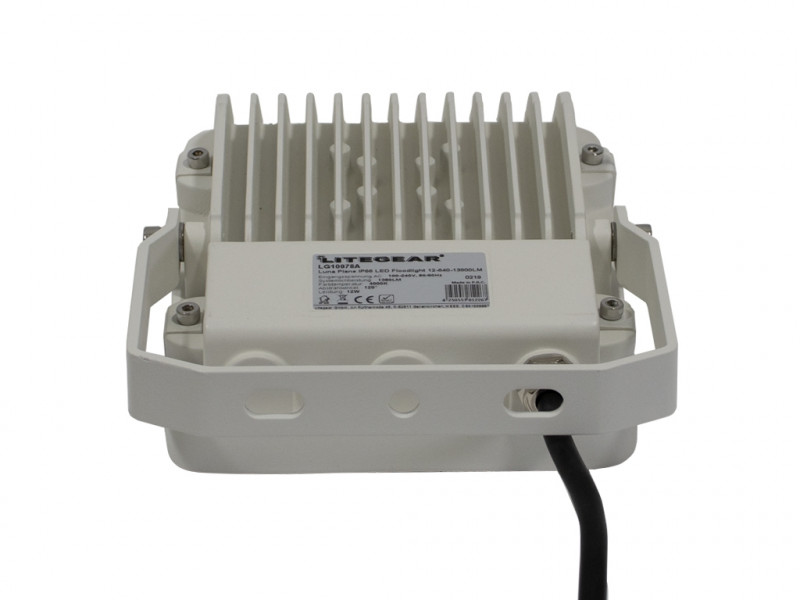

Luna Plane IP66 Floodlight 13-840-1380LM
Order number: LG10978A
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10978A
- Luminous Flux: 1380 lm
- Power Draw: 13 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 90-264V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Edison SMD 2835
- Housing Color: white
- Dimensions: 175x135x42 mm
- Warranty: 3 years
LED Flood Light Litegear® Luna Plane is a flat and stylish LED outdoor... more
Product information "Luna Plane IP66 Floodlight 13-840-1380LM"
LED Flood Light
Litegear® Luna Plane is a flat and stylish LED outdoor floodlight. Due to the use of alluminum dicast housing, inox screws and alu bracket it has a excellent corrosion resistance. Much better than standard flood lights with steel brackets. Luna Plane is the perfect solution for use in factories, mobile for construction work, garden, parking area or for architectural applications. You can use it permanently outside in rough environment conditions. We use very efficient LED chips with a high lightoutput. The LED chips have a optimized heat dissipation to guarantee a long lifespan. Compared to other outdoor devices we have a much better Color rendering Index which let colors shine more naturally. After switching on the luminaire you have a instant full light without infrared waves which allows you to use it more closely to heat sensitive materials and makes working in front of the flood light more confenient and less sweatty. The internal power supply is power factor corrected for less waste of electricity.
Related links to "Luna Plane IP66 Floodlight 13-840-1380LM"
Technical Details:
| Luminous Flux: | 1380 lm |
| LED Output: | 12 W |
| Light Yield: | 106 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <2 |
| Beam Angle: | 120 ° |
| LED-Chip Manufacturer: | Edison |
| LED-Chip: | SMD 2835 |
| Number of LED: | 25 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 90-264V, 50/60Hz |
| Power Consumption: | 13 W |
| Contains Driver: |  |
| Driver Manufacturer: | Meanwell |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with plug |
| Output of Driver: | DC 9-18V, 700mA |
| Switching Cycles: | >35.000 |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -20°C - 50°C |
| Dimensions: | 175x135x42 mm |
| Mounting: | ceiling,wall,ground |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Net Weight: | 1030 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.25 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 500x390x266 mm |
| Weight Master Package: | 15,05 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >82.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405421000 |
| Certifications | CE,TÜV,GS,LM80,SELV,D |
| Barcode: | 4250557812267 |
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66 more
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 1380 lm
LED-Leistung: 13 W
Leuchten-Lichtausbeute: 106 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <2
Abstrahlwinkel: 120°
Maße: 175x135x42 mm
Montageart: (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1030 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 82000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 1380 lm
LED-Leistung: 13 W
Leuchten-Lichtausbeute: 106 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <2
Abstrahlwinkel: 120°
Maße: 175x135x42 mm
Montageart: (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1030 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 82000 h
