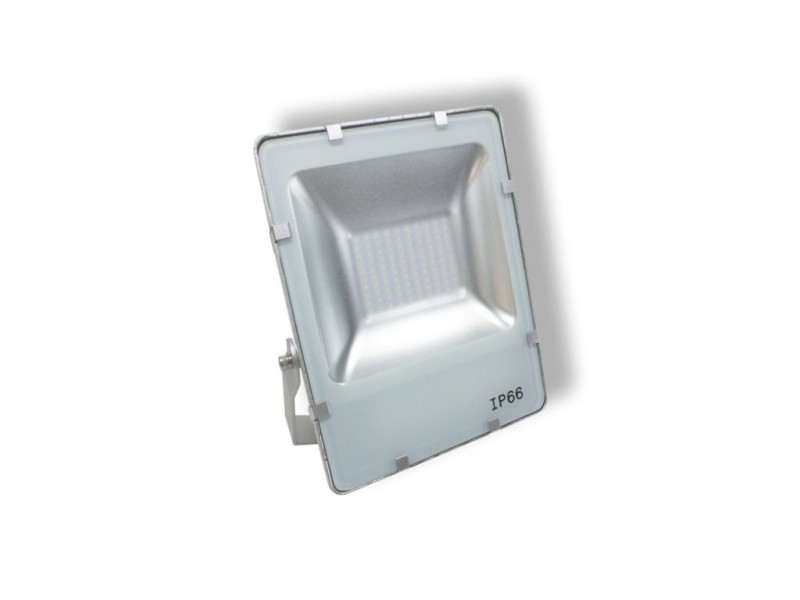

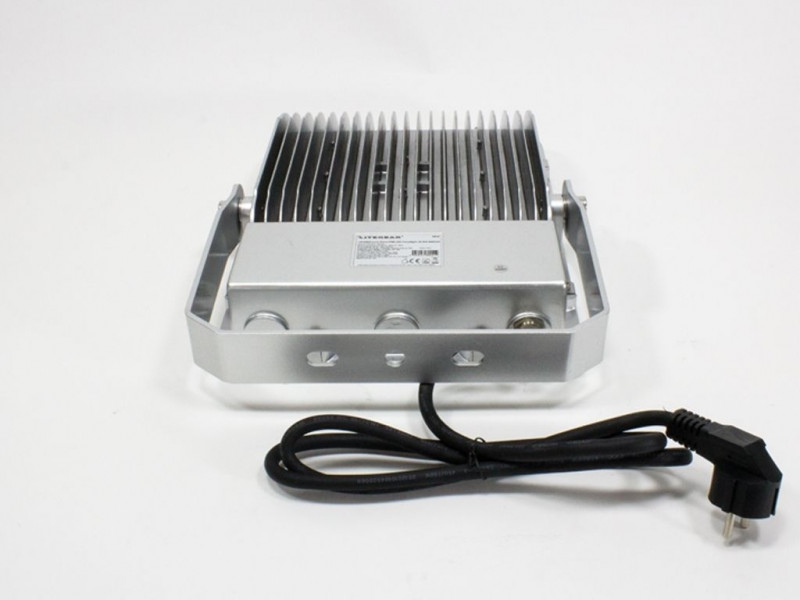

Luna Plane IP66 Floodlight 48-830-4200LM

LG10959S
Prices are only visible after login.

Availability: on request

Dimensions

Dimensions
  • LG10959S
  • Luminous Flux: 4200 lm
  • Power Draw: 48 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 85 - 265V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 66
  • Beam Angle: 120°
  • LED-Chip: Edison SMD 2835
  • Housing Color: silver
  • Dimensions: 330x243x55 mm
  • Warranty: 3 years

Luminous Flux

4200
lm

Power Draw

48 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

Beam Angle

120°

ceiling, wall, ground

mounting type

Dimensions

(LxBxH) in mm
330x243x55

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Flood Light   Litegear® Luna Plane is a flat and stylish LED outdoor... more
Product information "Luna Plane IP66 Floodlight 48-830-4200LM"
LED Flood Light

Litegear® Luna Plane is a flat and stylish LED outdoor floodlight. Due to the use of alluminum dicast housing, inox screws and alu bracket it has a excellent corrosion resistance. Much better than standard flood lights with steel brackets. Luna Plane is the perfect solution for use in factories, mobile for construction work, garden, parking area or for architectural applications. You can use it permanently outside in rough environment conditions. We use very efficient LED chips with a high lightoutput. The LED chips have a optimized heat dissipation to guarantee a long lifespan. Compared to other outdoor devices we have a much better Color rendering Index which let colors shine more naturally. After switching on the luminaire you have a instant full light without infrared waves which allows you to use it more closely to heat sensitive materials and makes working in front of the flood light more confenient and less sweatty. The internal power supply is power factor corrected for less waste of electricity.
Related links to "Luna Plane IP66 Floodlight 48-830-4200LM"
Technical Details:

Luminous Flux: 4200 lm
LED Output: 46 W
Light Yield: 88 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 120 °
Light Emission: sideward
LED-Chip Manufacturer: Edison
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 85 - 265V, 50/60Hz
Power Consumption: 48 W
Contains Driver: ja
Power Factor (PF): >0.95
Input Driver: cable with plug
Output of Driver: DC 30 - 36V, 1500mA
Switching Cycles: >35.000
Ambient Temperature (TA): -20°C - 50°C
Storage Temperature: -40°C - 60°C
Dimensions: 330x243x55 mm
Mounting: ceiling,wall,ground
Montageart: surface mounted
IP Class: 66
Housing Color silver
Housing Material: aluminum
Coating: powder-coated
Net Weight: 3063 g
Type of Packaging: box
Weight incl. Packaging: 3.311 kg
Content Master Package: 6
Dimensions of Master Package: 585x400x330 mm
Weight Master Package: 21,2 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L70/B50
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,GS
Barcode: 4250557820620
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66 more
LED-Outdoorstrahler aus hochwertigem Aluminium-Spritzguss-Gehäuse mit Alu-Montagebügel, IP66
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 4200 lm
LED-Leistung: 48 W
Leuchten-Lichtausbeute: 88 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 330x243x55 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Außenfarbe: silver
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 3063 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
