Order number: LG10885NW
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG10885NW
- Luminous Flux: 42000 lm
- Power Draw: 300 W
- Light Color: neutralwhite (4000 K)
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 90°
- LED-Chip: Cree SMD 3030
- Housing Color: black
- Dimensions: 518x450x62 mm
- Warranty: 5 years
Luminous Flux
42000
lm
Power Draw
300 W
Light Color
4000 K
neutralwhite
Color Rendering Index (CRI)
CRI
>70 Ra
IP Code
IP 66
Beam Angle
90°
ceiling, wall, ground
mounting type
Dimensions
(LxBxH) in mm
518x450x62
Warranty
5 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED floodlight with low glare Litegear`s LUNA PRO LED floodlight series has... more
Product information "LUNA PRO 300-740-42000LM LOW UGR"
LED floodlight with low glare

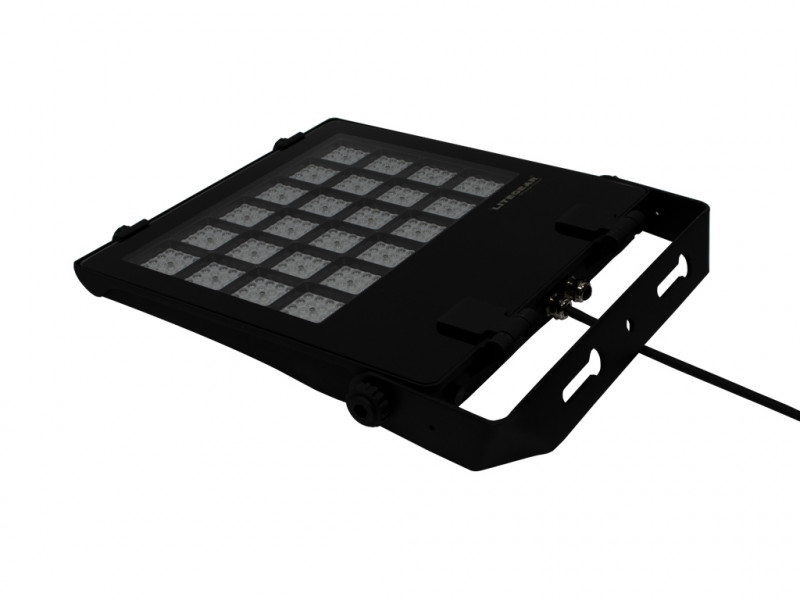

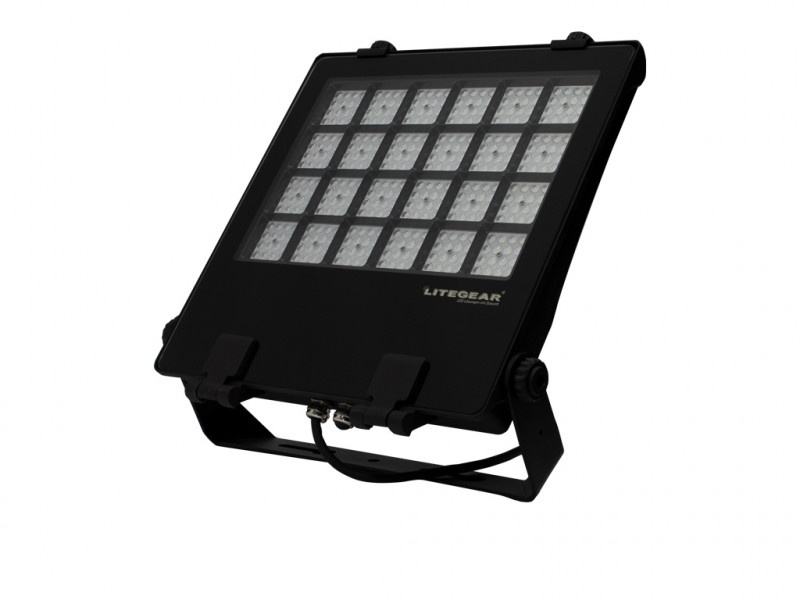

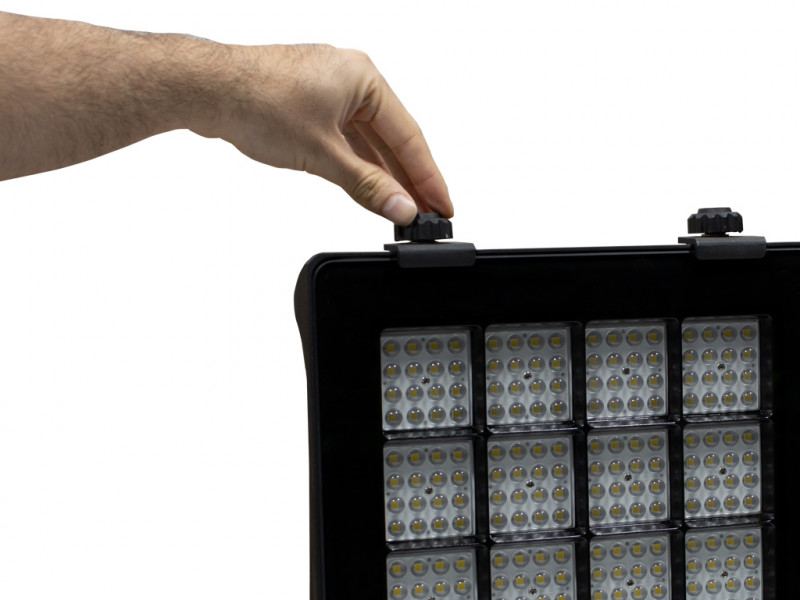

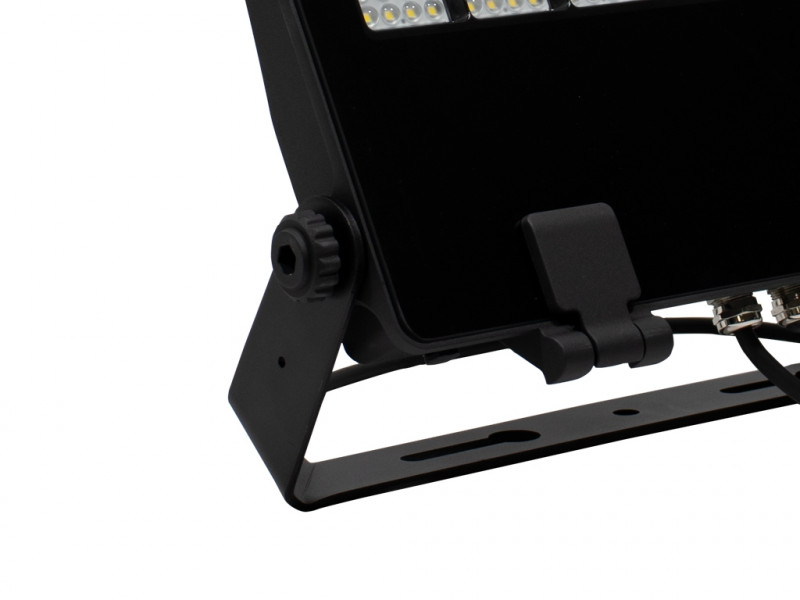

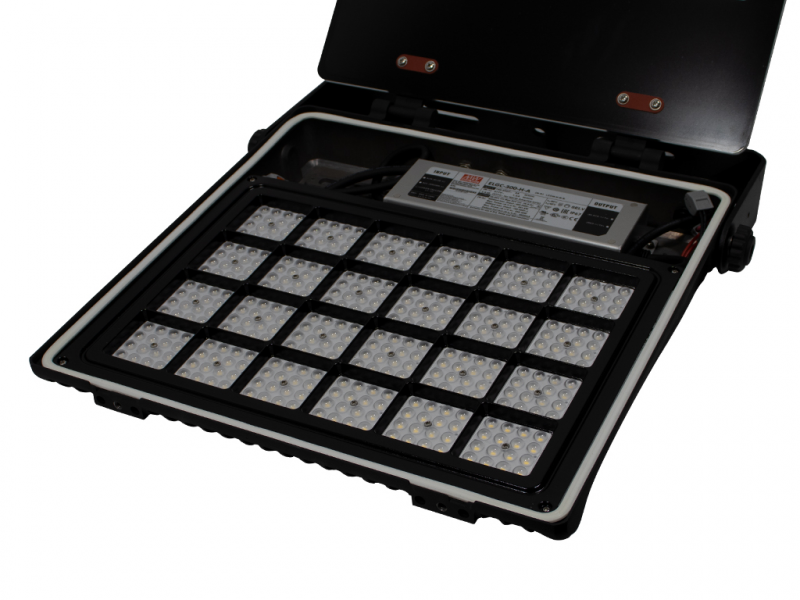

Litegear`s LUNA PRO LED floodlight series has an excellent performance and quality with a professional and easy to use design.Modern Cree® SMD LEDs ensure good system light output up to 140 lumens/Watt. Despite the high luminous flux of up to 42,000 lumens in the 300W variant, a black louvre ensures low glare from the sides (UGR <22). The LED floodlights are predestined for sports areas, tunnels or to support camera surveillance of outside areas. An aluminum die-cast housing ensures optimal heat dissipation of the LED chips and a long lifespan of up to 50,000 hours. The housing with a hinged front glas, which can be opened without tools, is particularly easy for service and installation. There is enough space inside for loop-wiring with 2 cable glands. A compensation valve is installed for controlled air pressure compensation. The floodlight can be easily mounted on walls and ceilings using a mounting bracket. The Litegear® Luna Pro floodlights are the perfect replacement for halogen floodlights or luminaires with gas discharge lamps. The modular design of the lenses enables optimized illumination of sports areas, parking lots and traffic areas. Generally the flood light is equiped with a 90° lenses as a standard (24 multilenses). Optional we offer modular lenses with 7 different beam angles. The lenses can be changed easily.
optional optics: symmetrical: 20 °, 30 °, 60 °, asymmetrical: type II, III, IV for streets and traffic areas, type V and P50 for intersections and sportfields.
optional accessories: stainless steel ball throw wire guard
Related links to "LUNA PRO 300-740-42000LM LOW UGR"
Technical Details:
Luminous Flux: | 42000 lm |
LED Output: | 300 W |
Light Yield: | 140 lm/W |
Light Temperature: | 4000 K |
Light Color: | neutralwhite |
Color Rendering Index: | ≥70 Ra |
Color Consistency (SDCM): | <5 |
Beam Angle: | 90 ° |
Unified Glare Rating (UGR): | 22 |
Light Emission: | sideward |
LED-Chip Manufacturer: | Cree |
LED-Chip: | SMD 3030 |
Number of LED: | 384 |
Ignition Time: | <0,5 s |
Power Consumption: | 300 W |
Contains Driver: | |
Driver Manufacturer: | Meanwell® ELG |
Power Factor (PF): | >0.95 |
Input Driver: | cable with flying leads |
CC/CV: | CC |
Input Lamp: | cable with flying leads |
Switching Cycles: | >100.000 |
Electrical Protection Class: | I |
Compatible with Emergency Current: | |
Loop-Through Cabling: | |
Ambient Temperature (TA): | -40°C - 50°C |
Storage Temperature: | -40°C - 60°C |
Dimensions: | 518x450x62 mm |
Mounting: | ceiling,wall,ground |
Montageart: | surface mounted |
Pivot Range tilt: | 90 ° |
IP Class: | 66 |
IK Code: | 08 |
Housing Color | black |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | Low Glare Louver |
Cover: | prismatic |
Net Weight: | 9500 g |
Type of Packaging: | box |
Dimensions of Packaging: | 553x490x110 |
Weight incl. Packaging: | 11 kg |
Content Master Package: | 1 |
Dimensions of Master Package: | 553x490x110 mm |
Weight Master Package: | 11 kg |
Product Line: | Premio Line |
Warranty | 5 years |
Operating Hours: | >50.000 h L90/B10 |
Disposal Obligation: | |
Customs Tariff Number: | 9405421000 |
Certifications | CE,LM79,LM80 |
Barcode: | 4250557819785 |
High System Efficency: max.140 Lumen/Watt | |
Low Glare max. UGR<22 for Sportfield | |
2 x Kabel-Verschraubung + Air compensation valve | |
werkzeuglos zu öffnen, 24 Linsen | |
tool free front opening, surge predection 6KV |
hochwertiger LED-Fluter mit geringer Blendung tredz hoher Lichtausbeuten bis zu 42.000lm more
hochwertiger LED-Fluter mit geringer Blendung tredz hoher Lichtausbeuten bis zu 42.000lm
Vorschaltgerät: LED-Treiber
Temperaturbereich: -40°C - 50°C
Lichtstrom: 42000 lm
LED-Leistung: 300 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 518x450x62 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 9500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L90/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -40°C - 50°C
Lichtstrom: 42000 lm
LED-Leistung: 300 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 518x450x62 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 9500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L90/B10): 50000 h
Available downloads:
- Download Manual Luna Pro (.pdf)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR D20 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR D30 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR D60 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR D90 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR P50 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR TP2 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR TP3 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR TP4 (.LDT)
- Download LG10885NW_LUNA PRO 300-740-42000LM LOW UGR TP5 (.LDT)
