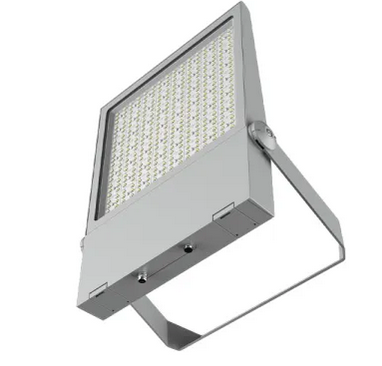

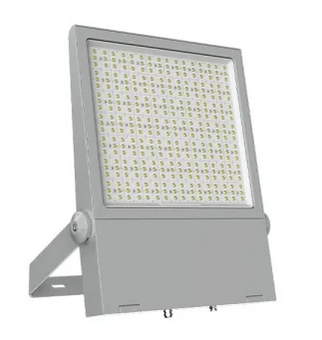

LUNA PRO MKII 200-722/740-34000LM max. DIM
Order number: LG10874
Available soon
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG10874
- Luminous Flux: 34000 lm
- Power Draw: 200 W
- Light Color: dualwhite (2200, 3000, 4000 K)
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 145x70°
- Housing Color: grey
- Dimensions: 452x338x131 mm
- Warranty: 5 years
State-of-the-art floodlight series The Luna Pro MKII is the evolution of the... more
Product information "LUNA PRO MKII 200-722/740-34000LM max. DIM"
State-of-the-art floodlight series
The Luna Pro MKII is the evolution of the successful Luna Pro series. New features include 0-10V dimmable LED drivers and a Zhaga Book 18 interface for accommodating sensors or Bluetooth Mesh transceivers.
Modular design with interchangeable lenses for asymmetrical illumination. Ideal for traffic areas, parking lots, or roadways. Lenses can be replaced by a technician. Robust die-cast aluminum housing
with 1,000-hour salt spray test rating.

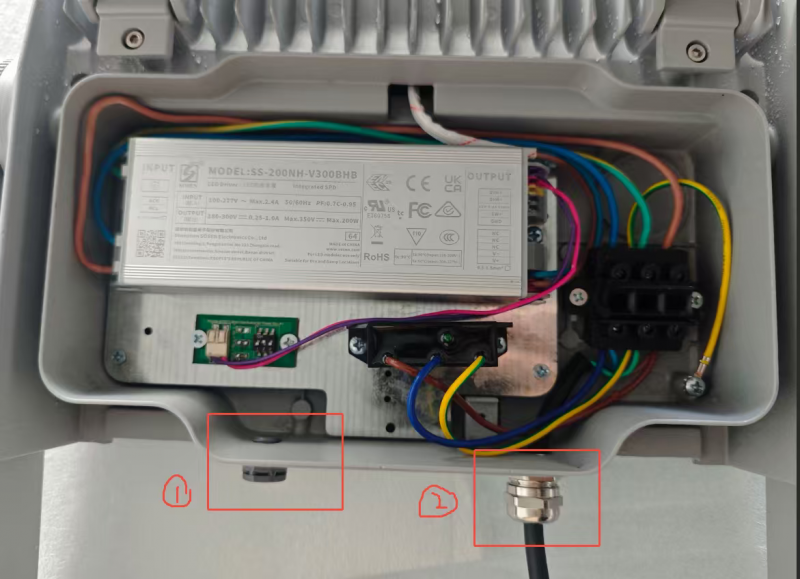

- Integrated surge protection device (SPD)
- Pressure compensation valve
- Automatic power cut-off when the cover is opened
- High luminous efficacy of 130-170 lm/W @3000K ca.150lm/W
- Selectable color temperature: 2200K, 3000K, 4000K
- Dimmable driver: 0/1-10V, PWM (for dimming via motion sensor or mesh network)
- Front-facing Zhaga Book 18 interface for sensors

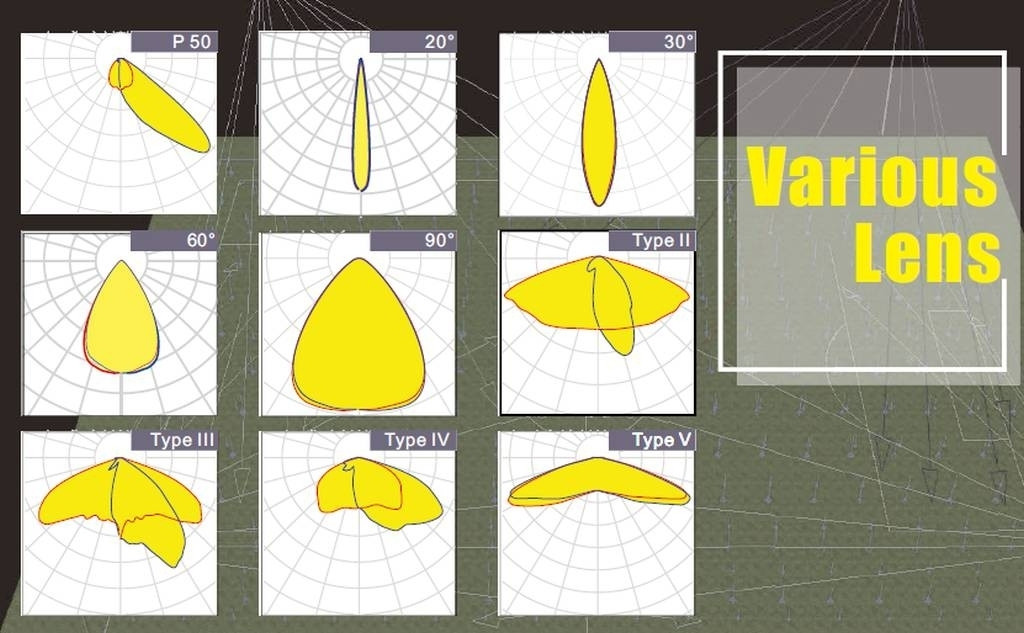

- Optional interchangeable lenses with symmetrical and asymmetrical beam angles
Applications:
Canopies, warehouses, outdoor areas, gas stations, parking lots, illumination of outdoor spaces and loading zones
Related links to "LUNA PRO MKII 200-722/740-34000LM max. DIM"
Technical Details:
| Luminous Flux: | 34000 lm |
| Light Yield: | 170 lm/W |
| Light Temperature: | 2200, 3000, 4000 K |
| Light Color: | dualwhite |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 145x70 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | sideward |
| Dimmable: |  |
| Method of Dimming: | 0-10V,1-10V,PWM |
| Ignition Time: | <0,5 s |
| Power Consumption: | 200 W |
| Contains Driver: | |

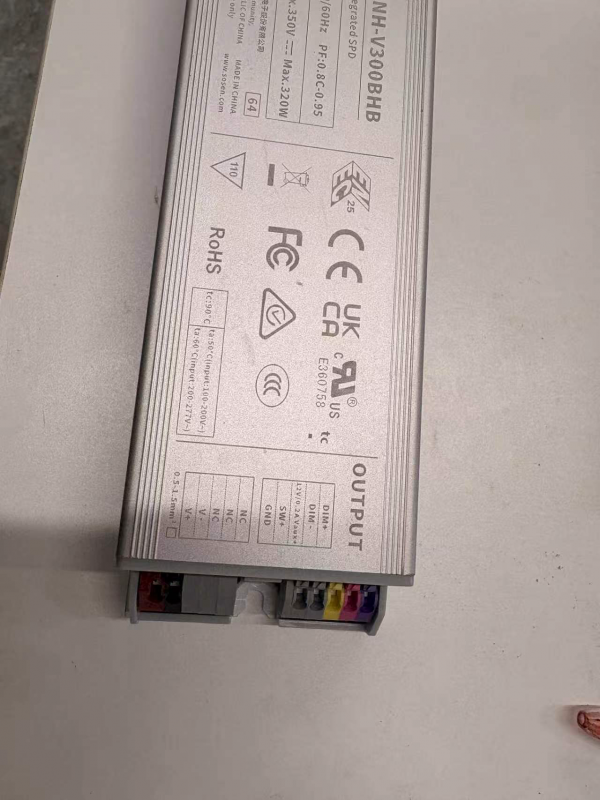

| Driver Manufacturer: | Sosen |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -40°C - 50°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 452x338x131 mm |
| Mounting: | ceiling,wall,ground |
| Montageart: | surface mounted |
| Pivot Range tilt: | 180 ° |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | grey |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | Salzsprühtest 1000h |
| Cover: | Lens |
| Net Weight: | 5800 g |
| Type of Packaging: | box |
| Content Master Package: | 1 |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405421000 |
| Certifications | CE,LM79,LM80 |
| High System Efficency: max.145 Lumen/Watt | |
| Low Glare max. UGR<24 for Sportfield | |
| 2 x Kabel-Verschraubung + Air compensation valve | |
| werkzeuglos zu öffnen, andere Linsen optional | |
| tool free front opening, surge predection 10KV SPD | |
hochwertiger LED-Fluter mit geringer Blendung tredz hoher Lichtausbeuten bis zu 42.000lm more
hochwertiger LED-Fluter mit geringer Blendung tredz hoher Lichtausbeuten bis zu 42.000lm
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 34000 lm
LED-Leistung: 200 W
Leuchten-Lichtausbeute: 170 lm/W
Farbtemperatur: 2200, 3000, 4000 K
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 145x70°
UGR: 24
Lichtaustritt: direkt
Maße: 452x338x131 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: grey
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 5800 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 34000 lm
LED-Leistung: 200 W
Leuchten-Lichtausbeute: 170 lm/W
Farbtemperatur: 2200, 3000, 4000 K
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 145x70°
UGR: 24
Lichtaustritt: direkt
Maße: 452x338x131 mm
Montageart: Aufbau (Decke,Wand,Boden)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: grey
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 5800 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
