SOLVELA FLOOD 20-740-3400LM IP65 IR remote
Order number: LG11995
Prices are only visible after login.
Availability: low stock
SOLAR LED-Floodlight autonome solar LED floodlight with separate mono... more
Product information "SOLVELA FLOOD 20-740-3400LM IP65 IR remote"

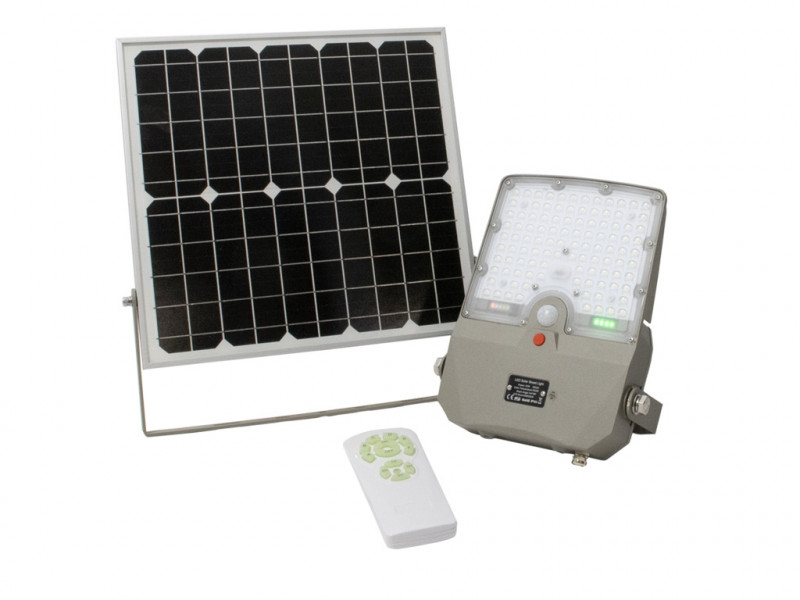

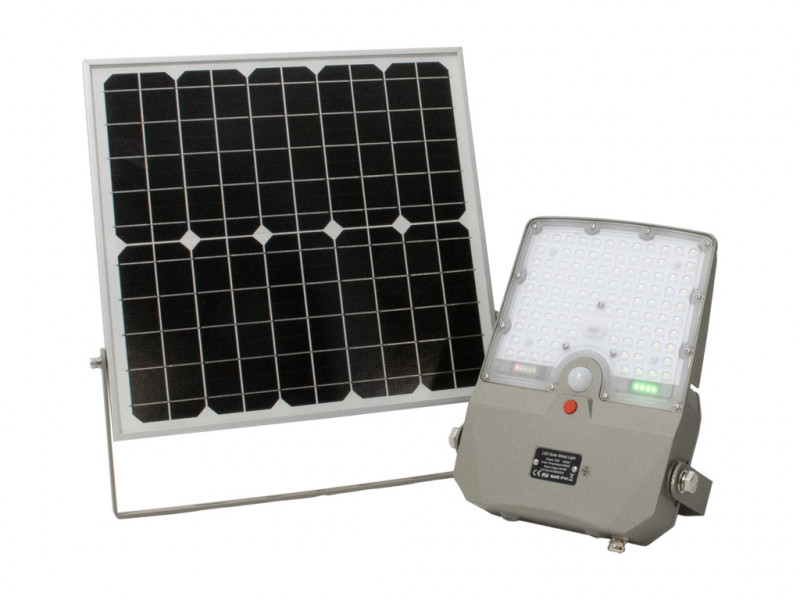

SOLAR LED-Floodlight
- autonome solar LED floodlight with separate mono cristaline solar panel, integrated motion detector and IR remote control
- perfect for gardens, walkways, parking areas or security in areas without electricity
- Due to separate solar panel the luminaire can be used inside buildings while the solar panel stays outside the building
- High Luminous efficiency: up to 170lm/W
- Sensor with various operation modes and stand by permanent light level
- max. battery duration time: 1-3 nights refer to bettery status and daylight level
- Operation mode battery status control via LED display
- operation mode selectable via IR remote control
- PIR motion detector 120° detection area <8m
- ligh class lithium battery 12AH/6,4V 2000 charging cycles

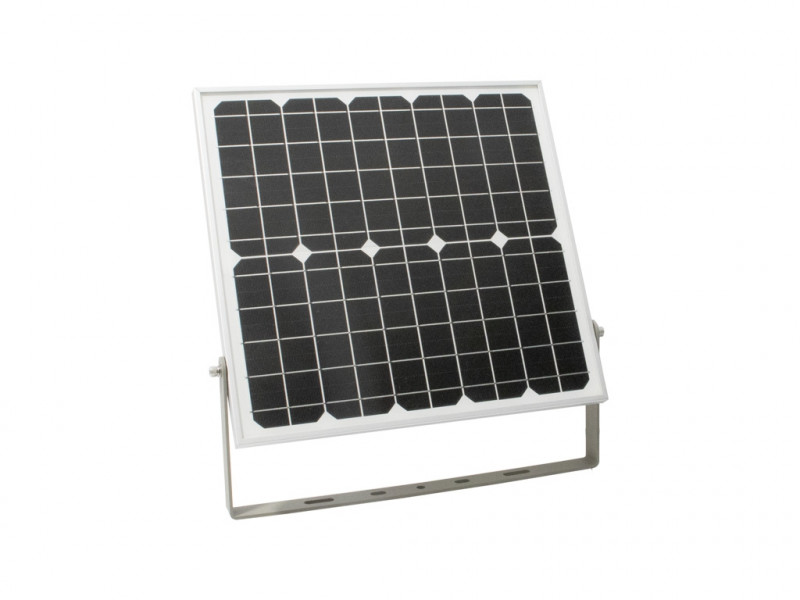

- mono cristaline solar panel with installtion bracket 20W/10V
- asymmetric beam angle 140° x 68° with 30° polarisation forward
10 Lighting Modes Options :
Mode A : Light on 100% if motion detected , Stand-by period 60 seconds , Light off if no motion detected;
Mode B : Light on 100% if motion detected , Stand-by period 60 seconds , Light on 5% if no motion detected;
Mode C : Light on 100% if motion detected , Stand-by period 120 seconds , Light off if no motion detected;
Mode D : Light on 100% if motion detected , Stand-by period 120 seconds , Light on 5% if no motion detected;
Mode E : Light on 100% for 3hr , and then Light on 50% if motion detected , Stand-by period 60 seconds , Light off if no motion detected;
Mode F : Light on 50% for 3hr , and then Light on 50% if motion detected , Stand-by period 60 seconds , Light on 5% if no motion detected;
Mode 1H : Light on 100% for 1hr , and then Light off , No sensing function;
Mode 2H : Light on 100% for 2hr , and then Light off , No sensing function;
Mode 3H : Light on 80% for 3hr , and then Light off , No sensing function;
Mode 4H : Light on 50% for 4hr , and then Light off , No sensing functio
Related links to "SOLVELA FLOOD 20-740-3400LM IP65 IR remote"
Technical Details:
| Luminous Flux: | 3400 lm |
| Light Yield: | 170 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 140x68 ° |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <1 s |
| Input Current: | DC 10V, 12AHmA |
| Power Consumption: | 20 W |
| CC/CV: | CV |
| Input Lamp: | plug connector |
| Switching Cycles: | >25.000 |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -10°C - 50°C |
| Dimensions: | 621,6x289,7x73,6 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| Housing Color | grey |
| Housing Material: | aluminum |
| Special Feature of Housing: | Sensor sep. Solarpanel |
| Cover: | Lens |
| Net Weight: | 4980 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 730x330x100 |
| Weight incl. Packaging: | 5.81 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 760x395x360 mm |
| Weight Master Package: | 25,28 kg |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Operating Hours: | >35.000 h L80/B20 |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405413990 |
| Certifications | CE |
| Barcode: | 4250557823126 |
| Bügel für Wand-/Deckenmontage | |
| separates Solarpanel, Sensor mit Fernbedienung | |
